Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

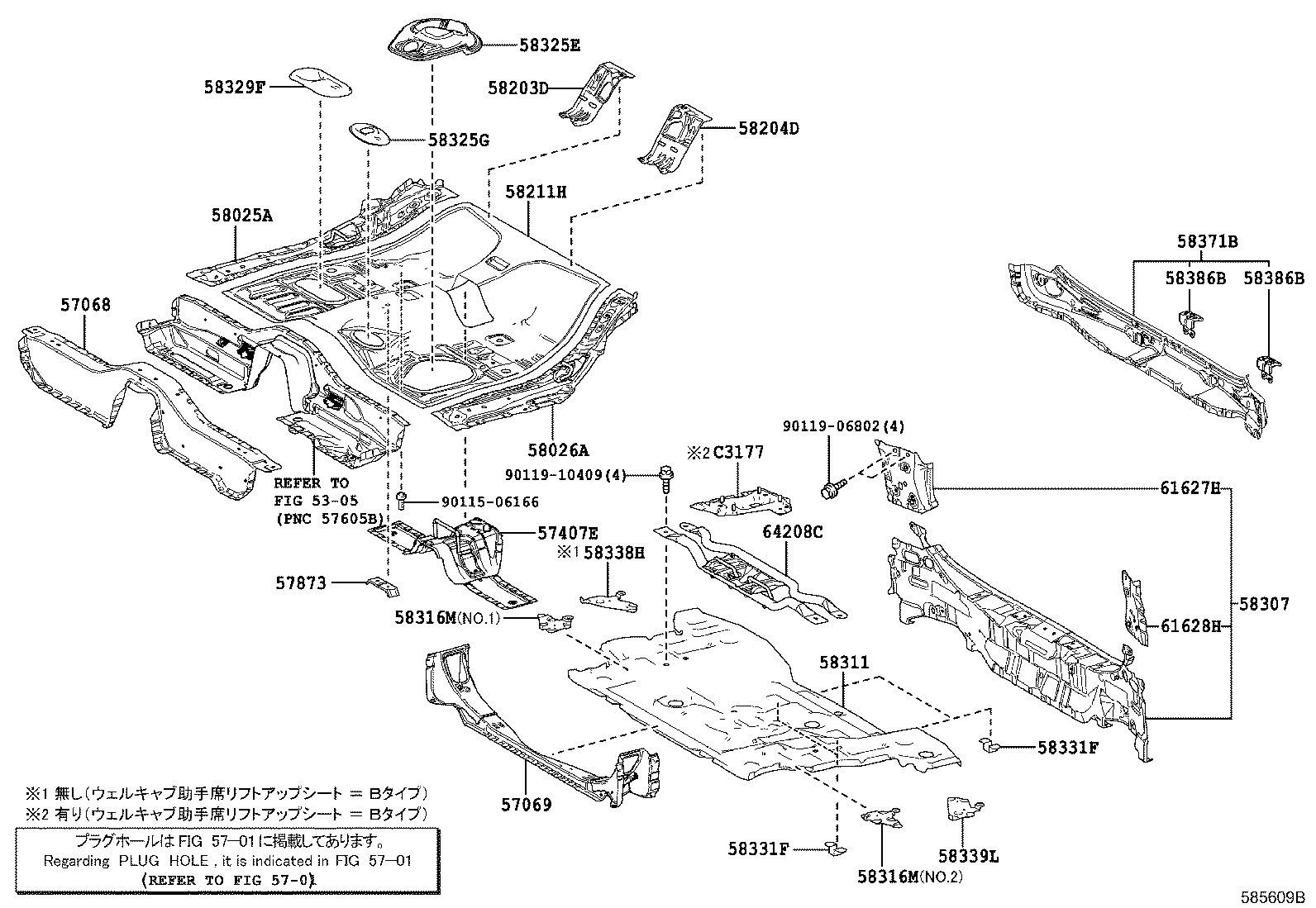

Exploded illustration 585609B 5305 — not listed in this catalogue 57068 — MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER (6 parts) 57069 — MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER (11 parts) 58025A — PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH (3 parts) 58026A — PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH (9 parts) 58203D — BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER RH (2 parts) 58204D — BRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH (2 parts) 58211H — PAN, CENTER FLOOR (8 parts) 58307 — PANEL SUB-ASSY, BODY LOWER BACK (18 parts) 58311 — PAN, REAR FLOOR (12 parts) C3177 — EXTENSION, REAR FLOOR PAN SIDE, RH (2 parts) 58316M — RETAINER, REAR SEAT ANCHOR (7 parts) 58316M — RETAINER, REAR SEAT ANCHOR (7 parts) 58338H — REINFORCEMENT, REAR FLOOR PAN, NO.2 RH (5 parts) 58339L — REINFORCEMENT, REAR FLOOR PAN, NO.2 LH (5 parts) 58371B — PANEL, BODY LOWER BACK, OUTER (6 parts) 64208C — MEMBER SUB-ASSY, ROOM PARTITION CROSS (2 parts) 9011906802 — not listed in this catalogue 9011910409 — not listed in this catalogue 9011506166 — not listed in this catalogue 5701 — not listed in this catalogue 58386B — BRACKET, REAR BUMPER COVER, NO.2 (2 parts) 58386B — BRACKET, REAR BUMPER COVER, NO.2 (2 parts) 61627H — EXTENSION, QUARTER PANEL, REAR LOWER RH (5 parts) 61628H — EXTENSION, QUARTER PANEL, REAR LWR LH (5 parts) 57407E — MEMBER SUB-ASSY, CENTER FLOOR CROSS (2 parts) 57873 — PATCH, REAR NO.1 SEAT LEG, REAR NO.3 (2 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (4 parts) 58325G — COVER, REAR FLOOR SERVICE HOLE (2 parts) 58329F — COVER, REAR FLOOR SERVICE HOLE, NO.2 (2 parts) 58331F — BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 (2 parts) 58331F — BRACKET, REAR FLOOR HEAT INSULATOR, NO.3 (2 parts)
585609B · 27 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
124 parts on this figure
Part number Description Fitment Price
57068 — Member Sub-assy, Rear Floor Rear Cross, Inner
57068-52040 Member Sub-assy, Rear Floor Rear Cross, Inner
2015-06 → 2018-09 ended
NHP170,NSP170 ¥19,800
57068-52050 Member Sub-assy, Rear Floor Rear Cross, Inner
2015-06 → 2018-09 ended
NCP175 ¥10,900
57068-52070 Member Sub-assy, Rear Floor Rear Cross, Inner
2015-06 → 2018-09 ended
NSP172 ¥18,100
57068-52040 Member Sub-assy, Rear Floor Rear Cross, Inner
2018-09 → 2022-07 ended
NHP170,NSP170 ¥19,800
57068-52050 Member Sub-assy, Rear Floor Rear Cross, Inner
2018-09 → 2022-07 ended
NCP175 ¥10,900
57068-52070 Member Sub-assy, Rear Floor Rear Cross, Inner
2018-09 → 2022-07 ended
NSP172 ¥18,100
57069 — Member Sub-assy, Rear Floor Rear Cross, Outer
57069-52040 Member Sub-assy, Rear Floor Rear Cross, Outer
2015-06 → 2018-02 ended
NHP170,NSP170 ¥16,400
57069-52040 note Member Sub-assy, Rear Floor Rear Cross, Outer
2015-06 → 2018-02 ended
NHP170,NSP170 06S ¥16,400
57069-52040 note Member Sub-assy, Rear Floor Rear Cross, Outer
2015-06 → 2018-02 ended
NSP170 07S ¥16,400
57069-52040 note Member Sub-assy, Rear Floor Rear Cross, Outer
2015-07 → 2018-02 ended
NHP170 07S ¥16,400
57069-52041 Member Sub-assy, Rear Floor Rear Cross, Outer
2018-02 → 2018-09 ended
NHP170,NSP170 ¥18,100
57069-52041 note Member Sub-assy, Rear Floor Rear Cross, Outer
2018-02 → 2018-09 ended
NHP170,NSP170 06S ¥18,100
57069-52041 note Member Sub-assy, Rear Floor Rear Cross, Outer
2018-02 → 2018-09 ended
NSP170 07S ¥18,100
57069-52041 note Member Sub-assy, Rear Floor Rear Cross, Outer
2018-02 → 2018-09 ended
NHP170 07S ¥18,100
57069-52050 Member Sub-assy, Rear Floor Rear Cross, Outer
2015-06 → 2018-09 ended
NCP175 ¥18,100
57069-52041 Member Sub-assy, Rear Floor Rear Cross, Outer
2018-09 → 2022-07 ended
NHP170,NSP170 ¥18,100
57069-52050 Member Sub-assy, Rear Floor Rear Cross, Outer
2018-09 → 2022-07 ended
NCP175 ¥18,100
57407E — Member Sub-assy, Center Floor Cross
57407-52040 Member Sub-assy, Center Floor Cross
2015-06 → 2018-09 ended
NCP175 ¥10,900
57407-52040 Member Sub-assy, Center Floor Cross
2018-09 → 2022-07 ended
NCP175 ¥10,900
57873 — Patch, Rear NO.1 Seat Leg, Rear NO.3
57873-52010 Patch, Rear NO.1 Seat Leg, Rear NO.3
2015-06 → 2018-09 ended
NCP175 ¥1,150
57873-52010 Patch, Rear NO.1 Seat Leg, Rear NO.3
2018-09 → 2022-07 ended
NCP175 ¥1,150
58025A — Panel Sub-assy, Floor Side Rail, FR RH
58025-52050 Panel Sub-assy, Floor Side Rail, FR RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,100
58025-52050 Panel Sub-assy, Floor Side Rail, FR RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥5,100
58025-52070 Panel Sub-assy, Floor Side Rail, FR RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥5,700
58026A — Panel Sub-assy, Floor Side Rail, FR LH
58026-52070 Panel Sub-assy, Floor Side Rail, FR LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,700
58026-52140 note Panel Sub-assy, Floor Side Rail, FR LH
2015-06 → 2018-09 ended
NSP172 X ¥4,760
58026-52140 note Panel Sub-assy, Floor Side Rail, FR LH
2015-06 → 2018-09 ended
NSP172 X ¥4,760
58026-52140 note Panel Sub-assy, Floor Side Rail, FR LH
2015-12 → 2018-09 ended
NSP172 X ¥4,760
58026-52070 Panel Sub-assy, Floor Side Rail, FR LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥5,700
58026-52130 Panel Sub-assy, Floor Side Rail, FR LH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥5,700
58026-52140 note Panel Sub-assy, Floor Side Rail, FR LH
2018-09 → 2022-07 ended
NSP172 WKX ¥4,760
58026-52140 note Panel Sub-assy, Floor Side Rail, FR LH
2018-09 → 2022-07 ended
NSP172 WKX ¥4,760
58026-52140 note Panel Sub-assy, Floor Side Rail, FR LH
2018-09 → 2022-07 ended
NSP172 WKX ¥4,760
58203D — Bracket Sub-assy, Rear Seat Hinge, Outer RH
58203-52110 Bracket Sub-assy, Rear Seat Hinge, Outer RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,440
58203-52110 Bracket Sub-assy, Rear Seat Hinge, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥2,440
58204D — Bracket Sub-assy, Rear Seat Hinge, Outer LH
58204-52090 Bracket Sub-assy, Rear Seat Hinge, Outer LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,440
58204-52090 Bracket Sub-assy, Rear Seat Hinge, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥2,440
58211H — Pan, Center Floor
58211-52300 Pan, Center Floor
2015-06 → 2018-09 ended
NHP170,NSP170 ¥19,000
58211-52320 Pan, Center Floor
2015-06 → 2018-09 ended
NSP172 ¥14,400
58211-52911 Pan, Center Floor
2015-06 → 2018-09 ended
NCP175 ¥15,800
58211-52300 Pan, Center Floor
2018-09 → 2020-06 ended
NHP170,NSP170 ¥19,000
58211-52300 note Pan, Center Floor
2020-06 → 2022-07 ended
NHP170 ¥19,000
58211-52320 Pan, Center Floor
2018-09 → 2022-07 ended
NSP172 ¥14,400
58211-52370 Pan, Center Floor
2020-06 → 2022-07 ended
NHP170,NSP170 ¥15,800
58211-52911 Pan, Center Floor
2018-09 → 2022-07 ended
NCP175 ¥15,800
58307 — Panel Sub-assy, Body Lower Back
57607-52130 Panel Sub-assy, Body Lower Back
2015-06 → 2018-09 ended
NSP172 ¥19,800
58302-52160 note Panel Sub-assy, Body Lower Back
2018-02 → 2018-04 ended
NSP170 ¥18,300
58302-52160 note Panel Sub-assy, Body Lower Back
2015-06 → 2018-02 ended
NSP170 07S ¥18,300
58302-52160 note Panel Sub-assy, Body Lower Back
2018-02 → 2018-04 ended
NSP170 07S ¥18,300
58302-52160 note Panel Sub-assy, Body Lower Back
2018-02 → 2018-04 ended
NSP170 06S ¥18,300
58302-52160 note Panel Sub-assy, Body Lower Back
2018-02 → 2018-04 ended
NSP170 07S ¥18,300
58302-52160 Panel Sub-assy, Body Lower Back
2018-02 → 2018-04 ended
NSP170 ¥18,300
58302-52160 note Panel Sub-assy, Body Lower Back
2015-07 → 2018-04 ended
NHP170 07S ¥18,300
58302-52160 note Panel Sub-assy, Body Lower Back
2015-06 → 2018-04 ended
NHP170 06S ¥18,300
58302-52160 Panel Sub-assy, Body Lower Back
2015-06 → 2018-04 ended
NCP175,NHP170 ¥18,300
58302-52160 note Panel Sub-assy, Body Lower Back
2015-06 → 2018-02 ended
NSP170 06S ¥18,300
58302-52160 Panel Sub-assy, Body Lower Back
2015-06 → 2018-02 ended
NSP170 ¥18,300
58302-52162 Panel Sub-assy, Body Lower Back
2018-05 → 2018-09 ended
NCP175,NHP170,NSP170 ¥15,200
58302-52162 note Panel Sub-assy, Body Lower Back
2018-05 → 2018-09 ended
NHP170,NSP170 06S ¥15,200
58302-52162 note Panel Sub-assy, Body Lower Back
2018-05 → 2018-09 ended
NSP170 07S ¥15,200
58302-52162 note Panel Sub-assy, Body Lower Back
2018-05 → 2018-09 ended
NHP170 07S ¥15,200
57607-52130 Panel Sub-assy, Body Lower Back
2018-09 → 2022-07 ended
NSP172 ¥19,800
58302-52162 Panel Sub-assy, Body Lower Back
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥15,200
58311 — Pan, Rear Floor
58311-52173 Pan, Rear Floor
2015-06 → 2018-09 ended
NCP175 ¥19,200
58311-52260 Pan, Rear Floor
2015-06 → 2018-09 ended
NSP172 ¥19,100
58311-52911 note Pan, Rear Floor
2015-06 → 2018-09 ended
NSP170 06S ¥19,200
58311-52911 note Pan, Rear Floor
2015-06 → 2018-09 ended
NSP170 07S ¥19,200
58311-52911 Pan, Rear Floor
2015-06 → 2018-09 ended
NSP170 ¥19,200
58311-52912 Pan, Rear Floor
2015-07 → 2018-09 ended
NHP170 ¥19,100
58311-52912 note Pan, Rear Floor
2015-07 → 2018-09 ended
NHP170 06S ¥19,100
58311-52912 note Pan, Rear Floor
2015-07 → 2018-09 ended
NHP170 07S ¥19,100
58311-52173 Pan, Rear Floor
2018-09 → 2022-07 ended
NCP175 ¥19,200
58311-52260 Pan, Rear Floor
2018-09 → 2022-07 ended
NSP172 ¥19,100
58311-52911 Pan, Rear Floor
2018-09 → 2022-07 ended
NSP170 ¥19,200
58311-52912 Pan, Rear Floor
2018-09 → 2022-07 ended
NHP170 ¥19,100
58316M — Retainer, Rear Seat Anchor
58317-52030 note Retainer, Rear Seat Anchor
2015-07 → 2018-09 ended
NHP170 07S ¥580
58317-52030 note Retainer, Rear Seat Anchor
2015-06 → 2018-09 ended
NSP170 07S ¥580
58317-52030 note Retainer, Rear Seat Anchor
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥580
58317-52030 note Retainer, Rear Seat Anchor
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥580
58318-52010 note Retainer, Rear Seat Anchor
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥580
58317-52030 note Retainer, Rear Seat Anchor
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥580
58318-52010 note Retainer, Rear Seat Anchor
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥580
58325E — Cover, Rear Floor Service Hole
58325-52090 Cover, Rear Floor Service Hole
2015-06 → 2018-09 ended
NHP170,NSP17# ¥1,690
58325-52100 Cover, Rear Floor Service Hole
2015-06 → 2018-09 ended
NCP175 ¥1,610
58325-52090 Cover, Rear Floor Service Hole
2018-09 → 2022-07 ended
NHP170,NSP17# ¥1,690
58325-52100 Cover, Rear Floor Service Hole
2018-09 → 2022-07 ended
NCP175 ¥1,610
58325G — Cover, Rear Floor Service Hole
58339-52051 Cover, Rear Floor Service Hole
2015-06 → 2018-09 ended
NCP175 ¥790
58339-52051 Cover, Rear Floor Service Hole
2018-09 → 2022-07 ended
NCP175 ¥790
58329F — Cover, Rear Floor Service Hole, NO.2
58329-52011 Cover, Rear Floor Service Hole, NO.2
2015-06 → 2018-09 ended
NCP175 ¥1,170
58329-52011 Cover, Rear Floor Service Hole, NO.2
2018-09 → 2022-07 ended
NCP175 ¥1,170
58331F — Bracket, Rear Floor Heat Insulator, NO.3
58331-10011 Bracket, Rear Floor Heat Insulator, NO.3
2015-06 → 2018-09 ended
NCP175 ¥240
58331-10011 Bracket, Rear Floor Heat Insulator, NO.3
2018-09 → 2022-07 ended
NCP175 ¥240
58338H — Reinforcement, Rear Floor Pan, NO.2 RH
58338-52040 note Reinforcement, Rear Floor Pan, NO.2 RH
2015-07 → 2018-09 ended
NHP170 07S ¥740
58338-52040 note Reinforcement, Rear Floor Pan, NO.2 RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥740
58338-52040 Reinforcement, Rear Floor Pan, NO.2 RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥740
58338-52040 note Reinforcement, Rear Floor Pan, NO.2 RH
2015-06 → 2018-09 ended
NSP170 07S ¥740
58338-52040 Reinforcement, Rear Floor Pan, NO.2 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥740
58339L — Reinforcement, Rear Floor Pan, NO.2 LH
58339-52090 Reinforcement, Rear Floor Pan, NO.2 LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥740
58339-52090 note Reinforcement, Rear Floor Pan, NO.2 LH
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥740
58339-52090 note Reinforcement, Rear Floor Pan, NO.2 LH
2015-06 → 2018-09 ended
NSP170 07S ¥740
58339-52090 note Reinforcement, Rear Floor Pan, NO.2 LH
2015-07 → 2018-09 ended
NHP170 07S ¥740
58339-52090 Reinforcement, Rear Floor Pan, NO.2 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥740
58371B — Panel, Body Lower Back, Outer
58307-52660 Panel, Body Lower Back, Outer
2015-06 → 2018-09 ended
NSP172 ¥14,200
58307-52670 Panel, Body Lower Back, Outer
2015-06 → 2018-09 ended
NHP170,NSP170 ¥9,600
58307-52680 Panel, Body Lower Back, Outer
2015-06 → 2018-09 ended
NCP175 ¥8,000
58307-52660 Panel, Body Lower Back, Outer
2018-09 → 2022-07 ended
NSP172 ¥14,200
58307-52670 Panel, Body Lower Back, Outer
2018-09 → 2022-07 ended
NHP170,NSP170 ¥9,600
58307-52680 Panel, Body Lower Back, Outer
2018-09 → 2022-07 ended
NCP175 ¥8,000
58386B — Bracket, Rear Bumper Cover, NO.2
58386-47020 Bracket, Rear Bumper Cover, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥400
58386-47020 Bracket, Rear Bumper Cover, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥400
61627H — Extension, Quarter Panel, Rear Lower RH
61627-52030 Extension, Quarter Panel, Rear Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,440
61627-52030 note Extension, Quarter Panel, Rear Lower RH
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥2,440
61627-52030 note Extension, Quarter Panel, Rear Lower RH
2015-06 → 2018-09 ended
NSP170 07S ¥2,440
61627-52030 note Extension, Quarter Panel, Rear Lower RH
2015-07 → 2018-09 ended
NHP170 07S ¥2,440
61627-52030 Extension, Quarter Panel, Rear Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,440
61628H — Extension, Quarter Panel, Rear Lwr LH
61628-52030 Extension, Quarter Panel, Rear Lwr LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,420
61628-52030 note Extension, Quarter Panel, Rear Lwr LH
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥2,420
61628-52030 note Extension, Quarter Panel, Rear Lwr LH
2015-06 → 2018-09 ended
NSP170 07S ¥2,420
61628-52030 note Extension, Quarter Panel, Rear Lwr LH
2015-07 → 2018-09 ended
NHP170 07S ¥2,420
61628-52030 Extension, Quarter Panel, Rear Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,420
64208C — Member Sub-assy, Room Partition Cross
64208-52031 Member Sub-assy, Room Partition Cross
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥10,500
64208-52031 Member Sub-assy, Room Partition Cross
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥10,500
C3177 — Extension, Rear Floor Pan Side, RH
C3177-52020 note Extension, Rear Floor Pan Side, RH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,550
C3177-52020 note Extension, Rear Floor Pan Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,550
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
