Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

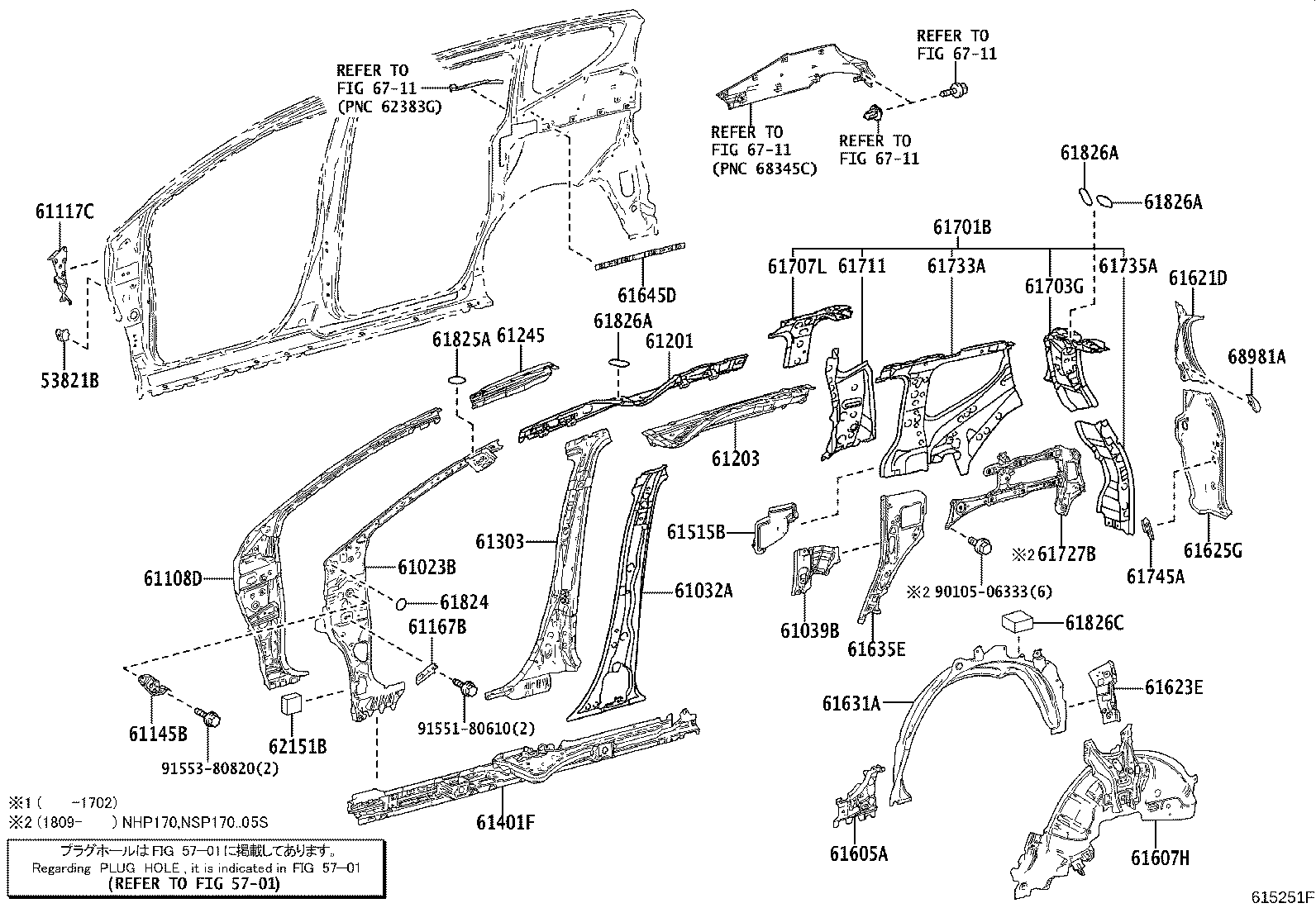

Exploded illustration 615251F 53821B — BRACKET, FRONT FENDER, REAR RH (2 parts) 61023B — PILLAR SUB-ASSY, FRONT BODY, INNER RH (2 parts) 61032A — PILLAR SUB-ASSY, NO.1 INNER, RH (2 parts) 61039B — REINFORCE SUB-ASSY, REAR PILLAR, UPPER RH (2 parts) 61108D — REINFORCEMENT SUB-ASSY, FRONT PILLAR, LOWER RH (2 parts) 61117C — GUSSET, SIDE PANEL TO COWL, RH (2 parts) 61145B — GUSSET, FRONT BODY PILLAR, LOWER RH (2 parts) 61167B — BRACE, FRONT BODY PILLAR, LOWER (2 parts) 61201 — RAIL SUB-ASSY, ROOF SIDE, RH (2 parts) 61203 — RAIL SUB-ASSY, ROOF SIDE, INNER RH (2 parts) 61245 — REINFORCEMENT, ROOF SIDE RAIL, OUTER RH (2 parts) 61303 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH (2 parts) 61401F — REINFORCEMENT SUB-ASSY, ROCKER PANEL, RH (4 parts) 61515B — EXTENSION, QUARTER LOCK PILLAR, RH (4 parts) 61605A — REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH (2 parts) 61607H — PANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH (6 parts) 61621D — TROUGH, BACK DOOR OPENING, RH (2 parts) 61623E — EXTENSION, QUARTER INNER PANEL, REAR RH (2 parts) 61625G — EXTENSION, QUARTER PANEL, REAR RH (2 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (4 parts) 61635E — EXTENSION, QUARTER WHEEL HOUSE, RH (4 parts) 61645D — RETAINER, QUARTER, INNER (2 parts) 61701B — PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH (3 parts) 61703G — PANEL SUB-ASSY, QUARTER, INNER RH (3 parts) 61707L — PANEL SUB-ASSY, ROOF SIDE, INNER FRONT RH (2 parts) 61711 — PANEL, ROOF SIDE, OUTER RH (2 parts) 61733A — PANEL, ROOF SIDE, INNER FRONT RH (4 parts) 61735A — PANEL, ROOF SIDE, INNER REAR RH (4 parts) 61745A — REINFORCEMENT, BACK DOOR OPENING, LOWER RH (2 parts) 61727B — EXTENSION, QUARTER PANEL REINFORCEMENT, RH (1 parts) 61824 — PLATE, NOISE CONTROL, NO.1 (2 parts) 61825A — PLATE, NOISE CONTROL, NO.2 (2 parts) 61826A — PLATE, NOISE CONTROL, NO.3 (2 parts) 61826A — PLATE, NOISE CONTROL, NO.3 (2 parts) 61826A — PLATE, NOISE CONTROL, NO.3 (2 parts) 61826C — PAD, NOISE SHUTTER, NO.3 (2 parts) 62151B — PAD, COWL SIDE SILENCER (2 parts) 68981A — RETAINER, BACK DOOR STAY, RH (2 parts) 9010506333 — not listed in this catalogue 9155180610 — not listed in this catalogue 9155380820 — not listed in this catalogue 5701 — not listed in this catalogue 6711 — not listed in this catalogue 6711 — not listed in this catalogue 6711 — not listed in this catalogue 6711 — not listed in this catalogue
615251F · 38 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
89 parts on this figure
Part number Description Fitment Price
53821B — Bracket, Front Fender, Rear RH
53821-48030 Bracket, Front Fender, Rear RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥240
53821-48030 Bracket, Front Fender, Rear RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥240
61023B — Pillar Sub-assy, Front Body, Inner RH
61023-52210 Pillar Sub-assy, Front Body, Inner RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,800
61023-52210 Pillar Sub-assy, Front Body, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥16,800
61032A — Pillar Sub-assy, NO.1 Inner, RH
61032-52130 Pillar Sub-assy, NO.1 Inner, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥7,800
61032-52130 Pillar Sub-assy, NO.1 Inner, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,800
61039B — Reinforce Sub-assy, Rear Pillar, Upper RH
61039-52020 Reinforce Sub-assy, Rear Pillar, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,000
61039-52020 Reinforce Sub-assy, Rear Pillar, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,000
61108D — Reinforcement Sub-assy, Front Pillar, Lower RH
61108-52220 Reinforcement Sub-assy, Front Pillar, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥17,200
61108-52220 Reinforcement Sub-assy, Front Pillar, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥17,200
61117C — Gusset, Side Panel TO Cowl, RH
61117-52060 Gusset, Side Panel TO Cowl, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,780
61117-52060 Gusset, Side Panel TO Cowl, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,780
61145B — Gusset, Front Body Pillar, Lower RH
61145-52070 Gusset, Front Body Pillar, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,220
61145-52070 Gusset, Front Body Pillar, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,220
61167B — Brace, Front Body Pillar, Lower
61167-52010 Brace, Front Body Pillar, Lower
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
61167-52010 Brace, Front Body Pillar, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥540
61201 — Rail Sub-assy, Roof Side, RH
61201-52130 Rail Sub-assy, Roof Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,100
61201-52130 Rail Sub-assy, Roof Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,100
61203 — Rail Sub-assy, Roof Side, Inner RH
61203-52070 Rail Sub-assy, Roof Side, Inner RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,600
61203-52070 Rail Sub-assy, Roof Side, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,600
61245 — Reinforcement, Roof Side Rail, Outer RH
61245-52120 Reinforcement, Roof Side Rail, Outer RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,990
61245-52120 Reinforcement, Roof Side Rail, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,990
61303 — Reinforce Sub-assy, Center Body Pillar, Upper RH
61303-52050 Reinforce Sub-assy, Center Body Pillar, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥32,600
61303-52050 Reinforce Sub-assy, Center Body Pillar, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥32,600
61401F — Reinforcement Sub-assy, Rocker Panel, RH
61401-52030 Reinforcement Sub-assy, Rocker Panel, RH
2015-06 → 2016-07 ended
NCP175,NHP170,NSP17# ¥44,900
61401-52031 Reinforcement Sub-assy, Rocker Panel, RH
2016-08 → 2018-09 ended
NCP175,NHP170,NSP17# ¥31,100
61401-52031 note Reinforcement Sub-assy, Rocker Panel, RH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥31,100
61401-52031 Reinforcement Sub-assy, Rocker Panel, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥31,100
61515B — Extension, Quarter Lock Pillar, RH
61515-52030 Extension, Quarter Lock Pillar, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥3,600
61515-52040 Extension, Quarter Lock Pillar, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥3,540
61515-52030 Extension, Quarter Lock Pillar, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥3,600
61515-52040 Extension, Quarter Lock Pillar, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥3,540
61605A — Reinforcement Sub-assy, Quarter Panel, RH
61605-52080 Reinforcement Sub-assy, Quarter Panel, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,620
61605-52080 Reinforcement Sub-assy, Quarter Panel, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,620
61607H — Panel Sub-assy, Quarter Wheel House, Inner RH
61607-52380 Panel Sub-assy, Quarter Wheel House, Inner RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥15,100
61607-52420 Panel Sub-assy, Quarter Wheel House, Inner RH
2015-06 → 2018-09 ended
NCP175 ¥15,100
61607-52430 Panel Sub-assy, Quarter Wheel House, Inner RH
2015-06 → 2018-09 ended
NSP172 ¥15,100
61607-52380 Panel Sub-assy, Quarter Wheel House, Inner RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥15,100
61607-52420 Panel Sub-assy, Quarter Wheel House, Inner RH
2018-09 → 2022-07 ended
NCP175 ¥15,100
61607-52430 Panel Sub-assy, Quarter Wheel House, Inner RH
2018-09 → 2022-07 ended
NSP172 ¥15,100
61621D — Trough, Back Door Opening, RH
61621-52190 Trough, Back Door Opening, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,180
61621-52190 Trough, Back Door Opening, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,180
61623E — Extension, Quarter Inner Panel, Rear RH
61623-52110 Extension, Quarter Inner Panel, Rear RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,420
61623-52110 Extension, Quarter Inner Panel, Rear RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,420
61625G — Extension, Quarter Panel, Rear RH
61625-52180 Extension, Quarter Panel, Rear RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,010
61625-52180 Extension, Quarter Panel, Rear RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,010
61631A — Panel, Quarter Wheel House, Outer RH
61631-52911 Panel, Quarter Wheel House, Outer RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥7,800
61631-52912 Panel, Quarter Wheel House, Outer RH
2015-06 → 2018-09 ended
NSP172 ¥7,800
61631-52911 Panel, Quarter Wheel House, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥7,800
61631-52912 Panel, Quarter Wheel House, Outer RH
2018-09 → 2022-07 ended
NHP170,NSP17# 05S ¥7,800
61635E — Extension, Quarter Wheel House, RH
61635-52130 Extension, Quarter Wheel House, RH
2015-06 → 2018-04 ended
NCP175,NHP170,NSP17# ¥3,550
61635-52131 Extension, Quarter Wheel House, RH
2018-05 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,950
61031-52020 Extension, Quarter Wheel House, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥2,670
61635-52131 Extension, Quarter Wheel House, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥2,950
61645D — Retainer, Quarter, Inner
61645-52040 Retainer, Quarter, Inner
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥890
61645-52040 Retainer, Quarter, Inner
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥890
61701B — Panel Sub-assy, Roof Side, Inner Upper RH
61701-52190 Panel Sub-assy, Roof Side, Inner Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥41,900
61701-52190 Panel Sub-assy, Roof Side, Inner Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥41,900
61701-52200 Panel Sub-assy, Roof Side, Inner Upper RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥39,300
61703G — Panel Sub-assy, Quarter, Inner RH
61703-52100 Panel Sub-assy, Quarter, Inner RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,700
61703-52100 Panel Sub-assy, Quarter, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥13,700
61703-52120 Panel Sub-assy, Quarter, Inner RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥13,700
61707L — Panel Sub-assy, Roof Side, Inner Front RH
61707-52070 Panel Sub-assy, Roof Side, Inner Front RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,400
61707-52070 Panel Sub-assy, Roof Side, Inner Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,400
61711 — Panel, Roof Side, Outer RH
61711-52210 Panel, Roof Side, Outer RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,400
61711-52210 Panel, Roof Side, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,400
61727B — Extension, Quarter Panel Reinforcement, RH
61033-52090 Extension, Quarter Panel Reinforcement, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥4,280
61733A — Panel, Roof Side, Inner Front RH
61733-52070 Panel, Roof Side, Inner Front RH
2015-06 → 2018-04 ended
NCP175,NHP170,NSP17# ¥16,500
61733-52071 Panel, Roof Side, Inner Front RH
2018-05 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,700
61053-52010 Panel, Roof Side, Inner Front RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥13,700
61733-52071 Panel, Roof Side, Inner Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥13,700
61735A — Panel, Roof Side, Inner Rear RH
61735-52150 Panel, Roof Side, Inner Rear RH
2015-06 → 2018-04 ended
NCP175,NHP170,NSP17# ¥3,430
61735-52151 Panel, Roof Side, Inner Rear RH
2018-05 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,860
61071-52030 Panel, Roof Side, Inner Rear RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥2,920
61735-52151 Panel, Roof Side, Inner Rear RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥2,860
61745A — Reinforcement, Back Door Opening, Lower RH
61745-52110 Reinforcement, Back Door Opening, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥470
61745-52110 Reinforcement, Back Door Opening, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥470
61824 — Plate, Noise Control, NO.1
61824-52030 Plate, Noise Control, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥180
61824-52030 Plate, Noise Control, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥180
61825A — Plate, Noise Control, NO.2
61825-52030 Plate, Noise Control, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
61825-52030 Plate, Noise Control, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
61826A — Plate, Noise Control, NO.3
61825-52060 Plate, Noise Control, NO.3
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥120
61825-52060 Plate, Noise Control, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
61826C — Pad, Noise Shutter, NO.3
61826-52040 Pad, Noise Shutter, NO.3
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥570
61826-52040 Pad, Noise Shutter, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥570
62151B — Pad, Cowl Side Silencer
62151-52030 Pad, Cowl Side Silencer
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
62151-52030 Pad, Cowl Side Silencer
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
68981A — Retainer, Back Door Stay, RH
68981-52120 Retainer, Back Door Stay, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥590
68981-52120 Retainer, Back Door Stay, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
