Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

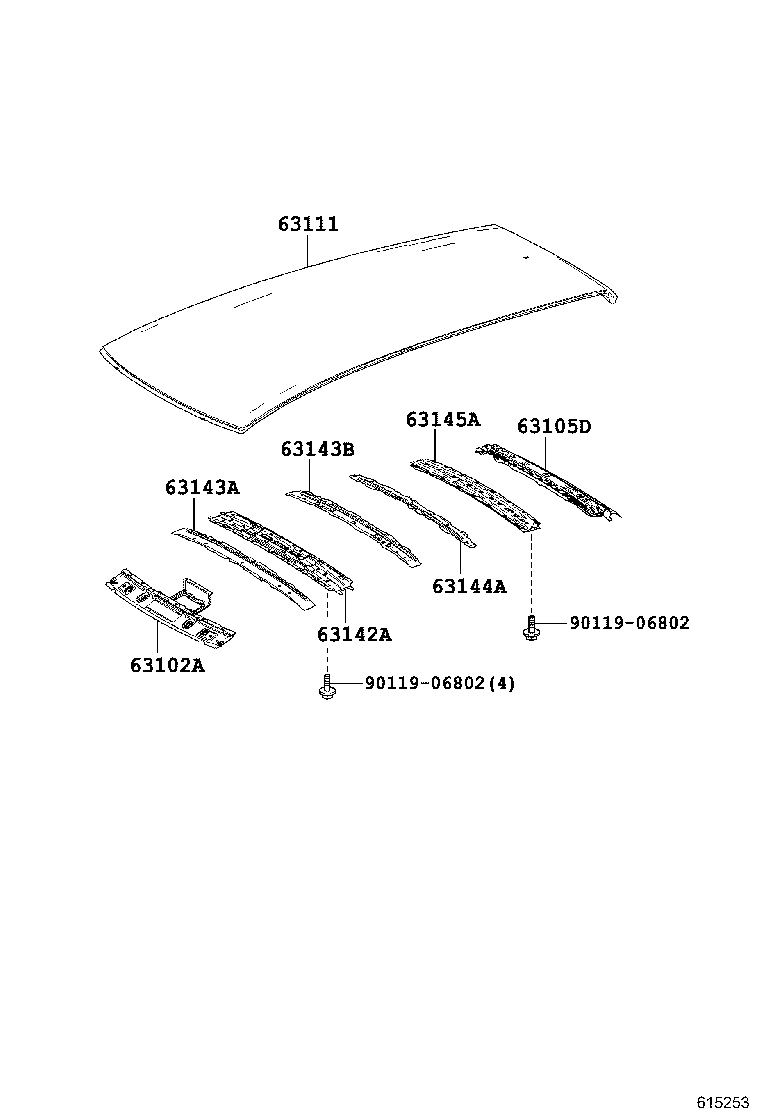

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63102A — Panel Sub-assy, Windshield Header | ||||
| 63102-52230 |
Panel Sub-assy, Windshield Header
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,330 | |
| 63102-52230 |
Panel Sub-assy, Windshield Header
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,330 | |
| 63105D — Frame Sub-assy, Back Window, Upper | ||||
| 63105-52200 |
Frame Sub-assy, Back Window, Upper
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥6,600 | |
| 63105-52200 |
Frame Sub-assy, Back Window, Upper
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥6,600 | |
| 63111 — Panel, Roof | ||||
| 63111-52450 |
Panel, Roof
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥52,200 | |
| 63111-52450 |
Panel, Roof
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥52,200 | |
| 63142A — Reinforcement, Roof Panel, NO.2 | ||||
| 63103-52140 |
Reinforcement, Roof Panel, NO.2
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥6,700 | |
| 63103-52140 |
Reinforcement, Roof Panel, NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥6,700 | |
| 63143A — Reinforcement, Roof Panel | ||||
| 63143-52210 |
Reinforcement, Roof Panel
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,400 | |
| 63143-52210 |
Reinforcement, Roof Panel
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥2,400 | |
| 63143B — Reinforcement, Roof Panel, NO.3 | ||||
| 63144-52170 |
Reinforcement, Roof Panel, NO.3
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,920 | |
| 63144-52170 |
Reinforcement, Roof Panel, NO.3
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥2,920 | |
| 63144A — Reinforcement, Roof Panel, NO.4 | ||||
| 63148-52130 |
Reinforcement, Roof Panel, NO.4
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,670 | |
| 63148-52130 |
Reinforcement, Roof Panel, NO.4
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,670 | |
| 63145A — Reinforcement, Roof Panel, NO.5 | ||||
| 63208-52040 |
Reinforcement, Roof Panel, NO.5
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥7,100 | |
| 63208-52040 |
Reinforcement, Roof Panel, NO.5
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥7,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
