Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

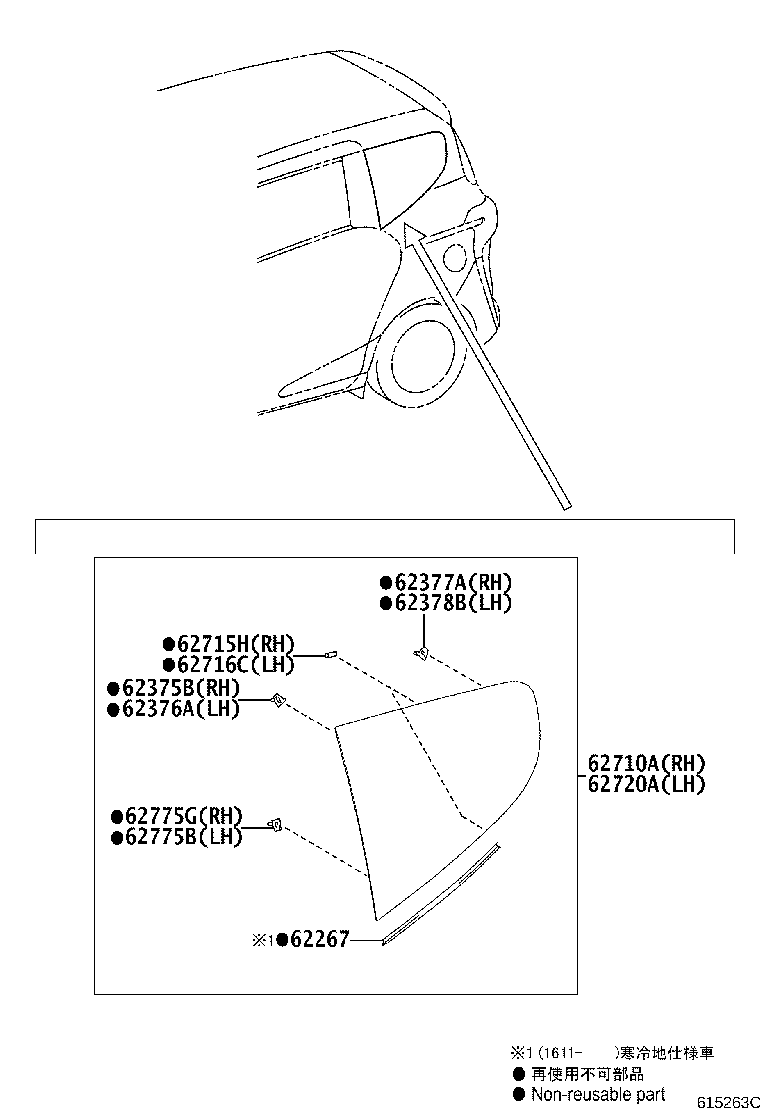

Exploded illustration 615263C 62775G — CLIP, QUARTER WINDOW, RH (2 parts) 62775B — CLIP, QUARTER WINDOW, LH (2 parts) 62375B — CLIP, SIDE WINDOW, NO.1 (2 parts) 62376A — CLIP, SIDE WINDOW, NO.2 (2 parts) 62377A — CLIP, SIDE WINDOW, NO.3 (2 parts) 62378B — CLIP, SIDE WINDOW, NO.4 (2 parts) 62710A — WINDOW ASSY, QUARTER, RH (6 parts) 62720A — WINDOW ASSY, QUARTER, LH (6 parts) 62715H — DAM, QUARTER WINDOW GLASS ADHESIVE, RH (3 parts) 62716C — DAM, QUARTER WINDOW GLASS ADHESIVE, LH (3 parts) 62267 — DAM, SIDE WINDOW ADHESIVE (3 parts)
615263C · 11 callouts Full size ↗
33 parts on this figure
Part number Description Fitment Price
62267 — Dam, Side Window Adhesive
62267-52020 note Dam, Side Window Adhesive
2016-11 → 2018-09 ended
NCP175,NSP170 X ¥360
62267-52020 note Dam, Side Window Adhesive
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥360
62267-52020 note Dam, Side Window Adhesive
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥360
62375B — Clip, Side Window, NO.1
62775-52160 Clip, Side Window, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥190
62775-52160 Clip, Side Window, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
62376A — Clip, Side Window, NO.2
62775-52190 Clip, Side Window, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥190
62775-52190 Clip, Side Window, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
62377A — Clip, Side Window, NO.3
62775-52150 Clip, Side Window, NO.3
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥190
62775-52150 Clip, Side Window, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
62378B — Clip, Side Window, NO.4
62775-52180 Clip, Side Window, NO.4
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥190
62775-52180 Clip, Side Window, NO.4
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
62710A — Window Assy, Quarter, RH
62710-52250 note Window Assy, Quarter, RH
2015-06 → 2018-09 ended
NCP175,NSP170 X —
62710-52260 Window Assy, Quarter, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
62710-52270 note Window Assy, Quarter, RH
2016-11 → 2018-09 ended
NCP175,NSP170 X —
62710-52280 note Window Assy, Quarter, RH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# —
62710-52260 Window Assy, Quarter, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
62710-52280 note Window Assy, Quarter, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
62715H — Dam, Quarter Window Glass Adhesive, RH
68294-26030 Dam, Quarter Window Glass Adhesive, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
62785-12050 Dam, Quarter Window Glass Adhesive, RH
2021-12 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
68294-26030 Dam, Quarter Window Glass Adhesive, RH
2018-09 → 2021-11 ended
NCP175,NHP170,NSP17# ¥200
62716C — Dam, Quarter Window Glass Adhesive, LH
68294-26030 Dam, Quarter Window Glass Adhesive, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
62785-12050 Dam, Quarter Window Glass Adhesive, LH
2021-12 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
68294-26030 Dam, Quarter Window Glass Adhesive, LH
2018-09 → 2021-11 ended
NCP175,NHP170,NSP17# ¥200
62720A — Window Assy, Quarter, LH
62720-52250 note Window Assy, Quarter, LH
2015-06 → 2018-09 ended
NCP175,NSP170 X —
62720-52270 Window Assy, Quarter, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
62720-52300 note Window Assy, Quarter, LH
2016-11 → 2018-09 ended
NCP175,NSP170 X —
62720-52310 note Window Assy, Quarter, LH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# —
62720-52270 Window Assy, Quarter, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
62720-52310 note Window Assy, Quarter, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
62775B — Clip, Quarter Window, LH
62775-52170 Clip, Quarter Window, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥190
62775-52170 Clip, Quarter Window, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
62775G — Clip, Quarter Window, RH
62775-52140 Clip, Quarter Window, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥190
62775-52140 Clip, Quarter Window, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
