Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

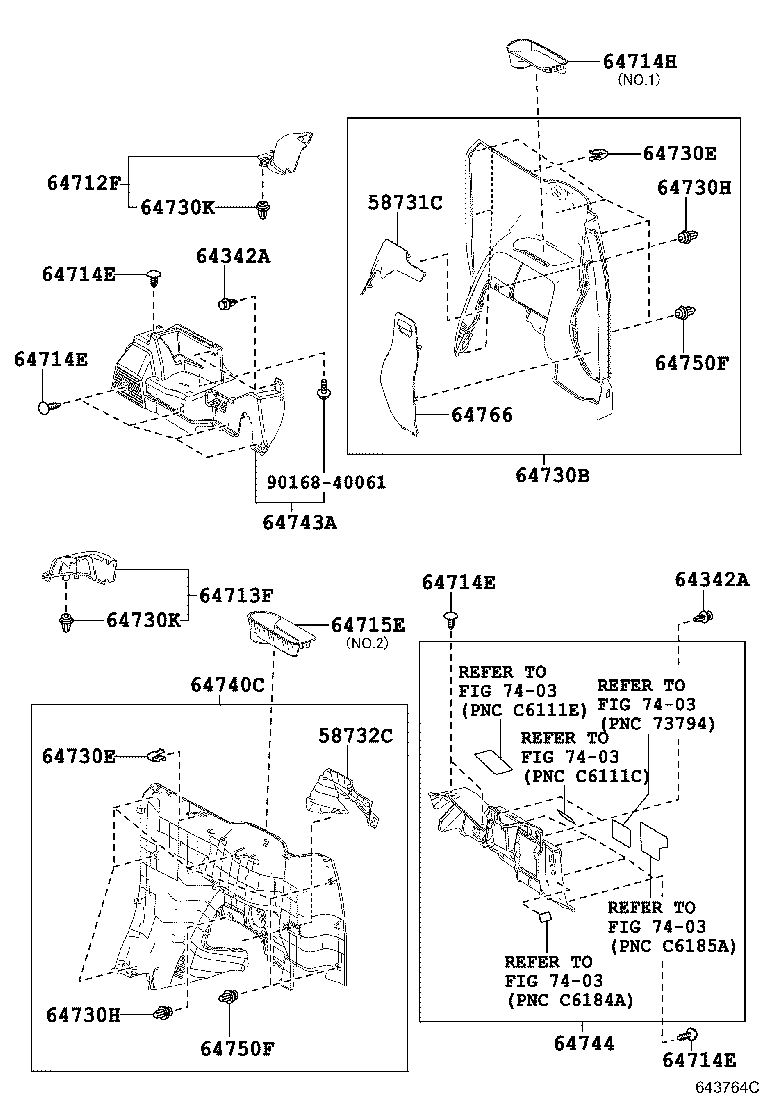

Exploded illustration 643764C 7403 — not listed in this catalogue 58731C — CAP, REAR ABSORBER (15 parts) 58732C — CAP, REAR ABSORBER (11 parts) 64715E — COVER, DECK SIDE TRIM, NO.2 (5 parts) 64714H — COVER, DECK SIDE TRIM, NO.1 (5 parts) 64730E — CLIP(FOR DECK TRIM SIDE BOARD) (4 parts) 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (4 parts) 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (4 parts) 64730K — CLIP(FOR DECK SIDE TRIM PANEL) (2 parts) 64730K — CLIP(FOR DECK SIDE TRIM PANEL) (2 parts) 64750F — CLIP(FOR DECK SIDE TRIM PANEL) (11 parts) 64750F — CLIP(FOR DECK SIDE TRIM PANEL) (11 parts) 64766 — COVER SUB-ASSY, QUARTER TRIM JACK (9 parts) 64712F — COVER, DECK SIDE TRIM, FRONT RH (5 parts) 64713F — COVER, DECK SIDE TRIM, FRONT LH (5 parts) 64740C — PANEL ASSY, DECK TRIM SIDE, LH (12 parts) 64730E — CLIP(FOR DECK TRIM SIDE BOARD) (4 parts) 64730B — PANEL ASSY, DECK TRIM SIDE, RH (25 parts) 64342A — CLIP (3 parts) 64342A — CLIP (3 parts) 64714E — CLIP(FOR DECK TRIM SIDE COVER) (6 parts) 64714E — CLIP(FOR DECK TRIM SIDE COVER) (6 parts) 64714E — CLIP(FOR DECK TRIM SIDE COVER) (6 parts) 64714E — CLIP(FOR DECK TRIM SIDE COVER) (6 parts) 64743A — BOARD, DECK TRIM SIDE, LOWER RH (2 parts) 64744 — BOARD, DECK TRIM SIDE, LOWER LH (2 parts) 9016840061 — not listed in this catalogue 7403 — not listed in this catalogue 7403 — not listed in this catalogue 7403 — not listed in this catalogue 7403 — not listed in this catalogue
643764C · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
126 parts on this figure
Part number Description Fitment Price
58731C — Cap, Rear Absorber
58731-52060-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,280
58731-52060-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,280
58731-52070-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NSP172 ¥1,610
58731-52070-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NSP172 ¥1,610
58731-52060-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,280
58731-52060-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO,X ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,280
58731-52070-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NSP172 ¥1,610
58731-52070-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NSP172 ¥1,610
58731-52080-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,000
58731-52080-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,000
58732C — Cap, Rear Absorber
58732-52040-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,280
58732-52040-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,280
58732-52050-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NSP172 ¥2,000
58732-52050-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NSP172 ¥2,000
58732-52040-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,280
58732-52040-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,280
58732-52040-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO,X ¥2,280
58732-52050-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NSP172 ¥2,000
58732-52050-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NSP172 ¥2,000
58732-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,000
58732-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,000
64342A — Clip
90467-09242 Clip
2015-06 → 2018-09 ended
NSP172 ¥120
90467-09232 Clip
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥70
90467-09242 Clip
2018-09 → 2022-07 ended
NSP172 ¥120
64712F — Cover, Deck Side Trim, Front RH
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,780
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,780
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,780
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,780
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,780
64713F — Cover, Deck Side Trim, Front LH
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,780
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,780
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,780
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,780
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,780
64714E — Clip(FOR DECK TRIM SIDE COVER)
90467-05164-C0 note Clip(FOR DECK TRIM SIDE COVER)
2015-06 → 2016-10 ended
NSP172 ¥90
90467-05164-C0 note Clip(FOR DECK TRIM SIDE COVER)
2015-06 → 2016-09 ended
NCP175,NHP170,NSP170 ¥90
90467-05164-C7 note Clip(FOR DECK TRIM SIDE COVER)
2016-10 → 2018-09 ended
NCP175,NHP170,NSP170 ¥60
90467-05164-C7 note Clip(FOR DECK TRIM SIDE COVER)
2016-10 → 2018-09 ended
NSP172 ¥60
90467-05164-C7 note Clip(FOR DECK TRIM SIDE COVER)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥60
90467-05164-C7 note Clip(FOR DECK TRIM SIDE COVER)
2018-09 → 2022-07 ended
NSP172 ¥60
64714H — Cover, Deck Side Trim, NO.1
64714-52270-A0 note Cover, Deck Side Trim, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,780
64714-52270-C0 note Cover, Deck Side Trim, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,780
64714-52270-A0 note Cover, Deck Side Trim, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥1,780
64714-52270-C0 note Cover, Deck Side Trim, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,780
64714-52270-C0 note Cover, Deck Side Trim, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# GCERO,WKG,WKX,X ¥1,780
64715E — Cover, Deck Side Trim, NO.2
64715-52310-A0 note Cover, Deck Side Trim, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,780
64715-52310-C0 note Cover, Deck Side Trim, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,780
64715-52310-A0 note Cover, Deck Side Trim, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥1,780
64715-52310-C0 note Cover, Deck Side Trim, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,780
64715-52310-C0 note Cover, Deck Side Trim, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# GCERO,WKG,WKX,X ¥1,780
64730B — Panel Assy, Deck Trim Side, RH
64730-52520-A0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥20,100
64730-52520-C0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥20,100
64730-52530-A0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NSP172 ¥18,200
64730-52530-C0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NSP172 ¥18,200
64730-52540-A0 note Panel Assy, Deck Trim Side, RH
2015-07 → 2018-09 ended
NHP170 G ¥19,300
64730-52540-C0 note Panel Assy, Deck Trim Side, RH
2015-07 → 2018-09 ended
NHP170 G ¥19,300
64730-52550-A0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥19,300
64730-52550-C0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥19,300
64730-52520-A0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥20,100
64730-52520-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥20,100
64730-52520-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO,X ¥20,100
64730-52530-A0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NSP172 ¥18,200
64730-52530-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NSP172 ¥18,200
64730-52540-A0 note Panel Assy, Deck Trim Side, RH
2020-06 → 2022-07 ended
NHP170 X ¥19,300
64730-52540-A0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NHP170 G ¥19,300
64730-52540-C0 note Panel Assy, Deck Trim Side, RH
2020-06 → 2022-07 ended
NHP170 GCERO,X ¥19,300
64730-52540-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NHP170 G ¥19,300
64730-52550-A0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥19,300
64730-52550-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥19,300
64730-52560-C1 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSG ¥19,300
64730-52560-C1 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSX,FNGCR ¥19,300
64730-52560-C2 note Panel Assy, Deck Trim Side, RH
2022-03 → 2022-07 ended
NHP170,NSP170 05S ¥19,300
64730-52570-C1 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-03 ended
NHP170 FNBSG ¥19,300
64730-52570-C1 note Panel Assy, Deck Trim Side, RH
2020-06 → 2022-03 ended
NHP170 FNBSX,FNGCR ¥19,300
64730-52570-C2 note Panel Assy, Deck Trim Side, RH
2022-03 → 2022-07 ended
NHP170 05S ¥19,300
64730E — Clip(FOR DECK TRIM SIDE BOARD)
90467-08227 note Clip(FOR DECK TRIM SIDE BOARD)
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥80
90467-08227 Clip(FOR DECK TRIM SIDE BOARD)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90467-08227 note Clip(FOR DECK TRIM SIDE BOARD)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥80
90467-08227 Clip(FOR DECK TRIM SIDE BOARD)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥80
64730H — Clip(FOR DECK TRIM SIDE PANEL)
90467-09232 note Clip(FOR DECK TRIM SIDE PANEL)
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥70
90467-09232 Clip(FOR DECK TRIM SIDE PANEL)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90467-09232 note Clip(FOR DECK TRIM SIDE PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥70
90467-09232 Clip(FOR DECK TRIM SIDE PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
64730K — Clip(FOR DECK SIDE TRIM PANEL)
90467-09206 Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90467-09206 Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥80
64740C — Panel Assy, Deck Trim Side, LH
64740-52680-A0 note Panel Assy, Deck Trim Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥20,100
64740-52680-C0 note Panel Assy, Deck Trim Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥20,100
64740-52690-A0 note Panel Assy, Deck Trim Side, LH
2015-06 → 2018-09 ended
NSP172 ¥18,200
64740-52690-C0 note Panel Assy, Deck Trim Side, LH
2015-06 → 2018-09 ended
NSP172 ¥18,200
64740-52640-C1 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSG ¥19,300
64740-52640-C1 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSX,FNGCR ¥19,300
64740-52640-C2 note Panel Assy, Deck Trim Side, LH
2022-03 → 2022-07 ended
NHP170,NSP170 05S ¥19,300
64740-52680-A0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥20,100
64740-52680-C0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥20,100
64740-52680-C0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO,X ¥20,100
64740-52690-A0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NSP172 ¥18,200
64740-52690-C0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NSP172 ¥18,200
64743A — Board, Deck Trim Side, Lower RH
64743-52040-C1 note Board, Deck Trim Side, Lower RH
2015-06 → 2018-09 ended
NSP172 ¥9,400
64743-52040-C1 note Board, Deck Trim Side, Lower RH
2018-09 → 2022-07 ended
NSP172 ¥9,400
64744 — Board, Deck Trim Side, Lower LH
64744-52020-C0 note Board, Deck Trim Side, Lower LH
2015-06 → 2018-09 ended
NSP172 ¥8,900
64744-52020-C0 note Board, Deck Trim Side, Lower LH
2018-09 → 2022-07 ended
NSP172 ¥8,900
64750F — Clip(FOR DECK SIDE TRIM PANEL)
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥90
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥90
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥90
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥80
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥80
90467-10161 Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥90
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥90
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥90
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥80
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥80
64766 — Cover Sub-assy, Quarter Trim Jack
64766-52030-A0 note Cover Sub-assy, Quarter Trim Jack
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,730
64766-52030-A0 note Cover Sub-assy, Quarter Trim Jack
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,730
64766-52030-C0 note Cover Sub-assy, Quarter Trim Jack
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,730
64766-52030-C0 note Cover Sub-assy, Quarter Trim Jack
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,730
64766-52030-A0 note Cover Sub-assy, Quarter Trim Jack
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥2,730
64766-52030-A0 note Cover Sub-assy, Quarter Trim Jack
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,730
64766-52030-C0 note Cover Sub-assy, Quarter Trim Jack
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,730
64766-52030-C0 note Cover Sub-assy, Quarter Trim Jack
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# GCERO,WKG,WKX,X ¥2,730
64766-52030-C0 note Cover Sub-assy, Quarter Trim Jack
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,730
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
