Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

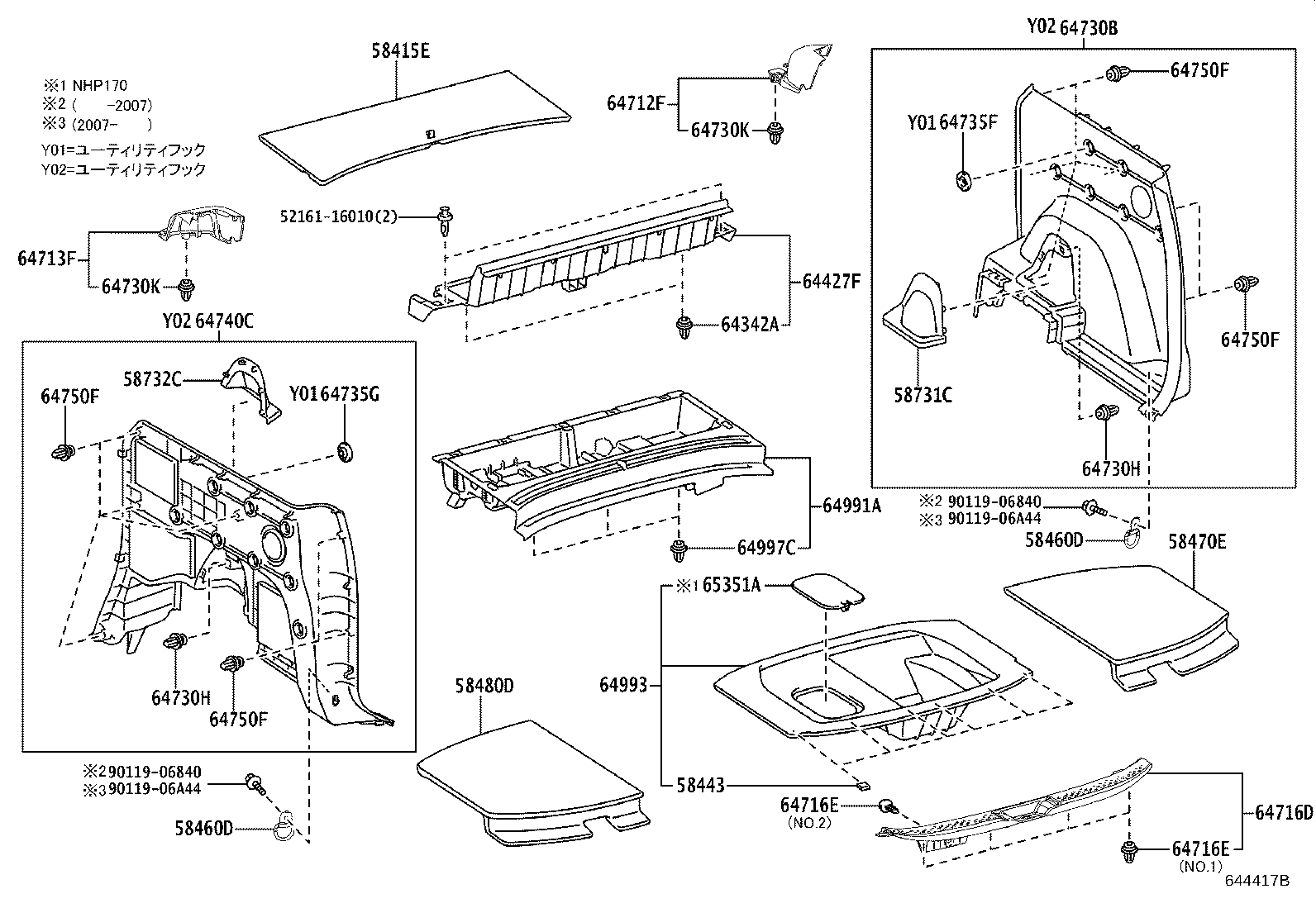

Exploded illustration 644417B 58415E — BOARD, REAR FLOOR, NO.1 (2 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58460D — STRIKER ASSY, LUGGAGE HOLD BELT (2 parts) 58470E — BOARD ASSY, REAR FLOOR, NO.1 (2 parts) 58480D — BOARD ASSY, REAR FLOOR, NO.2 (2 parts) 58731C — CAP, REAR ABSORBER (15 parts) 58732C — CAP, REAR ABSORBER (11 parts) 64342A — CLIP (3 parts) 64997C — CLIP(FOR DECK FLOOR BOX) (3 parts) 64427F — COVER, LUGGAGE COMPARTMENT TRIM BOX (2 parts) 64713F — COVER, DECK SIDE TRIM, FRONT LH (5 parts) 64716D — COVER, DECK TRIM, REAR (7 parts) 64730K — CLIP(FOR DECK SIDE TRIM PANEL) (2 parts) 64712F — COVER, DECK SIDE TRIM, FRONT RH (5 parts) 64730K — CLIP(FOR DECK SIDE TRIM PANEL) (2 parts) 64735F — COVER, DECK TRIM SIDE SERVICE HOLE, RH (3 parts) 64735G — COVER, DECK TRIM SIDE SERVICE HOLE, LH (3 parts) 64750F — CLIP(FOR DECK SIDE TRIM PANEL) (11 parts) 64750F — CLIP(FOR DECK SIDE TRIM PANEL) (11 parts) 64750F — CLIP(FOR DECK SIDE TRIM PANEL) (11 parts) 64750F — CLIP(FOR DECK SIDE TRIM PANEL) (11 parts) 64991A — BOX, DECK FLOOR, FR (2 parts) 64993 — BOX, DECK FLOOR, REAR (6 parts) 5216116010 — not listed in this catalogue 64716E — CLIP(FOR DECK TRIM REAR COVER) (4 parts) 64716E — CLIP(FOR DECK TRIM REAR COVER) (4 parts) 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (4 parts) 64730H — CLIP(FOR DECK TRIM SIDE PANEL) (4 parts) 65351A — COVER, BATTERY HOLE (2 parts) 58443 — CUSHION, DECK BOARD, NO.1 (1 parts) 64740C — PANEL ASSY, DECK TRIM SIDE, LH (12 parts) 64730B — PANEL ASSY, DECK TRIM SIDE, RH (25 parts) 9011906840 — not listed in this catalogue 9011906A44 — not listed in this catalogue 9011906840 — not listed in this catalogue 9011906A44 — not listed in this catalogue
644417B · 31 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
134 parts on this figure
Part number Description Fitment Price
58415E — Board, Rear Floor, NO.1
58415-52100-C1 note Board, Rear Floor, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥10,700
58415-52100-C1 note Board, Rear Floor, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥10,700
58443 — Cushion, Deck Board, NO.1
66323-52010 Cushion, Deck Board, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥240
58460D — Striker Assy, Luggage Hold Belt
58460-33020 Striker Assy, Luggage Hold Belt
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥620
58460-33020 Striker Assy, Luggage Hold Belt
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥620
58470E — Board Assy, Rear Floor, NO.1
58470-52030-C0 note Board Assy, Rear Floor, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥22,800
58470-52030-C0 note Board Assy, Rear Floor, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥22,800
58480D — Board Assy, Rear Floor, NO.2
58480-52010-C0 note Board Assy, Rear Floor, NO.2
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥22,800
58480-52010-C0 note Board Assy, Rear Floor, NO.2
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥22,800
58731C — Cap, Rear Absorber
58731-52060-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,280
58731-52060-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,280
58731-52070-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NSP172 ¥1,610
58731-52070-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NSP172 ¥1,610
58731-52060-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,280
58731-52060-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO,X ¥2,280
58731-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,280
58731-52070-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NSP172 ¥1,610
58731-52070-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NSP172 ¥1,610
58731-52080-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,000
58731-52080-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,000
58732C — Cap, Rear Absorber
58732-52040-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,280
58732-52040-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,280
58732-52050-A0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NSP172 ¥2,000
58732-52050-C0 note Cap, Rear Absorber
2015-06 → 2018-09 ended
NSP172 ¥2,000
58732-52040-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,280
58732-52040-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,280
58732-52040-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO,X ¥2,280
58732-52050-A0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NSP172 ¥2,000
58732-52050-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NSP172 ¥2,000
58732-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,000
58732-52060-C0 note Cap, Rear Absorber
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,000
64342A — Clip
90467-09242 Clip
2015-06 → 2018-09 ended
NSP172 ¥120
90467-09232 Clip
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥70
90467-09242 Clip
2018-09 → 2022-07 ended
NSP172 ¥120
64427F — Cover, Luggage Compartment Trim Box
64427-52020-C0 note Cover, Luggage Compartment Trim Box
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥11,100
64427-52020-C0 note Cover, Luggage Compartment Trim Box
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥11,100
64712F — Cover, Deck Side Trim, Front RH
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,780
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,780
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,780
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,780
64712-52050-C0 note Cover, Deck Side Trim, Front RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,780
64713F — Cover, Deck Side Trim, Front LH
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,780
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,780
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,780
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,780
64713-52110-C0 note Cover, Deck Side Trim, Front LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,780
64716D — Cover, Deck Trim, Rear
64716-52180-A0 note Cover, Deck Trim, Rear
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥4,110
64716-52180-C0 note Cover, Deck Trim, Rear
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥4,110
64716-52180-A0 note Cover, Deck Trim, Rear
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥4,110
64716-52180-C0 note Cover, Deck Trim, Rear
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥4,110
64716-52180-C0 note Cover, Deck Trim, Rear
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO,X ¥4,110
64716-52200-C0 note Cover, Deck Trim, Rear
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥5,100
64716-52200-C0 note Cover, Deck Trim, Rear
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥5,100
64716E — Clip(FOR DECK TRIM REAR COVER)
90467-10161 Clip(FOR DECK TRIM REAR COVER)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥90
90467-05164-C7 note Clip(FOR DECK TRIM REAR COVER)
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥60
90467-10161 Clip(FOR DECK TRIM REAR COVER)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥90
90467-10161 note Clip(FOR DECK TRIM REAR COVER)
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥90
64730B — Panel Assy, Deck Trim Side, RH
64730-52520-A0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥20,100
64730-52520-C0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥20,100
64730-52530-A0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NSP172 ¥18,200
64730-52530-C0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NSP172 ¥18,200
64730-52540-A0 note Panel Assy, Deck Trim Side, RH
2015-07 → 2018-09 ended
NHP170 G ¥19,300
64730-52540-C0 note Panel Assy, Deck Trim Side, RH
2015-07 → 2018-09 ended
NHP170 G ¥19,300
64730-52550-A0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥19,300
64730-52550-C0 note Panel Assy, Deck Trim Side, RH
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥19,300
64730-52520-A0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥20,100
64730-52520-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥20,100
64730-52520-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO,X ¥20,100
64730-52530-A0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NSP172 ¥18,200
64730-52530-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NSP172 ¥18,200
64730-52540-A0 note Panel Assy, Deck Trim Side, RH
2020-06 → 2022-07 ended
NHP170 X ¥19,300
64730-52540-A0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NHP170 G ¥19,300
64730-52540-C0 note Panel Assy, Deck Trim Side, RH
2020-06 → 2022-07 ended
NHP170 GCERO,X ¥19,300
64730-52540-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NHP170 G ¥19,300
64730-52550-A0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥19,300
64730-52550-C0 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥19,300
64730-52560-C1 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSG ¥19,300
64730-52560-C1 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSX,FNGCR ¥19,300
64730-52560-C2 note Panel Assy, Deck Trim Side, RH
2022-03 → 2022-07 ended
NHP170,NSP170 05S ¥19,300
64730-52570-C1 note Panel Assy, Deck Trim Side, RH
2020-06 → 2022-03 ended
NHP170 FNBSX,FNGCR ¥19,300
64730-52570-C1 note Panel Assy, Deck Trim Side, RH
2018-09 → 2022-03 ended
NHP170 FNBSG ¥19,300
64730-52570-C2 note Panel Assy, Deck Trim Side, RH
2022-03 → 2022-07 ended
NHP170 05S ¥19,300
64730H — Clip(FOR DECK TRIM SIDE PANEL)
90467-09232 note Clip(FOR DECK TRIM SIDE PANEL)
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥70
90467-09232 Clip(FOR DECK TRIM SIDE PANEL)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90467-09232 note Clip(FOR DECK TRIM SIDE PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥70
90467-09232 Clip(FOR DECK TRIM SIDE PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
64730K — Clip(FOR DECK SIDE TRIM PANEL)
90467-09206 Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90467-09206 Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥80
64735F — Cover, Deck Trim Side Service Hole, RH
64735-52020-C0 note Cover, Deck Trim Side Service Hole, RH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSG ¥880
64735-52020-C0 note Cover, Deck Trim Side Service Hole, RH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSX,FNGCR ¥880
64735-52020-C1 note Cover, Deck Trim Side Service Hole, RH
2022-03 → 2022-07 ended
NHP170,NSP170 05S ¥790
64735G — Cover, Deck Trim Side Service Hole, LH
64735-52020-C0 note Cover, Deck Trim Side Service Hole, LH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSG ¥880
64735-52020-C0 note Cover, Deck Trim Side Service Hole, LH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSX,FNGCR ¥880
64735-52020-C1 note Cover, Deck Trim Side Service Hole, LH
2022-03 → 2022-07 ended
NHP170,NSP170 05S ¥790
64740C — Panel Assy, Deck Trim Side, LH
64740-52680-A0 note Panel Assy, Deck Trim Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥20,100
64740-52680-C0 note Panel Assy, Deck Trim Side, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥20,100
64740-52690-A0 note Panel Assy, Deck Trim Side, LH
2015-06 → 2018-09 ended
NSP172 ¥18,200
64740-52690-C0 note Panel Assy, Deck Trim Side, LH
2015-06 → 2018-09 ended
NSP172 ¥18,200
64740-52640-C1 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSG ¥19,300
64740-52640-C1 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-03 ended
NHP170,NSP170 FNBSX,FNGCR ¥19,300
64740-52640-C2 note Panel Assy, Deck Trim Side, LH
2022-03 → 2022-07 ended
NHP170,NSP170 05S ¥19,300
64740-52680-A0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥20,100
64740-52680-C0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥20,100
64740-52680-C0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO,X ¥20,100
64740-52690-A0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NSP172 ¥18,200
64740-52690-C0 note Panel Assy, Deck Trim Side, LH
2018-09 → 2022-07 ended
NSP172 ¥18,200
64750F — Clip(FOR DECK SIDE TRIM PANEL)
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥90
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥90
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥90
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥80
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥80
90467-10161 Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥90
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥90
90467-10161 note Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥90
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥80
90467-10188 note Clip(FOR DECK SIDE TRIM PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,GCERO,WKG,WKX,X ¥80
64991A — Box, Deck Floor, FR
64991-52040-C0 note Box, Deck Floor, FR
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥18,600
64991-52040-C0 note Box, Deck Floor, FR
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥18,600
64993 — Box, Deck Floor, Rear
64993-52170-C0 note Box, Deck Floor, Rear
2018-09 → 2022-07 ended
NSP170 FNBSG ¥18,200
64993-52170-C0 note Box, Deck Floor, Rear
2018-09 → 2022-07 ended
NSP170 FNBSX,FNGCR ¥18,200
64993-52180-C0 note Box, Deck Floor, Rear
2018-09 → 2022-07 ended
NHP170 FNBSG ¥15,200
64993-52180-C0 note Box, Deck Floor, Rear
2018-09 → 2022-07 ended
NHP170 FNBSX,FNGCR ¥15,200
64993-52190-C0 note Box, Deck Floor, Rear
2018-09 → 2022-07 ended
NSP170 FNBSG ¥16,000
64993-52190-C0 note Box, Deck Floor, Rear
2018-09 → 2022-07 ended
NSP170 FNBSX,FNGCR ¥16,000
64997C — Clip(FOR DECK FLOOR BOX)
90467-08226 Clip(FOR DECK FLOOR BOX)
2015-07 → 2018-09 ended
NHP170 ¥100
90467-08226 Clip(FOR DECK FLOOR BOX)
2018-09 → 2022-07 ended
NHP170 07S ¥100
90467-09232 Clip(FOR DECK FLOOR BOX)
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥70
65351A — Cover, Battery Hole
65351-52010-C0 note Cover, Battery Hole
2018-09 → 2022-07 ended
NHP170 FNBSG ¥2,330
65351-52010-C0 note Cover, Battery Hole
2018-09 → 2022-07 ended
NHP170 FNBSX,FNGCR ¥2,330
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
