Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

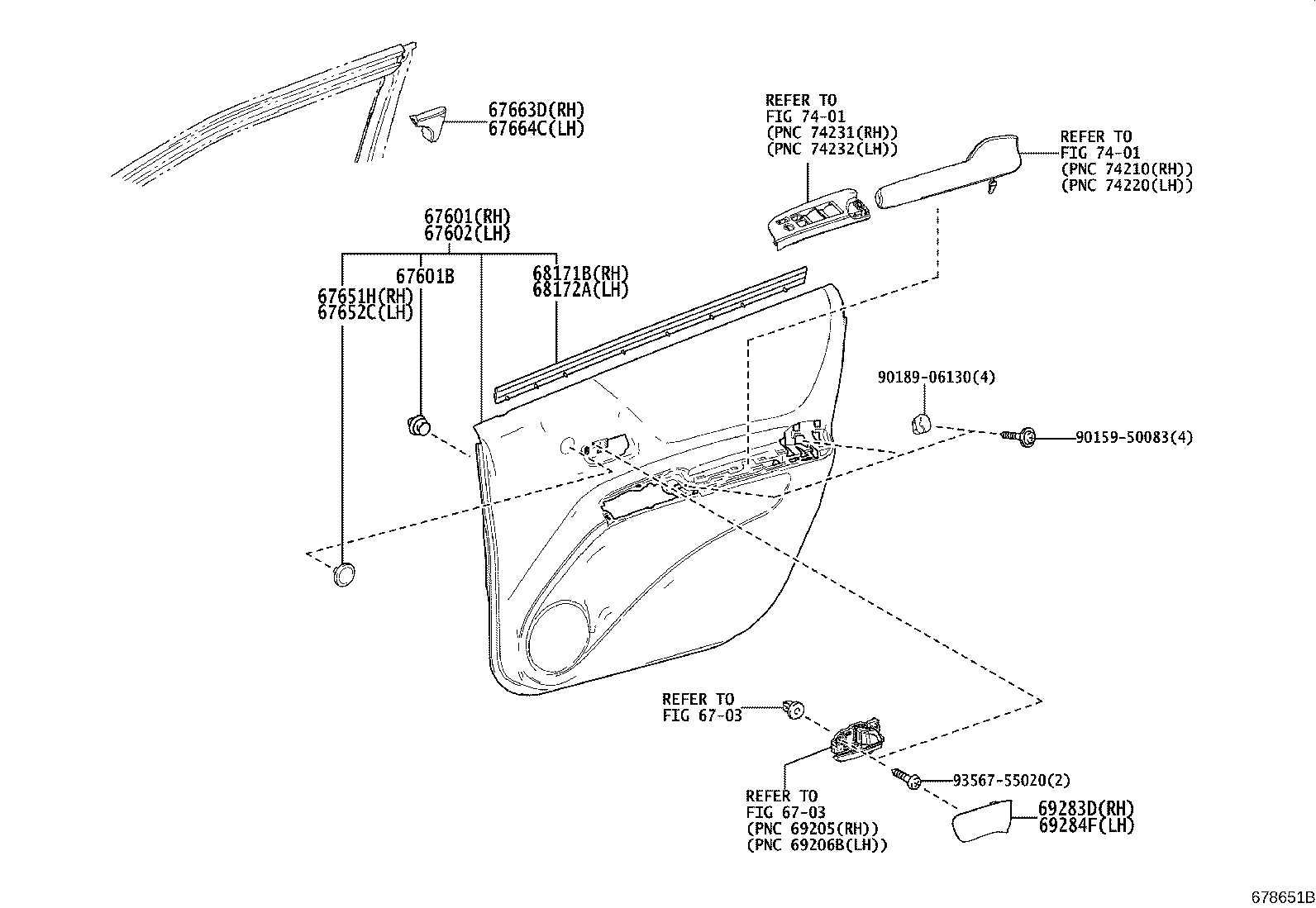

Exploded illustration 678651B 7401 — not listed in this catalogue 7401 — not listed in this catalogue 6703 — not listed in this catalogue 6703 — not listed in this catalogue 9018906130 — not listed in this catalogue 67601B — CLIP(FOR FRONT DOOR TRIM BOARD) (2 parts) 68171B — WEATHERSTRIP, FRONT DOOR GLASS, INNER RH (2 parts) 68172A — WEATHERSTRIP, FRONT DOOR GLASS, INNER LH (2 parts) 67651H — GRILLE, SPEAKER DOOR, RH (9 parts) 67652C — GRILLE, SPEAKER DOOR, LH (9 parts) 67601 — BOARD SUB-ASSY, FRONT DOOR TRIM, RH (16 parts) 67602 — BOARD SUB-ASSY, FRONT DOOR TRIM, LH (16 parts) 67663D — GARNISH, DOOR FRAME, RH (2 parts) 67664C — GARNISH, DOOR FRAME, LH (2 parts) 69283D — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH (6 parts) 69284F — PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH (6 parts) 9015950083 — not listed in this catalogue 9356755020 — not listed in this catalogue
678651B · 11 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
67601 — Board Sub-assy, Front Door Trim, RH
67610-52W60-C0 note Board Sub-assy, Front Door Trim, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥32,900
67610-5CE70-C0 note Board Sub-assy, Front Door Trim, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥27,400
67610-5CE70-C1 note Board Sub-assy, Front Door Trim, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥32,900
67610-5CE80-C0 note Board Sub-assy, Front Door Trim, RH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥31,400
67610-52X00-C0 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# WKX,X ¥27,700
67610-52X00-C0 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥27,700
67610-52X00-C0 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥27,700
67610-52X00-C1 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥27,700
67610-52X00-C1 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKG,WKX,X ¥27,700
67610-52X00-C1 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥27,700
67610-52X00-C1 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NSP172 WKG ¥27,700
67610-52X00-C1 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥27,700
67610-52Y10-C1 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥29,100
67610-5CE70-C0 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥27,400
67610-5CE70-C2 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKG,WKX,X ¥27,400
67610-5CE70-C2 note Board Sub-assy, Front Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥27,400
67601B — Clip(FOR FRONT DOOR TRIM BOARD)
90467-09206 Clip(FOR FRONT DOOR TRIM BOARD)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90467-09206 Clip(FOR FRONT DOOR TRIM BOARD)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥80
67602 — Board Sub-assy, Front Door Trim, LH
67620-52W80-C0 note Board Sub-assy, Front Door Trim, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥32,900
67620-5CD90-C0 note Board Sub-assy, Front Door Trim, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥27,400
67620-5CD90-C1 note Board Sub-assy, Front Door Trim, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥32,900
67620-5CE50-C0 note Board Sub-assy, Front Door Trim, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥31,400
67620-5C780-C0 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# WKX,X ¥27,700
67620-5C780-C0 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥27,700
67620-5C780-C0 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥27,700
67620-5C780-C1 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥27,700
67620-5C780-C1 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKG,WKX,X ¥27,700
67620-5C780-C1 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥27,700
67620-5C780-C1 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NSP172 WKG ¥27,700
67620-5C780-C1 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥27,700
67620-5C800-C1 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥29,100
67620-5CD90-C0 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥27,400
67620-5CD90-C2 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKG,WKX,X ¥27,400
67620-5CD90-C2 note Board Sub-assy, Front Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥27,400
67651H — Grille, Speaker Door, RH
67651-52080-A0 note Grille, Speaker Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥320
67651-52080-A0 note Grille, Speaker Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥320
67651-52080-A0 note Grille, Speaker Door, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# WKX,X ¥320
67651-52080-C0 note Grille, Speaker Door, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥320
67651-52080-C0 note Grille, Speaker Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥320
67651-52080-C0 note Grille, Speaker Door, RH
2018-09 → 2022-07 ended
NSP172 WKG ¥320
67651-52080-C0 note Grille, Speaker Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥320
67651-52080-C0 note Grille, Speaker Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKG,WKX,X ¥320
67651-52080-C0 note Grille, Speaker Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥320
67652C — Grille, Speaker Door, LH
67652-52070-A0 note Grille, Speaker Door, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# WKX,X ¥320
67652-52070-A0 note Grille, Speaker Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥320
67652-52070-A0 note Grille, Speaker Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥320
67652-52070-C0 note Grille, Speaker Door, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥320
67652-52070-C0 note Grille, Speaker Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥320
67652-52070-C0 note Grille, Speaker Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKG,WKX,X ¥320
67652-52070-C0 note Grille, Speaker Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥320
67652-52070-C0 note Grille, Speaker Door, LH
2018-09 → 2022-07 ended
NSP172 WKG ¥320
67652-52070-C0 note Grille, Speaker Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥320
67663D — Garnish, Door Frame, RH
67663-52010 Garnish, Door Frame, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥380
67663-52010 Garnish, Door Frame, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥380
67664C — Garnish, Door Frame, LH
67664-52040 Garnish, Door Frame, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥380
67664-52040 Garnish, Door Frame, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥380
68171B — Weatherstrip, Front Door Glass, Inner RH
68171-52280 Weatherstrip, Front Door Glass, Inner RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,730
68171-52280 Weatherstrip, Front Door Glass, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,730
68172A — Weatherstrip, Front Door Glass, Inner LH
68172-52230 Weatherstrip, Front Door Glass, Inner LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,730
68172-52230 Weatherstrip, Front Door Glass, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,730
69283D — Plug, Front Door Inside Handle Bezel, RH
69283-30060-A2 note Plug, Front Door Inside Handle Bezel, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥370
69283-30060-C1 note Plug, Front Door Inside Handle Bezel, RH
2015-06 → 2016-12 ended
NCP175,NHP170,NSP17# ¥530
69283-30060-C2 note Plug, Front Door Inside Handle Bezel, RH
2016-12 → 2018-09 ended
NCP175,NHP170,NSP17# ¥370
69283-30060-A2 note Plug, Front Door Inside Handle Bezel, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥370
69283-30060-C2 note Plug, Front Door Inside Handle Bezel, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥370
69283-30060-C2 note Plug, Front Door Inside Handle Bezel, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥370
69284F — Plug, Front Door Inside Handle Bezel, LH
69284-30060-A2 note Plug, Front Door Inside Handle Bezel, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥370
69284-30060-C1 note Plug, Front Door Inside Handle Bezel, LH
2015-06 → 2016-12 ended
NCP175,NHP170,NSP17# ¥530
69284-30060-C2 note Plug, Front Door Inside Handle Bezel, LH
2016-12 → 2018-09 ended
NCP175,NHP170,NSP17# ¥370
69284-30060-A2 note Plug, Front Door Inside Handle Bezel, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥370
69284-30060-C2 note Plug, Front Door Inside Handle Bezel, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥370
69284-30060-C2 note Plug, Front Door Inside Handle Bezel, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥370
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
