Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

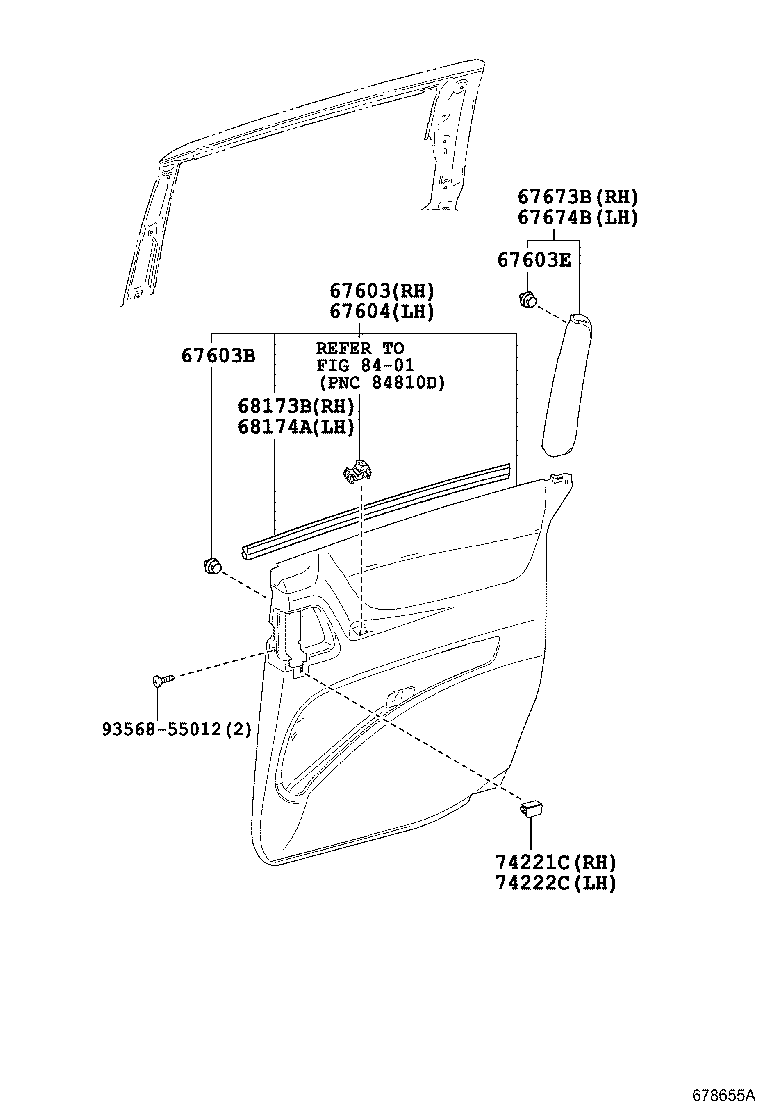

Exploded illustration 678655A 8401 — not listed in this catalogue 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (5 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (5 parts) 68173B — WEATHERSTRIP, REAR DOOR GLASS, INNER RH (2 parts) 68174A — WEATHERSTRIP, REAR DOOR GLASS, INNER LH (2 parts) 67603B — CLIP(FOR REAR DOOR TRIM BOARD) (2 parts) 67603E — CLIP(FOR REAR DOOR TRIM BOARD) (2 parts) 67673B — GARNISH, REAR DOOR FRAME, RH (5 parts) 67674B — GARNISH, REAR DOOR FRAME, LH (5 parts) 74221C — COVER, REAR DOOR ARMREST, RH (5 parts) 74222C — COVER, REAR DOOR ARMREST, LH (5 parts) 9356855012 — not listed in this catalogue
678655A · 10 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
67603 — Board Sub-assy, Rear Door Trim, RH
67630-52V70-C0 note Board Sub-assy, Rear Door Trim, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥26,800
67630-52V70-C1 note Board Sub-assy, Rear Door Trim, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥26,800
67630-52V70-C0 note Board Sub-assy, Rear Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥26,800
67630-52V70-C1 note Board Sub-assy, Rear Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥26,800
67630-52V70-C1 note Board Sub-assy, Rear Door Trim, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥26,800
67603B — Clip(FOR REAR DOOR TRIM BOARD)
90467-09206 Clip(FOR REAR DOOR TRIM BOARD)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
90467-09206 Clip(FOR REAR DOOR TRIM BOARD)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥80
67603E — Clip(FOR REAR DOOR TRIM BOARD)
90467-10161 Clip(FOR REAR DOOR TRIM BOARD)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥90
90467-10161 Clip(FOR REAR DOOR TRIM BOARD)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥90
67604 — Board Sub-assy, Rear Door Trim, LH
67640-52U90-C0 note Board Sub-assy, Rear Door Trim, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥26,800
67640-52U90-C1 note Board Sub-assy, Rear Door Trim, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥26,800
67640-52U90-C0 note Board Sub-assy, Rear Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥26,800
67640-52U90-C1 note Board Sub-assy, Rear Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥26,800
67640-52U90-C1 note Board Sub-assy, Rear Door Trim, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥26,800
67673B — Garnish, Rear Door Frame, RH
67673-52090-C0 note Garnish, Rear Door Frame, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,970
67673-52090-C0 note Garnish, Rear Door Frame, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,970
67673-52090-C0 note Garnish, Rear Door Frame, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,970
67673-52090-C0 note Garnish, Rear Door Frame, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,970
67673-52090-C0 note Garnish, Rear Door Frame, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,970
67674B — Garnish, Rear Door Frame, LH
67674-52070-C0 note Garnish, Rear Door Frame, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,970
67674-52070-C0 note Garnish, Rear Door Frame, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,970
67674-52070-C0 note Garnish, Rear Door Frame, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,970
67674-52070-C0 note Garnish, Rear Door Frame, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,970
67674-52070-C0 note Garnish, Rear Door Frame, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,970
68173B — Weatherstrip, Rear Door Glass, Inner RH
68173-52190 Weatherstrip, Rear Door Glass, Inner RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,130
68173-52190 Weatherstrip, Rear Door Glass, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,130
68174A — Weatherstrip, Rear Door Glass, Inner LH
68174-52150 Weatherstrip, Rear Door Glass, Inner LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,130
68174-52150 Weatherstrip, Rear Door Glass, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,130
74221C — Cover, Rear Door Armrest, RH
74221-52060-A0 note Cover, Rear Door Armrest, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥240
74221-52060-C0 note Cover, Rear Door Armrest, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥240
74221-52060-A0 note Cover, Rear Door Armrest, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥240
74221-52060-C0 note Cover, Rear Door Armrest, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥240
74221-52060-C0 note Cover, Rear Door Armrest, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥240
74222C — Cover, Rear Door Armrest, LH
74222-52040-A0 note Cover, Rear Door Armrest, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥240
74222-52040-C0 note Cover, Rear Door Armrest, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥240
74222-52040-A0 note Cover, Rear Door Armrest, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥240
74222-52040-C0 note Cover, Rear Door Armrest, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥240
74222-52040-C0 note Cover, Rear Door Armrest, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥240
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
