Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

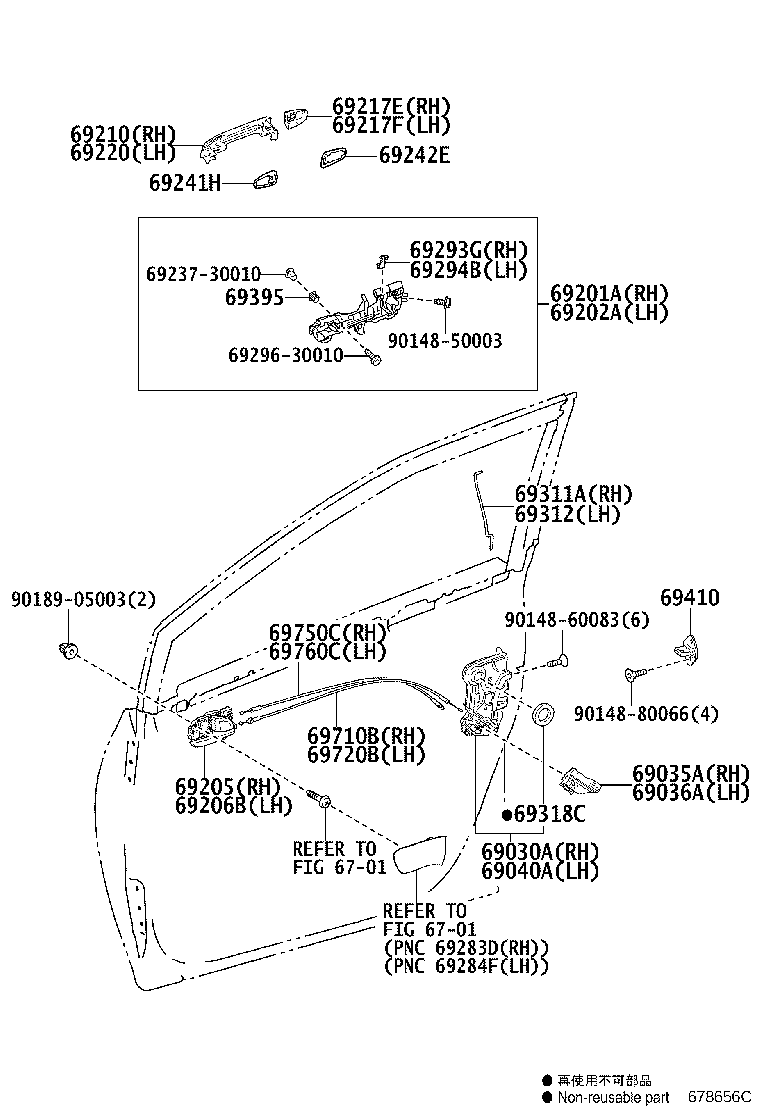

Exploded illustration 678656C 6701 — not listed in this catalogue 69030A — LOCK ASSY, FRONT DOOR W/MOTOR, RH (2 parts) 69035A — COVER SUB-ASSY, FRONT DOOR LOCK, RH (2 parts) 69036A — COVER SUB-ASSY, FRONT DOOR LOCK, LH (2 parts) 69040A — LOCK ASSY, FRONT DOOR W/MOTOR, LH (2 parts) 69201A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH (2 parts) 69202A — FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH (2 parts) 69205 — HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH (10 parts) 69206B — HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH (10 parts) 69210 — HANDLE ASSY, FRONT DOOR, OUTSIDE RH (81 parts) 69217E — COVER, FRONT DOOR OUTSIDE HANDLE, RH (26 parts) 69217F — COVER, FRONT DOOR OUTSIDE HANDLE, LH (26 parts) 69220 — HANDLE ASSY, FRONT DOOR OUTSIDE, LH (81 parts) 69241H — PAD, FRONT DOOR OUTSIDE HANDLE, FRONT (2 parts) 69242E — PAD, FRONT DOOR OUTSIDE HANDLE, REAR (2 parts) 69293G — SNAP, FRONT DOOR OUTSIDE HANDLE, RH (2 parts) 69294B — SNAP, FRONT DOOR OUTSIDE HANDLE, LH (2 parts) 69311A — ROD, FRONT DOOR LOCK OPEN, RH (2 parts) 69312 — ROD, FRONT DOOR LOCK OPEN, LH (2 parts) 69395 — BUSH(FOR DOOR OUTSIDE HANDLE) (2 parts) 69410 — PLATE ASSY, FRONT DOOR LOCK STRIKER (2 parts) 69710B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH (2 parts) 69720B — CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH (2 parts) 69750C — CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH (2 parts) 69760C — CABLE ASSY, FRONT DOOR INSIDE LOCKING LH (2 parts) 6923730010 — not listed in this catalogue 6929630010 — not listed in this catalogue 9014850003 — not listed in this catalogue 9014860083 — not listed in this catalogue 9014880066 — not listed in this catalogue 9018905003 — not listed in this catalogue 69318C — SEAL, DOOR LOCK WIRING HARNESS (2 parts) 6701 — not listed in this catalogue
678656C · 25 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
272 parts on this figure
Part number Description Fitment Price
69030A — Lock Assy, Front Door W/Motor, RH
69030-30A70 Lock Assy, Front Door W/Motor, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥11,300
69030-30A70 Lock Assy, Front Door W/Motor, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥11,300
69035A — Cover Sub-assy, Front Door Lock, RH
69035-30010 Cover Sub-assy, Front Door Lock, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
69035-30010 Cover Sub-assy, Front Door Lock, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
69036A — Cover Sub-assy, Front Door Lock, LH
69036-30010 Cover Sub-assy, Front Door Lock, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
69036-30010 Cover Sub-assy, Front Door Lock, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
69040A — Lock Assy, Front Door W/Motor, LH
69040-30A80 Lock Assy, Front Door W/Motor, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥10,500
69040-30A80 Lock Assy, Front Door W/Motor, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥10,500
69201A — Frame Sub-assy, Front Door Outside Handle, RH
69201-52130 Frame Sub-assy, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,970
69201-52130 Frame Sub-assy, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,970
69202A — Frame Sub-assy, Front Door Outside Handle, LH
69202-52070 Frame Sub-assy, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,970
69202-52070 Frame Sub-assy, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,970
69205 — Handle Sub-assy, Front Door Inside, RH
69205-28170-C0 note Handle Sub-assy, Front Door Inside, RH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# X ¥2,530
69205-28170-C3 note Handle Sub-assy, Front Door Inside, RH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,120
69205-30210-C0 note Handle Sub-assy, Front Door Inside, RH
2015-06 → 2017-03 ended
NCP175,NHP170,NSP17# G ¥3,290
69205-30210-C1 note Handle Sub-assy, Front Door Inside, RH
2017-03 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥2,740
69205-28170-C3 note Handle Sub-assy, Front Door Inside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥2,120
69205-28170-C3 note Handle Sub-assy, Front Door Inside, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥2,120
69205-30210-C1 note Handle Sub-assy, Front Door Inside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,740
69205-30210-C1 note Handle Sub-assy, Front Door Inside, RH
2018-09 → 2022-07 ended
NSP172 WKG ¥2,740
69205-30210-C1 note Handle Sub-assy, Front Door Inside, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,740
69205-30210-C1 note Handle Sub-assy, Front Door Inside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥2,740
69206B — Handle Sub-assy, Front Door Inside, LH
69206-28150-C0 note Handle Sub-assy, Front Door Inside, LH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# X ¥2,530
69206-28150-C3 note Handle Sub-assy, Front Door Inside, LH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,120
69206-30210-C0 note Handle Sub-assy, Front Door Inside, LH
2015-06 → 2017-03 ended
NCP175,NHP170,NSP17# G ¥3,290
69206-30210-C1 note Handle Sub-assy, Front Door Inside, LH
2017-03 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥2,740
69206-28150-C3 note Handle Sub-assy, Front Door Inside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥2,120
69206-28150-C3 note Handle Sub-assy, Front Door Inside, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥2,120
69206-30210-C1 note Handle Sub-assy, Front Door Inside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,740
69206-30210-C1 note Handle Sub-assy, Front Door Inside, LH
2018-09 → 2022-07 ended
NSP172 WKG ¥2,740
69206-30210-C1 note Handle Sub-assy, Front Door Inside, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,740
69206-30210-C1 note Handle Sub-assy, Front Door Inside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥2,740
69210 — Handle Assy, Front Door, Outside RH
69210-28090-A0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥9,400
69210-28090-A0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-A0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-A1 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NSP172 G ¥9,400
69210-28090-A1 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-B0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥9,400
69210-28090-B0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-B0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-C4 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥9,400
69210-28090-C4 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-C4 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-D3 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥11,300
69210-28090-D3 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥11,300
69210-28090-D6 note Handle Assy, Front Door, Outside RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥11,300
69210-28090-E6 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-E6 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-E6 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥9,400
69210-28090-F1 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥9,400
69210-28090-F1 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-G1 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥11,300
69210-28090-G1 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥11,300
69210-28090-J2 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NSP172 X ¥11,300
69210-28090-J2 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥11,300
69210-28090-J2 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥11,300
69211-52100-A0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NSP172 X ¥2,310
69211-52100-A1 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-B0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-C0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-F7 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥2,310
69211-52100-G4 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥2,780
69211-52100-J5 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-L4 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-X0 note Handle Assy, Front Door, Outside RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥2,780
69210-28090-A0 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-A0 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥9,400
69210-28090-A0 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-A1 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-A1 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NSP172 WKG ¥9,400
69210-28090-B0 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-B0 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-B0 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥9,400
69210-28090-C4 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥9,400
69210-28090-C4 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNGCR,GCERO,WKG ¥9,400
69210-28090-C4 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-C4 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-D4 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥9,400
69210-28090-D4 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-D4 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-E6 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G,GCERO ¥9,400
69210-28090-E6 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-E6 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥9,400
69210-28090-E7 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥9,400
69210-28090-E7 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-E7 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-E8 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥9,400
69210-28090-E8 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-F1 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥9,400
69210-28090-F1 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-G2 note Handle Assy, Front Door, Outside RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥9,400
69210-28090-G2 note Handle Assy, Front Door, Outside RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-J2 note Handle Assy, Front Door, Outside RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥11,300
69210-28090-J2 note Handle Assy, Front Door, Outside RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,GCERO,WKG ¥11,300
69210-28090-J2 note Handle Assy, Front Door, Outside RH
2018-09 → 2020-06 ended
NSP172 WKX ¥11,300
69210-28090-J8 note Handle Assy, Front Door, Outside RH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥9,400
69210-28090-J9 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-J9 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-J9 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥9,400
69210-28090-J9 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NSP172 WKG ¥9,400
69211-52100-A0 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NSP172 WKX ¥2,310
69211-52100-A1 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-B0 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-C0 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-D7 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-E5 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-F7 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69211-52100-G5 note Handle Assy, Front Door, Outside RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69211-52100-J5 note Handle Assy, Front Door, Outside RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-L4 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69211-52100-L7 note Handle Assy, Front Door, Outside RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69211-52100-R0 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NSP172 WKX ¥2,310
69211-52100-R0 note Handle Assy, Front Door, Outside RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69217E — Cover, Front Door Outside Handle, RH
69217-52030-A0 note Cover, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NSP172 ¥410
69217-52030-A1 note Cover, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-B0 note Cover, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-C0 note Cover, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-F7 note Cover, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥410
69217-52030-G4 note Cover, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥500
69217-52030-J7 note Cover, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-L5 note Cover, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-X0 note Cover, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥500
69217-52030-X1 note Cover, Front Door Outside Handle, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥500
69217-52030-A0 note Cover, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NSP172 ¥410
69217-52030-A1 note Cover, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-B0 note Cover, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-C0 note Cover, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥410
69217-52030-C0 note Cover, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥410
69217-52030-D7 note Cover, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-E6 note Cover, Front Door Outside Handle, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-F7 note Cover, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥410
69217-52030-G5 note Cover, Front Door Outside Handle, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 ¥410
69217-52030-J7 note Cover, Front Door Outside Handle, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥410
69217-52030-L5 note Cover, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,GCERO,X ¥410
69217-52030-L5 note Cover, Front Door Outside Handle, RH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥410
69217-52030-L8 note Cover, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥410
69217-52030-R4 note Cover, Front Door Outside Handle, RH
2020-06 → 2022-07 ended
NSP172 ¥410
69217-52030-R4 note Cover, Front Door Outside Handle, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 ¥410
69217-52030-V2 note Cover, Front Door Outside Handle, RH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥410
69217F — Cover, Front Door Outside Handle, LH
69217-52040-A0 note Cover, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NSP172 ¥800
69217-52040-A1 note Cover, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-B0 note Cover, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-C0 note Cover, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-F7 note Cover, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥800
69217-52040-G4 note Cover, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥970
69217-52040-J7 note Cover, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-L5 note Cover, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-X0 note Cover, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥970
69217-52040-X1 note Cover, Front Door Outside Handle, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥970
69217-52040-A0 note Cover, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NSP172 ¥800
69217-52040-A1 note Cover, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-B0 note Cover, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-C0 note Cover, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥800
69217-52040-C0 note Cover, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥800
69217-52040-D7 note Cover, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-E6 note Cover, Front Door Outside Handle, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-F7 note Cover, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥800
69217-52040-G5 note Cover, Front Door Outside Handle, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 ¥800
69217-52040-J7 note Cover, Front Door Outside Handle, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥800
69217-52040-L5 note Cover, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,GCERO,X ¥800
69217-52040-L5 note Cover, Front Door Outside Handle, LH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥800
69217-52040-L8 note Cover, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥800
69217-52040-R4 note Cover, Front Door Outside Handle, LH
2020-06 → 2022-07 ended
NSP172 ¥800
69217-52040-R4 note Cover, Front Door Outside Handle, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 ¥800
69217-52040-V2 note Cover, Front Door Outside Handle, LH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥800
69220 — Handle Assy, Front Door Outside, LH
69210-28090-A0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-A0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-A0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥9,400
69210-28090-A1 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NSP172 G ¥9,400
69210-28090-A1 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-B0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥9,400
69210-28090-B0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-B0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-C4 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥9,400
69210-28090-C4 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-C4 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-D3 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥11,300
69210-28090-D3 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥11,300
69210-28090-D6 note Handle Assy, Front Door Outside, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥11,300
69210-28090-E6 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-E6 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NSP172 X ¥9,400
69210-28090-E6 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥9,400
69210-28090-F1 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥9,400
69210-28090-F1 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥9,400
69210-28090-G1 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥11,300
69210-28090-G1 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥11,300
69210-28090-J2 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥11,300
69210-28090-J2 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥11,300
69210-28090-J2 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NSP172 X ¥11,300
69211-52100-A0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NSP172 X ¥2,310
69211-52100-A1 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-B0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-C0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-F7 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥2,310
69211-52100-G4 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥2,780
69211-52100-J5 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-L4 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,310
69211-52100-X0 note Handle Assy, Front Door Outside, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥2,780
69210-28090-A0 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-A0 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-A0 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥9,400
69210-28090-A1 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-A1 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NSP172 WKG ¥9,400
69210-28090-B0 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-B0 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥9,400
69210-28090-B0 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-C4 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥9,400
69210-28090-C4 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNGCR,GCERO,WKG ¥9,400
69210-28090-C4 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-C4 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-D4 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥9,400
69210-28090-D4 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-D4 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-E6 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥9,400
69210-28090-E6 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G,GCERO ¥9,400
69210-28090-E6 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-E7 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NSP172 WKX ¥9,400
69210-28090-E7 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-E7 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥9,400
69210-28090-E8 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥9,400
69210-28090-E8 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-F1 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-F1 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥9,400
69210-28090-G2 note Handle Assy, Front Door Outside, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-G2 note Handle Assy, Front Door Outside, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥9,400
69210-28090-J2 note Handle Assy, Front Door Outside, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥11,300
69210-28090-J2 note Handle Assy, Front Door Outside, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,GCERO,WKG ¥11,300
69210-28090-J2 note Handle Assy, Front Door Outside, LH
2018-09 → 2020-06 ended
NSP172 WKX ¥11,300
69210-28090-J8 note Handle Assy, Front Door Outside, LH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥9,400
69210-28090-J9 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥9,400
69210-28090-J9 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥9,400
69210-28090-J9 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NSP172 WKG ¥9,400
69210-28090-J9 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NSP172 WKX ¥9,400
69211-52100-A0 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥2,310
69211-52100-A1 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-B0 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-C0 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-D7 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-E5 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-F7 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69211-52100-G5 note Handle Assy, Front Door Outside, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69211-52100-J5 note Handle Assy, Front Door Outside, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,310
69211-52100-L4 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69211-52100-L7 note Handle Assy, Front Door Outside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69211-52100-R0 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NSP172 WKX ¥2,310
69211-52100-R0 note Handle Assy, Front Door Outside, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,310
69241H — Pad, Front Door Outside Handle, Front
69241-52020 Pad, Front Door Outside Handle, Front
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥400
69241-52020 Pad, Front Door Outside Handle, Front
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥400
69242E — Pad, Front Door Outside Handle, Rear
69242-52030 Pad, Front Door Outside Handle, Rear
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥400
69242-52030 Pad, Front Door Outside Handle, Rear
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥400
69293G — Snap, Front Door Outside Handle, RH
69293-12030 Snap, Front Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥160
69293-12030 Snap, Front Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥160
69294B — Snap, Front Door Outside Handle, LH
69293-12040 Snap, Front Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥160
69293-12040 Snap, Front Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥160
69311A — Rod, Front Door Lock Open, RH
69311-52250 Rod, Front Door Lock Open, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥460
69311-52250 Rod, Front Door Lock Open, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥460
69312 — Rod, Front Door Lock Open, LH
69312-52220 Rod, Front Door Lock Open, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥460
69312-52220 Rod, Front Door Lock Open, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥460
69318C — Seal, Door Lock Wiring Harness
69318-51010 Seal, Door Lock Wiring Harness
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥120
69318-51010 Seal, Door Lock Wiring Harness
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
69395 — Bush(FOR DOOR OUTSIDE HANDLE)
69239-30010 Bush(FOR DOOR OUTSIDE HANDLE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥90
69239-30010 Bush(FOR DOOR OUTSIDE HANDLE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥90
69410 — Plate Assy, Front Door Lock Striker
69410-47010 Plate Assy, Front Door Lock Striker
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,060
69410-47010 Plate Assy, Front Door Lock Striker
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,060
69710B — Cable Assy, Front Door Lock Remote Control, RH
69710-52240 Cable Assy, Front Door Lock Remote Control, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,290
69710-52240 Cable Assy, Front Door Lock Remote Control, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,290
69720B — Cable Assy, Front Door Lock Remote Control, LH
69710-52240 Cable Assy, Front Door Lock Remote Control, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,290
69710-52240 Cable Assy, Front Door Lock Remote Control, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,290
69750C — Cable Assy, Front Door Inside Locking, RH
69750-52160 Cable Assy, Front Door Inside Locking, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,290
69750-52160 Cable Assy, Front Door Inside Locking, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,290
69760C — Cable Assy, Front Door Inside Locking LH
69750-52160 Cable Assy, Front Door Inside Locking LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,290
69750-52160 Cable Assy, Front Door Inside Locking LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,290
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
