Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

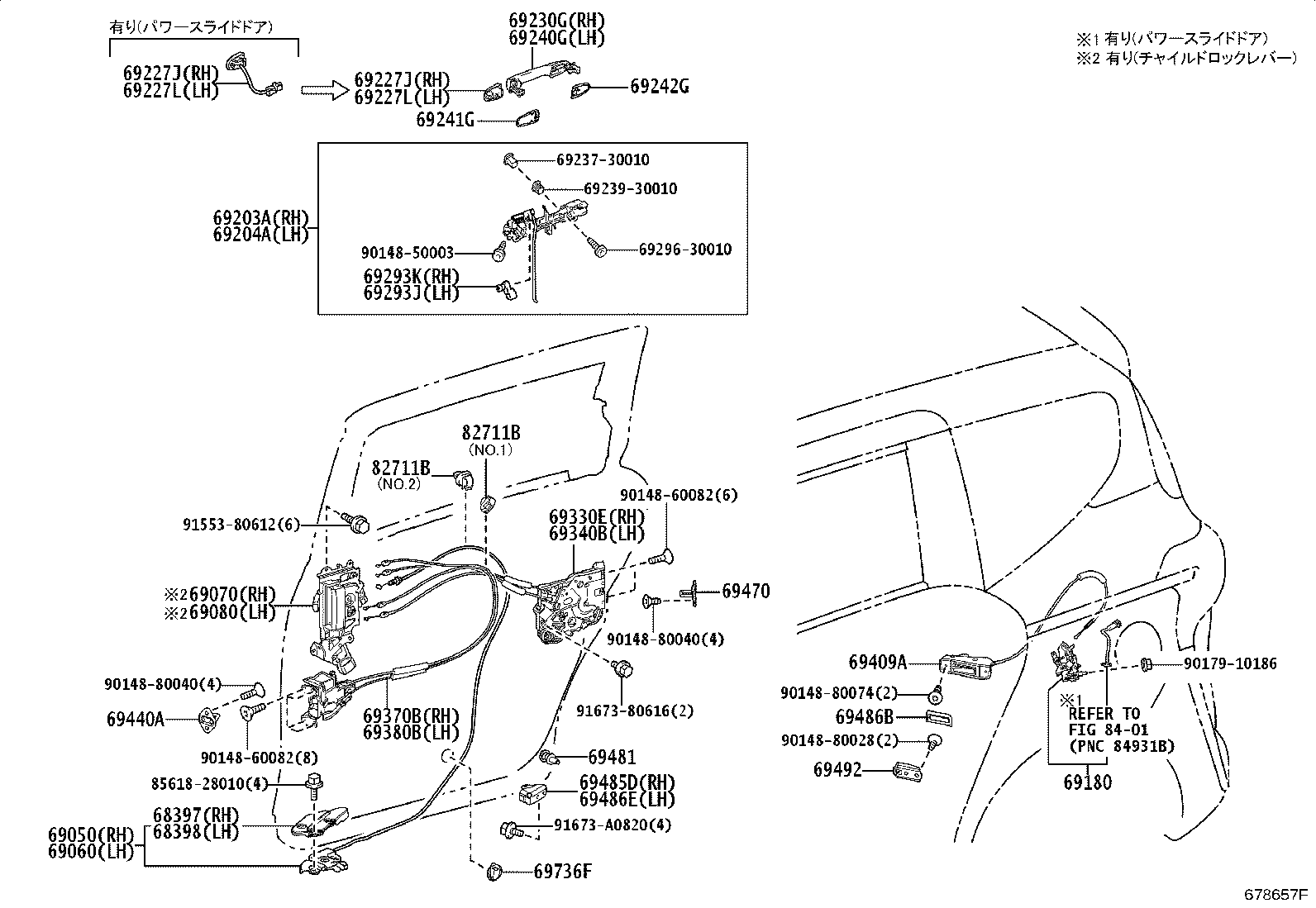

Exploded illustration 678657F 69330E — LOCK ASSY, SLIDE DOOR, RH (8 parts) 69340B — LOCK ASSY, SLIDE DOOR, LH (7 parts) 69050 — LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH (3 parts) 69060 — LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH (3 parts) 69370B — LOCK ASSY, SLIDE DOOR, FRONT RH (3 parts) 69380B — LOCK ASSY, SLIDE DOOR, FRONT LH (3 parts) 69070 — HANDLE ASSY, SLIDE DOOR, INSIDE, RH (10 parts) 69080 — HANDLE ASSY, SLIDE DOOR, INSIDE, LH (8 parts) 69203A — FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH (2 parts) 69204A — FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH (2 parts) 69227J — COVER, REAR DOOR OUTSIDE HANDLE, RH (48 parts) 69227L — COVER, REAR DOOR OUTSIDE HANDLE, LH (35 parts) 69227J — COVER, REAR DOOR OUTSIDE HANDLE, RH (48 parts) 69227L — COVER, REAR DOOR OUTSIDE HANDLE, LH (35 parts) 69230G — HANDLE ASSY, SLIDE DOOR OUTSIDE, RH (26 parts) 69240G — HANDLE ASSY, SLIDE DOOR, OUTSIDE LH (26 parts) 69242G — PAD, REAR DOOR OUTSIDE HANDLE, REAR (2 parts) 69241G — PAD, REAR DOOR OUTSIDE HANDLE, FRONT (2 parts) 69293K — SNAP, REAR DOOR OUTSIDE HANDLE, RH (2 parts) 69293J — SNAP, REAR DOOR OUTSIDE HANDLE, LH (2 parts) 69409A — STOPPER SUB-ASSY, SLIDE DOOR HALF OPEN (3 parts) 69440A — PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER (2 parts) 69470 — PLATE ASSY, SLIDE DOOR LOCK STRIKER (2 parts) 69481 — LATCH, SLIDE DOOR OPEN (2 parts) 69485D — STRIKER, SLIDE DOOR OPEN, RH (6 parts) 69486E — STRIKER, SLIDE DOOR OPEN, LH (6 parts) 69486B — COVER, SLIDE DOOR HALF OPEN STOPPER (2 parts) 69492 — STOPPER, SLIDE DOOR HALF OPEN (2 parts) 69736F — GUIDE, SLIDE DOOR LOCKING LINK (2 parts) 82711B — CLAMP, WIRING HARNESS (4 parts) 82711B — CLAMP, WIRING HARNESS (4 parts) 6923730010 — not listed in this catalogue 6923930010 — not listed in this catalogue 6929630010 — not listed in this catalogue 9014850003 — not listed in this catalogue 9014860082 — not listed in this catalogue 9014860082 — not listed in this catalogue 9014880028 — not listed in this catalogue 9014880040 — not listed in this catalogue 9014880074 — not listed in this catalogue 9014880040 — not listed in this catalogue 9155380612 — not listed in this catalogue 9167380616 — not listed in this catalogue 91673A0820 — not listed in this catalogue 9017910186 — not listed in this catalogue 8401 — not listed in this catalogue 69180 — CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER (3 parts) 8561828010 — not listed in this catalogue 68397 — COVER, SLIDE DOOR LOWER ROLLER, RH (3 parts) 68398 — COVER, SLIDE DOOR LOWER ROLLER, LH (3 parts)
678657F · 34 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
232 parts on this figure
Part number Description Fitment Price
68397 — Cover, Slide Door Lower Roller, RH
68397-52010 Cover, Slide Door Lower Roller, RH
2015-06 → 2016-11 ended
NCP175,NHP170,NSP17# ¥1,920
68397-52020 Cover, Slide Door Lower Roller, RH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,060
68397-52020 Cover, Slide Door Lower Roller, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,060
68398 — Cover, Slide Door Lower Roller, LH
68398-52010 Cover, Slide Door Lower Roller, LH
2015-06 → 2016-11 ended
NCP175,NHP170,NSP17# ¥1,920
68398-52020 Cover, Slide Door Lower Roller, LH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,060
68398-52020 Cover, Slide Door Lower Roller, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,060
69050 — Lock Assy, Slide Door Full Open Stop, RH
69050-52280 Lock Assy, Slide Door Full Open Stop, RH
2015-06 → 2016-11 ended
NCP175,NHP170,NSP17# ¥3,440
69050-52300 Lock Assy, Slide Door Full Open Stop, RH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,440
69050-52300 Lock Assy, Slide Door Full Open Stop, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,440
69060 — Lock Assy, Slide Door Full Open Stop, LH
69060-52310 Lock Assy, Slide Door Full Open Stop, LH
2015-06 → 2016-11 ended
NCP175,NHP170,NSP17# ¥3,440
69060-52320 Lock Assy, Slide Door Full Open Stop, LH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,440
69060-52320 Lock Assy, Slide Door Full Open Stop, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,440
69070 — Handle Assy, Slide Door, Inside, RH
69070-28180-C0 note Handle Assy, Slide Door, Inside, RH
2015-06 → 2017-02 ended
NCP175,NHP170,NSP17# G ¥13,600
69070-28181-C0 note Handle Assy, Slide Door, Inside, RH
2017-03 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥14,300
69070-28190-C0 note Handle Assy, Slide Door, Inside, RH
2015-06 → 2017-02 ended
NCP175,NHP170,NSP17# X ¥13,700
69070-28191-C0 note Handle Assy, Slide Door, Inside, RH
2017-03 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥10,300
69070-28191-C0 note Handle Assy, Slide Door, Inside, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥10,300
69070-28191-C0 note Handle Assy, Slide Door, Inside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥10,300
69070-28210-C0 note Handle Assy, Slide Door, Inside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥11,400
69070-28210-C0 note Handle Assy, Slide Door, Inside, RH
2018-09 → 2022-07 ended
NSP172 WKG ¥11,400
69070-28210-C0 note Handle Assy, Slide Door, Inside, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥11,400
69070-28210-C0 note Handle Assy, Slide Door, Inside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥11,400
69080 — Handle Assy, Slide Door, Inside, LH
69080-28180-C0 note Handle Assy, Slide Door, Inside, LH
2015-06 → 2017-02 ended
NCP175,NHP170,NSP17# ¥13,600
69080-28181-C0 note Handle Assy, Slide Door, Inside, LH
2017-03 → 2018-09 ended
NCP175,NHP170,NSP17# ¥14,300
69080-52060-C0 note Handle Assy, Slide Door, Inside, LH
2015-06 → 2017-02 ended
NCP175,NSP17# X ¥20,600
69080-52061-C0 note Handle Assy, Slide Door, Inside, LH
2017-03 → 2018-09 ended
NCP175,NSP17# X ¥20,600
69080-28140-C0 note Handle Assy, Slide Door, Inside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥11,400
69080-28140-C0 note Handle Assy, Slide Door, Inside, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥11,400
69080-28140-C0 note Handle Assy, Slide Door, Inside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥11,400
69080-28140-C0 note Handle Assy, Slide Door, Inside, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥11,400
69180 — Control Assy, Slide Door Half Open Stopper
69180-52040 Control Assy, Slide Door Half Open Stopper
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,200
69180-52050 note Control Assy, Slide Door Half Open Stopper
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥4,020
69180-52040 Control Assy, Slide Door Half Open Stopper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥5,200
69203A — Frame Sub-assy, Rear Door Outside Handle, RH
69203-52130 Frame Sub-assy, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,740
69203-52130 Frame Sub-assy, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,740
69204A — Frame Sub-assy, Rear Door Outside Handle, LH
69204-52160 Frame Sub-assy, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,740
69204-52160 Frame Sub-assy, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,740
69227J — Cover, Rear Door Outside Handle, RH
69217-52040-A0 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NSP172 X ¥800
69217-52040-A1 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥800
69217-52040-B0 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥800
69217-52040-C0 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥800
69217-52040-F7 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥800
69217-52040-G4 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥970
69217-52040-J7 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥800
69217-52040-L5 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥800
69217-52040-X0 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥970
69227-28080-A0 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥4,080
69227-28080-A1 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NSP172 G ¥4,070
69227-28080-B0 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥4,070
69227-28080-C3 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥4,070
69227-28080-D2 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥4,900
69227-28080-D4 note Cover, Rear Door Outside Handle, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥4,900
69227-28080-E3 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥4,080
69227-28080-F2 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥4,070
69227-28080-G1 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥4,900
69227-28080-J0 note Cover, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥4,900
69217-52040-A0 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NSP172 WKX ¥800
69217-52040-A1 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥800
69217-52040-B0 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥800
69217-52040-C0 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥800
69217-52040-D7 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥800
69217-52040-E6 note Cover, Rear Door Outside Handle, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥800
69217-52040-F7 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥800
69217-52040-G5 note Cover, Rear Door Outside Handle, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSX,X ¥800
69217-52040-J7 note Cover, Rear Door Outside Handle, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥800
69217-52040-L5 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥800
69217-52040-L8 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥800
69217-52040-R4 note Cover, Rear Door Outside Handle, RH
2020-06 → 2022-07 ended
NSP172 WKX ¥800
69217-52040-R4 note Cover, Rear Door Outside Handle, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥800
69227-28080-A0 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥4,080
69227-28080-A1 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NSP172 WKG ¥4,070
69227-28080-B0 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥4,070
69227-28080-C3 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥4,070
69227-28080-C3 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNGCR,GCERO,WKG ¥4,070
69227-28080-D5 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥4,080
69227-28080-E3 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G,GCERO ¥4,080
69227-28080-E3 note Cover, Rear Door Outside Handle, RH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥4,080
69227-28080-E4 note Cover, Rear Door Outside Handle, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥4,080
69227-28080-E5 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥4,080
69227-28080-F2 note Cover, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥4,070
69227-28080-G2 note Cover, Rear Door Outside Handle, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥4,070
69227-28080-J0 note Cover, Rear Door Outside Handle, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,GCERO,WKG ¥4,900
69227-28080-J1 note Cover, Rear Door Outside Handle, RH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥4,080
69227-28080-J2 note Cover, Rear Door Outside Handle, RH
2020-06 → 2022-07 ended
NSP172 WKG ¥4,080
69227-28080-J2 note Cover, Rear Door Outside Handle, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNGCR,G,GCERO ¥4,080
69227L — Cover, Rear Door Outside Handle, LH
69217-52040-A0 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NSP172 X ¥800
69217-52040-A1 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥800
69217-52040-B0 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥800
69217-52040-C0 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥800
69217-52040-F7 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NSP170 X ¥800
69217-52040-G4 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NSP170 X ¥970
69217-52040-J7 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥800
69217-52040-L5 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥800
69217-52040-X0 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NSP170 X ¥970
69227-28080-A0 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,080
69227-28080-A1 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NSP172 ¥4,070
69227-28080-B0 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,070
69227-28080-C3 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,070
69227-28080-D2 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥4,900
69227-28080-D4 note Cover, Rear Door Outside Handle, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥4,900
69227-28080-E3 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,080
69227-28080-F2 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥4,070
69227-28080-G1 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥4,900
69227-28080-J0 note Cover, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,900
69227-28080-A0 note Cover, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,080
69227-28080-A1 note Cover, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NSP172 ¥4,070
69227-28080-B0 note Cover, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,070
69227-28080-C3 note Cover, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥4,070
69227-28080-C3 note Cover, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥4,070
69227-28080-D5 note Cover, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,080
69227-28080-E3 note Cover, Rear Door Outside Handle, LH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥4,080
69227-28080-E3 note Cover, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,GCERO,X ¥4,080
69227-28080-E4 note Cover, Rear Door Outside Handle, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,080
69227-28080-E5 note Cover, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥4,080
69227-28080-F2 note Cover, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥4,070
69227-28080-G2 note Cover, Rear Door Outside Handle, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 ¥4,070
69227-28080-J0 note Cover, Rear Door Outside Handle, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥4,900
69227-28080-J1 note Cover, Rear Door Outside Handle, LH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥4,080
69227-28080-J2 note Cover, Rear Door Outside Handle, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 ¥4,080
69227-28080-J2 note Cover, Rear Door Outside Handle, LH
2020-06 → 2022-07 ended
NSP172 ¥4,080
69230G — Handle Assy, Slide Door Outside, RH
69213-28030-A0 note Handle Assy, Slide Door Outside, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-A2 note Handle Assy, Slide Door Outside, RH
2015-06 → 2018-09 ended
NSP172 ¥2,310
69213-28030-B0 note Handle Assy, Slide Door Outside, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-C4 note Handle Assy, Slide Door Outside, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-D2 note Handle Assy, Slide Door Outside, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,780
69213-28030-D3 note Handle Assy, Slide Door Outside, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥2,780
69213-28030-E3 note Handle Assy, Slide Door Outside, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-F1 note Handle Assy, Slide Door Outside, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,310
69213-28030-G1 note Handle Assy, Slide Door Outside, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,780
69213-28030-J1 note Handle Assy, Slide Door Outside, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,780
69213-28030-A0 note Handle Assy, Slide Door Outside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-A2 note Handle Assy, Slide Door Outside, RH
2018-09 → 2022-07 ended
NSP172 ¥2,310
69213-28030-B0 note Handle Assy, Slide Door Outside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-C4 note Handle Assy, Slide Door Outside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,310
69213-28030-C4 note Handle Assy, Slide Door Outside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥2,310
69213-28030-D4 note Handle Assy, Slide Door Outside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-E3 note Handle Assy, Slide Door Outside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,GCERO,X ¥2,310
69213-28030-E3 note Handle Assy, Slide Door Outside, RH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥2,310
69213-28030-E4 note Handle Assy, Slide Door Outside, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-E5 note Handle Assy, Slide Door Outside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥2,310
69213-28030-F1 note Handle Assy, Slide Door Outside, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥2,310
69213-28030-G2 note Handle Assy, Slide Door Outside, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 ¥2,310
69213-28030-J1 note Handle Assy, Slide Door Outside, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥2,780
69213-28030-J2 note Handle Assy, Slide Door Outside, RH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,310
69213-28030-J3 note Handle Assy, Slide Door Outside, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 ¥2,310
69213-28030-J3 note Handle Assy, Slide Door Outside, RH
2020-06 → 2022-07 ended
NSP172 ¥2,310
69240G — Handle Assy, Slide Door, Outside LH
69213-28030-A0 note Handle Assy, Slide Door, Outside LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-A2 note Handle Assy, Slide Door, Outside LH
2015-06 → 2018-09 ended
NSP172 ¥2,310
69213-28030-B0 note Handle Assy, Slide Door, Outside LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-C4 note Handle Assy, Slide Door, Outside LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-D2 note Handle Assy, Slide Door, Outside LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,780
69213-28030-D3 note Handle Assy, Slide Door, Outside LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥2,780
69213-28030-E3 note Handle Assy, Slide Door, Outside LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-F1 note Handle Assy, Slide Door, Outside LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,310
69213-28030-G1 note Handle Assy, Slide Door, Outside LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,780
69213-28030-J1 note Handle Assy, Slide Door, Outside LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,780
69213-28030-A0 note Handle Assy, Slide Door, Outside LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-A2 note Handle Assy, Slide Door, Outside LH
2018-09 → 2022-07 ended
NSP172 ¥2,310
69213-28030-B0 note Handle Assy, Slide Door, Outside LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-C4 note Handle Assy, Slide Door, Outside LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,310
69213-28030-C4 note Handle Assy, Slide Door, Outside LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥2,310
69213-28030-D4 note Handle Assy, Slide Door, Outside LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-E3 note Handle Assy, Slide Door, Outside LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,GCERO,X ¥2,310
69213-28030-E3 note Handle Assy, Slide Door, Outside LH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥2,310
69213-28030-E4 note Handle Assy, Slide Door, Outside LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,310
69213-28030-E5 note Handle Assy, Slide Door, Outside LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥2,310
69213-28030-F1 note Handle Assy, Slide Door, Outside LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥2,310
69213-28030-G2 note Handle Assy, Slide Door, Outside LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 ¥2,310
69213-28030-J1 note Handle Assy, Slide Door, Outside LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥2,780
69213-28030-J2 note Handle Assy, Slide Door, Outside LH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,310
69213-28030-J3 note Handle Assy, Slide Door, Outside LH
2020-06 → 2022-07 ended
NSP172 ¥2,310
69213-28030-J3 note Handle Assy, Slide Door, Outside LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 ¥2,310
69241G — Pad, Rear Door Outside Handle, Front
69242-52030 Pad, Rear Door Outside Handle, Front
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥400
69242-52030 Pad, Rear Door Outside Handle, Front
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥400
69242G — Pad, Rear Door Outside Handle, Rear
69241-52020 Pad, Rear Door Outside Handle, Rear
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥400
69241-52020 Pad, Rear Door Outside Handle, Rear
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥400
69293J — Snap, Rear Door Outside Handle, LH
69293-28040 Snap, Rear Door Outside Handle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥90
69293-28040 Snap, Rear Door Outside Handle, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥90
69293K — Snap, Rear Door Outside Handle, RH
69293-28030 Snap, Rear Door Outside Handle, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥90
69293-28030 Snap, Rear Door Outside Handle, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥90
69330E — Lock Assy, Slide Door, RH
69200-52030 Lock Assy, Slide Door, RH
2015-06 → 2017-11 ended
NCP175,NHP170,NSP17# G ¥26,900
69200-52031 Lock Assy, Slide Door, RH
2017-12 → 2018-05 ended
NCP175,NHP170,NSP17# G ¥26,900
69200-52032 Lock Assy, Slide Door, RH
2018-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥22,400
69200-52040 Lock Assy, Slide Door, RH
2015-06 → 2017-11 ended
NCP175,NHP170,NSP17# X ¥20,300
69200-52041 Lock Assy, Slide Door, RH
2017-12 → 2018-05 ended
NCP175,NHP170,NSP17# X ¥26,900
69200-52042 Lock Assy, Slide Door, RH
2018-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥22,400
69200-52032 Lock Assy, Slide Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥22,400
69200-52042 Lock Assy, Slide Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥22,400
69340B — Lock Assy, Slide Door, LH
69300-52080 Lock Assy, Slide Door, LH
2015-06 → 2017-11 ended
NCP175,NHP170,NSP17# ¥20,300
69300-52081 Lock Assy, Slide Door, LH
2017-12 → 2018-05 ended
NCP175,NHP170,NSP17# ¥26,900
69300-52082 Lock Assy, Slide Door, LH
2018-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥22,400
69300-52090 note Lock Assy, Slide Door, LH
2015-06 → 2017-11 ended
NCP175,NSP17# X ¥26,900
69300-52091 note Lock Assy, Slide Door, LH
2017-12 → 2018-06 ended
NCP175,NSP17# X ¥26,900
69300-52092 note Lock Assy, Slide Door, LH
2018-07 → 2018-09 ended
NCP175,NSP17# X ¥26,900
69300-52082 Lock Assy, Slide Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥22,400
69370B — Lock Assy, Slide Door, Front RH
69370-52040 Lock Assy, Slide Door, Front RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,900
69370-52040 Lock Assy, Slide Door, Front RH
2018-09 → 2020-12 ended
NCP175,NHP170,NSP17# ¥5,900
69370-52041 Lock Assy, Slide Door, Front RH
2021-01 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,870
69380B — Lock Assy, Slide Door, Front LH
69380-52080 Lock Assy, Slide Door, Front LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,900
69380-52080 Lock Assy, Slide Door, Front LH
2018-09 → 2020-12 ended
NCP175,NHP170,NSP17# ¥5,900
69380-52081 Lock Assy, Slide Door, Front LH
2021-01 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,870
69409A — Stopper Sub-assy, Slide Door Half Open
69409-52030 Stopper Sub-assy, Slide Door Half Open
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,410
69409-52030 Stopper Sub-assy, Slide Door Half Open
2018-09 → 2021-09 ended
NCP175,NHP170,NSP17# ¥3,410
69409-52031 Stopper Sub-assy, Slide Door Half Open
2021-10 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,410
69440A — Plate Assy, Slide Door Front Lock Striker
69440-52010 Plate Assy, Slide Door Front Lock Striker
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,110
69440-52010 Plate Assy, Slide Door Front Lock Striker
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,110
69470 — Plate Assy, Slide Door Lock Striker
69470-28120 Plate Assy, Slide Door Lock Striker
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,160
69470-28120 Plate Assy, Slide Door Lock Striker
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,160
69481 — Latch, Slide Door Open
69481-52030 Latch, Slide Door Open
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥870
69481-52030 Latch, Slide Door Open
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥870
69485D — Striker, Slide Door Open, RH
69485-52030 Striker, Slide Door Open, RH
2015-06 → 2016-10 ended
NCP175,NHP170,NSP17# ¥1,600
69485-52040 Striker, Slide Door Open, RH
2016-11 → 2017-03 ended
NCP175,NHP170,NSP17# ¥2,290
69485-52041 Striker, Slide Door Open, RH
2017-04 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,730
69485-52030 Striker, Slide Door Open, RH
2020-01 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,600
69485-52041 Striker, Slide Door Open, RH
2018-09 → 2020-01 ended
NCP175,NHP170,NSP17# ¥1,730
69485-52041 note Striker, Slide Door Open, RH
2020-01 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,730
69486B — Cover, Slide Door Half Open Stopper
69486-46010 Cover, Slide Door Half Open Stopper
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥250
69486-46010 Cover, Slide Door Half Open Stopper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥250
69486E — Striker, Slide Door Open, LH
69486-52050 Striker, Slide Door Open, LH
2015-06 → 2016-10 ended
NCP175,NHP170,NSP17# ¥1,600
69486-52060 Striker, Slide Door Open, LH
2016-11 → 2017-03 ended
NCP175,NHP170,NSP17# ¥2,290
69486-52061 Striker, Slide Door Open, LH
2017-04 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,730
69486-52050 Striker, Slide Door Open, LH
2020-01 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,600
69486-52061 Striker, Slide Door Open, LH
2018-09 → 2020-01 ended
NCP175,NHP170,NSP17# ¥1,730
69486-52061 note Striker, Slide Door Open, LH
2020-01 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,730
69492 — Stopper, Slide Door Half Open
69492-52020 Stopper, Slide Door Half Open
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥840
69492-52020 Stopper, Slide Door Half Open
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥840
69736F — Guide, Slide Door Locking Link
69736-52010 Guide, Slide Door Locking Link
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥410
69736-52010 Guide, Slide Door Locking Link
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥410
82711B — Clamp, Wiring Harness
82711-16790 note Clamp, Wiring Harness
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥120
82711-1E300 note Clamp, Wiring Harness
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
82711-16790 note Clamp, Wiring Harness
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
82711-1E300 note Clamp, Wiring Harness
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
