Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

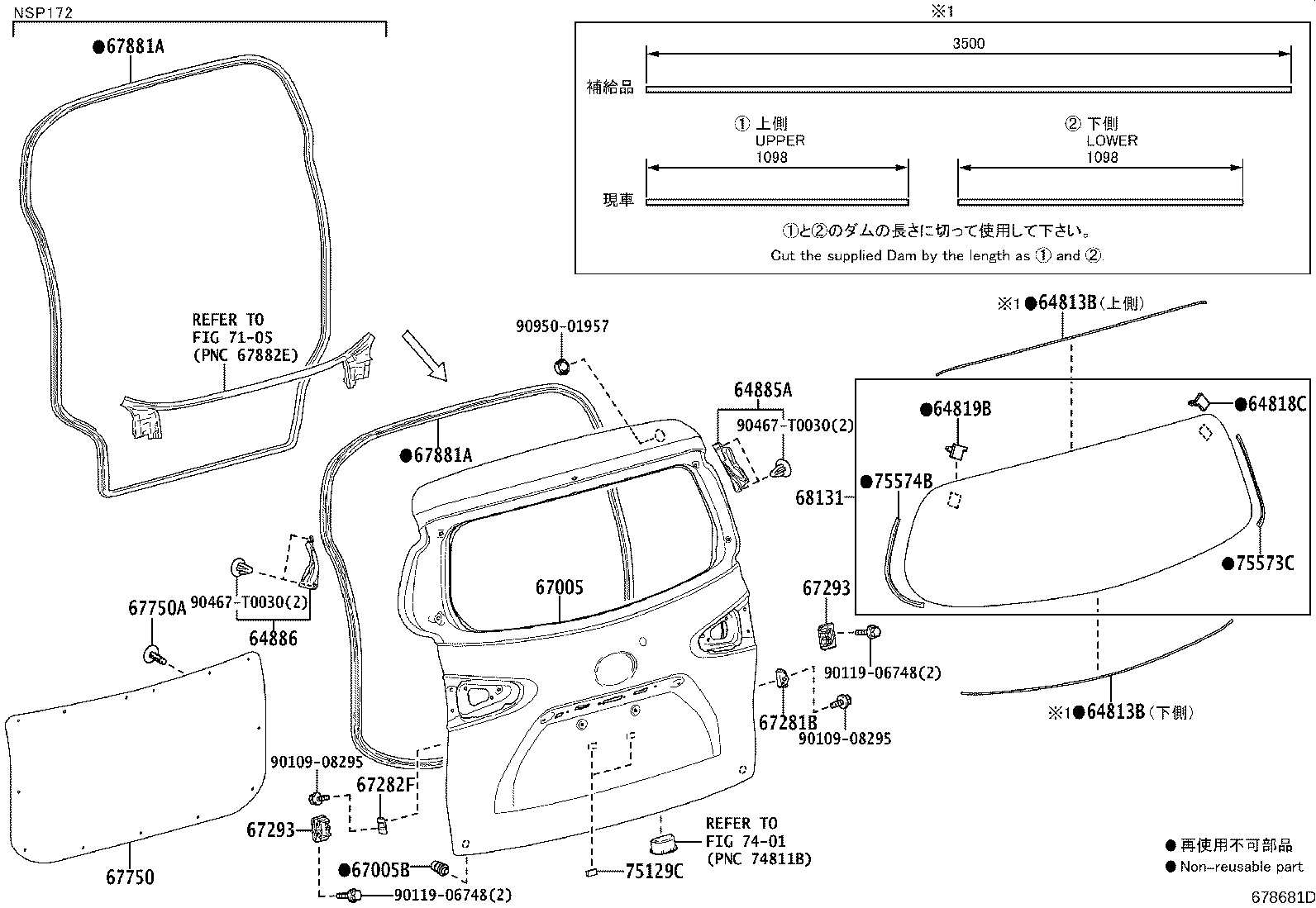

Exploded illustration 678681D 7105 — not listed in this catalogue 7401 — not listed in this catalogue 67005 — PANEL SUB-ASSY, BACK DOOR (6 parts) 67281B — STOPPER, BACK DOOR, LOWER (2 parts) 67282F — STOPPER, BACK DOOR, LWR LH (2 parts) 67293 — CUSHION, BACK DOOR LOWER STOPPER (2 parts) 67293 — CUSHION, BACK DOOR LOWER STOPPER (2 parts) 67750 — BOARD ASSY, BACK DOOR TRIM (5 parts) 67881A — WEATHERSTRIP, BACK DOOR (5 parts) 67881A — WEATHERSTRIP, BACK DOOR (5 parts) 75129C — CUSHION, REAR LICENCE PLATE (2 parts) 9010908295 — not listed in this catalogue 9010908295 — not listed in this catalogue 9011906748 — not listed in this catalogue 9011906748 — not listed in this catalogue 9095001957 — not listed in this catalogue 67005B — CUSHION(FOR BACK DOOR PANEL) (2 parts) 67750A — CLIP(FOR BACK DOOR TRIM) (6 parts) 64885A — CHANNEL, BACK WINDOW GLASS, RH (2 parts) 90467T0030 — not listed in this catalogue 64886 — CHANNEL, BACK WINDOW GLASS, LH (2 parts) 90467T0030 — not listed in this catalogue 64813B — DAM, BACK WINDOW GLASS ADHESIVE (2 parts) 64813B — DAM, BACK WINDOW GLASS ADHESIVE (2 parts) 64818C — SPACER, BACK WINDOW GLASS, NO.1 (2 parts) 64819B — SPACER, BACK WINDOW GLASS, NO.2 (2 parts) 75573C — MOULDING, BACK WINDOW, OUTSIDE (2 parts) 75574B — MOULDING, BACK WINDOW, OUTSIDE LH (2 parts) 68131 — GLASS, BACK DOOR (3 parts)
678681D · 20 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
49 parts on this figure
Part number Description Fitment Price
64813B — Dam, Back Window Glass Adhesive
56117-64010 Dam, Back Window Glass Adhesive
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,480
56117-64010 Dam, Back Window Glass Adhesive
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,480
64818C — Spacer, Back Window Glass, NO.1
64818-52060 Spacer, Back Window Glass, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥260
64818-52060 Spacer, Back Window Glass, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥260
64819B — Spacer, Back Window Glass, NO.2
64819-52080 Spacer, Back Window Glass, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥260
64819-52080 Spacer, Back Window Glass, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥260
64885A — Channel, Back Window Glass, RH
64885-52050 Channel, Back Window Glass, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥710
64885-52050 Channel, Back Window Glass, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥710
64886 — Channel, Back Window Glass, LH
64886-52050 Channel, Back Window Glass, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥710
64886-52050 Channel, Back Window Glass, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥710
67005 — Panel Sub-assy, Back Door
67005-52E50 Panel Sub-assy, Back Door
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥47,800
67005-52E60 note Panel Sub-assy, Back Door
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥47,800
67005-52E50 Panel Sub-assy, Back Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥47,800
67005-52E60 note Panel Sub-assy, Back Door
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥47,800
67005-52E60 note Panel Sub-assy, Back Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥47,800
67005-52E60 note Panel Sub-assy, Back Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥47,800
67005B — Cushion(FOR BACK DOOR PANEL)
90541-09142 Cushion(FOR BACK DOOR PANEL)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
90541-09142 Cushion(FOR BACK DOOR PANEL)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
67281B — Stopper, Back Door, Lower
67281-52010 Stopper, Back Door, Lower
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥660
67281-52010 Stopper, Back Door, Lower
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥660
67282F — Stopper, Back Door, Lwr LH
67281-52010 Stopper, Back Door, Lwr LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥660
67281-52010 Stopper, Back Door, Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥660
67293 — Cushion, Back Door Lower Stopper
67293-52040 Cushion, Back Door Lower Stopper
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥890
67293-52040 Cushion, Back Door Lower Stopper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥890
67750 — Board Assy, Back Door Trim
67750-52100-C0 note Board Assy, Back Door Trim
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,780
67750-52100-C0 note Board Assy, Back Door Trim
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥3,780
67750-52100-C0 note Board Assy, Back Door Trim
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥3,780
67750-52100-C0 note Board Assy, Back Door Trim
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥3,780
67750-52100-C0 note Board Assy, Back Door Trim
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥3,780
67750A — Clip(FOR BACK DOOR TRIM)
90467-08186-C0 note Clip(FOR BACK DOOR TRIM)
2015-06 → 2016-09 ended
NCP175,NHP170,NSP17# ¥70
90467-08186-C3 note Clip(FOR BACK DOOR TRIM)
2016-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
90467-08186-C3 note Clip(FOR BACK DOOR TRIM)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥70
90467-08186-C3 note Clip(FOR BACK DOOR TRIM)
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥70
90467-08186-C3 note Clip(FOR BACK DOOR TRIM)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥70
90467-08186-C3 note Clip(FOR BACK DOOR TRIM)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥70
67881A — Weatherstrip, Back Door
67881-52220 Weatherstrip, Back Door
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥8,800
67881-52230 Weatherstrip, Back Door
2015-06 → 2018-09 ended
NSP172 ¥11,400
67881-52220 Weatherstrip, Back Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥8,800
67881-52230 Weatherstrip, Back Door
2018-09 → 2020-07 ended
NSP172 ¥11,400
67881-52231 Weatherstrip, Back Door
2020-08 → 2022-07 ended
NSP172 ¥9,500
68131 — Glass, Back Door
68105-52660 note Glass, Back Door
2015-06 → 2018-09 ended
NCP175,NSP170 X —
68105-52670 Glass, Back Door
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
68105-52670 Glass, Back Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
75129C — Cushion, Rear Licence Plate
75129-30010 Cushion, Rear Licence Plate
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥190
75129-30010 Cushion, Rear Licence Plate
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥190
75573C — Moulding, Back Window, Outside
75573-52250 Moulding, Back Window, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥890
75573-52250 Moulding, Back Window, Outside
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥890
75574B — Moulding, Back Window, Outside LH
75574-52100 Moulding, Back Window, Outside LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥890
75574-52100 Moulding, Back Window, Outside LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥890
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
