Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

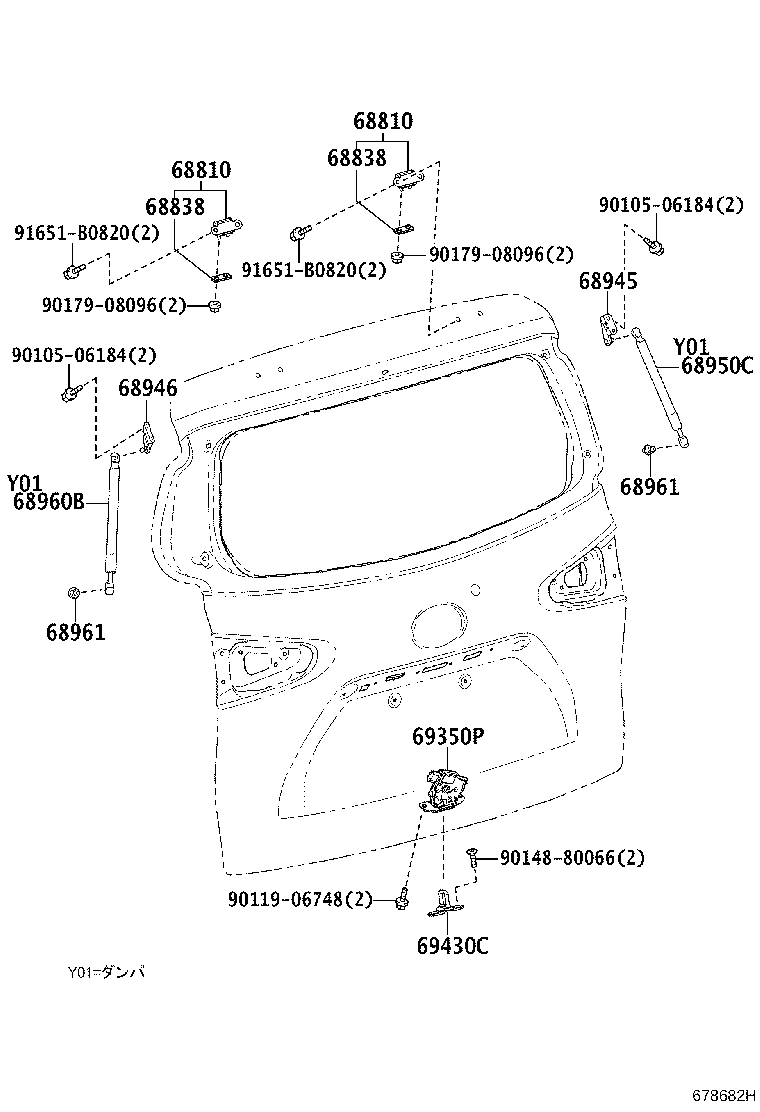

Exploded illustration 678682H 68810 — HINGE ASSY, BACK DOOR, UPPER (2 parts) 68838 — PAD, BACK DOOR HINGE, NO.1 (4 parts) 68810 — HINGE ASSY, BACK DOOR, UPPER (2 parts) 68838 — PAD, BACK DOOR HINGE, NO.1 (4 parts) 68945 — BRACKET, BACK DOOR DAMPER STAY, UPPER RH (2 parts) 68946 — BRACKET, BACK DOOR DAMPER STAY, UPPER LH (2 parts) 68950C — STAY ASSY, BACK DOOR, RH (6 parts) 68960B — STAY ASSY, BACK DOOR, LH (6 parts) 68961 — BOLT, BACK DOOR STAY (2 parts) 68961 — BOLT, BACK DOOR STAY (2 parts) 69350P — LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH (4 parts) 69430C — STRIKER ASSY, BACK DOOR LOCK (2 parts) 9010506184 — not listed in this catalogue 9010506184 — not listed in this catalogue 9011906748 — not listed in this catalogue 9014880066 — not listed in this catalogue 9017908096 — not listed in this catalogue 9017908096 — not listed in this catalogue 91651B0820 — not listed in this catalogue 91651B0820 — not listed in this catalogue
678682H · 12 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
68810 — Hinge Assy, Back Door, Upper
68810-52130 Hinge Assy, Back Door, Upper
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,500
68810-52130 Hinge Assy, Back Door, Upper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,500
68838 — Pad, Back Door Hinge, NO.1
68838-47010 note Pad, Back Door Hinge, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
68838-47020 note Pad, Back Door Hinge, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥160
68838-47010 note Pad, Back Door Hinge, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥80
68838-47020 note Pad, Back Door Hinge, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥160
68945 — Bracket, Back Door Damper Stay, Upper RH
68945-52120 Bracket, Back Door Damper Stay, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥510
68945-52120 Bracket, Back Door Damper Stay, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥510
68946 — Bracket, Back Door Damper Stay, Upper LH
68946-52080 Bracket, Back Door Damper Stay, Upper LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥510
68946-52080 Bracket, Back Door Damper Stay, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥510
68950C — Stay Assy, Back Door, RH
68950-0W840 note Stay Assy, Back Door, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥6,300
68950-0WA10 note Stay Assy, Back Door, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥7,600
68950-0WB30 note Stay Assy, Back Door, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥9,200
68950-0W840 note Stay Assy, Back Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥6,300
68950-0WA10 note Stay Assy, Back Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,600
68950-0WB30 note Stay Assy, Back Door, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥9,200
68960B — Stay Assy, Back Door, LH
68960-0W840 note Stay Assy, Back Door, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥6,300
68960-0WA10 note Stay Assy, Back Door, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥7,600
68960-0WB30 note Stay Assy, Back Door, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥9,200
68960-0W840 note Stay Assy, Back Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥6,300
68960-0WA10 note Stay Assy, Back Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,600
68960-0WB30 note Stay Assy, Back Door, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥9,200
68961 — Bolt, Back Door Stay
68961-52020 Bolt, Back Door Stay
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥280
68961-52020 Bolt, Back Door Stay
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥280
69350P — Lock Assy, Back Door, W/Courtesy Lamp Switch
69350-52391 Lock Assy, Back Door, W/Courtesy Lamp Switch
2015-06 → 2016-11 ended
NCP175,NHP170,NSP17# ¥8,800
69350-52400 Lock Assy, Back Door, W/Courtesy Lamp Switch
2016-11 → 2016-12 ended
NCP175,NHP170,NSP17# —
69350-52401 Lock Assy, Back Door, W/Courtesy Lamp Switch
2016-12 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,800
69350-52401 Lock Assy, Back Door, W/Courtesy Lamp Switch
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,800
69430C — Striker Assy, Back Door Lock
69430-52050 Striker Assy, Back Door Lock
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥700
69430-52050 Striker Assy, Back Door Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
