Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

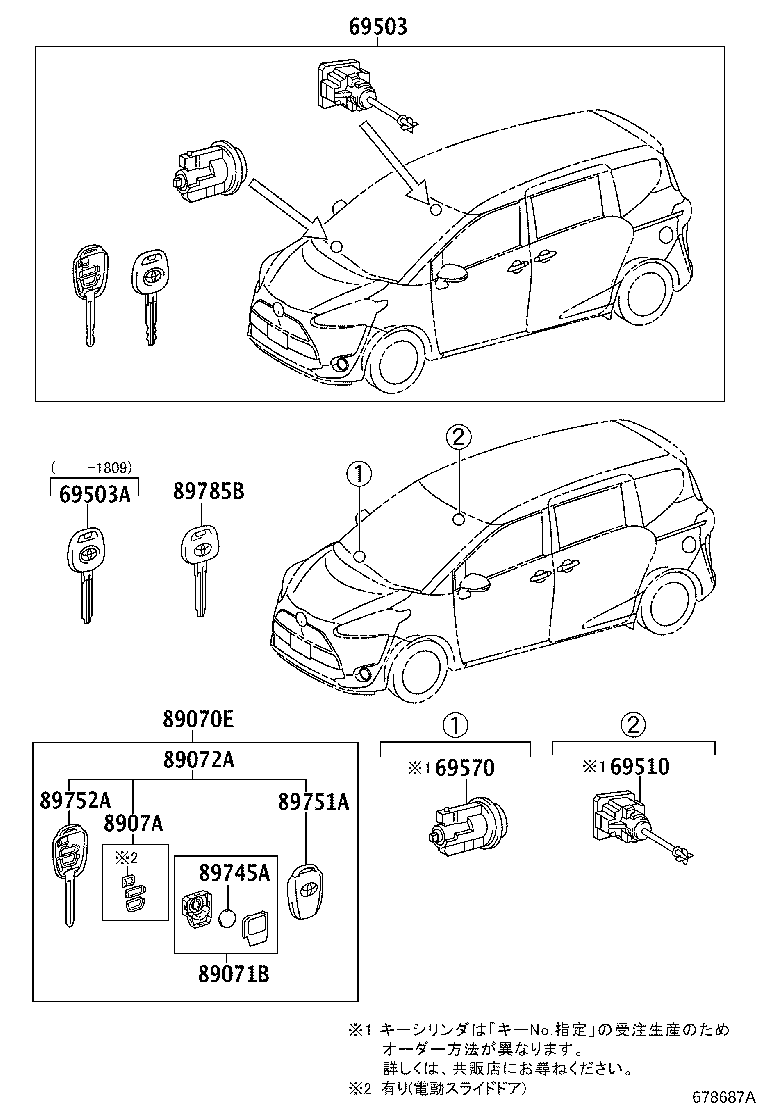

Exploded illustration 678687A 69510 — CYLINDER ASSY, FRONT DOOR LOCK, RH (2 parts) 69570 — CYLINDER ASSY, IGNITION SWITCH LOCK (2 parts) 69503 — CYLINDER SET, LOCK (10 parts) 69503A — KEY, BLANK (1 parts) 89070E — TRANSMITTER ASSY, DOOR CONTROL (7 parts) 89072A — HOUSING SET, DOOR CONTROL TRANSMITTER (7 parts) 89745A — BATTERY, TRANSMITTER (6 parts) 89751A — COVER, TRANSMITTER HOUSING (6 parts) 89071B — MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL (7 parts) 8907A — SWITCH SET, TRANSMITTER (7 parts) 89752A — CASE, TRANSMITTER HOUSING (7 parts) 89785B — TRANSMITTER, TRANSPONDER KEY MASTER (3 parts)
678687A · 12 callouts Full size ↗
65 parts on this figure
Part number Description Fitment Price
69503 — Cylinder Set, Lock
69005-52Q40 note Cylinder Set, Lock
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥11,700
69005-52Q60 Cylinder Set, Lock
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥11,700
69005-58270 note Cylinder Set, Lock
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥8,200
69005-58270 note Cylinder Set, Lock
2015-06 → 2018-09 ended
NSP172 X ¥8,200
69005-58270 Cylinder Set, Lock
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥8,200
69005-52R90 Cylinder Set, Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥11,400
69005-58270 Cylinder Set, Lock
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,GCERO,WKG ¥8,200
69005-58270 note Cylinder Set, Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥8,200
69005-58270 note Cylinder Set, Lock
2018-09 → 2022-07 ended
NSP172 WKX ¥8,200
69005-58280 Cylinder Set, Lock
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥8,200
69503A — Key, Blank
90999-00199 note Key, Blank
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,140
69510 — Cylinder Assy, Front Door Lock, RH
69510-22300 Cylinder Assy, Front Door Lock, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥6,400
69510-22300 Cylinder Assy, Front Door Lock, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥6,400
69570 — Cylinder Assy, Ignition Switch Lock
69570-52080 Cylinder Assy, Ignition Switch Lock
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥10,000
69570-22130 Cylinder Assy, Ignition Switch Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥7,500
89070E — Transmitter Assy, Door Control
89070-52F00 note Transmitter Assy, Door Control
2015-06 → 2018-09 ended
NSP172 X ¥12,900
89070-52F00 Transmitter Assy, Door Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥12,900
89070-52F00 note Transmitter Assy, Door Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥12,900
89070-52F10 note Transmitter Assy, Door Control
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥10,700
89070-52J50 Transmitter Assy, Door Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥10,700
89070-52J50 note Transmitter Assy, Door Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥10,700
89070-52J50 note Transmitter Assy, Door Control
2018-09 → 2022-07 ended
NSP172 WKX ¥10,700
89071B — Module Set, Transmitter Sub-assy, Door Control
89071-52220 note Module Set, Transmitter Sub-assy, Door Control
2015-06 → 2018-09 ended
NSP172 X ¥7,600
89071-52220 note Module Set, Transmitter Sub-assy, Door Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥7,600
89071-52220 Module Set, Transmitter Sub-assy, Door Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥7,600
89071-52320 note Module Set, Transmitter Sub-assy, Door Control
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥5,400
89071-52220 Module Set, Transmitter Sub-assy, Door Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥7,600
89071-52220 note Module Set, Transmitter Sub-assy, Door Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥7,600
89071-52220 note Module Set, Transmitter Sub-assy, Door Control
2018-09 → 2022-07 ended
NSP172 WKX ¥7,600
89072A — Housing Set, Door Control Transmitter
89072-52880 Housing Set, Door Control Transmitter
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥4,090
89072-52880 note Housing Set, Door Control Transmitter
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥4,090
89072-52880 note Housing Set, Door Control Transmitter
2015-06 → 2018-09 ended
NSP172 X ¥4,090
89072-68050 note Housing Set, Door Control Transmitter
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥2,460
89072-26270 note Housing Set, Door Control Transmitter
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥4,090
89072-26270 note Housing Set, Door Control Transmitter
2018-09 → 2022-07 ended
NSP172 WKX ¥4,090
89072-26270 Housing Set, Door Control Transmitter
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥4,090
8907A — Switch Set, Transmitter
8907A-52010 note Switch Set, Transmitter
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥740
8907A-52030 Switch Set, Transmitter
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥850
8907A-52030 note Switch Set, Transmitter
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥850
8907A-52030 note Switch Set, Transmitter
2015-06 → 2018-09 ended
NSP172 X ¥850
8907A-52030 note Switch Set, Transmitter
2018-09 → 2022-07 ended
NSP172 WKX ¥850
8907A-52030 note Switch Set, Transmitter
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥850
8907A-52030 Switch Set, Transmitter
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥850
89745A — Battery, Transmitter
89745-48030 note Battery, Transmitter
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥440
89745-48030 note Battery, Transmitter
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥440
89745-48030 note Battery, Transmitter
2015-06 → 2018-09 ended
NSP172 X ¥440
89745-48030 note Battery, Transmitter
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥440
89745-48030 note Battery, Transmitter
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥440
89745-48030 note Battery, Transmitter
2018-09 → 2022-07 ended
NSP172 WKX ¥440
89751A — Cover, Transmitter Housing
89751-42090 Cover, Transmitter Housing
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥590
89751-42090 note Cover, Transmitter Housing
2015-06 → 2018-09 ended
NSP172 X ¥590
89751-42090 note Cover, Transmitter Housing
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥590
89751-42090 Cover, Transmitter Housing
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥590
89751-42090 note Cover, Transmitter Housing
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥590
89751-42090 note Cover, Transmitter Housing
2018-09 → 2022-07 ended
NSP172 WKX ¥590
89752A — Case, Transmitter Housing
89752-52230 Case, Transmitter Housing
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,760
89752-52230 note Case, Transmitter Housing
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,760
89752-52230 note Case, Transmitter Housing
2015-06 → 2018-09 ended
NSP172 X ¥2,760
89752-68080 note Case, Transmitter Housing
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥1,150
89752-42060 Case, Transmitter Housing
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,760
89752-42060 note Case, Transmitter Housing
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥2,760
89752-42060 note Case, Transmitter Housing
2018-09 → 2022-07 ended
NSP172 WKX ¥2,760
89785B — Transmitter, Transponder Key Master
89785-26040 Transmitter, Transponder Key Master
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥3,700
89785-26040 note Transmitter, Transponder Key Master
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,X ¥3,700
89785-26040 note Transmitter, Transponder Key Master
2018-09 → 2022-07 ended
NSP172 WKX ¥3,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
