Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

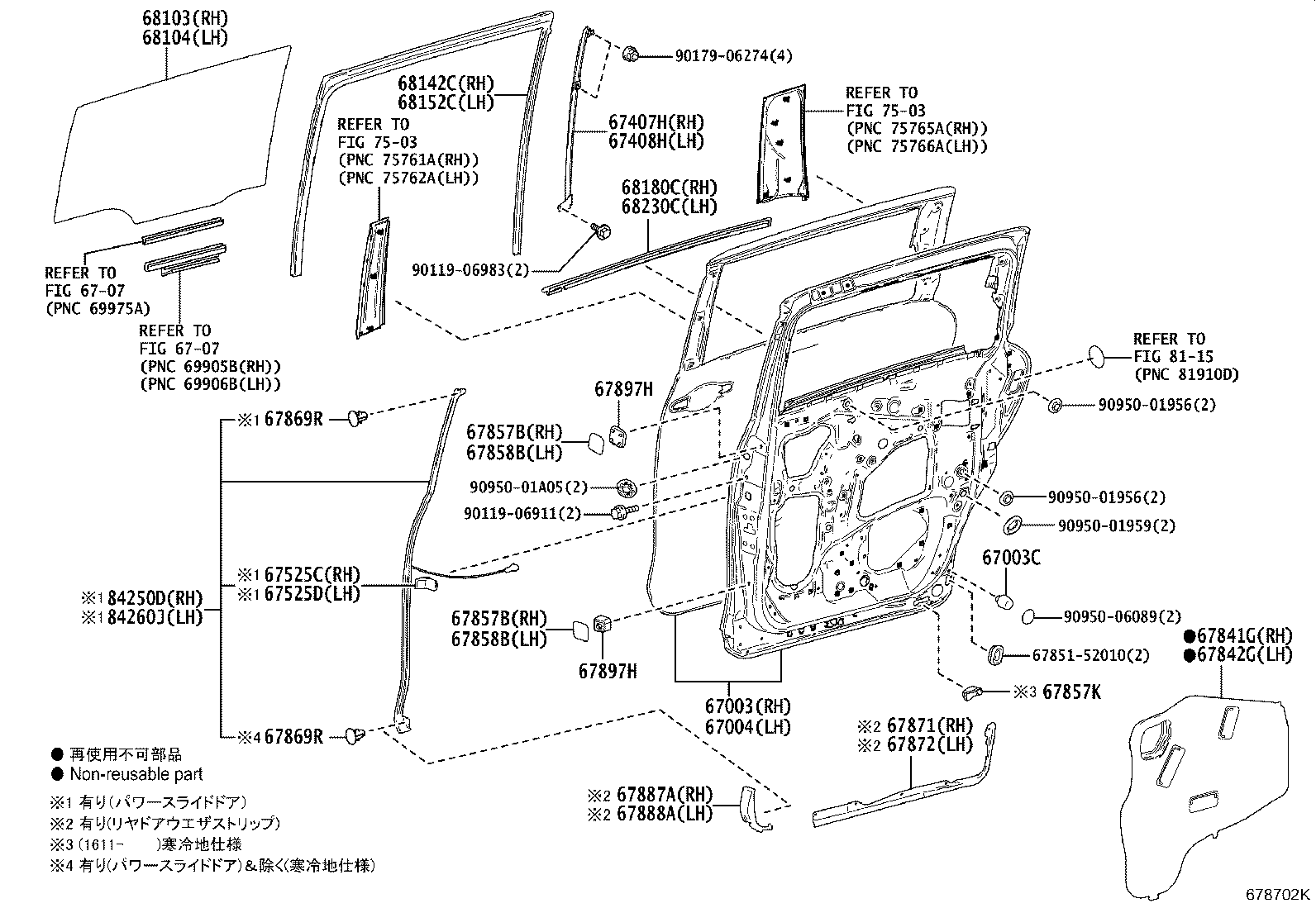

Exploded illustration 678702K 67871 — WEATHERSTRIP, REAR DOOR, RH (5 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (5 parts) 67003 — PANEL SUB-ASSY, REAR DOOR, RH (8 parts) 67003C — CUSHION, REAR DOOR PANEL (2 parts) 67857K — PROTECTOR, SLIDE DOOR PANEL (4 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (6 parts) 67407H — BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH (2 parts) 67408H — BAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH (2 parts) 67841G — COVER, SLIDE DOOR SERVICE HOLE, RH (3 parts) 67842G — COVER, SLIDE DOOR SERVICE HOLE, LH (3 parts) 67857B — PROTECTOR, REAR DOOR PANEL, RH (4 parts) 67858B — PROTECTOR, REAR DOOR PANEL, LH (4 parts) 67857B — PROTECTOR, REAR DOOR PANEL, RH (4 parts) 67858B — PROTECTOR, REAR DOOR PANEL, LH (4 parts) 67897H — CUSHION, REAR DOOR (4 parts) 67897H — CUSHION, REAR DOOR (4 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (3 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (3 parts) 68142C — RUN, REAR DOOR GLASS, RH (2 parts) 68152C — RUN, REAR DOOR GLASS, LH (2 parts) 68180C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH (3 parts) 68230C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH (3 parts) 84250D — SENSOR ASSY, POWER SLIDE DOOR, RH (4 parts) 84260J — SENSOR ASSY, POWER SLIDE DOOR, LH (7 parts) 6785152010 — not listed in this catalogue 9011906911 — not listed in this catalogue 9011906983 — not listed in this catalogue 9017906274 — not listed in this catalogue 9095001A05 — not listed in this catalogue 9095001956 — not listed in this catalogue 9095001956 — not listed in this catalogue 9095001959 — not listed in this catalogue 9095006089 — not listed in this catalogue 67525C — COVER, SLIDE DOOR PANEL, LOWER RH (2 parts) 67525D — COVER, SLIDE DOOR PANEL, LOWER LH (5 parts) 7503 — not listed in this catalogue 7503 — not listed in this catalogue 6707 — not listed in this catalogue 6707 — not listed in this catalogue 67887A — WEATHERSTRIP, REAR DOOR, NO.2 RH (8 parts) 67888A — WEATHERSTRIP, REAR DOOR, NO.2 LH (5 parts) 67869R — CLIP(FOR POWER SLIDE DOOR SENSOR) (11 parts) 67869R — CLIP(FOR POWER SLIDE DOOR SENSOR) (11 parts) 8115 — not listed in this catalogue
678702K · 30 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
110 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-52570 Panel Sub-assy, Rear Door, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥48,100
67003-52580 Panel Sub-assy, Rear Door, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥48,100
67003-52590 note Panel Sub-assy, Rear Door, RH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥48,100
67003-52600 note Panel Sub-assy, Rear Door, RH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥48,100
67003-52570 Panel Sub-assy, Rear Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥48,100
67003-52580 Panel Sub-assy, Rear Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥48,100
67003-52590 note Panel Sub-assy, Rear Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥48,100
67003-52600 note Panel Sub-assy, Rear Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥48,100
67003C — Cushion, Rear Door Panel
67897-52060 Cushion, Rear Door Panel
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥240
67897-52060 Cushion, Rear Door Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥240
67004 — Panel Sub-assy, Rear Door, LH
67004-52610 Panel Sub-assy, Rear Door, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥48,100
67004-52620 note Panel Sub-assy, Rear Door, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥57,700
67004-52630 note Panel Sub-assy, Rear Door, LH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥48,100
67004-52640 note Panel Sub-assy, Rear Door, LH
2016-11 → 2018-09 ended
NCP175,NSP17# X ¥57,700
67004-52610 Panel Sub-assy, Rear Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥48,100
67004-52630 note Panel Sub-assy, Rear Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥48,100
67407H — Bar Sub-assy, Slide Door Window Division, RH
67407-52200 Bar Sub-assy, Slide Door Window Division, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,820
67407-52200 Bar Sub-assy, Slide Door Window Division, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,820
67408H — Bar Sub-assy, Slide Door Window Division, LH
67408-52190 Bar Sub-assy, Slide Door Window Division, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,820
67408-52190 Bar Sub-assy, Slide Door Window Division, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,820
67525C — Cover, Slide Door Panel, Lower RH
67525-52010 Cover, Slide Door Panel, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥550
67525-52010 Cover, Slide Door Panel, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥550
67525D — Cover, Slide Door Panel, Lower LH
67526-52010 Cover, Slide Door Panel, Lower LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥550
67526-52010 note Cover, Slide Door Panel, Lower LH
2015-06 → 2018-09 ended
NSP172 X ¥550
67526-52010 note Cover, Slide Door Panel, Lower LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥550
67526-52010 note Cover, Slide Door Panel, Lower LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥550
67526-52010 Cover, Slide Door Panel, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥550
67841G — Cover, Slide Door Service Hole, RH
67841-52120 Cover, Slide Door Service Hole, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥700
67841-52120 Cover, Slide Door Service Hole, RH
2018-09 → 2022-03 ended
NCP175,NHP170,NSP17# ¥700
67841-52121 Cover, Slide Door Service Hole, RH
2022-04 → 2022-07 ended
NCP175,NHP170,NSP17# ¥950
67842G — Cover, Slide Door Service Hole, LH
67842-52190 Cover, Slide Door Service Hole, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥700
67842-52190 Cover, Slide Door Service Hole, LH
2018-09 → 2022-03 ended
NCP175,NHP170,NSP17# ¥700
67842-52191 Cover, Slide Door Service Hole, LH
2022-04 → 2022-07 ended
NCP175,NHP170,NSP17# ¥950
67857B — Protector, Rear Door Panel, RH
67857-52120 note Protector, Rear Door Panel, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥320
67857-52140 note Protector, Rear Door Panel, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥320
67857-52120 note Protector, Rear Door Panel, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥320
67857-52140 note Protector, Rear Door Panel, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥320
67857K — Protector, Slide Door Panel
67857-52150 note Protector, Slide Door Panel
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
67858-52130 note Protector, Slide Door Panel
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
67857-52150 note Protector, Slide Door Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
67858-52130 note Protector, Slide Door Panel
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
67858B — Protector, Rear Door Panel, LH
67858-52110 note Protector, Rear Door Panel, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥320
67858-52120 note Protector, Rear Door Panel, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥320
67858-52110 note Protector, Rear Door Panel, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥320
67858-52120 note Protector, Rear Door Panel, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥320
67869R — Clip(FOR POWER SLIDE DOOR SENSOR)
67869-28020 Clip(FOR POWER SLIDE DOOR SENSOR)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥80
67869-28020 note Clip(FOR POWER SLIDE DOOR SENSOR)
2015-06 → 2018-09 ended
NSP172 X ¥80
67869-28020 note Clip(FOR POWER SLIDE DOOR SENSOR)
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥80
67869-28020 note Clip(FOR POWER SLIDE DOOR SENSOR)
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥80
67869-28020 Clip(FOR POWER SLIDE DOOR SENSOR)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥80
67869-28020 note Clip(FOR POWER SLIDE DOOR SENSOR)
2017-02 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥80
67869-28020 note Clip(FOR POWER SLIDE DOOR SENSOR)
2017-02 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥80
67869-28020 Clip(FOR POWER SLIDE DOOR SENSOR)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥80
67869-28020 note Clip(FOR POWER SLIDE DOOR SENSOR)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥80
67869-28020 note Clip(FOR POWER SLIDE DOOR SENSOR)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥80
67869-28020 Clip(FOR POWER SLIDE DOOR SENSOR)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥80
67871 — Weatherstrip, Rear Door, RH
67871-52250 note Weatherstrip, Rear Door, RH
2016-11 → 2017-08 ended
NCP175,NSP17# X ¥2,560
67871-52250 note Weatherstrip, Rear Door, RH
2016-11 → 2017-08 ended
NCP175,NHP170,NSP17# ¥2,560
67871-52251 note Weatherstrip, Rear Door, RH
2017-08 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,130
67871-52251 note Weatherstrip, Rear Door, RH
2017-08 → 2018-09 ended
NCP175,NSP17# X ¥2,130
67871-52251 note Weatherstrip, Rear Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,130
67872 — Weatherstrip, Rear Door, LH
67872-52250 note Weatherstrip, Rear Door, LH
2016-11 → 2017-08 ended
NCP175,NHP170,NSP17# ¥2,560
67872-52250 note Weatherstrip, Rear Door, LH
2016-11 → 2017-08 ended
NCP175,NSP17# X ¥2,560
67872-52251 note Weatherstrip, Rear Door, LH
2017-08 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,130
67872-52251 note Weatherstrip, Rear Door, LH
2017-08 → 2018-09 ended
NCP175,NSP17# X ¥2,130
67872-52251 note Weatherstrip, Rear Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,130
67887A — Weatherstrip, Rear Door, NO.2 RH
67887-52040 note Weatherstrip, Rear Door, NO.2 RH
2016-11 → 2017-08 ended
NCP175,NHP170,NSP17# X ¥1,150
67887-52040 note Weatherstrip, Rear Door, NO.2 RH
2016-11 → 2017-08 ended
NCP175,NSP17# X ¥1,150
67887-52041 note Weatherstrip, Rear Door, NO.2 RH
2017-08 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥950
67887-52041 note Weatherstrip, Rear Door, NO.2 RH
2017-08 → 2018-09 ended
NCP175,NSP17# X ¥950
67887-52050 note Weatherstrip, Rear Door, NO.2 RH
2016-11 → 2017-08 ended
NCP175,NHP170,NSP17# G ¥1,150
67887-52051 note Weatherstrip, Rear Door, NO.2 RH
2017-08 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥950
67887-52041 note Weatherstrip, Rear Door, NO.2 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥950
67887-52051 note Weatherstrip, Rear Door, NO.2 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥950
67888A — Weatherstrip, Rear Door, NO.2 LH
67888-52060 note Weatherstrip, Rear Door, NO.2 LH
2016-11 → 2017-08 ended
NCP175,NSP17# X ¥1,150
67888-52061 note Weatherstrip, Rear Door, NO.2 LH
2017-08 → 2018-09 ended
NCP175,NSP17# X ¥1,150
67888-52070 note Weatherstrip, Rear Door, NO.2 LH
2016-11 → 2017-08 ended
NCP175,NHP170,NSP17# ¥1,150
67888-52071 note Weatherstrip, Rear Door, NO.2 LH
2017-08 → 2018-09 ended
NCP175,NHP170,NSP17# ¥950
67888-52071 note Weatherstrip, Rear Door, NO.2 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥950
67897H — Cushion, Rear Door
67897-52040 note Cushion, Rear Door
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥240
67897-52050 note Cushion, Rear Door
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥340
67897-52040 note Cushion, Rear Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥240
67897-52050 note Cushion, Rear Door
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥340
68103 — Glass Sub-assy, Rear Door, RH
68113-52370 note Glass Sub-assy, Rear Door, RH
2015-06 → 2018-09 ended
NCP175,NSP170 X —
68113-52380 Glass Sub-assy, Rear Door, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
68113-52380 Glass Sub-assy, Rear Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
68104 — Glass Sub-assy, Rear Door, LH
68114-52400 note Glass Sub-assy, Rear Door, LH
2015-06 → 2018-09 ended
NCP175,NSP170 X —
68114-52410 Glass Sub-assy, Rear Door, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
68114-52410 Glass Sub-assy, Rear Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# —
68142C — Run, Rear Door Glass, RH
68142-52210 Run, Rear Door Glass, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,700
68142-52210 Run, Rear Door Glass, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,700
68152C — Run, Rear Door Glass, LH
68152-52220 Run, Rear Door Glass, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,700
68152-52220 Run, Rear Door Glass, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,700
68180C — Weatherstrip Assy, Rear Door Glass, Outer RH
68180-52190 Weatherstrip Assy, Rear Door Glass, Outer RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,560
68180-52190 Weatherstrip Assy, Rear Door Glass, Outer RH
2018-09 → 2019-09 ended
NCP175,NHP170,NSP17# ¥2,560
68180-52191 Weatherstrip Assy, Rear Door Glass, Outer RH
2019-10 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,130
68230C — Weatherstrip Assy, Rear Door Glass, Outer LH
68230-52190 Weatherstrip Assy, Rear Door Glass, Outer LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,560
68230-52190 Weatherstrip Assy, Rear Door Glass, Outer LH
2018-09 → 2019-09 ended
NCP175,NHP170,NSP17# ¥2,560
68230-52191 Weatherstrip Assy, Rear Door Glass, Outer LH
2019-10 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,130
84250D — Sensor Assy, Power Slide Door, RH
84250-52160 note Sensor Assy, Power Slide Door, RH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥16,200
84250-52280 Sensor Assy, Power Slide Door, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥16,200
84250-52160 note Sensor Assy, Power Slide Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥16,200
84250-52280 Sensor Assy, Power Slide Door, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥16,200
84260J — Sensor Assy, Power Slide Door, LH
84260-52040 Sensor Assy, Power Slide Door, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,200
84260-52040 note Sensor Assy, Power Slide Door, LH
2015-06 → 2018-09 ended
NSP172 X ¥16,200
84260-52040 note Sensor Assy, Power Slide Door, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥16,200
84260-52040 note Sensor Assy, Power Slide Door, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥16,200
84260-52050 note Sensor Assy, Power Slide Door, LH
2016-11 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,200
84260-52040 Sensor Assy, Power Slide Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥16,200
84260-52050 note Sensor Assy, Power Slide Door, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥16,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
