Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

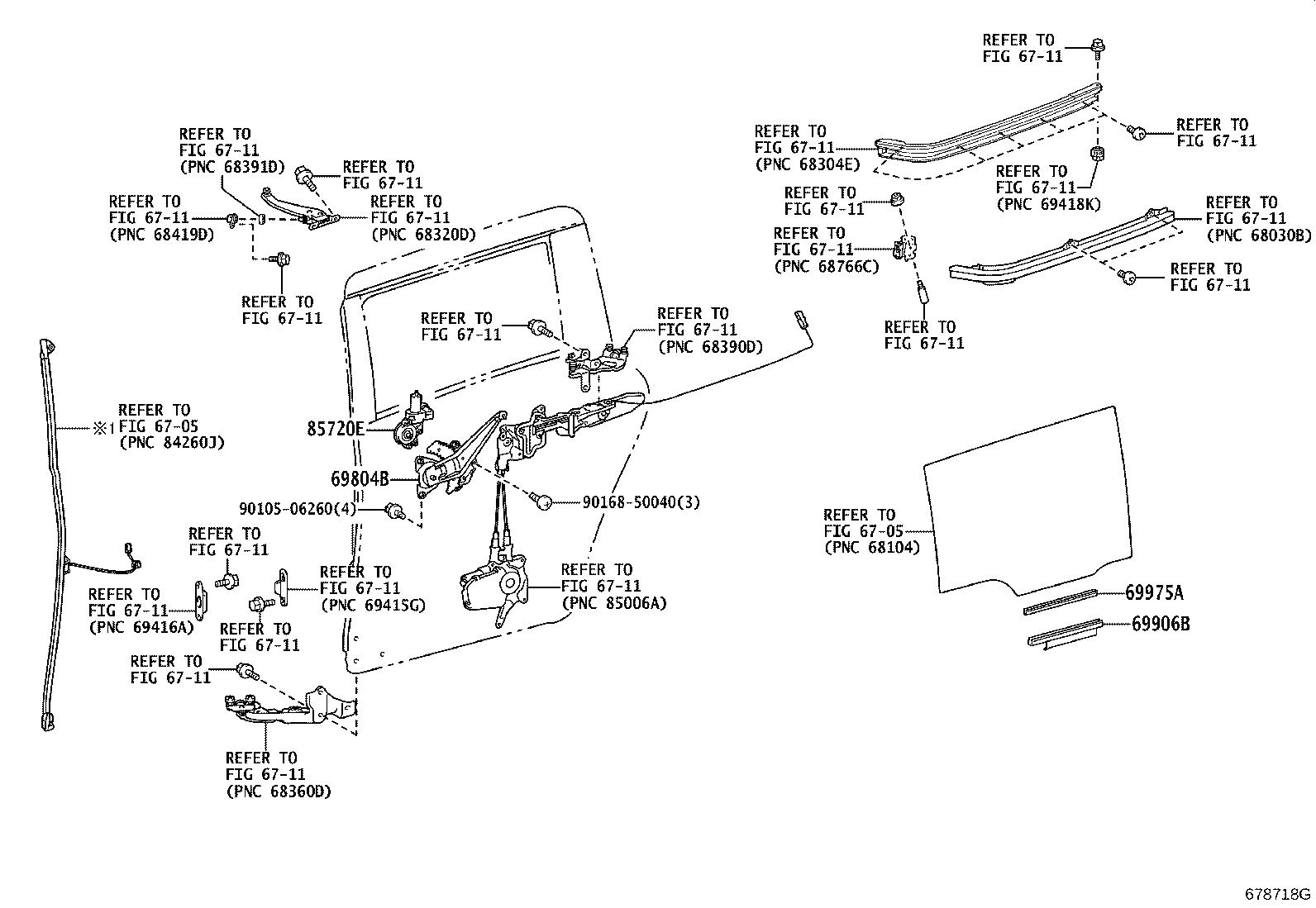

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69804B — Regulator Sub-assy, Slide Door Window, LH | ||||
| 69804-52140 |
Regulator Sub-assy, Slide Door Window, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,470 | |
| 69804-52140 |
Regulator Sub-assy, Slide Door Window, LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,470 | |
| 69906B — Channel Sub-assy, Rear Door Glass, LH | ||||
| 69906-52060 |
Channel Sub-assy, Rear Door Glass, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥400 | |
| 69906-52060 |
Channel Sub-assy, Rear Door Glass, LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥400 | |
| 69975A — Filler, Rear Door Glass Channel | ||||
| 69975-52010 |
Filler, Rear Door Glass Channel
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥370 | |
| 69975-52010 |
Filler, Rear Door Glass Channel
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥370 | |
| 85720E — Motor Assy, Power Window Regulator, LH | ||||
| 85710-52240 |
Motor Assy, Power Window Regulator, LH
2015-06 → 2016-03
ended
|
NCP175,NHP170,NSP17# | ¥25,300 | |
| 85710-52241 |
Motor Assy, Power Window Regulator, LH
2016-04 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥21,100 | |
| 85710-52241 |
Motor Assy, Power Window Regulator, LH
2018-09 → 2019-02
ended
|
NCP175,NHP170,NSP17# | ¥21,100 | |
| 85710-52280 |
Motor Assy, Power Window Regulator, LH
2019-03 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥15,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
