Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

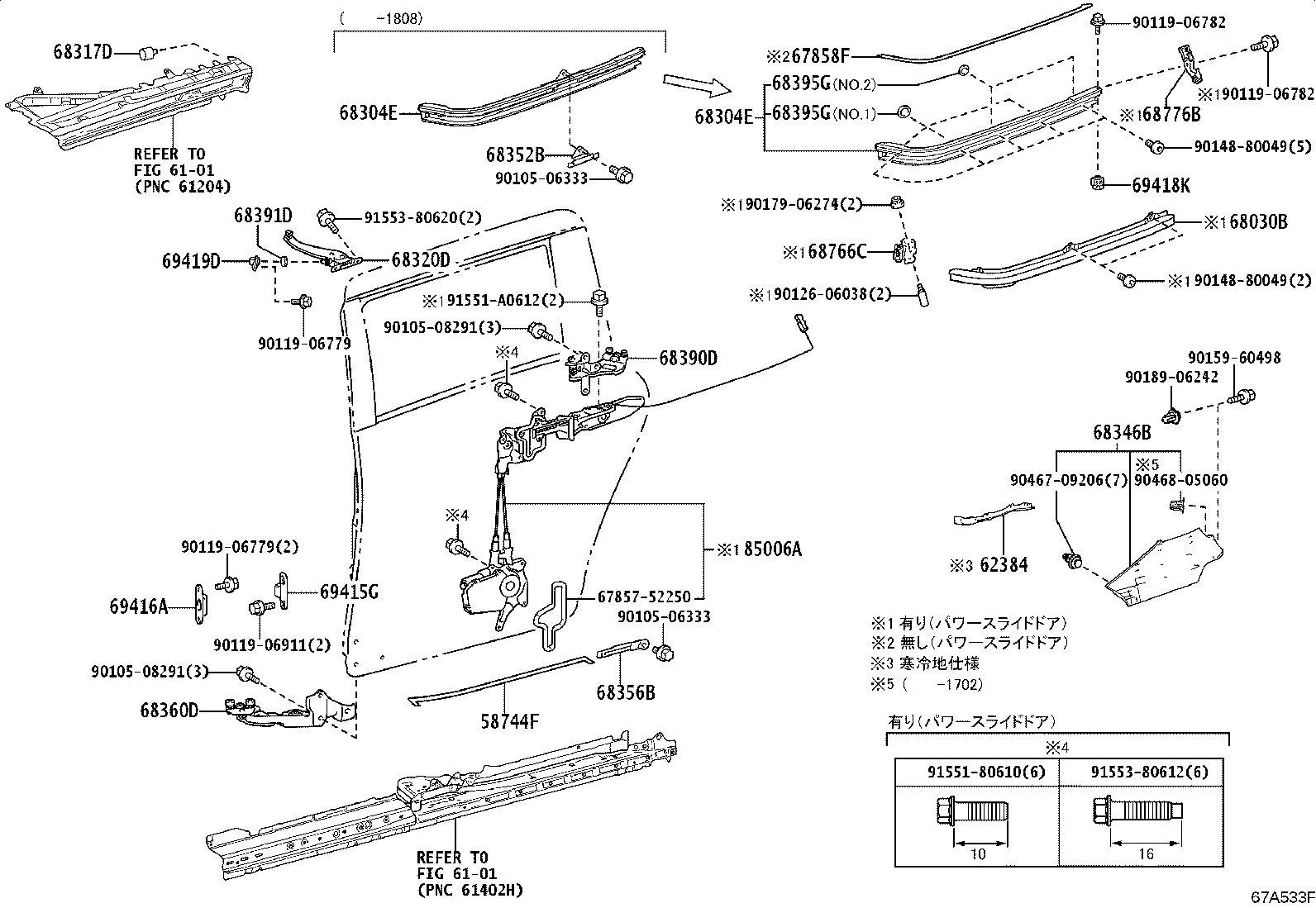

Exploded illustration 67A533F 67858F — PROTECTOR, SLIDE DOOR RAIL, LH (1 parts) 68304E — RAIL SUB-ASSY, SLIDE DOOR, CENTER LH (3 parts) 68320D — ROLLER ASSY, SLIDE DOOR, UPPER, LH (3 parts) 68352B — PLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 LH (1 parts) 68766C — BRACKET, SLIDE DOOR, CENTER NO.1 LH (2 parts) 68360D — ROLLER ASSY, SLIDE DOOR, LOWER LH (2 parts) 68776B — BRACKET, SLIDE DOOR, CENTER NO.2 LH (3 parts) 68390D — HINGE ASSY, SLIDE DOOR, CENTER LH (4 parts) 68391D — CUSHION, SLIDE DOOR UPPER ROLLER, LH (2 parts) 69416A — STOPPER, SLIDE DOOR DOWN MALE (2 parts) 69415G — STOPPER, SLIDE DOOR DOWN FEMALE (2 parts) 69419D — STOP, SLIDE DOOR OPEN, LH (3 parts) 69418K — CUSHION, SLIDE DOOR OPEN STOPPER, LH (2 parts) 85006A — MOTOR UNIT, SLIDE DOOR, LH (20 parts) 9010506333 — not listed in this catalogue 9010508291 — not listed in this catalogue 9010508291 — not listed in this catalogue 9011906779 — not listed in this catalogue 9011906779 — not listed in this catalogue 9011906911 — not listed in this catalogue 9155380620 — not listed in this catalogue 68317D — STOPPER, SLIDE DOOR UPPER RAIL (2 parts) 9014880049 — not listed in this catalogue 58744F — PROTECTOR, SLIDE DOOR PANEL, LH (2 parts) 68356B — PLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 LH (3 parts) 9010506333 — not listed in this catalogue 68030B — GUIDE ASSY, SLIDE DOOR CABLE (2 parts) 9011906782 — not listed in this catalogue 9014880049 — not listed in this catalogue 9011906782 — not listed in this catalogue 91551A0612 — not listed in this catalogue 9012606038 — not listed in this catalogue 9017906274 — not listed in this catalogue 9155180610 — not listed in this catalogue 9155380612 — not listed in this catalogue 68304E — RAIL SUB-ASSY, SLIDE DOOR, CENTER LH (3 parts) 68346B — COVER, SLIDE DOOR CENTER RAIL, LH (25 parts) 9015960498 — not listed in this catalogue 9018906242 — not listed in this catalogue 9046709206 — not listed in this catalogue 9046805060 — not listed in this catalogue 62384 — WEATHERSTRIP, ROOF SIDE RAIL, REAR LH (3 parts) 6101 — not listed in this catalogue 6101 — not listed in this catalogue 68395G — PACKING, SLIDE DOOR CENTER RAIL (8 parts) 68395G — PACKING, SLIDE DOOR CENTER RAIL (8 parts) 6785752250 — not listed in this catalogue
67A533F · 23 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
58744F — Protector, Slide Door Panel, LH
58744-52050 Protector, Slide Door Panel, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,770
58744-52050 Protector, Slide Door Panel, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,770
62384 — Weatherstrip, Roof Side Rail, Rear LH
62383-52020 note Weatherstrip, Roof Side Rail, Rear LH
2015-06 → 2016-07 ended
NCP175,NHP170,NSP17# ¥1,430
62384-52030 note Weatherstrip, Roof Side Rail, Rear LH
2016-08 → 2018-09 ended
NCP175,NHP170,NSP17# ¥890
62384-52030 note Weatherstrip, Roof Side Rail, Rear LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥890
67858F — Protector, Slide Door Rail, LH
67858-52100 note Protector, Slide Door Rail, LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥1,280
68030B — Guide Assy, Slide Door Cable
68030-52050 Guide Assy, Slide Door Cable
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,250
68030-52050 Guide Assy, Slide Door Cable
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥3,250
68304E — Rail Sub-assy, Slide Door, Center LH
68304-52060 note Rail Sub-assy, Slide Door, Center LH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥8,000
68304-52070 Rail Sub-assy, Slide Door, Center LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥9,400
68304-52071 Rail Sub-assy, Slide Door, Center LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,800
68317D — Stopper, Slide Door Upper Rail
68317-52020 Stopper, Slide Door Upper Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
68317-52020 Stopper, Slide Door Upper Rail
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
68320D — Roller Assy, Slide Door, Upper, LH
68320-52040 Roller Assy, Slide Door, Upper, LH
2015-06 → 2016-03 ended
NCP175,NHP170,NSP17# ¥7,400
68320-52041 Roller Assy, Slide Door, Upper, LH
2016-04 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,990
68320-52041 Roller Assy, Slide Door, Upper, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,990
68346B — Cover, Slide Door Center Rail, LH
60836-52040-A0 note Cover, Slide Door Center Rail, LH
2015-06 → 2018-09 ended
NSP172 ¥13,900
60836-52040-A1 note Cover, Slide Door Center Rail, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,900
60836-52040-B0 note Cover, Slide Door Center Rail, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,900
60836-52040-C0 note Cover, Slide Door Center Rail, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,900
60836-52040-D1 note Cover, Slide Door Center Rail, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥16,700
60836-52040-D2 note Cover, Slide Door Center Rail, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥16,700
60836-52040-E1 note Cover, Slide Door Center Rail, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,900
60836-52040-F1 note Cover, Slide Door Center Rail, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥13,900
60836-52040-G1 note Cover, Slide Door Center Rail, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥16,700
60836-52040-J0 note Cover, Slide Door Center Rail, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,700
60836-52040-A0 note Cover, Slide Door Center Rail, LH
2018-09 → 2022-07 ended
NSP172 ¥13,900
60836-52040-A1 note Cover, Slide Door Center Rail, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60836-52040-B0 note Cover, Slide Door Center Rail, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60836-52040-C0 note Cover, Slide Door Center Rail, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60836-52040-D3 note Cover, Slide Door Center Rail, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60836-52040-E1 note Cover, Slide Door Center Rail, LH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥13,900
60836-52040-E1 note Cover, Slide Door Center Rail, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,GCERO,X ¥13,900
60836-52040-E2 note Cover, Slide Door Center Rail, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥13,900
60836-52040-E3 note Cover, Slide Door Center Rail, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60836-52040-F1 note Cover, Slide Door Center Rail, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥13,900
60836-52040-G2 note Cover, Slide Door Center Rail, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 ¥13,900
60836-52040-J0 note Cover, Slide Door Center Rail, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥16,700
60836-52040-J1 note Cover, Slide Door Center Rail, LH
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥13,900
60836-52040-J2 note Cover, Slide Door Center Rail, LH
2020-06 → 2022-07 ended
NSP172 ¥13,900
60836-52040-J2 note Cover, Slide Door Center Rail, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 ¥13,900
68352B — Plate, Slide Door Rail Protector, NO.1 LH
68352-52030 Plate, Slide Door Rail Protector, NO.1 LH
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥500
68356B — Plate, Slide Door Rail Protector, NO.3 LH
68356-52050 Plate, Slide Door Rail Protector, NO.3 LH
2015-06 → 2017-09 ended
NCP175,NHP170,NSP17# ¥360
68356-52051 Plate, Slide Door Rail Protector, NO.3 LH
2017-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥260
68356-52051 Plate, Slide Door Rail Protector, NO.3 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥260
68360D — Roller Assy, Slide Door, Lower LH
68360-52070 Roller Assy, Slide Door, Lower LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,000
68360-52070 Roller Assy, Slide Door, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,000
68390D — Hinge Assy, Slide Door, Center LH
68390-52060 Hinge Assy, Slide Door, Center LH
2015-06 → 2016-03 ended
NCP175,NHP170,NSP17# ¥7,100
68390-52061 Hinge Assy, Slide Door, Center LH
2016-04 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,840
68390-52061 Hinge Assy, Slide Door, Center LH
2018-09 → 2022-05 ended
NCP175,NHP170,NSP17# ¥4,840
68390-52062 Hinge Assy, Slide Door, Center LH
2022-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,840
68391D — Cushion, Slide Door Upper Roller, LH
68391-28040 Cushion, Slide Door Upper Roller, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
68391-28040 Cushion, Slide Door Upper Roller, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
68395G — Packing, Slide Door Center Rail
68395-52020 note Packing, Slide Door Center Rail
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥270
68395-52050 note Packing, Slide Door Center Rail
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥240
68395-52020 note Packing, Slide Door Center Rail
2018-09 → 2019-11 ended
NCP175,NHP170,NSP17# ¥270
68395-52020 note Packing, Slide Door Center Rail
2018-09 → 2022-07 ended
NHP170,NSP170 FNGCR ¥270
68395-52020 note Packing, Slide Door Center Rail
2019-12 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,GCERO,WKG,WKX,X ¥270
68395-52050 note Packing, Slide Door Center Rail
2018-09 → 2019-11 ended
NCP175,NHP170,NSP17# ¥240
68395-52050 note Packing, Slide Door Center Rail
2018-09 → 2022-07 ended
NHP170,NSP170 FNGCR ¥240
68395-52050 note Packing, Slide Door Center Rail
2019-12 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,GCERO,WKG,WKX,X ¥240
68766C — Bracket, Slide Door, Center NO.1 LH
68766-52020 Bracket, Slide Door, Center NO.1 LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥680
68766-52020 Bracket, Slide Door, Center NO.1 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥680
68776B — Bracket, Slide Door, Center NO.2 LH
68776-52020 Bracket, Slide Door, Center NO.2 LH
2015-06 → 2017-03 ended
NCP175,NHP170,NSP17# ¥890
68776-52021 Bracket, Slide Door, Center NO.2 LH
2017-04 → 2018-09 ended
NCP175,NHP170,NSP17# ¥740
68776-52021 Bracket, Slide Door, Center NO.2 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥740
69415G — Stopper, Slide Door Down Female
69415-52010 Stopper, Slide Door Down Female
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥670
69415-52010 Stopper, Slide Door Down Female
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥670
69416A — Stopper, Slide Door Down Male
69046-52010 Stopper, Slide Door Down Male
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥700
69046-52010 Stopper, Slide Door Down Male
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥700
69418K — Cushion, Slide Door Open Stopper, LH
69417-52010 Cushion, Slide Door Open Stopper, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥460
69417-52010 Cushion, Slide Door Open Stopper, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥460
69419D — Stop, Slide Door Open, LH
69419-52010 Stop, Slide Door Open, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥600
69419-52010 Stop, Slide Door Open, LH
2018-09 → 2019-09 ended
NCP175,NHP170,NSP17# ¥600
69419-52011 Stop, Slide Door Open, LH
2019-10 → 2022-07 ended
NCP175,NHP170,NSP17# ¥540
85006A — Motor Unit, Slide Door, LH
85006-52060 Motor Unit, Slide Door, LH
2015-06 → 2015-11 ended
NCP175,NHP170,NSP17# ¥86,100
85006-52060 note Motor Unit, Slide Door, LH
2015-06 → 2015-11 ended
NSP172 X ¥86,100
85006-52060 note Motor Unit, Slide Door, LH
2015-06 → 2015-11 ended
NCP175,NSP17# X ¥86,100
85006-52060 note Motor Unit, Slide Door, LH
2015-06 → 2015-11 ended
NCP175,NSP17# X ¥86,100
85006-52061 Motor Unit, Slide Door, LH
2015-12 → 2017-01 ended
NCP175,NHP170,NSP17# ¥71,800
85006-52061 note Motor Unit, Slide Door, LH
2015-12 → 2017-01 ended
NSP172 X ¥71,800
85006-52061 note Motor Unit, Slide Door, LH
2015-12 → 2017-01 ended
NCP175,NSP17# X ¥71,800
85006-52061 note Motor Unit, Slide Door, LH
2015-12 → 2017-01 ended
NCP175,NSP17# X ¥71,800
85006-52062 note Motor Unit, Slide Door, LH
2016-11 → 2017-02 ended
NCP175,NHP170,NSP17# ¥71,800
85006-52062 note Motor Unit, Slide Door, LH
2017-02 → 2017-12 ended
NCP175,NSP17# X ¥71,800
85006-52062 note Motor Unit, Slide Door, LH
2017-02 → 2017-12 ended
NCP175,NSP17# X ¥71,800
85006-52062 note Motor Unit, Slide Door, LH
2017-02 → 2017-12 ended
NSP172 X ¥71,800
85006-52062 Motor Unit, Slide Door, LH
2017-02 → 2017-12 ended
NCP175,NHP170,NSP17# ¥71,800
85006-52063 Motor Unit, Slide Door, LH
2018-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥71,800
85006-52063 note Motor Unit, Slide Door, LH
2018-01 → 2018-09 ended
NSP172 X ¥71,800
85006-52063 note Motor Unit, Slide Door, LH
2018-01 → 2018-09 ended
NCP175,NSP17# X ¥71,800
85006-52063 note Motor Unit, Slide Door, LH
2018-01 → 2018-09 ended
NCP175,NSP17# X ¥71,800
85006-52080 Motor Unit, Slide Door, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥59,800
85006-52090 Motor Unit, Slide Door, LH
2020-06 → 2021-05 ended
NCP175,NHP170,NSP17# ¥59,800
85006-52091 Motor Unit, Slide Door, LH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥59,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
