Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

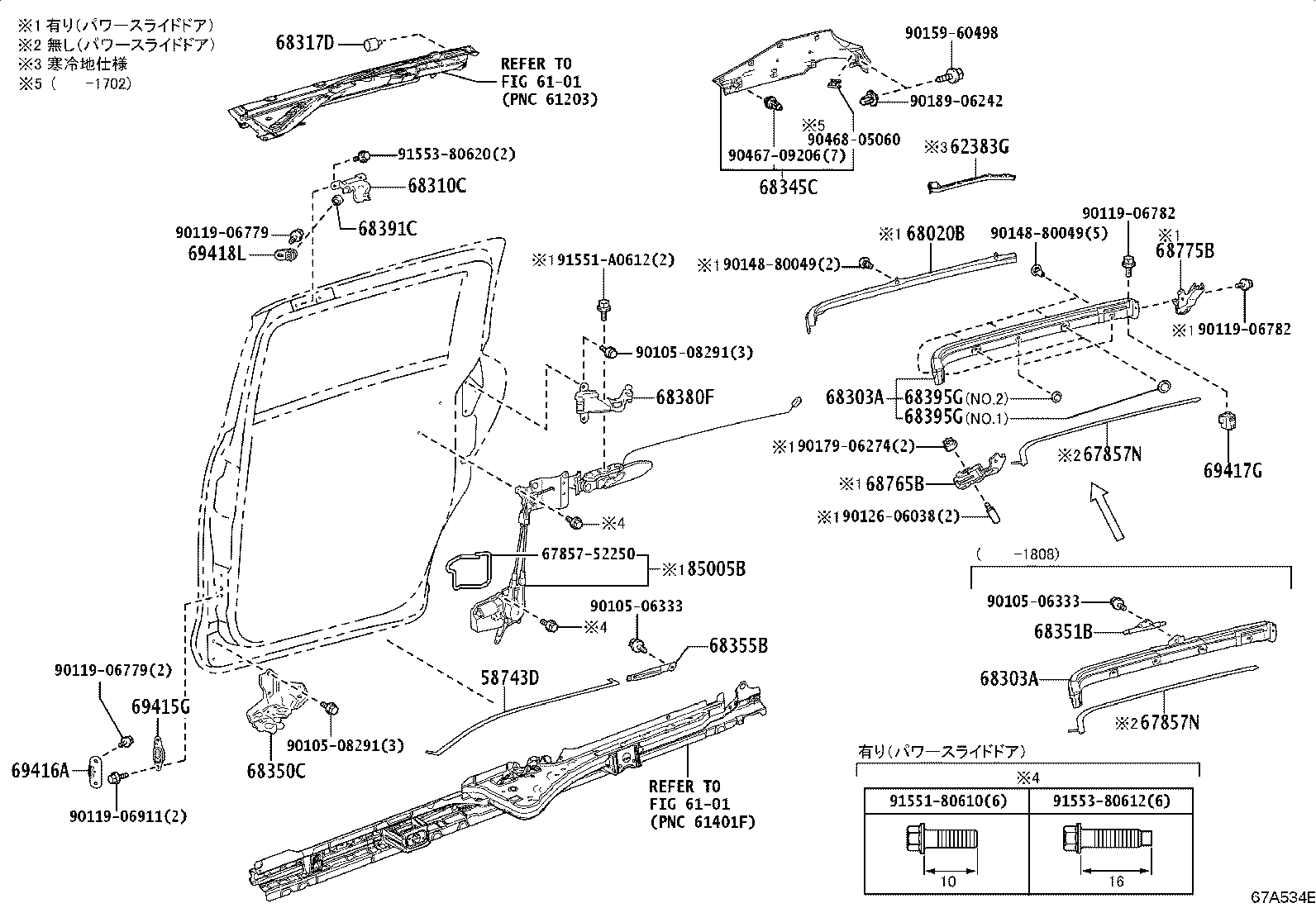

Exploded illustration 67A534E 67857N — PROTECTOR, SLIDE DOOR RAIL, RH (2 parts) 68303A — RAIL SUB-ASSY, SLIDE DOOR, CENTER RH (4 parts) 68395G — PACKING, SLIDE DOOR CENTER RAIL (8 parts) 68395G — PACKING, SLIDE DOOR CENTER RAIL (8 parts) 68310C — ROLLER ASSY, SLIDE DOOR, UPPER RH (3 parts) 68765B — BRACKET, SLIDE DOOR, CENTER NO.1 RH (2 parts) 68350C — ROLLER ASSY, SLIDE DOOR, LOWER RH (2 parts) 68775B — BRACKET, SLIDE DOOR, CENTER NO.2 RH (3 parts) 68380F — HINGE ASSY, SLIDE DOOR, CENTER RH (4 parts) 68391C — CUSHION, SLIDE DOOR UPPER ROLLER, RH (2 parts) 69416A — STOPPER, SLIDE DOOR DOWN MALE (2 parts) 69415G — STOPPER, SLIDE DOOR DOWN FEMALE (2 parts) 69417G — CUSHION, SLIDE DOOR OPEN STOPPER, RH (2 parts) 69418L — STOP, SLIDE DOOR OPEN, RH (3 parts) 85005B — MOTOR UNIT, SLIDE DOOR, RH (8 parts) 9010508291 — not listed in this catalogue 9010508291 — not listed in this catalogue 9011906779 — not listed in this catalogue 9011906779 — not listed in this catalogue 9011906911 — not listed in this catalogue 9155380620 — not listed in this catalogue 68317D — STOPPER, SLIDE DOOR UPPER RAIL (2 parts) 9014880049 — not listed in this catalogue 58743D — PROTECTOR, SLIDE DOOR PANEL, RH (2 parts) 68355B — PLATE, SLIDE DOOR RAIL PROTECTOR, NO.3 RH (3 parts) 9010506333 — not listed in this catalogue 6785752250 — not listed in this catalogue 68020B — GUIDE ASSY, SLIDE DOOR CABLE, RH (2 parts) 9011906782 — not listed in this catalogue 9014880049 — not listed in this catalogue 9011906782 — not listed in this catalogue 91551A0612 — not listed in this catalogue 9155180610 — not listed in this catalogue 9155380612 — not listed in this catalogue 9012606038 — not listed in this catalogue 9017906274 — not listed in this catalogue 67857N — PROTECTOR, SLIDE DOOR RAIL, RH (2 parts) 68303A — RAIL SUB-ASSY, SLIDE DOOR, CENTER RH (4 parts) 68351B — PLATE, SLIDE DOOR RAIL PROTECTOR, NO.1 RH (1 parts) 9010506333 — not listed in this catalogue 62383G — WEATHERSTRIP, ROOF SIDE RAIL, REAR RH (3 parts) 68345C — COVER, SLIDE DOOR CENTER RAIL (25 parts) 9015960498 — not listed in this catalogue 9018906242 — not listed in this catalogue 9046709206 — not listed in this catalogue 9046805060 — not listed in this catalogue 6101 — not listed in this catalogue 6101 — not listed in this catalogue
67A534E · 24 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
85 parts on this figure
Part number Description Fitment Price
58743D — Protector, Slide Door Panel, RH
58743-52020 Protector, Slide Door Panel, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,770
58743-52020 Protector, Slide Door Panel, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,770
62383G — Weatherstrip, Roof Side Rail, Rear RH
62383-52020 note Weatherstrip, Roof Side Rail, Rear RH
2015-06 → 2016-07 ended
NCP175,NHP170,NSP17# ¥1,430
62383-52030 note Weatherstrip, Roof Side Rail, Rear RH
2016-08 → 2018-09 ended
NCP175,NHP170,NSP17# ¥890
62383-52030 note Weatherstrip, Roof Side Rail, Rear RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥890
67857N — Protector, Slide Door Rail, RH
67857-52130 Protector, Slide Door Rail, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥1,280
67857-52130 Protector, Slide Door Rail, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,280
68020B — Guide Assy, Slide Door Cable, RH
68020-52030 Guide Assy, Slide Door Cable, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥3,250
68020-52030 Guide Assy, Slide Door Cable, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥3,250
68303A — Rail Sub-assy, Slide Door, Center RH
68303-52030 Rail Sub-assy, Slide Door, Center RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥8,000
68303-52040 Rail Sub-assy, Slide Door, Center RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥9,400
68303-52031 Rail Sub-assy, Slide Door, Center RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥6,600
68303-52041 Rail Sub-assy, Slide Door, Center RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥7,800
68310C — Roller Assy, Slide Door, Upper RH
68310-52020 Roller Assy, Slide Door, Upper RH
2015-06 → 2016-03 ended
NCP175,NHP170,NSP17# ¥7,400
68310-52021 Roller Assy, Slide Door, Upper RH
2016-04 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,990
68310-52021 Roller Assy, Slide Door, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,990
68317D — Stopper, Slide Door Upper Rail
68317-52020 Stopper, Slide Door Upper Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
68317-52020 Stopper, Slide Door Upper Rail
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
68345C — Cover, Slide Door Center Rail
60835-52020-A0 note Cover, Slide Door Center Rail
2015-06 → 2018-09 ended
NSP172 ¥13,900
60835-52020-A1 note Cover, Slide Door Center Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,900
60835-52020-B0 note Cover, Slide Door Center Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,900
60835-52020-C0 note Cover, Slide Door Center Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,900
60835-52020-D1 note Cover, Slide Door Center Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥16,700
60835-52020-D2 note Cover, Slide Door Center Rail
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥16,700
60835-52020-E1 note Cover, Slide Door Center Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥13,900
60835-52020-F1 note Cover, Slide Door Center Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥13,900
60835-52020-G1 note Cover, Slide Door Center Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥16,700
60835-52020-J0 note Cover, Slide Door Center Rail
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,700
60835-52020-A0 note Cover, Slide Door Center Rail
2018-09 → 2022-07 ended
NSP172 ¥13,900
60835-52020-A1 note Cover, Slide Door Center Rail
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60835-52020-B0 note Cover, Slide Door Center Rail
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60835-52020-C0 note Cover, Slide Door Center Rail
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60835-52020-D3 note Cover, Slide Door Center Rail
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60835-52020-E1 note Cover, Slide Door Center Rail
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,GCERO,X ¥13,900
60835-52020-E1 note Cover, Slide Door Center Rail
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥13,900
60835-52020-E2 note Cover, Slide Door Center Rail
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥13,900
60835-52020-E3 note Cover, Slide Door Center Rail
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥13,900
60835-52020-F1 note Cover, Slide Door Center Rail
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥13,900
60835-52020-G2 note Cover, Slide Door Center Rail
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 ¥13,900
60835-52020-J0 note Cover, Slide Door Center Rail
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥16,700
60835-52020-J1 note Cover, Slide Door Center Rail
2019-10 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥13,900
60835-52020-J2 note Cover, Slide Door Center Rail
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 ¥13,900
60835-52020-J2 note Cover, Slide Door Center Rail
2020-06 → 2022-07 ended
NSP172 ¥13,900
68350C — Roller Assy, Slide Door, Lower RH
68350-52020 Roller Assy, Slide Door, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,000
68350-52020 Roller Assy, Slide Door, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥8,000
68351B — Plate, Slide Door Rail Protector, NO.1 RH
68351-52020 Plate, Slide Door Rail Protector, NO.1 RH
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥500
68355B — Plate, Slide Door Rail Protector, NO.3 RH
68355-52020 Plate, Slide Door Rail Protector, NO.3 RH
2015-06 → 2017-09 ended
NCP175,NHP170,NSP17# ¥360
68355-52021 Plate, Slide Door Rail Protector, NO.3 RH
2017-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥260
68355-52021 Plate, Slide Door Rail Protector, NO.3 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥260
68380F — Hinge Assy, Slide Door, Center RH
68380-52030 Hinge Assy, Slide Door, Center RH
2015-06 → 2016-03 ended
NCP175,NHP170,NSP17# ¥7,100
68380-52031 Hinge Assy, Slide Door, Center RH
2016-04 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,840
68380-52031 Hinge Assy, Slide Door, Center RH
2018-09 → 2022-05 ended
NCP175,NHP170,NSP17# ¥4,840
68380-52032 Hinge Assy, Slide Door, Center RH
2022-06 → 2022-07 ended
NCP175,NHP170,NSP17# ¥4,840
68391C — Cushion, Slide Door Upper Roller, RH
68391-28040 Cushion, Slide Door Upper Roller, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
68391-28040 Cushion, Slide Door Upper Roller, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
68395G — Packing, Slide Door Center Rail
68395-52020 note Packing, Slide Door Center Rail
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥270
68395-52050 note Packing, Slide Door Center Rail
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥240
68395-52020 note Packing, Slide Door Center Rail
2018-09 → 2019-11 ended
NCP175,NHP170,NSP17# ¥270
68395-52020 note Packing, Slide Door Center Rail
2018-09 → 2022-07 ended
NHP170,NSP170 FNGCR ¥270
68395-52020 note Packing, Slide Door Center Rail
2019-12 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,GCERO,WKG,WKX,X ¥270
68395-52050 note Packing, Slide Door Center Rail
2018-09 → 2019-11 ended
NCP175,NHP170,NSP17# ¥240
68395-52050 note Packing, Slide Door Center Rail
2018-09 → 2022-07 ended
NHP170,NSP170 FNGCR ¥240
68395-52050 note Packing, Slide Door Center Rail
2019-12 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,GCERO,WKG,WKX,X ¥240
68765B — Bracket, Slide Door, Center NO.1 RH
68765-52010 Bracket, Slide Door, Center NO.1 RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥680
68765-52010 Bracket, Slide Door, Center NO.1 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥680
68775B — Bracket, Slide Door, Center NO.2 RH
68775-52010 Bracket, Slide Door, Center NO.2 RH
2015-06 → 2017-03 ended
NCP175,NHP170,NSP17# G ¥890
68775-52011 Bracket, Slide Door, Center NO.2 RH
2017-04 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥740
68775-52011 Bracket, Slide Door, Center NO.2 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥740
69415G — Stopper, Slide Door Down Female
69415-52010 Stopper, Slide Door Down Female
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥670
69415-52010 Stopper, Slide Door Down Female
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥670
69416A — Stopper, Slide Door Down Male
69046-52010 Stopper, Slide Door Down Male
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥700
69046-52010 Stopper, Slide Door Down Male
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥700
69417G — Cushion, Slide Door Open Stopper, RH
69417-52020 Cushion, Slide Door Open Stopper, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥450
69417-52020 Cushion, Slide Door Open Stopper, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥450
69418L — Stop, Slide Door Open, RH
69418-52010 Stop, Slide Door Open, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥600
69418-52010 Stop, Slide Door Open, RH
2018-09 → 2019-09 ended
NCP175,NHP170,NSP17# ¥600
69418-52011 Stop, Slide Door Open, RH
2019-10 → 2022-07 ended
NCP175,NHP170,NSP17# ¥540
85005B — Motor Unit, Slide Door, RH
85005-52090 Motor Unit, Slide Door, RH
2015-06 → 2015-11 ended
NCP175,NHP170,NSP17# G ¥86,100
85005-52091 Motor Unit, Slide Door, RH
2015-12 → 2017-01 ended
NCP175,NHP170,NSP17# G ¥71,800
85005-52092 note Motor Unit, Slide Door, RH
2016-11 → 2017-02 ended
NCP175,NHP170,NSP17# G ¥71,800
85005-52092 Motor Unit, Slide Door, RH
2017-02 → 2017-12 ended
NCP175,NHP170,NSP17# G ¥71,800
85005-52093 Motor Unit, Slide Door, RH
2018-01 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥71,800
85005-52070 Motor Unit, Slide Door, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,GCERO,WKG ¥59,800
85005-52160 Motor Unit, Slide Door, RH
2020-06 → 2021-05 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥59,800
85005-52161 Motor Unit, Slide Door, RH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥59,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
