Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

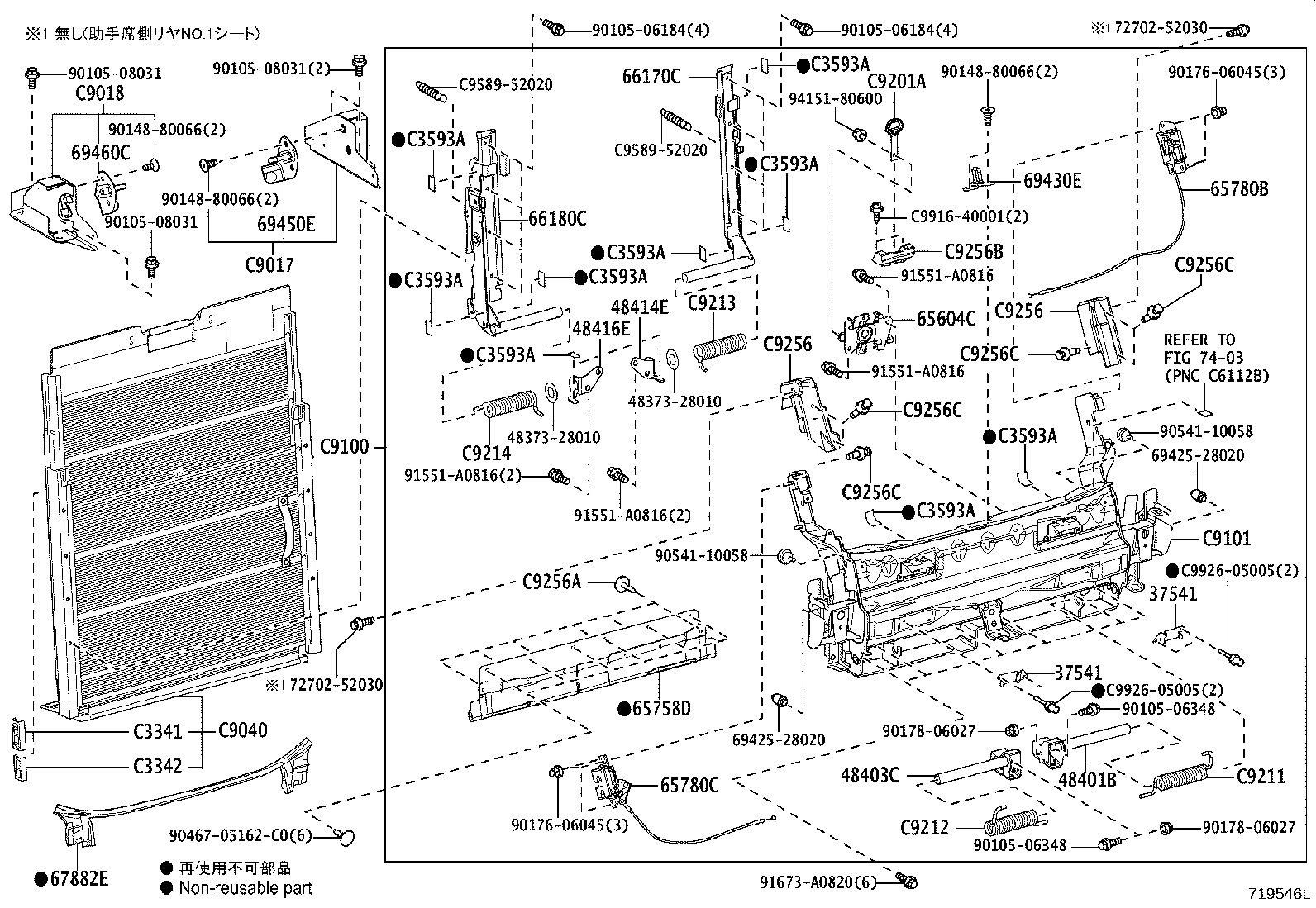

Exploded illustration 719546L 7403 — not listed in this catalogue 37541 — RETAINER, SPRING (4 parts) 37541 — RETAINER, SPRING (4 parts) 48401B — BRACKET SUB-ASSY, SPRING, RH (2 parts) C9212 — SPRING, TAIL GATE NO.2 (2 parts) C9211 — SPRING, TAIL GATE NO.1 (2 parts) 48403C — BRACKET SUB-ASSY, SPRING, LH (2 parts) C9256 — COVER, TAIL GATE LOCK (4 parts) C9256 — COVER, TAIL GATE LOCK (4 parts) 48414E — BRACKET, SPRING, NO.3 (2 parts) 48416E — BRACKET, SPRING, NO.4 (2 parts) 65604C — LINK SUB-ASSY, TAIL GATE LOCK CONNECTING (2 parts) 65758D — COVER, TAIL GATE, INNER (2 parts) 65780B — LOCK ASSY, TAIL GATE, RH (2 parts) 65780C — LOCK ASSY, TAIL GATE, LH (2 parts) 66170C — LATCH ASSY, TAIL GATE, RH (3 parts) 66180C — LATCH ASSY, TAIL GATE, LH (3 parts) 67882E — WEATHERSTRIP, TAIL GATE (2 parts) 69430E — STRIKER ASSY, BACK DOOR LOCK (2 parts) 69450E — STRIKER ASSY, BACK DOOR LOCK, RH (2 parts) 69460C — STRIKER ASSY, BACK DOOR LOCK, LH (2 parts) C3593A — SILENCER, REAR FLOOR, NO.3 (2 parts) C3593A — SILENCER, REAR FLOOR, NO.3 (2 parts) C3593A — SILENCER, REAR FLOOR, NO.3 (2 parts) C3593A — SILENCER, REAR FLOOR, NO.3 (2 parts) C3593A — SILENCER, REAR FLOOR, NO.3 (2 parts) C3593A — SILENCER, REAR FLOOR, NO.3 (2 parts) C3593A — SILENCER, REAR FLOOR, NO.3 (2 parts) C3593A — SILENCER, REAR FLOOR, NO.3 (2 parts) C9017 — RETAINER SUB-ASSY, POWER LIFT BASE, RH (2 parts) C9018 — RETAINER SUB-ASSY, POWER LIFT BASE, LH (2 parts) C9101 — PANEL SUB-ASSY, TAIL GATE SLOPE (2 parts) C9201A — HANDLE SUB-ASSY, TAIL GATE (2 parts) C9040 — SLOPE ASSY, REAR GATE (3 parts) C3341 — SUPPORT, SLIDE FLOOR PANEL, NO.1 (2 parts) C3342 — SUPPORT, SLIDE FLOOR PANEL, NO.2 (2 parts) C9213 — SPRING, TAIL GATE NO.3 (2 parts) C9214 — SPRING, TAIL GATE NO.4 (2 parts) C9100 — GATE ASSY, TAIL (4 parts) C9256A — CLIP, TAIL GATE LOCK COVER (2 parts) C9256B — COVER, TAIL GATE HANDLE LOCK (2 parts) 4837328010 — not listed in this catalogue 4837328010 — not listed in this catalogue 6942528020 — not listed in this catalogue 6942528020 — not listed in this catalogue 7270252030 — not listed in this catalogue 7270252030 — not listed in this catalogue 9010506184 — not listed in this catalogue 9010506184 — not listed in this catalogue 91673A0820 — not listed in this catalogue 9010508031 — not listed in this catalogue 9010508031 — not listed in this catalogue 9010508031 — not listed in this catalogue 9046705162C0 — not listed in this catalogue 9014880066 — not listed in this catalogue 9017606045 — not listed in this catalogue 9017606045 — not listed in this catalogue 9014880066 — not listed in this catalogue 9014880066 — not listed in this catalogue 9017806027 — not listed in this catalogue 9017806027 — not listed in this catalogue 9415180600 — not listed in this catalogue 9054110058 — not listed in this catalogue 9054110058 — not listed in this catalogue 91551A0816 — not listed in this catalogue 91551A0816 — not listed in this catalogue 9010506348 — not listed in this catalogue 9010506348 — not listed in this catalogue 91551A0816 — not listed in this catalogue C958952020 — not listed in this catalogue C958952020 — not listed in this catalogue C992605005 — not listed in this catalogue C992605005 — not listed in this catalogue 91551A0816 — not listed in this catalogue C991640001 — not listed in this catalogue C3593A — SILENCER, REAR FLOOR, NO.3 (2 parts) C9256C — CLIP (3 parts) C9256C — CLIP (3 parts) C9256C — CLIP (3 parts) C9256C — CLIP (3 parts)
719546L · 45 callouts, 35 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
74 parts on this figure
Part number Description Fitment Price
37541 — Retainer, Spring
37541-28020 note Retainer, Spring
2015-06 → 2018-09 ended
NSP172 ¥490
37541-28030 note Retainer, Spring
2015-06 → 2018-09 ended
NSP172 ¥490
37541-28020 note Retainer, Spring
2018-09 → 2022-07 ended
NSP172 ¥490
37541-28030 note Retainer, Spring
2018-09 → 2022-07 ended
NSP172 ¥490
48401B — Bracket Sub-assy, Spring, RH
48401-52020 Bracket Sub-assy, Spring, RH
2015-06 → 2018-09 ended
NSP172 ¥1,420
48401-52020 Bracket Sub-assy, Spring, RH
2018-09 → 2022-07 ended
NSP172 ¥1,420
48403C — Bracket Sub-assy, Spring, LH
48403-52020 Bracket Sub-assy, Spring, LH
2015-06 → 2018-09 ended
NSP172 ¥1,420
48403-52020 Bracket Sub-assy, Spring, LH
2018-09 → 2022-07 ended
NSP172 ¥1,420
48414E — Bracket, Spring, NO.3
48414-52010 Bracket, Spring, NO.3
2015-06 → 2018-09 ended
NSP172 ¥210
48414-52010 Bracket, Spring, NO.3
2018-09 → 2022-07 ended
NSP172 ¥210
48416E — Bracket, Spring, NO.4
48416-52010 Bracket, Spring, NO.4
2015-06 → 2018-09 ended
NSP172 ¥210
48416-52010 Bracket, Spring, NO.4
2018-09 → 2022-07 ended
NSP172 ¥210
65604C — Link Sub-assy, Tail Gate Lock Connecting
65604-52010 Link Sub-assy, Tail Gate Lock Connecting
2015-06 → 2018-09 ended
NSP172 ¥1,060
65604-52010 Link Sub-assy, Tail Gate Lock Connecting
2018-09 → 2022-07 ended
NSP172 ¥1,060
65758D — Cover, Tail Gate, Inner
65758-52040 Cover, Tail Gate, Inner
2015-06 → 2018-09 ended
NSP172 ¥3,110
65758-52040 Cover, Tail Gate, Inner
2018-09 → 2022-07 ended
NSP172 ¥3,110
65780B — Lock Assy, Tail Gate, RH
65780-52040 Lock Assy, Tail Gate, RH
2015-06 → 2018-09 ended
NSP172 ¥3,640
65780-52040 Lock Assy, Tail Gate, RH
2018-09 → 2022-07 ended
NSP172 ¥3,640
65780C — Lock Assy, Tail Gate, LH
65790-52030 Lock Assy, Tail Gate, LH
2015-06 → 2018-09 ended
NSP172 ¥3,510
65790-52030 Lock Assy, Tail Gate, LH
2018-09 → 2022-07 ended
NSP172 ¥3,510
66170C — Latch Assy, Tail Gate, RH
66170-52010 Latch Assy, Tail Gate, RH
2015-06 → 2018-09 ended
NSP172 ¥4,080
66170-52010 Latch Assy, Tail Gate, RH
2018-09 → 2022-02 ended
NSP172 ¥4,080
66170-52011 Latch Assy, Tail Gate, RH
2022-03 → 2022-07 ended
NSP172 ¥3,700
66180C — Latch Assy, Tail Gate, LH
66180-52010 Latch Assy, Tail Gate, LH
2015-06 → 2018-09 ended
NSP172 ¥4,080
66180-52010 Latch Assy, Tail Gate, LH
2018-09 → 2022-02 ended
NSP172 ¥4,080
66180-52011 Latch Assy, Tail Gate, LH
2022-03 → 2022-07 ended
NSP172 ¥3,700
67882E — Weatherstrip, Tail Gate
67882-52020 Weatherstrip, Tail Gate
2015-06 → 2018-09 ended
NSP172 ¥2,690
67882-52020 Weatherstrip, Tail Gate
2018-09 → 2022-07 ended
NSP172 ¥2,690
69430E — Striker Assy, Back Door Lock
69430-52050 Striker Assy, Back Door Lock
2015-06 → 2018-09 ended
NSP172 ¥700
69430-52050 Striker Assy, Back Door Lock
2018-09 → 2022-07 ended
NSP172 ¥700
69450E — Striker Assy, Back Door Lock, RH
69450-52020 Striker Assy, Back Door Lock, RH
2015-06 → 2018-09 ended
NSP172 ¥1,730
69450-52020 Striker Assy, Back Door Lock, RH
2018-09 → 2022-07 ended
NSP172 ¥1,730
69460C — Striker Assy, Back Door Lock, LH
69460-52010 Striker Assy, Back Door Lock, LH
2015-06 → 2018-09 ended
NSP172 ¥1,730
69460-52010 Striker Assy, Back Door Lock, LH
2018-09 → 2022-07 ended
NSP172 ¥1,730
C3341 — Support, Slide Floor Panel, NO.1
C3341-52020 Support, Slide Floor Panel, NO.1
2015-06 → 2018-09 ended
NSP172 ¥460
C3341-52020 Support, Slide Floor Panel, NO.1
2018-09 → 2022-07 ended
NSP172 ¥460
C3342 — Support, Slide Floor Panel, NO.2
C3342-52020 Support, Slide Floor Panel, NO.2
2015-06 → 2018-09 ended
NSP172 ¥330
C3342-52020 Support, Slide Floor Panel, NO.2
2018-09 → 2022-07 ended
NSP172 ¥330
C3593A — Silencer, Rear Floor, NO.3
C3593-22020 Silencer, Rear Floor, NO.3
2015-06 → 2018-09 ended
NSP172 ¥60
C3593-22020 Silencer, Rear Floor, NO.3
2018-09 → 2022-07 ended
NSP172 ¥60
C9017 — Retainer Sub-assy, Power Lift Base, RH
65557-52020 Retainer Sub-assy, Power Lift Base, RH
2015-06 → 2018-09 ended
NSP172 ¥3,470
65557-52020 Retainer Sub-assy, Power Lift Base, RH
2018-09 → 2022-07 ended
NSP172 ¥3,470
C9018 — Retainer Sub-assy, Power Lift Base, LH
65558-52020 Retainer Sub-assy, Power Lift Base, LH
2015-06 → 2018-09 ended
NSP172 ¥3,470
65558-52020 Retainer Sub-assy, Power Lift Base, LH
2018-09 → 2022-07 ended
NSP172 ¥3,470
C9040 — Slope Assy, Rear Gate
C9040-52030 Slope Assy, Rear Gate
2015-06 → 2018-02 ended
NSP172 ¥95,200
C9040-52031 Slope Assy, Rear Gate
2018-03 → 2018-09 ended
NSP172 ¥72,100
C9040-52031 Slope Assy, Rear Gate
2018-09 → 2022-07 ended
NSP172 ¥72,100
C9100 — Gate Assy, Tail
C9001-52010 Gate Assy, Tail
2015-06 → 2018-09 ended
NSP172 ¥55,300
C9001-52010 Gate Assy, Tail
2018-09 → 2019-09 ended
NSP172 ¥55,300
C9001-52011 Gate Assy, Tail
2019-10 → 2022-02 ended
NSP172 ¥46,000
C9001-52012 Gate Assy, Tail
2022-03 → 2022-07 ended
NSP172 ¥46,000
C9101 — Panel Sub-assy, Tail Gate Slope
C9101-52010 Panel Sub-assy, Tail Gate Slope
2015-06 → 2018-09 ended
NSP172 ¥37,400
C9101-52010 Panel Sub-assy, Tail Gate Slope
2018-09 → 2022-07 ended
NSP172 ¥37,400
C9201A — Handle Sub-assy, Tail Gate
72525-68010-E0 note Handle Sub-assy, Tail Gate
2015-06 → 2018-09 ended
NSP172 ¥450
72525-68010-E0 note Handle Sub-assy, Tail Gate
2018-09 → 2022-07 ended
NSP172 ¥450
C9211 — Spring, Tail Gate NO.1
C9211-52010 Spring, Tail Gate NO.1
2015-06 → 2018-09 ended
NSP172 ¥2,640
C9211-52010 Spring, Tail Gate NO.1
2018-09 → 2022-07 ended
NSP172 ¥2,640
C9212 — Spring, Tail Gate NO.2
C9212-52010 Spring, Tail Gate NO.2
2015-06 → 2018-09 ended
NSP172 ¥2,640
C9212-52010 Spring, Tail Gate NO.2
2018-09 → 2022-07 ended
NSP172 ¥2,640
C9213 — Spring, Tail Gate NO.3
C9213-52010 Spring, Tail Gate NO.3
2015-06 → 2018-09 ended
NSP172 ¥2,270
C9213-52010 Spring, Tail Gate NO.3
2018-09 → 2022-07 ended
NSP172 ¥2,270
C9214 — Spring, Tail Gate NO.4
C9214-52010 Spring, Tail Gate NO.4
2015-06 → 2018-09 ended
NSP172 ¥2,270
C9214-52010 Spring, Tail Gate NO.4
2018-09 → 2022-07 ended
NSP172 ¥2,270
C9256 — Cover, Tail Gate Lock
C9256-52030 note Cover, Tail Gate Lock
2015-06 → 2018-09 ended
NSP172 ¥2,490
C9256-52040 note Cover, Tail Gate Lock
2015-06 → 2018-09 ended
NSP172 ¥2,460
C9256-52030 note Cover, Tail Gate Lock
2018-09 → 2022-07 ended
NSP172 ¥2,490
C9256-52040 note Cover, Tail Gate Lock
2018-09 → 2022-07 ended
NSP172 ¥2,460
C9256A — Clip, Tail Gate Lock Cover
90467-05161-C0 note Clip, Tail Gate Lock Cover
2015-06 → 2018-09 ended
NSP172 ¥60
90467-05161-C0 note Clip, Tail Gate Lock Cover
2018-09 → 2022-07 ended
NSP172 ¥60
C9256B — Cover, Tail Gate Handle Lock
C9256-52020 Cover, Tail Gate Handle Lock
2015-06 → 2018-09 ended
NSP172 ¥1,350
C9256-52020 Cover, Tail Gate Handle Lock
2018-09 → 2022-07 ended
NSP172 ¥1,350
C9256C — Clip
90467-06165-C0 note Clip
2015-06 → 2016-10 ended
NSP172 ¥120
90467-06165-C3 note Clip
2016-10 → 2018-09 ended
NSP172 ¥90
90467-06165-C3 note Clip
2018-09 → 2022-07 ended
NSP172 ¥90
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
