Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

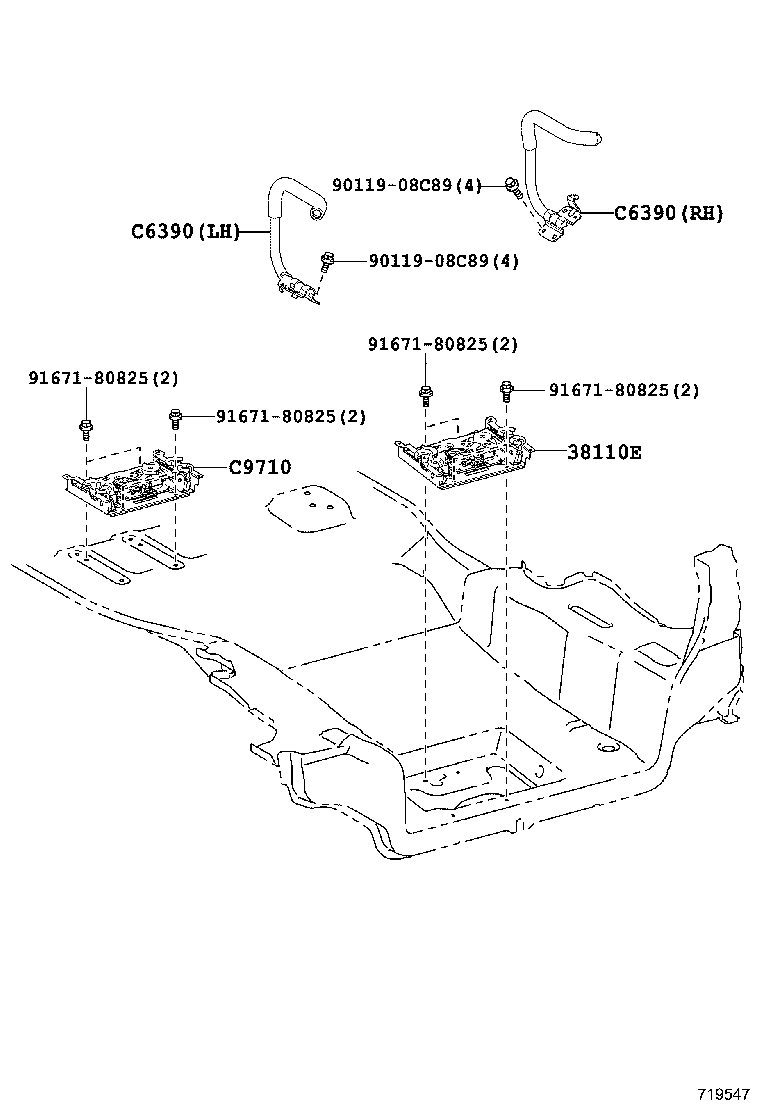

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 38110E — Winch Assy, W/Base | ||||
| 38100-28010 |
Winch Assy, W/Base
2015-06 → 2018-09
ended
|
NSP172 | ¥32,700 | |
| 38100-28010 |
Winch Assy, W/Base
2018-09 → 2022-07
ended
|
NSP172 | ¥32,700 | |
| C6390 — Handlail Assy | ||||
| C6580-52010 note |
Handlail Assy
2015-06 → 2016-11
ended
|
NSP172 | ¥6,900 | |
| C6580-52011 note |
Handlail Assy
2016-12 → 2018-09
ended
|
NSP172 | ¥4,630 | |
| C6590-52010 note |
Handlail Assy
2015-06 → 2016-11
ended
|
NSP172 | ¥6,900 | |
| C6590-52011 note |
Handlail Assy
2016-12 → 2018-09
ended
|
NSP172 | ¥4,210 | |
| C6580-52011 note |
Handlail Assy
2018-09 → 2022-07
ended
|
NSP172 | ¥4,630 | |
| C6590-52011 note |
Handlail Assy
2018-09 → 2022-07
ended
|
NSP172 | ¥4,210 | |
| C9710 — Winch Assy, NO.1 | ||||
| 38100-52030 note |
Winch Assy, NO.1
2015-06 → 2018-09
ended
|
NSP172 X | ¥29,600 | |
| 38100-52030 note |
Winch Assy, NO.1
2018-09 → 2022-07
ended
|
NSP172 WKX | ¥29,600 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
