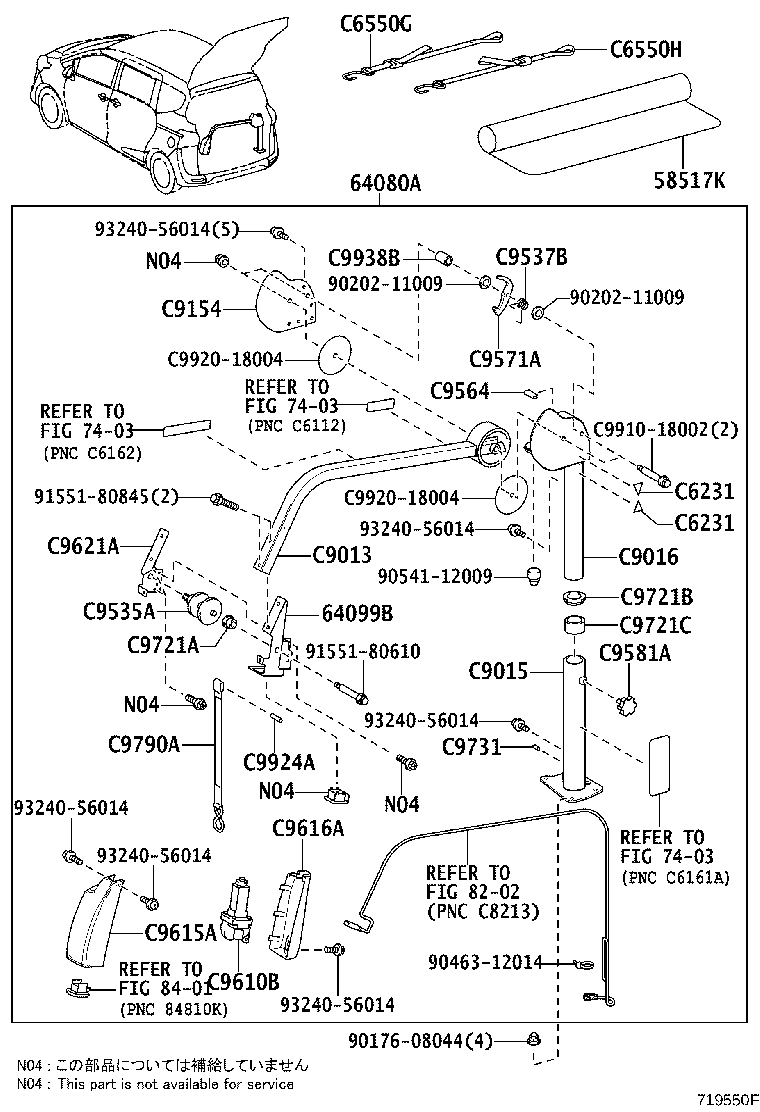

Exploded illustration 719550F 9324056014 — not listed in this catalogue 9324056014 — not listed in this catalogue 9324056014 — not listed in this catalogue C9924A — PIN (2 parts) C9721B — BEARING, NO.2 WINCH, NO.2 (2 parts) C9721C — BEARING, NO.2 WINCH, NO.3 (2 parts) 64080A — ARM ASSY, POWER LIFT (2 parts) C6550G — BELT ASSY, WHEEL CHAIR SET, NO.1 (4 parts) 58517K — MAT, GUARD (4 parts) 9324056014 — not listed in this catalogue 9324056014 — not listed in this catalogue 9324056014 — not listed in this catalogue 9054112009 — not listed in this catalogue C6231 — MARK, SIDE (2 parts) C6231 — MARK, SIDE (2 parts) 9046312014 — not listed in this catalogue 7403 — not listed in this catalogue 7403 — not listed in this catalogue 7403 — not listed in this catalogue 8401 — not listed in this catalogue 8202 — not listed in this catalogue 64099B — BASE SUB-ASSY, POWER LIFT ARM GUIDE (2 parts) C9013 — ARM SUB-ASSY, POWER LIFT, NO.1 (2 parts) C9015 — POST SUB-ASSY, POWER LIFT (2 parts) C9016 — POST SUB-ASSY, POWER LIFT, INNER (2 parts) C9154 — SUPPORT, POWER LIFT ARM HINGE (2 parts) C9535A — PULLEY, POWER LIFT (7 parts) C9537B — SPRING, POWER LIFT RETURN (7 parts) C9564 — PROTECTOR, POWER LIFT CYLINDER COVER (7 parts) C9571A — LEVER, POWER LIFT ARM LOCK (2 parts) C9581A — HANDLE, POWER LIFT LOCK (2 parts) C9610B — MOTOR ASSY, POWER LIFT (7 parts) C9615A — COVER, POWER LIFT MOTOR, NO.1 (2 parts) C9616A — COVER, POWER LIFT MOTOR, NO.2 (2 parts) C9621A — BASE, POWER LIFT MOTOR (2 parts) C9721A — BEARING, NO.2 WINCH, NO.1 (7 parts) C9731 — PIN, WINCH ROLLER, NO.1 (7 parts) C9790A — BELT ASSY, WINCH (2 parts) C9938B — COLLAR (7 parts) 9017608044 — not listed in this catalogue 9020211009 — not listed in this catalogue 9020211009 — not listed in this catalogue 9155180610 — not listed in this catalogue 9155180845 — not listed in this catalogue C991018002 — not listed in this catalogue C992018004 — not listed in this catalogue C992018004 — not listed in this catalogue C6550H — BELT ASSY, WHEEL CHAIR SET, NO.1 (4 parts)
719550F · 27 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
93 parts on this figure
Part number Description Fitment Price
58517K — Mat, Guard
58517-13010 note Mat, Guard
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,830
58517-13010 note Mat, Guard
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,830
58517-13010 note Mat, Guard
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,830
58517-13010 note Mat, Guard
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,830
64080A — Arm Assy, Power Lift
64080-52040 note Arm Assy, Power Lift
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥140,000
64080-52040 note Arm Assy, Power Lift
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥140,000
64099B — Base Sub-assy, Power Lift Arm Guide
64099-D1010 note Base Sub-assy, Power Lift Arm Guide
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,900
64099-D1010 note Base Sub-assy, Power Lift Arm Guide
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,900
C6231 — Mark, Side
C6231-18010 note Mark, Side
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,090
C6231-18010 note Mark, Side
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,090
C6550G — Belt Assy, Wheel Chair Set, NO.1
C6550-12010 note Belt Assy, Wheel Chair Set, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,980
C6550-12010 note Belt Assy, Wheel Chair Set, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,980
C6550-12010 note Belt Assy, Wheel Chair Set, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,980
C6550-12010 note Belt Assy, Wheel Chair Set, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,980
C6550H — Belt Assy, Wheel Chair Set, NO.1
C6550-52040 note Belt Assy, Wheel Chair Set, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,980
C6550-52040 note Belt Assy, Wheel Chair Set, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,980
C6550-52040 note Belt Assy, Wheel Chair Set, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,980
C6550-52040 note Belt Assy, Wheel Chair Set, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,980
C9013 — Arm Sub-assy, Power Lift, NO.1
C9013-52040 note Arm Sub-assy, Power Lift, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥17,600
C9013-52040 note Arm Sub-assy, Power Lift, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥17,600
C9015 — Post Sub-assy, Power Lift
C9015-52050 note Post Sub-assy, Power Lift
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥18,900
C9015-52050 note Post Sub-assy, Power Lift
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥18,900
C9016 — Post Sub-assy, Power Lift, Inner
C9016-52040 note Post Sub-assy, Power Lift, Inner
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥18,400
C9016-52040 note Post Sub-assy, Power Lift, Inner
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥18,400
C9154 — Support, Power Lift Arm Hinge
C9154-52020 note Support, Power Lift Arm Hinge
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,830
C9154-52020 note Support, Power Lift Arm Hinge
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,830
C9535A — Pulley, Power Lift
C9535-52030 note Pulley, Power Lift
2015-06 → 2018-09 ended
NCP175 ¥7,800
C9535-52030 note Pulley, Power Lift
2015-06 → 2018-09 ended
NHP170,NSP170 ¥7,800
C9535-D1060 note Pulley, Power Lift
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥8,700
C9535-52030 note Pulley, Power Lift
2018-09 → —
NCP175 ¥7,800
C9535-52030 note Pulley, Power Lift
2018-09 → —
NHP170,NSP170 07S ¥7,800
C9535-52030 note Pulley, Power Lift
2018-09 → —
NHP170,NSP170 05S ¥7,800
C9535-D1060 note Pulley, Power Lift
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥8,700
C9537B — Spring, Power Lift Return
C9537-52020 note Spring, Power Lift Return
2015-06 → 2018-09 ended
NHP170,NSP170 ¥80
C9537-52020 note Spring, Power Lift Return
2015-06 → 2018-09 ended
NCP175 ¥80
C9537-D1010 note Spring, Power Lift Return
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,260
C9537-52020 note Spring, Power Lift Return
2018-09 → —
NCP175 ¥80
C9537-52020 note Spring, Power Lift Return
2018-09 → —
NHP170,NSP170 07S ¥80
C9537-52020 note Spring, Power Lift Return
2018-09 → —
NHP170,NSP170 05S ¥80
C9537-D1010 note Spring, Power Lift Return
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,260
C9564 — Protector, Power Lift Cylinder Cover
C9564-18010 note Protector, Power Lift Cylinder Cover
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,040
C9564-52020 note Protector, Power Lift Cylinder Cover
2015-06 → 2018-09 ended
NCP175 ¥440
C9564-52020 note Protector, Power Lift Cylinder Cover
2015-06 → 2018-09 ended
NHP170,NSP170 ¥440
C9564-18010 note Protector, Power Lift Cylinder Cover
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,040
C9564-52020 note Protector, Power Lift Cylinder Cover
2018-09 → —
NHP170,NSP170 05S ¥440
C9564-52020 note Protector, Power Lift Cylinder Cover
2018-09 → —
NCP175 ¥440
C9564-52020 note Protector, Power Lift Cylinder Cover
2018-09 → —
NHP170,NSP170 07S ¥440
C9571A — Lever, Power Lift Arm Lock
C9571-18010 note Lever, Power Lift Arm Lock
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥4,730
C9571-18010 note Lever, Power Lift Arm Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥4,730
C9581A — Handle, Power Lift Lock
C9581-D1030 note Handle, Power Lift Lock
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,490
C9581-D1030 note Handle, Power Lift Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,490
C9610B — Motor Assy, Power Lift
C9610-18030 note Motor Assy, Power Lift
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥7,400
C9610-52010 note Motor Assy, Power Lift
2015-06 → 2018-09 ended
NCP175 ¥11,600
C9610-52010 note Motor Assy, Power Lift
2015-06 → 2018-09 ended
NHP170,NSP170 ¥11,600
C9610-18030 note Motor Assy, Power Lift
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥7,400
C9610-52010 note Motor Assy, Power Lift
2018-09 → —
NCP175 ¥11,600
C9610-52010 note Motor Assy, Power Lift
2018-09 → —
NHP170,NSP170 07S ¥11,600
C9610-52010 note Motor Assy, Power Lift
2018-09 → —
NHP170,NSP170 05S ¥11,600
C9615A — Cover, Power Lift Motor, NO.1
C9615-12020 note Cover, Power Lift Motor, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,700
C9615-12020 note Cover, Power Lift Motor, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,700
C9616A — Cover, Power Lift Motor, NO.2
C9616-12010 note Cover, Power Lift Motor, NO.2
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,440
C9616-12010 note Cover, Power Lift Motor, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,440
C9621A — Base, Power Lift Motor
C9621-D1020 note Base, Power Lift Motor
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,740
C9621-D1020 note Base, Power Lift Motor
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,740
C9721A — Bearing, NO.2 Winch, NO.1
C9721-52020 note Bearing, NO.2 Winch, NO.1
2015-06 → 2018-09 ended
NCP175 ¥670
C9721-52020 note Bearing, NO.2 Winch, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥670
C9721-D1010 note Bearing, NO.2 Winch, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,350
C9721-52020 note Bearing, NO.2 Winch, NO.1
2018-09 → —
NHP170,NSP170 05S ¥670
C9721-52020 note Bearing, NO.2 Winch, NO.1
2018-09 → —
NHP170,NSP170 07S ¥670
C9721-52020 note Bearing, NO.2 Winch, NO.1
2018-09 → —
NCP175 ¥670
C9721-D1010 note Bearing, NO.2 Winch, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,350
C9721B — Bearing, NO.2 Winch, NO.2
C9721-D1070 note Bearing, NO.2 Winch, NO.2
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥670
C9721-D1070 note Bearing, NO.2 Winch, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥670
C9721C — Bearing, NO.2 Winch, NO.3
C9721-D1080 note Bearing, NO.2 Winch, NO.3
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥670
C9721-D1080 note Bearing, NO.2 Winch, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥670
C9731 — Pin, Winch Roller, NO.1
C9731-52040 note Pin, Winch Roller, NO.1
2015-06 → 2018-09 ended
NCP175 ¥70
C9731-52040 note Pin, Winch Roller, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥70
C9731-D1050 note Pin, Winch Roller, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥90
C9731-52040 note Pin, Winch Roller, NO.1
2018-09 → —
NHP170,NSP170 05S ¥70
C9731-52040 note Pin, Winch Roller, NO.1
2018-09 → —
NHP170,NSP170 07S ¥70
C9731-52040 note Pin, Winch Roller, NO.1
2018-09 → —
NCP175 ¥70
C9731-D1050 note Pin, Winch Roller, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥90
C9790A — Belt Assy, Winch
C9790-18020 note Belt Assy, Winch
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥4,120
C9790-18020 note Belt Assy, Winch
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥4,120
C9924A — Pin
C9924-18001 note Pin
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥50
C9924-18001 note Pin
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥50
C9938B — Collar
C9226-52020 note Collar
2015-06 → 2018-09 ended
NCP175 ¥100
C9226-52020 note Collar
2015-06 → 2018-09 ended
NHP170,NSP170 ¥100
C9938-18020 note Collar
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥200
C9226-52020 note Collar
2018-09 → —
NCP175 ¥100
C9226-52020 note Collar
2018-09 → —
NHP170,NSP170 07S ¥100
C9226-52020 note Collar
2018-09 → —
NHP170,NSP170 05S ¥100
C9938-18020 note Collar
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
