Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

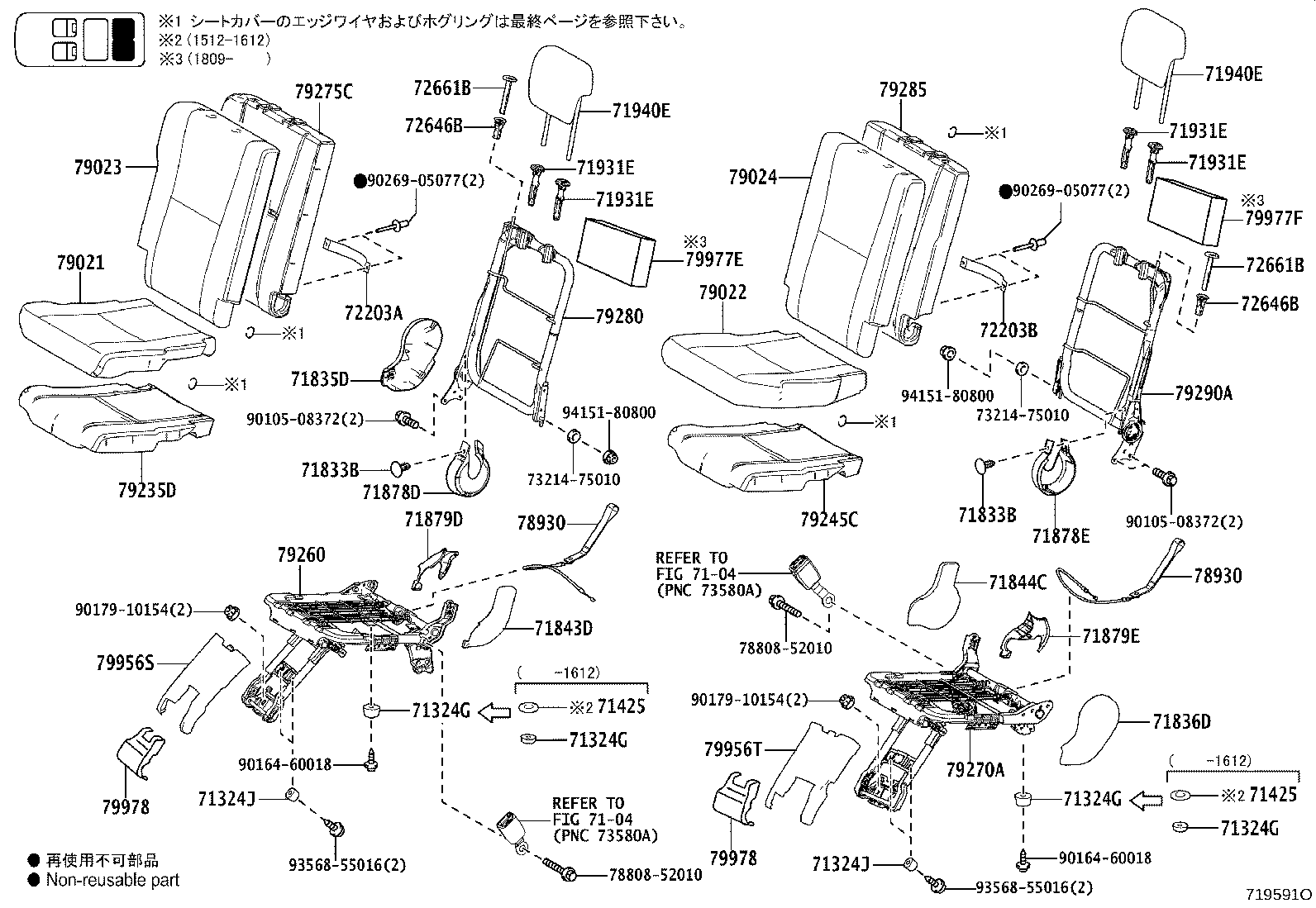

Exploded illustration 719591O 7104 — not listed in this catalogue 7104 — not listed in this catalogue 71324G — CUSHION, REAR NO.2 SEAT (3 parts) 71324J — CUSHION, REAR SEAT (2 parts) 71324J — CUSHION, REAR SEAT (2 parts) 71835D — COVER, REAR SEAT RECLINING, LOWER RH (4 parts) 71836D — COVER, REAR SEAT RECLINING, LOWER LH (4 parts) 71843D — COVER, REAR SEAT RECLINING, NO.2 RH (4 parts) 71844C — COVER, REAR SEAT RECLINING, NO.2 LH (4 parts) 71878D — COVER, REAR SEAT RECLINING, INNER RH (4 parts) 79956S — COVER, REAR SEAT LEG SIDE (4 parts) 79956T — COVER, REAR SEAT LEG SIDE (4 parts) 79978 — COVER, REAR SEAT LEG GARNISH, NO.1 (4 parts) 79978 — COVER, REAR SEAT LEG GARNISH, NO.1 (4 parts) 71878E — COVER, REAR SEAT RECLINING, INNER RH (4 parts) 71879D — COVER, REAR SEAT RECLINING, INNER LH (4 parts) 71879E — COVER, REAR SEAT RECLINING, INNER LH (4 parts) 71931E — SUPPORT ASSY, REAR NO.3 SEAT HEADREST (14 parts) 71931E — SUPPORT ASSY, REAR NO.3 SEAT HEADREST (14 parts) 79977E — FELT, SEATBACK, RH (1 parts) 79977F — FELT, SEATBACK, LH (1 parts) 71940E — HEADREST ASSY, NO.2 SEAT (16 parts) 71931E — SUPPORT ASSY, REAR NO.3 SEAT HEADREST (14 parts) 71931E — SUPPORT ASSY, REAR NO.3 SEAT HEADREST (14 parts) 71940E — HEADREST ASSY, NO.2 SEAT (16 parts) 72203A — HANDLE SUB-ASSY, REAR SEAT TRACK, RH (4 parts) 72646B — GROMMET, REAR SEATBACK STOP BUTTON (4 parts) 72661B — LEVER, REAR SEATBACK ROD CONTROL, OUTER (4 parts) 72646B — GROMMET, REAR SEATBACK STOP BUTTON (4 parts) 72661B — LEVER, REAR SEATBACK ROD CONTROL, OUTER (4 parts) 78930 — CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3 (4 parts) 78930 — CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.3 (4 parts) 79021 — COVER SUB-ASSY, NO.2 SEAT CUSHION, RH (18 parts) 79023 — COVER SUB-ASSY, NO.2 SEATBACK, RH (19 parts) 79235D — PAD, NO.2 SEAT CUSHION, RH (4 parts) 79022 — COVER SUB-ASSY, NO.2 SEAT CUSHION, LH (18 parts) 79245C — PAD, NO.2 SEAT CUSHION, LH (4 parts) 79260 — SPRING ASSY, NO.2 SEAT CUSHION (2 parts) 79270A — SPRING ASSY, NO.2 SEAT CUSHION, LH (2 parts) 79275C — PAD, NO.2 SEATBACK, RH (4 parts) 79024 — COVER SUB-ASSY, NO.2 SEATBACK, LH (19 parts) 79285 — PAD, NO.2 SEATBACK, LH (4 parts) 79280 — SPRING ASSY, NO.2 SEATBACK (2 parts) 79290A — SPRING ASSY, NO.2 SEATBACK, LH (2 parts) 9010508372 — not listed in this catalogue 9010508372 — not listed in this catalogue 9016460018 — not listed in this catalogue 9356855016 — not listed in this catalogue 7880852010 — not listed in this catalogue 7880852010 — not listed in this catalogue 9356855016 — not listed in this catalogue 71324G — CUSHION, REAR NO.2 SEAT (3 parts) 9016460018 — not listed in this catalogue 9017910154 — not listed in this catalogue 9017910154 — not listed in this catalogue 9026905077 — not listed in this catalogue 9026905077 — not listed in this catalogue 72203B — HANDLE SUB-ASSY, REAR SEAT TRACK, LH (4 parts) 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 71833B — CLIP (FOR REAR SEAT RECLINING COVER) (5 parts) 71833B — CLIP (FOR REAR SEAT RECLINING COVER) (5 parts) 71425 — PATCH, REAR SEAT LEG (1 parts) 71324G — CUSHION, REAR NO.2 SEAT (3 parts) 71425 — PATCH, REAR SEAT LEG (1 parts) 71324G — CUSHION, REAR NO.2 SEAT (3 parts) 7321475010 — not listed in this catalogue 7321475010 — not listed in this catalogue
719591O · 50 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
205 parts on this figure
Part number Description Fitment Price
71324G — Cushion, Rear NO.2 Seat
71324-52020 Cushion, Rear NO.2 Seat
2015-06 → 2016-12 ended
NCP175,NHP170,NSP170 ¥250
71324-52070 Cushion, Rear NO.2 Seat
2016-12 → 2018-09 ended
NCP175,NHP170,NSP170 ¥300
71324-52070 Cushion, Rear NO.2 Seat
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥300
71324J — Cushion, Rear Seat
71324-52030 Cushion, Rear Seat
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥280
71324-52030 Cushion, Rear Seat
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥280
71425 — Patch, Rear Seat Leg
71425-52010 Patch, Rear Seat Leg
2015-12 → 2016-12 ended
NCP175,NHP170,NSP170 ¥320
71833B — Clip (FOR REAR SEAT RECLINING COVER)
67771-26230-C0 note Clip (FOR REAR SEAT RECLINING COVER)
2015-06 → 2017-10 ended
NCP175,NHP170,NSP170 ¥110
67771-26230-C1 note Clip (FOR REAR SEAT RECLINING COVER)
2017-10 → 2018-09 ended
NCP175,NHP170,NSP170 ¥100
67771-26230-C1 note Clip (FOR REAR SEAT RECLINING COVER)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥100
67771-26230-C1 note Clip (FOR REAR SEAT RECLINING COVER)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥100
67771-26230-C1 note Clip (FOR REAR SEAT RECLINING COVER)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥100
71835D — Cover, Rear Seat Reclining, Lower RH
71833-52220-C0 note Cover, Rear Seat Reclining, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥1,510
71833-52220-C0 note Cover, Rear Seat Reclining, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,510
71833-52220-C0 note Cover, Rear Seat Reclining, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,510
71833-52220-C0 note Cover, Rear Seat Reclining, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥1,510
71836D — Cover, Rear Seat Reclining, Lower LH
71834-52200-C0 note Cover, Rear Seat Reclining, Lower LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥1,510
71834-52200-C0 note Cover, Rear Seat Reclining, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,510
71834-52200-C0 note Cover, Rear Seat Reclining, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,510
71834-52200-C0 note Cover, Rear Seat Reclining, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥1,510
71843D — Cover, Rear Seat Reclining, NO.2 RH
71843-52050-C0 note Cover, Rear Seat Reclining, NO.2 RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥1,140
71843-52050-C0 note Cover, Rear Seat Reclining, NO.2 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,140
71843-52050-C0 note Cover, Rear Seat Reclining, NO.2 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,140
71843-52050-C0 note Cover, Rear Seat Reclining, NO.2 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥1,140
71844C — Cover, Rear Seat Reclining, NO.2 LH
71844-52050-C0 note Cover, Rear Seat Reclining, NO.2 LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥1,140
71844-52050-C0 note Cover, Rear Seat Reclining, NO.2 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,140
71844-52050-C0 note Cover, Rear Seat Reclining, NO.2 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,140
71844-52050-C0 note Cover, Rear Seat Reclining, NO.2 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥1,140
71878D — Cover, Rear Seat Reclining, Inner RH
71878-52170-C0 note Cover, Rear Seat Reclining, Inner RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥1,180
71878-52170-C0 note Cover, Rear Seat Reclining, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,180
71878-52170-C0 note Cover, Rear Seat Reclining, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥1,180
71878-52170-C0 note Cover, Rear Seat Reclining, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,180
71878E — Cover, Rear Seat Reclining, Inner RH
71878-52180-C0 note Cover, Rear Seat Reclining, Inner RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥1,180
71878-52180-C0 note Cover, Rear Seat Reclining, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,180
71878-52180-C0 note Cover, Rear Seat Reclining, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,180
71878-52180-C0 note Cover, Rear Seat Reclining, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥1,180
71879D — Cover, Rear Seat Reclining, Inner LH
71879-52190-C0 note Cover, Rear Seat Reclining, Inner LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥590
71879-52190-C0 note Cover, Rear Seat Reclining, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥590
71879-52190-C0 note Cover, Rear Seat Reclining, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥590
71879-52190-C0 note Cover, Rear Seat Reclining, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥590
71879E — Cover, Rear Seat Reclining, Inner LH
71879-52180-C0 note Cover, Rear Seat Reclining, Inner LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥590
71879-52180-C0 note Cover, Rear Seat Reclining, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥590
71879-52180-C0 note Cover, Rear Seat Reclining, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥590
71879-52180-C0 note Cover, Rear Seat Reclining, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥590
71931E — Support Assy, Rear NO.3 Seat Headrest
71930-44020-21 note Support Assy, Rear NO.3 Seat Headrest
2017-10 → 2018-09 ended
NCP175,NHP170,NSP170 ¥780
71930-44020-C0 note Support Assy, Rear NO.3 Seat Headrest
2015-06 → 2017-10 ended
NCP175,NHP170,NSP170 ¥870
71930-44020-C0 note Support Assy, Rear NO.3 Seat Headrest
2017-08 → 2017-10 ended
NCP175 G;NHP170,NSP170 07S G ¥870
71931-47010-C0 note Support Assy, Rear NO.3 Seat Headrest
2015-06 → 2017-10 ended
NCP175,NHP170,NSP170 ¥530
71931-47010-C0 note Support Assy, Rear NO.3 Seat Headrest
2017-08 → 2017-10 ended
NCP175 G;NHP170,NSP170 07S G ¥530
71931-47010-C8 note Support Assy, Rear NO.3 Seat Headrest
2017-10 → 2018-09 ended
NCP175,NHP170,NSP170 ¥480
71930-44020-21 note Support Assy, Rear NO.3 Seat Headrest
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥780
71930-44020-21 note Support Assy, Rear NO.3 Seat Headrest
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥780
71930-44020-21 note Support Assy, Rear NO.3 Seat Headrest
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥780
71930-44020-21 note Support Assy, Rear NO.3 Seat Headrest
2019-10 → —
NCP175,NHP170,NSP170 G ¥780
71931-47010-C8 note Support Assy, Rear NO.3 Seat Headrest
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥480
71931-47010-C8 note Support Assy, Rear NO.3 Seat Headrest
2019-10 → —
NCP175,NHP170,NSP170 G ¥480
71931-47010-C8 note Support Assy, Rear NO.3 Seat Headrest
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥480
71931-47010-C8 note Support Assy, Rear NO.3 Seat Headrest
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥480
71940E — Headrest Assy, NO.2 Seat
71940-52G10-B1 note Headrest Assy, NO.2 Seat
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥22,900
71940-52G10-E1 note Headrest Assy, NO.2 Seat
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥22,900
71940-52G20-B1 note Headrest Assy, NO.2 Seat
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥22,900
71940-52G20-E0 note Headrest Assy, NO.2 Seat
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥22,900
71940-52G60-C0 note Headrest Assy, NO.2 Seat
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥22,900
71940-52G10-A0 note Headrest Assy, NO.2 Seat
2018-09 → 2021-06 ended
NCP175 X ¥19,000
71940-52G10-A0 note Headrest Assy, NO.2 Seat
2018-09 → 2022-07 ended
NHP170,NSP170 X ¥19,000
71940-52G10-B2 note Headrest Assy, NO.2 Seat
2018-09 → 2021-02 ended
NCP175,NHP170,NSP170 X ¥19,000
71940-52G10-C0 note Headrest Assy, NO.2 Seat
2021-02 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥19,000
71940-52G60-C1 note Headrest Assy, NO.2 Seat
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 GCERO ¥22,800
71940-52G60-C2 note Headrest Assy, NO.2 Seat
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥19,000
71940-52G70-C0 note Headrest Assy, NO.2 Seat
2018-09 → 2021-02 ended
NCP175,NHP170,NSP170 G ¥19,000
71940-52G70-C1 note Headrest Assy, NO.2 Seat
2021-02 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥19,000
71940-52G70-E0 note Headrest Assy, NO.2 Seat
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥19,000
71940-52G70-E1 note Headrest Assy, NO.2 Seat
2019-10 → 2021-02 ended
NCP175,NHP170,NSP170 G ¥19,000
71940-52G70-E2 note Headrest Assy, NO.2 Seat
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥19,000
72203A — Handle Sub-assy, Rear Seat Track, RH
72203-52030-C1 note Handle Sub-assy, Rear Seat Track, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥240
72203-52030-C1 note Handle Sub-assy, Rear Seat Track, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥240
72203-52030-C1 note Handle Sub-assy, Rear Seat Track, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥240
72203-52030-C1 note Handle Sub-assy, Rear Seat Track, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥240
72203B — Handle Sub-assy, Rear Seat Track, LH
72203-52030-C1 note Handle Sub-assy, Rear Seat Track, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥240
72203-52030-C1 note Handle Sub-assy, Rear Seat Track, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥240
72203-52030-C1 note Handle Sub-assy, Rear Seat Track, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥240
72203-52030-C1 note Handle Sub-assy, Rear Seat Track, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥240
72646B — Grommet, Rear Seatback Stop Button
72646-52060-C0 note Grommet, Rear Seatback Stop Button
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥600
72646-52060-C0 note Grommet, Rear Seatback Stop Button
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥600
72646-52060-C0 note Grommet, Rear Seatback Stop Button
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥600
72646-52060-C0 note Grommet, Rear Seatback Stop Button
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥600
72661B — Lever, Rear Seatback Rod Control, Outer
72661-52070-C0 note Lever, Rear Seatback Rod Control, Outer
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥410
72661-52070-C0 note Lever, Rear Seatback Rod Control, Outer
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥410
72661-52070-C0 note Lever, Rear Seatback Rod Control, Outer
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥410
72661-52070-C0 note Lever, Rear Seatback Rod Control, Outer
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥410
78930 — Cable Assy, Fold Seat Lock Control, NO.3
78910-52030-C0 note Cable Assy, Fold Seat Lock Control, NO.3
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥930
78910-52030-C0 note Cable Assy, Fold Seat Lock Control, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥930
78910-52030-C0 note Cable Assy, Fold Seat Lock Control, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥930
78910-52030-C0 note Cable Assy, Fold Seat Lock Control, NO.3
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥930
79021 — Cover Sub-assy, NO.2 Seat Cushion, RH
79021-52110-B2 note Cover Sub-assy, NO.2 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥16,700
79021-52110-B3 note Cover Sub-assy, NO.2 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥16,700
79021-52120-B2 note Cover Sub-assy, NO.2 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥18,800
79021-52120-B3 note Cover Sub-assy, NO.2 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥18,800
79021-52130-B0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥20,800
79021-52140-B1 note Cover Sub-assy, NO.2 Seat Cushion, RH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥18,400
79021-52140-B2 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-02 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥18,400
79021-52140-E1 note Cover Sub-assy, NO.2 Seat Cushion, RH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥18,400
79021-52140-E2 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-02 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥18,400
79021-52150-E1 note Cover Sub-assy, NO.2 Seat Cushion, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 GCERO ¥24,600
79021-52160-A0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 X ¥16,300
79021-52160-A1 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-02 → 2022-07 ended
NHP170,NSP170 X ¥16,300
79021-52160-A1 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-02 → 2021-06 ended
NCP175 X ¥16,300
79021-52160-C0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 X ¥16,300
79021-52160-C1 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-02 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥16,300
79021-52170-C0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2019-10 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥15,700
79021-52170-C1 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥15,700
79021-52210-E1 note Cover Sub-assy, NO.2 Seat Cushion, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥17,300
79022 — Cover Sub-assy, NO.2 Seat Cushion, LH
79022-52110-B2 note Cover Sub-assy, NO.2 Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥16,700
79022-52110-B3 note Cover Sub-assy, NO.2 Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥16,700
79022-52120-B2 note Cover Sub-assy, NO.2 Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥18,800
79022-52120-B3 note Cover Sub-assy, NO.2 Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥18,800
79022-52130-B0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥20,800
79022-52140-B1 note Cover Sub-assy, NO.2 Seat Cushion, LH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥18,400
79022-52140-B2 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-02 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥18,400
79022-52140-E1 note Cover Sub-assy, NO.2 Seat Cushion, LH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥18,400
79022-52140-E2 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-02 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥18,400
79022-52150-E1 note Cover Sub-assy, NO.2 Seat Cushion, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 GCERO ¥24,600
79022-52160-A0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 X ¥16,300
79022-52160-A1 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-02 → 2021-06 ended
NCP175 X ¥16,300
79022-52160-A1 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-02 → 2022-07 ended
NHP170,NSP170 X ¥16,300
79022-52160-C0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 X ¥16,300
79022-52160-C1 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-02 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥16,300
79022-52170-C0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2019-10 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥15,700
79022-52170-C1 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥15,700
79022-52210-E1 note Cover Sub-assy, NO.2 Seat Cushion, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥17,300
79023 — Cover Sub-assy, NO.2 Seatback, RH
79023-52060-C0 note Cover Sub-assy, NO.2 Seatback, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥19,700
79023-52060-E0 note Cover Sub-assy, NO.2 Seatback, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥19,700
79023-52070-A0 note Cover Sub-assy, NO.2 Seatback, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥22,100
79023-52070-C0 note Cover Sub-assy, NO.2 Seatback, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥22,100
79023-52080-B1 note Cover Sub-assy, NO.2 Seatback, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥24,600
79023-52090-B4 note Cover Sub-assy, NO.2 Seatback, RH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥22,100
79023-52090-B5 note Cover Sub-assy, NO.2 Seatback, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥18,400
79023-52090-B7 note Cover Sub-assy, NO.2 Seatback, RH
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥18,400
79023-52100-B2 note Cover Sub-assy, NO.2 Seatback, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 GCERO ¥24,600
79023-52110-B0 note Cover Sub-assy, NO.2 Seatback, RH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 X ¥16,300
79023-52110-B1 note Cover Sub-assy, NO.2 Seatback, RH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 X ¥19,600
79023-52110-B2 note Cover Sub-assy, NO.2 Seatback, RH
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 X ¥16,300
79023-52120-B0 note Cover Sub-assy, NO.2 Seatback, RH
2019-10 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥22,100
79023-52120-B1 note Cover Sub-assy, NO.2 Seatback, RH
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥18,400
79023-52160-B1 note Cover Sub-assy, NO.2 Seatback, RH
2020-06 → 2021-06 ended
NCP175,NHP170,NSP170 GCERO ¥20,500
79023-52171-B1 note Cover Sub-assy, NO.2 Seatback, RH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥16,300
79023-52181-B0 note Cover Sub-assy, NO.2 Seatback, RH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥18,400
79023-52181-B1 note Cover Sub-assy, NO.2 Seatback, RH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥18,400
79023-52191-B0 note Cover Sub-assy, NO.2 Seatback, RH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥20,500
79024 — Cover Sub-assy, NO.2 Seatback, LH
79024-52060-C0 note Cover Sub-assy, NO.2 Seatback, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥19,700
79024-52060-E0 note Cover Sub-assy, NO.2 Seatback, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 G ¥19,700
79024-52070-A0 note Cover Sub-assy, NO.2 Seatback, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥22,100
79024-52070-C0 note Cover Sub-assy, NO.2 Seatback, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 X ¥22,100
79024-52080-B1 note Cover Sub-assy, NO.2 Seatback, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥24,600
79024-52090-B4 note Cover Sub-assy, NO.2 Seatback, LH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥18,400
79024-52090-B5 note Cover Sub-assy, NO.2 Seatback, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥18,400
79024-52090-B7 note Cover Sub-assy, NO.2 Seatback, LH
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥18,400
79024-52091-B5 note Cover Sub-assy, NO.2 Seatback, LH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥18,400
79024-52091-B7 note Cover Sub-assy, NO.2 Seatback, LH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥18,400
79024-52100-B2 note Cover Sub-assy, NO.2 Seatback, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 GCERO ¥24,600
79024-52110-B0 note Cover Sub-assy, NO.2 Seatback, LH
2018-09 → 2021-06 ended
NCP175,NHP170,NSP170 X ¥16,300
79024-52110-B1 note Cover Sub-assy, NO.2 Seatback, LH
2018-09 → 2021-01 ended
NCP175,NHP170,NSP170 X ¥16,300
79024-52110-B2 note Cover Sub-assy, NO.2 Seatback, LH
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 X ¥16,300
79024-52111-B2 note Cover Sub-assy, NO.2 Seatback, LH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥16,300
79024-52120-B0 note Cover Sub-assy, NO.2 Seatback, LH
2019-10 → 2021-01 ended
NCP175,NHP170,NSP170 G ¥18,400
79024-52120-B1 note Cover Sub-assy, NO.2 Seatback, LH
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥18,400
79024-52160-B1 note Cover Sub-assy, NO.2 Seatback, LH
2020-06 → 2021-06 ended
NCP175,NHP170,NSP170 GCERO ¥20,500
79024-52161-B1 note Cover Sub-assy, NO.2 Seatback, LH
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥20,500
79235D — Pad, NO.2 Seat Cushion, RH
79235-52030 Pad, NO.2 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥5,900
79235-52040 note Pad, NO.2 Seat Cushion, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥6,600
79235-52030 Pad, NO.2 Seat Cushion, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥5,900
79235-52040 Pad, NO.2 Seat Cushion, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥6,600
79245C — Pad, NO.2 Seat Cushion, LH
79245-52030 Pad, NO.2 Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥5,900
79245-52040 note Pad, NO.2 Seat Cushion, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥6,600
79245-52030 Pad, NO.2 Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥5,900
79245-52040 Pad, NO.2 Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥6,600
79260 — Spring Assy, NO.2 Seat Cushion
79260-52040 Spring Assy, NO.2 Seat Cushion
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥24,100
79260-52040 Spring Assy, NO.2 Seat Cushion
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥24,100
79270A — Spring Assy, NO.2 Seat Cushion, LH
79270-52040 Spring Assy, NO.2 Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥24,100
79270-52040 Spring Assy, NO.2 Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥24,100
79275C — Pad, NO.2 Seatback, RH
79275-52020 Pad, NO.2 Seatback, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥4,940
79275-52030 note Pad, NO.2 Seatback, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥5,900
79275-52020 Pad, NO.2 Seatback, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥4,940
79275-52030 Pad, NO.2 Seatback, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥5,900
79280 — Spring Assy, NO.2 Seatback
79280-52030 Spring Assy, NO.2 Seatback
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥14,200
79280-52030 Spring Assy, NO.2 Seatback
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥14,200
79285 — Pad, NO.2 Seatback, LH
79285-52020 Pad, NO.2 Seatback, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥4,940
79285-52030 note Pad, NO.2 Seatback, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥5,900
79285-52020 Pad, NO.2 Seatback, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥4,940
79285-52030 Pad, NO.2 Seatback, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥5,900
79290A — Spring Assy, NO.2 Seatback, LH
79290-52030 Spring Assy, NO.2 Seatback, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥14,200
79290-52030 Spring Assy, NO.2 Seatback, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥14,200
79956S — Cover, Rear Seat Leg Side
79959-52240-C0 note Cover, Rear Seat Leg Side
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,000
79959-52240-C0 note Cover, Rear Seat Leg Side
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥2,000
79959-52240-C0 note Cover, Rear Seat Leg Side
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,000
79959-52240-C0 note Cover, Rear Seat Leg Side
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥2,000
79956T — Cover, Rear Seat Leg Side
79959-52250-C0 note Cover, Rear Seat Leg Side
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,000
79959-52250-C0 note Cover, Rear Seat Leg Side
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥2,000
79959-52250-C0 note Cover, Rear Seat Leg Side
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,000
79959-52250-C0 note Cover, Rear Seat Leg Side
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥2,000
79977E — Felt, Seatback, RH
79977-52210 Felt, Seatback, RH
2018-09 → —
NCP175,NHP170,NSP170 06S,07S ¥600
79977F — Felt, Seatback, LH
79977-52210 Felt, Seatback, LH
2018-09 → —
NCP175,NHP170,NSP170 06S,07S ¥600
79978 — Cover, Rear Seat Leg Garnish, NO.1
79978-52010-C0 note Cover, Rear Seat Leg Garnish, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥1,140
79978-52010-C0 note Cover, Rear Seat Leg Garnish, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,140
79978-52010-C0 note Cover, Rear Seat Leg Garnish, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,140
79978-52010-C0 note Cover, Rear Seat Leg Garnish, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥1,140
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
