Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

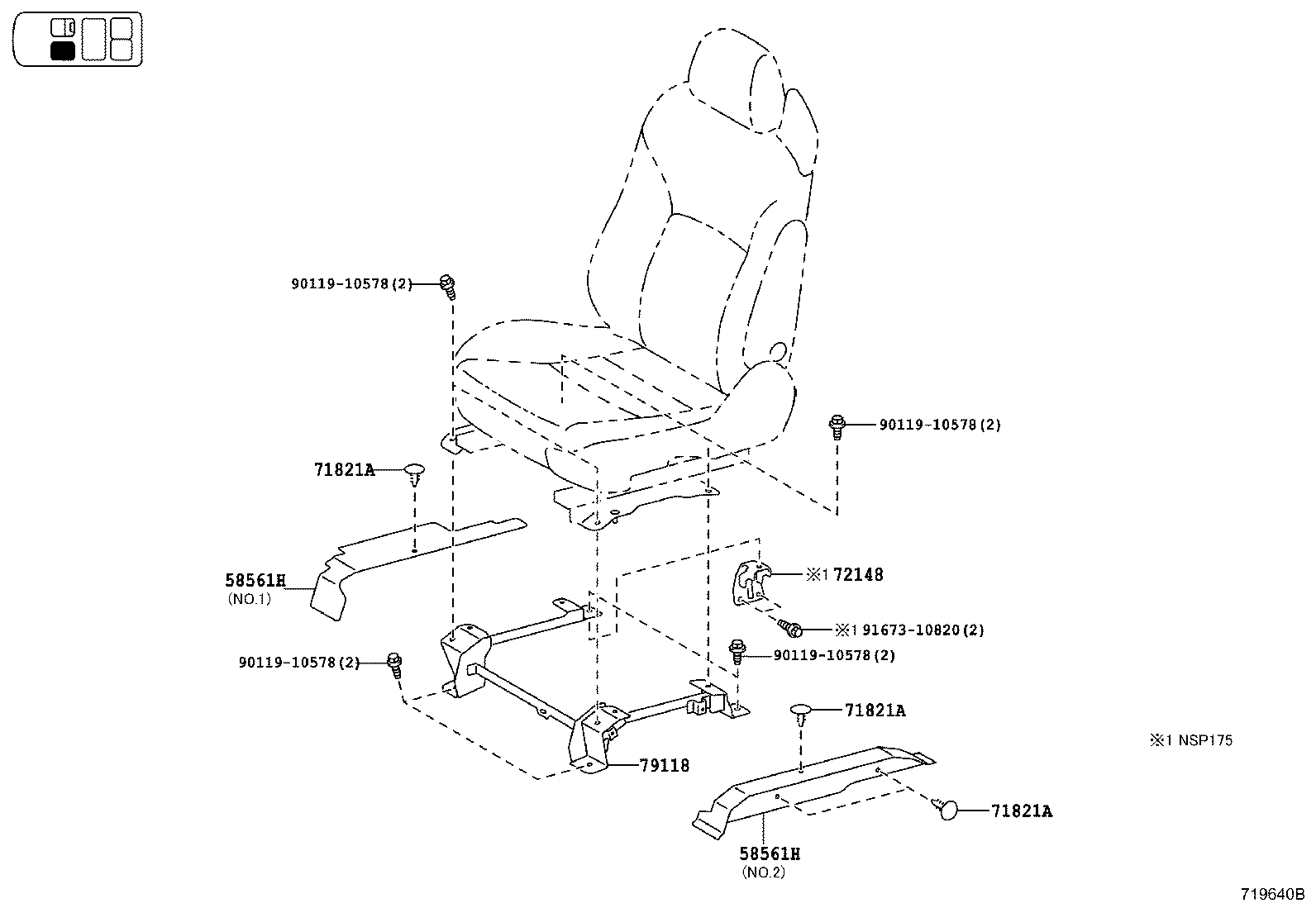

Exploded illustration 719640B 72148 — BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH (12 parts) 79118 — BRACKET, NO.1 SEAT LEG (8 parts) 58561H — CARPET, FRONT FLOOR SIDE, LH (16 parts) 58561H — CARPET, FRONT FLOOR SIDE, LH (16 parts) 71821A — CLIP (FOR FRONT SEAT SIDE SHIELD) (12 parts) 71821A — CLIP (FOR FRONT SEAT SIDE SHIELD) (12 parts) 71821A — CLIP (FOR FRONT SEAT SIDE SHIELD) (12 parts) 9011910578 — not listed in this catalogue 9167310820 — not listed in this catalogue 9011910578 — not listed in this catalogue 9011910578 — not listed in this catalogue 9011910578 — not listed in this catalogue
719640B · 7 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
58561H — Carpet, Front Floor Side, LH
58561-52380-B0 note Carpet, Front Floor Side, LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥9,300
58561-52380-B0 note Carpet, Front Floor Side, LH
2015-12 → 2018-09 ended
NSP172 ¥9,300
58561-52380-B0 note Carpet, Front Floor Side, LH
2015-12 → 2018-09 ended
NSP172 X ¥9,300
58561-52380-B0 note Carpet, Front Floor Side, LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥9,300
58561-52410-B0 note Carpet, Front Floor Side, LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,030
58561-52410-B0 note Carpet, Front Floor Side, LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,030
58561-52410-B0 note Carpet, Front Floor Side, LH
2015-12 → 2018-09 ended
NSP172 ¥1,030
58561-52410-B0 note Carpet, Front Floor Side, LH
2015-12 → 2018-09 ended
NSP172 X ¥1,030
58561-52380-B0 note Carpet, Front Floor Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥9,300
58561-52380-B0 note Carpet, Front Floor Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥9,300
58561-52380-B0 note Carpet, Front Floor Side, LH
2018-09 → 2022-07 ended
NSP172 ¥9,300
58561-52380-B0 note Carpet, Front Floor Side, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥9,300
58561-52410-B0 note Carpet, Front Floor Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,030
58561-52410-B0 note Carpet, Front Floor Side, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥1,030
58561-52410-B0 note Carpet, Front Floor Side, LH
2018-09 → 2022-07 ended
NSP172 ¥1,030
58561-52410-B0 note Carpet, Front Floor Side, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,030
71821A — Clip (FOR FRONT SEAT SIDE SHIELD)
90467-08186-C0 note Clip (FOR FRONT SEAT SIDE SHIELD)
2015-12 → 2016-10 ended
NCP175;NHP170,NSP170 07S ¥70
90467-08186-C0 note Clip (FOR FRONT SEAT SIDE SHIELD)
2015-12 → 2016-10 ended
NCP175;NHP170,NSP170 07S ¥70
90467-08186-C0 note Clip (FOR FRONT SEAT SIDE SHIELD)
2015-12 → 2016-10 ended
NSP172 ¥70
90467-08186-C0 note Clip (FOR FRONT SEAT SIDE SHIELD)
2015-12 → 2016-10 ended
NSP172 X ¥70
90467-08186-C3 note Clip (FOR FRONT SEAT SIDE SHIELD)
2016-10 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥70
90467-08186-C3 note Clip (FOR FRONT SEAT SIDE SHIELD)
2016-10 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥70
90467-08186-C3 note Clip (FOR FRONT SEAT SIDE SHIELD)
2016-10 → 2018-09 ended
NSP172 ¥70
90467-08186-C3 note Clip (FOR FRONT SEAT SIDE SHIELD)
2016-10 → 2018-09 ended
NSP172 X ¥70
90467-08186-C3 note Clip (FOR FRONT SEAT SIDE SHIELD)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥70
90467-08186-C3 note Clip (FOR FRONT SEAT SIDE SHIELD)
2018-09 → 2022-07 ended
NSP172 WKX ¥70
90467-08186-C3 note Clip (FOR FRONT SEAT SIDE SHIELD)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥70
90467-08186-C3 note Clip (FOR FRONT SEAT SIDE SHIELD)
2018-09 → 2022-07 ended
NSP172 ¥70
72148 — Bracket, Front Inner Seat Track, Lower Rear LH
72148-52130 Bracket, Front Inner Seat Track, Lower Rear LH
2015-07 → 2018-09 ended
NHP170 ¥2,170
72148-52170 Bracket, Front Inner Seat Track, Lower Rear LH
2015-06 → 2018-09 ended
NSP17# ¥2,020
72148-52180 note Bracket, Front Inner Seat Track, Lower Rear LH
2015-06 → 2018-09 ended
NSP172 X ¥1,790
72148-52190 Bracket, Front Inner Seat Track, Lower Rear LH
2015-06 → 2018-09 ended
NCP175 ¥990
72148-52210 note Bracket, Front Inner Seat Track, Lower Rear LH
2015-12 → 2018-09 ended
NCP175 ¥1,110
72148-52210 note Bracket, Front Inner Seat Track, Lower Rear LH
2015-12 → 2018-09 ended
NCP175 ¥1,110
72148-52130 Bracket, Front Inner Seat Track, Lower Rear LH
2018-09 → 2022-07 ended
NHP170 ¥2,170
72148-52170 Bracket, Front Inner Seat Track, Lower Rear LH
2018-09 → 2022-07 ended
NSP17# ¥2,020
72148-52180 note Bracket, Front Inner Seat Track, Lower Rear LH
2018-09 → 2022-07 ended
NSP172 WKX ¥1,790
72148-52190 Bracket, Front Inner Seat Track, Lower Rear LH
2018-09 → 2022-07 ended
NCP175 ¥990
72148-52210 note Bracket, Front Inner Seat Track, Lower Rear LH
2018-09 → 2022-07 ended
NCP175 G,X ¥1,110
72148-52210 note Bracket, Front Inner Seat Track, Lower Rear LH
2018-09 → 2022-07 ended
NCP175 G,X ¥1,110
79118 — Bracket, NO.1 Seat Leg
79329-52030 note Bracket, NO.1 Seat Leg
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,040
79329-52030 note Bracket, NO.1 Seat Leg
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,040
79329-52030 note Bracket, NO.1 Seat Leg
2015-12 → 2018-09 ended
NSP172 ¥3,040
79329-52030 note Bracket, NO.1 Seat Leg
2015-12 → 2018-09 ended
NSP172 X ¥3,040
79329-52030 note Bracket, NO.1 Seat Leg
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,040
79329-52030 note Bracket, NO.1 Seat Leg
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,040
79329-52030 note Bracket, NO.1 Seat Leg
2018-09 → 2022-07 ended
NSP172 ¥3,040
79329-52030 note Bracket, NO.1 Seat Leg
2018-09 → 2022-07 ended
NSP172 WKX ¥3,040
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
