Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

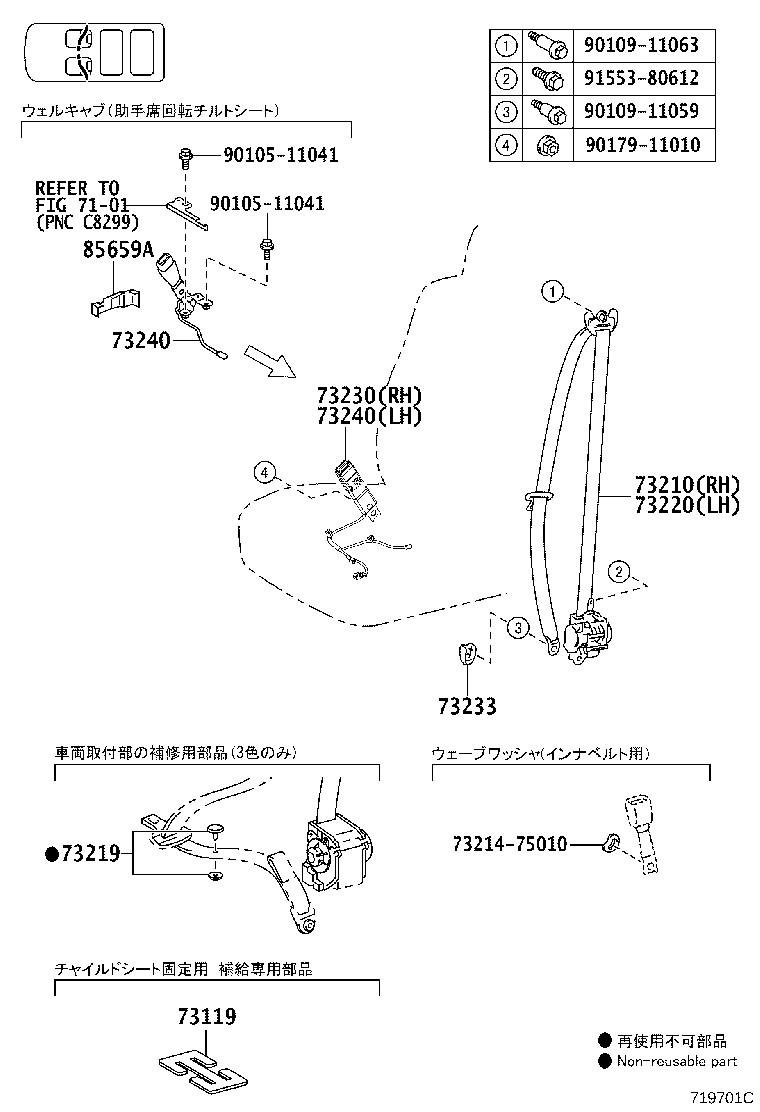

Exploded illustration 719701C 73219 — STOPPER, TONGUE PLATE (6 parts) 73119 — PLATE, SEAT BELT WEBBING CLIP (2 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (5 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (17 parts) 73233 — COVER, LAP BELT OUTER ANCHOR (6 parts) 73210 — BELT ASSY, FRONT SEAT OUTER, RH (5 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (5 parts) 7321475010 — not listed in this catalogue 9010911063 — not listed in this catalogue 9010911059 — not listed in this catalogue 9155380612 — not listed in this catalogue 9017911010 — not listed in this catalogue 73240 — BELT ASSY, FRONT SEAT INNER, LH (17 parts) 85659A — COVER, BELT (8 parts) 7101 — not listed in this catalogue 9010511041 — not listed in this catalogue 9010511041 — not listed in this catalogue
719701C · 9 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
73119 — Plate, Seat Belt Webbing Clip
73119-22010 Plate, Seat Belt Webbing Clip
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,110
73119-22010 Plate, Seat Belt Webbing Clip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,110
73210 — Belt Assy, Front Seat Outer, RH
73210-52A10-C1 note Belt Assy, Front Seat Outer, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥19,400
73210-52A10-C1 note Belt Assy, Front Seat Outer, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥19,400
73210-52A10-C1 note Belt Assy, Front Seat Outer, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥19,400
73210-52A10-C1 note Belt Assy, Front Seat Outer, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥19,400
73210-52A10-C1 note Belt Assy, Front Seat Outer, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥19,400
73219 — Stopper, Tongue Plate
73219-33010 note Stopper, Tongue Plate
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
73219-33020 note Stopper, Tongue Plate
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
73219-33030 note Stopper, Tongue Plate
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
73219-33010 note Stopper, Tongue Plate
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
73219-33020 note Stopper, Tongue Plate
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
73219-33030 note Stopper, Tongue Plate
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
73220 — Belt Assy, Front Seat Outer, LH
73220-52A20-C1 note Belt Assy, Front Seat Outer, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥19,400
73220-52A20-C1 note Belt Assy, Front Seat Outer, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥19,400
73220-52A20-C1 note Belt Assy, Front Seat Outer, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥19,400
73220-52A20-C1 note Belt Assy, Front Seat Outer, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥19,400
73220-52A20-C1 note Belt Assy, Front Seat Outer, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥19,400
73230 — Belt Assy, Front Seat Inner, RH
73230-52B80-C0 note Belt Assy, Front Seat Inner, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,590
73230-52B80-C0 note Belt Assy, Front Seat Inner, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥4,590
73230-52B80-C0 note Belt Assy, Front Seat Inner, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥4,590
73230-52B80-C0 note Belt Assy, Front Seat Inner, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥4,590
73230-52B80-C0 note Belt Assy, Front Seat Inner, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥4,590
73233 — Cover, Lap Belt Outer Anchor
73233-60020-C0 note Cover, Lap Belt Outer Anchor
2015-06 → 2016-10 ended
NCP175,NHP170,NSP17# ¥500
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2016-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥370
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥370
73240 — Belt Assy, Front Seat Inner, LH
73230-52B90-C0 note Belt Assy, Front Seat Inner, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,590
73230-52C00-C0 note Belt Assy, Front Seat Inner, LH
2015-06 → 2018-09 ended
NSP172 X ¥3,950
73230-D1480 note Belt Assy, Front Seat Inner, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,170
73240-D1040-C0 note Belt Assy, Front Seat Inner, LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,640
73240-D1040-C0 note Belt Assy, Front Seat Inner, LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,640
73240-D1040-C0 note Belt Assy, Front Seat Inner, LH
2015-12 → 2018-09 ended
NSP172 ¥2,640
73240-D1040-C0 note Belt Assy, Front Seat Inner, LH
2015-12 → 2018-09 ended
NSP172 X ¥2,640
73230-52B90-C0 note Belt Assy, Front Seat Inner, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥4,590
73230-52B90-C0 note Belt Assy, Front Seat Inner, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥4,590
73230-52B90-C0 note Belt Assy, Front Seat Inner, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥4,590
73230-52B90-C0 note Belt Assy, Front Seat Inner, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥4,590
73230-52C00-C0 note Belt Assy, Front Seat Inner, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥3,950
73230-D1480 note Belt Assy, Front Seat Inner, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥4,170
73240-D1040-C0 note Belt Assy, Front Seat Inner, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,640
73240-D1040-C0 note Belt Assy, Front Seat Inner, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,640
73240-D1040-C0 note Belt Assy, Front Seat Inner, LH
2018-09 → 2022-07 ended
NSP172 ¥2,640
73240-D1040-C0 note Belt Assy, Front Seat Inner, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥2,640
85659A — Cover, Belt
85659-D1040 note Cover, Belt
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥120
85659-D1040 note Cover, Belt
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥120
85659-D1040 note Cover, Belt
2015-12 → 2018-09 ended
NSP172 ¥120
85659-D1040 note Cover, Belt
2015-12 → 2018-09 ended
NSP172 X ¥120
85659-D1040 note Cover, Belt
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥120
85659-D1040 note Cover, Belt
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥120
85659-D1040 note Cover, Belt
2018-09 → 2022-07 ended
NSP172 ¥120
85659-D1040 note Cover, Belt
2018-09 → 2022-07 ended
NSP172 WKX ¥120
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
