Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

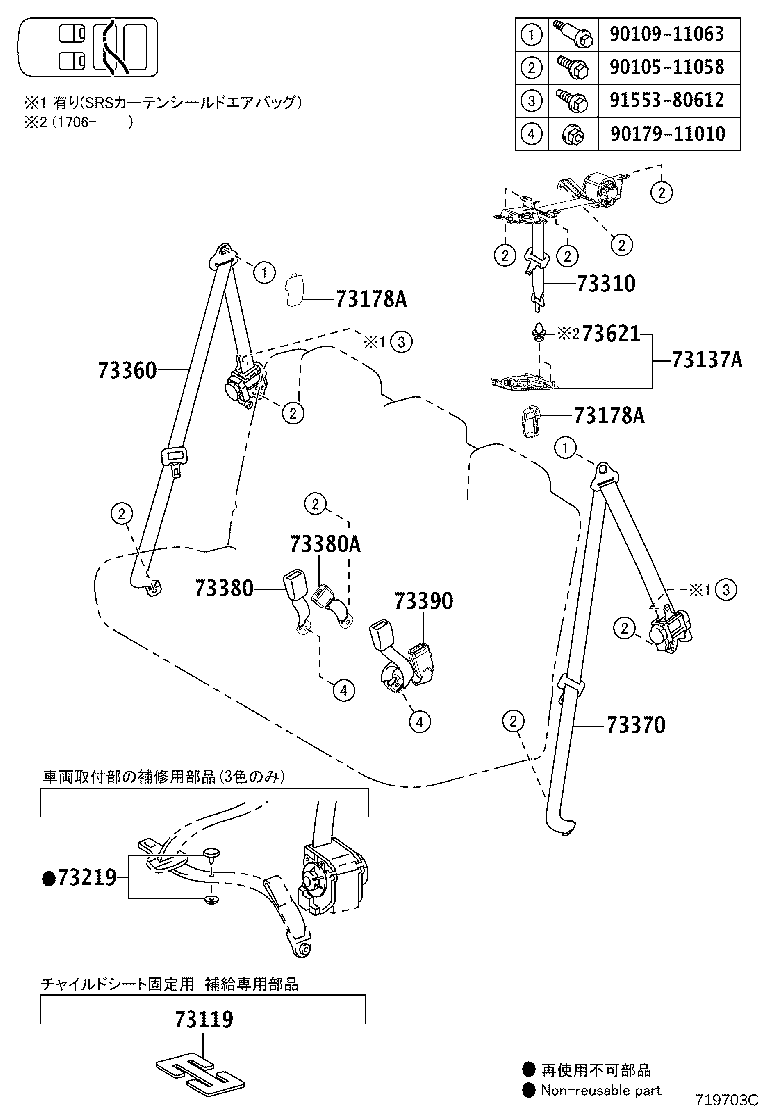

Exploded illustration 719703C 73219 — STOPPER, TONGUE PLATE (6 parts) 73119 — PLATE, SEAT BELT WEBBING CLIP (2 parts) 73310 — BELT ASSY, REAR SEAT 3 POINT TYPE, RH (6 parts) 73178A — CAP, SEAT BELT ANCHOR COVER (5 parts) 73178A — CAP, SEAT BELT ANCHOR COVER (5 parts) 73380 — BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH (14 parts) 73380A — BELT ASSY, REAR SEAT, INNER (2 parts) 73390 — BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH (10 parts) 9010911063 — not listed in this catalogue 9155380612 — not listed in this catalogue 9010511058 — not listed in this catalogue 9017911010 — not listed in this catalogue 73360 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH (20 parts) 73370 — BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH (22 parts) 73137A — COVER, SHOULDER BELT ANCHOR, UPR (6 parts) 73621 — CLIP (2 parts)
719703C · 12 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
95 parts on this figure
Part number Description Fitment Price
73119 — Plate, Seat Belt Webbing Clip
73119-22010 Plate, Seat Belt Webbing Clip
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,110
73119-22010 Plate, Seat Belt Webbing Clip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,110
73137A — Cover, Shoulder Belt Anchor, Upr
73137-52040-B0 note Cover, Shoulder Belt Anchor, Upr
2015-06 → 2017-05 ended
NHP170,NSP17# 05S,07S ¥370
73137-52041-B0 note Cover, Shoulder Belt Anchor, Upr
2017-06 → 2018-09 ended
NHP170,NSP17# 05S,07S ¥310
73137-52041-B0 note Cover, Shoulder Belt Anchor, Upr
2018-09 → 2022-07 ended
NHP170,NSP170 G ¥310
73137-52041-B0 note Cover, Shoulder Belt Anchor, Upr
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥310
73137-52041-B0 note Cover, Shoulder Belt Anchor, Upr
2018-09 → 2022-07 ended
NHP170,NSP17# WKG,WKX,X ¥310
73137-52041-B0 note Cover, Shoulder Belt Anchor, Upr
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR,GCERO ¥310
73178A — Cap, Seat Belt Anchor Cover
73178-42020-B0 note Cap, Seat Belt Anchor Cover
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥370
73178-42020-B0 note Cap, Seat Belt Anchor Cover
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥370
73178-42020-B0 note Cap, Seat Belt Anchor Cover
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥370
73178-42020-B0 note Cap, Seat Belt Anchor Cover
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥370
73178-42020-B0 note Cap, Seat Belt Anchor Cover
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥370
73219 — Stopper, Tongue Plate
73219-33010 note Stopper, Tongue Plate
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
73219-33020 note Stopper, Tongue Plate
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
73219-33030 note Stopper, Tongue Plate
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
73219-33010 note Stopper, Tongue Plate
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
73219-33020 note Stopper, Tongue Plate
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
73219-33030 note Stopper, Tongue Plate
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥100
73310 — Belt Assy, Rear Seat 3 Point Type, RH
73310-52090-C0 note Belt Assy, Rear Seat 3 Point Type, RH
2015-06 → 2016-04 ended
NHP170,NSP17# 05S,07S ¥23,800
73310-52091-C0 note Belt Assy, Rear Seat 3 Point Type, RH
2016-05 → 2018-09 ended
NHP170,NSP17# 05S,07S ¥16,500
73310-52091-C0 note Belt Assy, Rear Seat 3 Point Type, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR,GCERO ¥16,500
73310-52091-C0 note Belt Assy, Rear Seat 3 Point Type, RH
2018-09 → 2022-07 ended
NHP170,NSP17# WKG,WKX,X ¥16,500
73310-52091-C0 note Belt Assy, Rear Seat 3 Point Type, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥16,500
73310-52091-C0 note Belt Assy, Rear Seat 3 Point Type, RH
2018-09 → 2022-07 ended
NHP170,NSP170 G ¥16,500
73360 — Belt Assy, Rear Seat 3 Point Type, Outer RH
73360-52390-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,500
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2015-12 → 2018-09 ended
NSP172 ¥26,200
73360-52390-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥16,500
73360-52390-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥16,500
73360-52390-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥16,500
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NSP172 ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥26,200
73360-52450-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥26,200
73360-52490-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥16,500
73360-52490-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥16,500
73360-52500-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥26,200
73360-52500-C0 note Belt Assy, Rear Seat 3 Point Type, Outer RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥26,200
73370 — Belt Assy, Rear Seat 3 Point Type, Outer LH
73370-52360-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,500
73370-52430-C2 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-06 → 2018-09 ended
NSP172 X ¥16,500
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-12 → 2018-09 ended
NSP172 ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥26,200
73370-52360-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥16,500
73370-52360-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥16,500
73370-52360-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥16,500
73370-52430-C2 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NSP172 WKX ¥16,500
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NSP172 ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥26,200
73370-52440-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥26,200
73370-52480-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥16,500
73370-52480-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥16,500
73370-52490-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥26,200
73370-52490-C0 note Belt Assy, Rear Seat 3 Point Type, Outer LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥26,200
73380 — Belt Assy, Rear Seat 3 Point Type, Inner, RH
73380-52180-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2015-06 → 2018-09 ended
NHP170,NSP170 07S ¥5,200
73380-52230-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2015-06 → 2018-09 ended
NSP172 ¥3,170
73380-52230-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2015-06 → 2018-09 ended
NSP172 X ¥3,170
73380-52230-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2015-12 → 2018-09 ended
NSP172 X ¥3,170
73380-52250-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S ¥3,170
73380-52181-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2018-09 → 2022-07 ended
NHP170,NSP170 X ¥4,270
73380-52181-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥4,270
73380-52181-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2018-09 → 2022-07 ended
NHP170,NSP170 G ¥4,270
73380-52210-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,640
73380-52210-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,640
73380-52231-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2018-09 → 2022-07 ended
NSP172 ¥2,640
73380-52251-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2018-09 → 2022-07 ended
NCP175 X ¥2,640
73380-52251-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2018-09 → 2022-07 ended
NCP175 G ¥2,640
73380-52251-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, RH
2018-09 → 2022-07 ended
NCP175 GCERO ¥2,640
73380A — Belt Assy, Rear Seat, Inner
73380-52220-C0 note Belt Assy, Rear Seat, Inner
2015-06 → 2018-09 ended
NSP172 ¥3,170
73380-52221-C0 note Belt Assy, Rear Seat, Inner
2018-09 → 2022-07 ended
NSP172 ¥2,640
73390 — Belt Assy, Rear Seat 3 Point Type, Inner, LH
73390-52060-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2015-06 → 2018-09 ended
NHP170,NSP17# 05S,07S ¥4,730
73390-52080-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S ¥3,170
73380-52210-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,640
73380-52210-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,640
73390-52061-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-09 → 2022-07 ended
NHP170,NSP170 G ¥3,950
73390-52061-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥3,950
73390-52061-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-09 → 2022-07 ended
NHP170,NSP17# WKG,WKX,X ¥3,950
73390-52081-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-09 → 2022-07 ended
NCP175 X ¥2,640
73390-52081-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-09 → 2022-07 ended
NCP175 G ¥2,640
73390-52081-C0 note Belt Assy, Rear Seat 3 Point Type, Inner, LH
2018-09 → 2022-07 ended
NCP175 GCERO ¥2,640
73621 — Clip
62217-13010 Clip
2017-06 → 2018-09 ended
NHP170,NSP17# 05S,07S ¥80
62217-13010 Clip
2018-09 → 2022-07 ended
NHP170,NSP17# ¥80
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
