Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

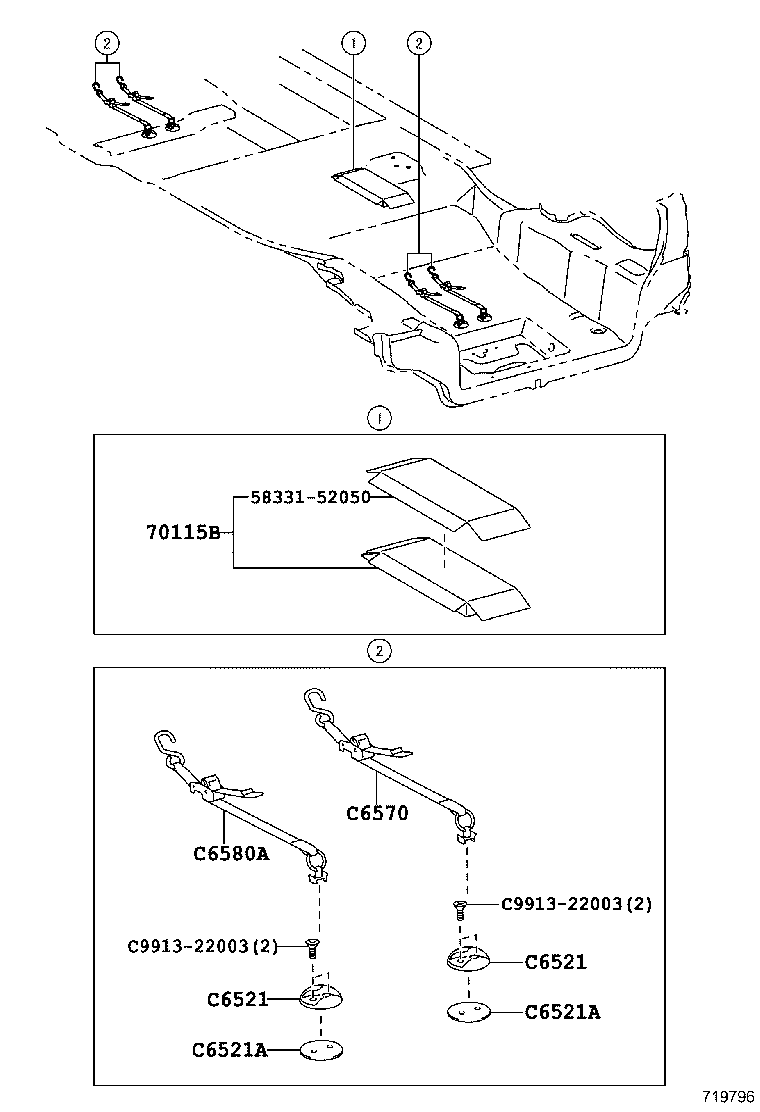

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 70115B — Cover Set, Seat | ||||
| 73315-52030 |
Cover Set, Seat
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,180 | |
| 73315-52030 |
Cover Set, Seat
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,180 | |
| C6521 — Plate, Wheel Chair Lock Holder | ||||
| C6521-D1050 |
Plate, Wheel Chair Lock Holder
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,380 | |
| C6521-D1050 |
Plate, Wheel Chair Lock Holder
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥2,380 | |
| C6521A — Plate, Wheel Chair Lock Holder, NO.2 | ||||
| C6521-D1200 |
Plate, Wheel Chair Lock Holder, NO.2
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥800 | |
| C6521-D1200 |
Plate, Wheel Chair Lock Holder, NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥800 | |
| C6570 — Belt Assy, Wheel Chair Set, NO.1 | ||||
| C6570-52010 |
Belt Assy, Wheel Chair Set, NO.1
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,980 | |
| C6570-52010 |
Belt Assy, Wheel Chair Set, NO.1
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,980 | |
| C6580A — Belt Assy, Wheel Chair Set, NO.2 | ||||
| C6580-52020 |
Belt Assy, Wheel Chair Set, NO.2
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,980 | |
| C6580-52020 |
Belt Assy, Wheel Chair Set, NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,980 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
