Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

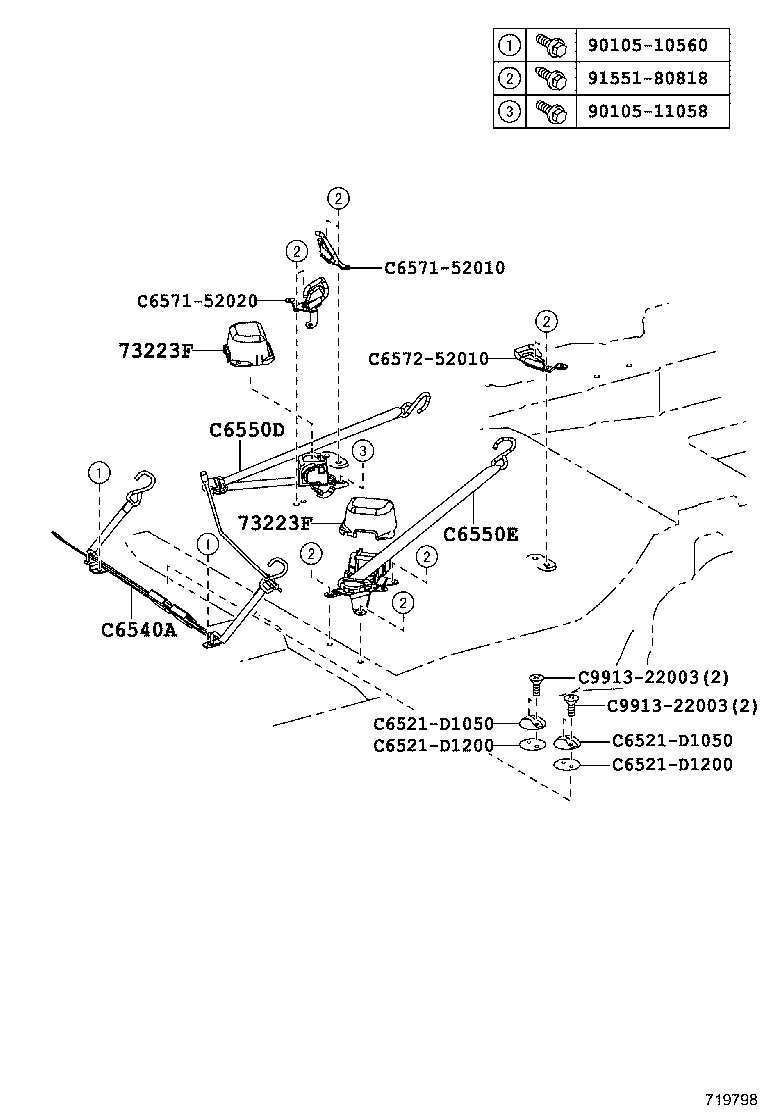

Exploded illustration 719798 9010510560 — not listed in this catalogue 9010511058 — not listed in this catalogue 9155180818 — not listed in this catalogue C657152010 — not listed in this catalogue C657252010 — not listed in this catalogue C657152020 — not listed in this catalogue C6540A — HOLDER ASSY, WHEEL CHAIR SET (2 parts) 73223F — COVER, WHEEL CHAIR SET BELT RETRACTOR, RH (4 parts) C6550D — BELT ASSY, WHEEL CHAIR SET, NO.1 (7 parts) C6550E — BELT ASSY, WHEEL CHAIR SET, NO.2 (2 parts) C6521D1200 — not listed in this catalogue C6521D1050 — not listed in this catalogue C6521D1050 — not listed in this catalogue C6521D1200 — not listed in this catalogue C991322003 — not listed in this catalogue C991322003 — not listed in this catalogue 73223F — COVER, WHEEL CHAIR SET BELT RETRACTOR, RH (4 parts)
719798 · 5 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
73223F — Cover, Wheel Chair Set Belt Retractor, RH
73223-52020-A0 note Cover, Wheel Chair Set Belt Retractor, RH
2015-06 → 2018-09 ended
NSP172 X ¥2,000
73223-52020-A0 note Cover, Wheel Chair Set Belt Retractor, RH
2015-06 → 2018-09 ended
NSP172 ¥2,000
73223-52020-A0 note Cover, Wheel Chair Set Belt Retractor, RH
2018-09 → 2022-07 ended
NSP172 WKX ¥2,000
73223-52020-A0 note Cover, Wheel Chair Set Belt Retractor, RH
2018-09 → 2022-07 ended
NSP172 ¥2,000
C6540A — Holder Assy, Wheel Chair Set
73203-52010-C0 note Holder Assy, Wheel Chair Set
2015-06 → 2018-09 ended
NSP172 X ¥5,900
73203-52010-C0 note Holder Assy, Wheel Chair Set
2018-09 → 2022-07 ended
NSP172 WKX ¥5,900
C6550D — Belt Assy, Wheel Chair Set, NO.1
C6550-52060-C1 note Belt Assy, Wheel Chair Set, NO.1
2015-06 → 2018-09 ended
NSP172 ¥19,300
C6550-66010 note Belt Assy, Wheel Chair Set, NO.1
2015-06 → 2018-09 ended
NCP175 ¥7,300
C6550-66030 note Belt Assy, Wheel Chair Set, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥7,300
C6550-52060-C1 note Belt Assy, Wheel Chair Set, NO.1
2018-09 → 2022-07 ended
NSP172 ¥19,300
C6550-52120 note Belt Assy, Wheel Chair Set, NO.1
2018-09 → —
NHP170,NSP170 05S ¥3,250
C6550-66010 note Belt Assy, Wheel Chair Set, NO.1
2018-09 → —
NCP175 ¥7,300
C6550-66030 note Belt Assy, Wheel Chair Set, NO.1
2018-09 → —
NHP170,NSP170 07S ¥7,300
C6550E — Belt Assy, Wheel Chair Set, NO.2
C6560-52030-C1 note Belt Assy, Wheel Chair Set, NO.2
2015-06 → 2018-09 ended
NSP172 ¥19,300
C6560-52030-C1 note Belt Assy, Wheel Chair Set, NO.2
2018-09 → 2022-07 ended
NSP172 ¥19,300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
