Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

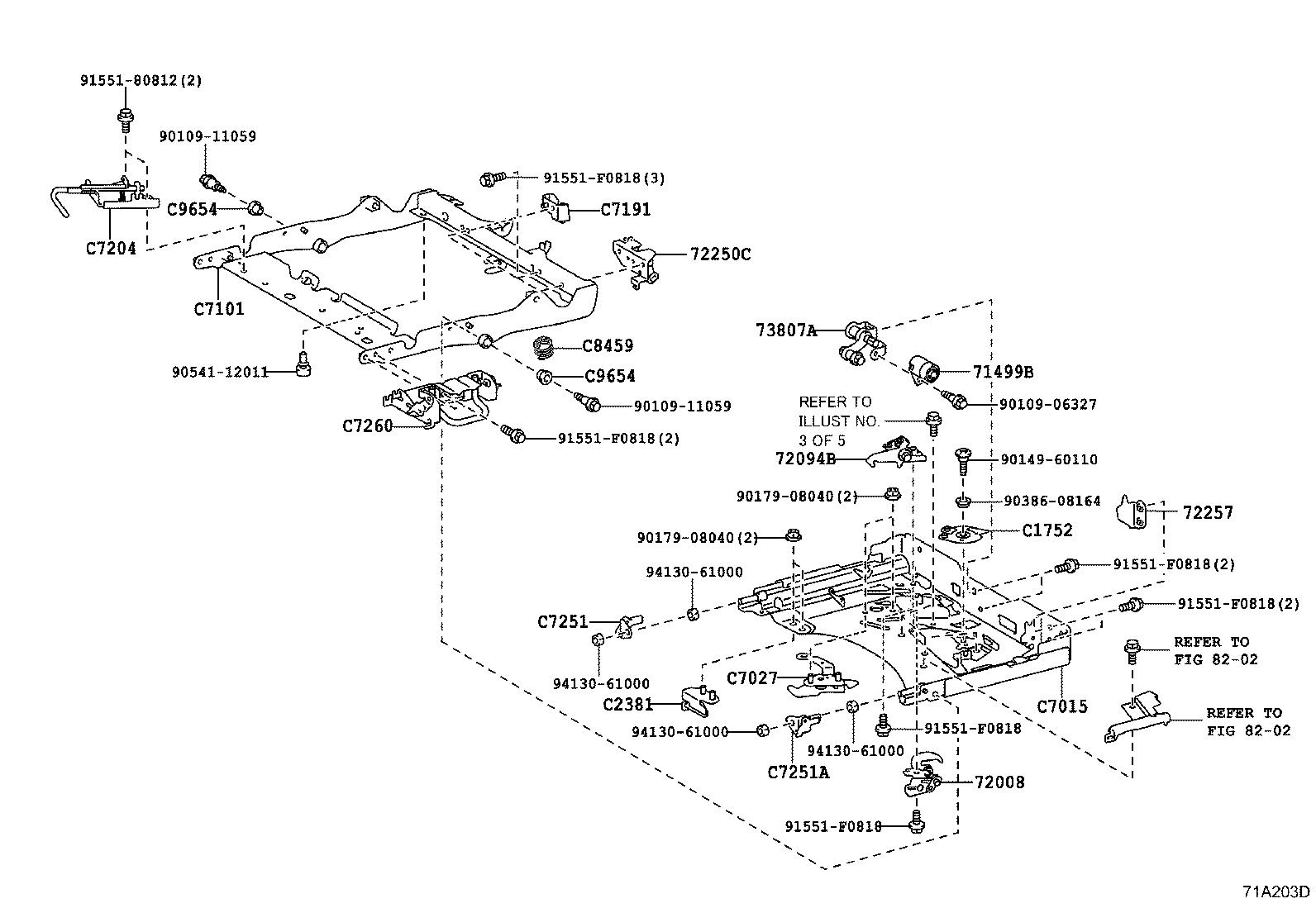

Exploded illustration 71A203D 91551F0818 — not listed in this catalogue 91551F0818 — not listed in this catalogue 91551F0818 — not listed in this catalogue 9038608164 — not listed in this catalogue 9014960110 — not listed in this catalogue 9017908040 — not listed in this catalogue 9017908040 — not listed in this catalogue C7251A — BRACKET, WELCAB SEAT TRACK STOPPER, NO.1 LH (8 parts) C7027 — LOCK SUB-ASSY, WELCAB SEAT TURN (10 parts) C7251 — BRACKET, WELCAB SEAT TRACK STOPPER, NO.1 RH (8 parts) C2381 — GUIDE, TABLE RETAINER, NO.1 (8 parts) 71499B — DAMPER, SEAT CUSHION SPRING (8 parts) 73807A — LINK SUB-ASSY, FRONT SEAT SUSPENSION, INNER RH (8 parts) C1752 — PLATE, CONTROL ARM, UPPER (8 parts) C8459 — SPRING, LIMIT SWITCH (8 parts) 72094B — LOCK SUB-ASSY, FRONT SEAT TURN (8 parts) C7015 — PANEL SUB-ASSY, TURN TABLE (10 parts) 72008 — LOCK SUB-ASSY, FRONT SEAT TURN (8 parts) 8202 — not listed in this catalogue 8202 — not listed in this catalogue 9010911059 — not listed in this catalogue 9010911059 — not listed in this catalogue 9155180812 — not listed in this catalogue 91551F0818 — not listed in this catalogue 91551F0818 — not listed in this catalogue C7191 — BRACKET, SEAT HOLDER LINK (8 parts) C7101 — BRACKET SUB-ASSY, SEAT HOLDER, FRONT (8 parts) 72250C — LOCK ASSY, FRONT SEAT (8 parts) C9654 — COLLAR, POWER LIFT CYLINDER (8 parts) C7204 — HANDLE SUB-ASSY, WELCAB SEAT TRACK (8 parts) C9654 — COLLAR, POWER LIFT CYLINDER (8 parts) C7260 — HANDLE ASSY, SEAT TURN LOCK (8 parts) 91551F0818 — not listed in this catalogue 72257 — STRIKER, FRONT SEAT LOCK (8 parts) 9010906327 — not listed in this catalogue 9054112011 — not listed in this catalogue 9413061000 — not listed in this catalogue 9413061000 — not listed in this catalogue 9413061000 — not listed in this catalogue 9413061000 — not listed in this catalogue
71A203D · 19 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
148 parts on this figure
Part number Description Fitment Price
71499B — Damper, Seat Cushion Spring
71499-D1010 note Damper, Seat Cushion Spring
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,690
71499-D1010 note Damper, Seat Cushion Spring
2015-12 → 2018-09 ended
NSP172 ¥3,690
71499-D1010 note Damper, Seat Cushion Spring
2015-12 → 2018-09 ended
NSP172 X ¥3,690
71499-D1010 note Damper, Seat Cushion Spring
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,690
71499-D1010 note Damper, Seat Cushion Spring
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,690
71499-D1010 note Damper, Seat Cushion Spring
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,690
71499-D1010 note Damper, Seat Cushion Spring
2018-09 → 2022-07 ended
NSP172 ¥3,690
71499-D1010 note Damper, Seat Cushion Spring
2018-09 → 2022-07 ended
NSP172 WKX ¥3,690
72008 — Lock Sub-assy, Front Seat Turn
72008-D1010 note Lock Sub-assy, Front Seat Turn
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,620
72008-D1010 note Lock Sub-assy, Front Seat Turn
2015-12 → 2018-09 ended
NSP172 X ¥1,620
72008-D1010 note Lock Sub-assy, Front Seat Turn
2015-12 → 2018-09 ended
NSP172 ¥1,620
72008-D1010 note Lock Sub-assy, Front Seat Turn
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,620
72008-D1010 note Lock Sub-assy, Front Seat Turn
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,620
72008-D1010 note Lock Sub-assy, Front Seat Turn
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,620
72008-D1010 note Lock Sub-assy, Front Seat Turn
2018-09 → 2022-07 ended
NSP172 ¥1,620
72008-D1010 note Lock Sub-assy, Front Seat Turn
2018-09 → 2022-07 ended
NSP172 WKX ¥1,620
72094B — Lock Sub-assy, Front Seat Turn
72094-D1020 note Lock Sub-assy, Front Seat Turn
2015-12 → 2018-09 ended
NSP172 X ¥1,280
72094-D1020 note Lock Sub-assy, Front Seat Turn
2015-12 → 2018-09 ended
NSP172 ¥1,280
72094-D1020 note Lock Sub-assy, Front Seat Turn
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,280
72094-D1020 note Lock Sub-assy, Front Seat Turn
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,280
72094-D1020 note Lock Sub-assy, Front Seat Turn
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,280
72094-D1020 note Lock Sub-assy, Front Seat Turn
2018-09 → 2022-07 ended
NSP172 ¥1,280
72094-D1020 note Lock Sub-assy, Front Seat Turn
2018-09 → 2022-07 ended
NSP172 WKX ¥1,280
72094-D1020 note Lock Sub-assy, Front Seat Turn
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,280
72250C — Lock Assy, Front Seat
72250-D1010 note Lock Assy, Front Seat
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,330
72250-D1010 note Lock Assy, Front Seat
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,330
72250-D1010 note Lock Assy, Front Seat
2015-12 → 2018-09 ended
NSP172 ¥2,330
72250-D1010 note Lock Assy, Front Seat
2015-12 → 2018-09 ended
NSP172 X ¥2,330
72250-D1010 note Lock Assy, Front Seat
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,330
72250-D1010 note Lock Assy, Front Seat
2018-09 → 2022-07 ended
NSP172 WKX ¥2,330
72250-D1010 note Lock Assy, Front Seat
2018-09 → 2022-07 ended
NSP172 ¥2,330
72250-D1010 note Lock Assy, Front Seat
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,330
72257 — Striker, Front Seat Lock
72257-D1080 note Striker, Front Seat Lock
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥500
72257-D1080 note Striker, Front Seat Lock
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥500
72257-D1080 note Striker, Front Seat Lock
2015-12 → 2018-09 ended
NSP172 ¥500
72257-D1080 note Striker, Front Seat Lock
2015-12 → 2018-09 ended
NSP172 X ¥500
72257-D1080 note Striker, Front Seat Lock
2018-09 → 2022-07 ended
NSP172 ¥500
72257-D1080 note Striker, Front Seat Lock
2018-09 → 2022-07 ended
NSP172 WKX ¥500
72257-D1080 note Striker, Front Seat Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥500
72257-D1080 note Striker, Front Seat Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥500
73807A — Link Sub-assy, Front Seat Suspension, Inner RH
73807-D1010 note Link Sub-assy, Front Seat Suspension, Inner RH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,120
73807-D1010 note Link Sub-assy, Front Seat Suspension, Inner RH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,120
73807-D1010 note Link Sub-assy, Front Seat Suspension, Inner RH
2015-12 → 2018-09 ended
NSP172 ¥1,120
73807-D1010 note Link Sub-assy, Front Seat Suspension, Inner RH
2015-12 → 2018-09 ended
NSP172 X ¥1,120
73807-D1010 note Link Sub-assy, Front Seat Suspension, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,120
73807-D1010 note Link Sub-assy, Front Seat Suspension, Inner RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,120
73807-D1010 note Link Sub-assy, Front Seat Suspension, Inner RH
2018-09 → 2022-07 ended
NSP172 ¥1,120
73807-D1010 note Link Sub-assy, Front Seat Suspension, Inner RH
2018-09 → 2022-07 ended
NSP172 WKX ¥1,120
C1752 — Plate, Control Arm, Upper
C1752-D1080 note Plate, Control Arm, Upper
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥380
C1752-D1080 note Plate, Control Arm, Upper
2015-12 → 2018-09 ended
NSP172 X ¥380
C1752-D1080 note Plate, Control Arm, Upper
2015-12 → 2018-09 ended
NSP172 ¥380
C1752-D1080 note Plate, Control Arm, Upper
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥380
C1752-D1080 note Plate, Control Arm, Upper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥380
C1752-D1080 note Plate, Control Arm, Upper
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥380
C1752-D1080 note Plate, Control Arm, Upper
2018-09 → 2022-07 ended
NSP172 ¥380
C1752-D1080 note Plate, Control Arm, Upper
2018-09 → 2022-07 ended
NSP172 WKX ¥380
C2381 — Guide, Table Retainer, NO.1
C2381-D1010 note Guide, Table Retainer, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥780
C2381-D1010 note Guide, Table Retainer, NO.1
2015-12 → 2018-09 ended
NSP172 X ¥780
C2381-D1010 note Guide, Table Retainer, NO.1
2015-12 → 2018-09 ended
NSP172 ¥780
C2381-D1010 note Guide, Table Retainer, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥780
C2381-D1010 note Guide, Table Retainer, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥780
C2381-D1010 note Guide, Table Retainer, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥780
C2381-D1010 note Guide, Table Retainer, NO.1
2018-09 → 2022-07 ended
NSP172 ¥780
C2381-D1010 note Guide, Table Retainer, NO.1
2018-09 → 2022-07 ended
NSP172 WKX ¥780
C7015 — Panel Sub-assy, Turn Table
C7015-D1360 note Panel Sub-assy, Turn Table
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2015-12 → 2018-09 ended
NSP172 ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2015-12 → 2018-09 ended
NSP172 X ¥69,200
C7015-D1380 note Panel Sub-assy, Turn Table
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥62,800
C7015-D1360 note Panel Sub-assy, Turn Table
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2018-09 → 2022-07 ended
NSP172 ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2018-09 → 2022-07 ended
NSP172 WKX ¥69,200
C7015-D1380 note Panel Sub-assy, Turn Table
2018-09 → —
NCP175,NHP170,NSP17# ¥62,800
C7027 — Lock Sub-assy, Welcab Seat Turn
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2015-12 → 2018-09 ended
NSP172 ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2015-12 → 2018-09 ended
NSP172 X ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥8,700
C7027-D1210 note Lock Sub-assy, Welcab Seat Turn
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥7,800
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2018-09 → 2022-07 ended
NSP172 WKX ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2018-09 → 2022-07 ended
NSP172 ¥8,700
C7027-D1210 note Lock Sub-assy, Welcab Seat Turn
2018-09 → —
NCP175,NHP170,NSP17# ¥7,800
C7101 — Bracket Sub-assy, Seat Holder, Front
C7101-D1090 note Bracket Sub-assy, Seat Holder, Front
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥10,700
C7101-D1090 note Bracket Sub-assy, Seat Holder, Front
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥10,700
C7101-D1090 note Bracket Sub-assy, Seat Holder, Front
2015-12 → 2018-09 ended
NSP172 ¥10,700
C7101-D1090 note Bracket Sub-assy, Seat Holder, Front
2015-12 → 2018-09 ended
NSP172 X ¥10,700
C7101-D1090 note Bracket Sub-assy, Seat Holder, Front
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥10,700
C7101-D1090 note Bracket Sub-assy, Seat Holder, Front
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥10,700
C7101-D1090 note Bracket Sub-assy, Seat Holder, Front
2018-09 → 2022-07 ended
NSP172 ¥10,700
C7101-D1090 note Bracket Sub-assy, Seat Holder, Front
2018-09 → 2022-07 ended
NSP172 WKX ¥10,700
C7191 — Bracket, Seat Holder Link
C7191-D1020 note Bracket, Seat Holder Link
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥8,900
C7191-D1020 note Bracket, Seat Holder Link
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥8,900
C7191-D1020 note Bracket, Seat Holder Link
2015-12 → 2018-09 ended
NSP172 ¥8,900
C7191-D1020 note Bracket, Seat Holder Link
2015-12 → 2018-09 ended
NSP172 X ¥8,900
C7191-D1020 note Bracket, Seat Holder Link
2018-09 → 2022-07 ended
NSP172 ¥8,900
C7191-D1020 note Bracket, Seat Holder Link
2018-09 → 2022-07 ended
NSP172 WKX ¥8,900
C7191-D1020 note Bracket, Seat Holder Link
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥8,900
C7191-D1020 note Bracket, Seat Holder Link
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥8,900
C7204 — Handle Sub-assy, Welcab Seat Track
C7204-D1110 note Handle Sub-assy, Welcab Seat Track
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,750
C7204-D1110 note Handle Sub-assy, Welcab Seat Track
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,750
C7204-D1110 note Handle Sub-assy, Welcab Seat Track
2015-12 → 2018-09 ended
NSP172 ¥1,750
C7204-D1110 note Handle Sub-assy, Welcab Seat Track
2015-12 → 2018-09 ended
NSP172 X ¥1,750
C7204-D1110 note Handle Sub-assy, Welcab Seat Track
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,750
C7204-D1110 note Handle Sub-assy, Welcab Seat Track
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,750
C7204-D1110 note Handle Sub-assy, Welcab Seat Track
2018-09 → 2022-07 ended
NSP172 ¥1,750
C7204-D1110 note Handle Sub-assy, Welcab Seat Track
2018-09 → 2022-07 ended
NSP172 WKX ¥1,750
C7251 — Bracket, Welcab Seat Track Stopper, NO.1 RH
C7251-D1140 note Bracket, Welcab Seat Track Stopper, NO.1 RH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥340
C7251-D1140 note Bracket, Welcab Seat Track Stopper, NO.1 RH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥340
C7251-D1140 note Bracket, Welcab Seat Track Stopper, NO.1 RH
2015-12 → 2018-09 ended
NSP172 ¥340
C7251-D1140 note Bracket, Welcab Seat Track Stopper, NO.1 RH
2015-12 → 2018-09 ended
NSP172 X ¥340
C7251-D1140 note Bracket, Welcab Seat Track Stopper, NO.1 RH
2018-09 → 2022-07 ended
NSP172 WKX ¥340
C7251-D1140 note Bracket, Welcab Seat Track Stopper, NO.1 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥340
C7251-D1140 note Bracket, Welcab Seat Track Stopper, NO.1 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥340
C7251-D1140 note Bracket, Welcab Seat Track Stopper, NO.1 RH
2018-09 → 2022-07 ended
NSP172 ¥340
C7251A — Bracket, Welcab Seat Track Stopper, NO.1 LH
C7251-D1130 note Bracket, Welcab Seat Track Stopper, NO.1 LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥340
C7251-D1130 note Bracket, Welcab Seat Track Stopper, NO.1 LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥340
C7251-D1130 note Bracket, Welcab Seat Track Stopper, NO.1 LH
2015-12 → 2018-09 ended
NSP172 ¥340
C7251-D1130 note Bracket, Welcab Seat Track Stopper, NO.1 LH
2015-12 → 2018-09 ended
NSP172 X ¥340
C7251-D1130 note Bracket, Welcab Seat Track Stopper, NO.1 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥340
C7251-D1130 note Bracket, Welcab Seat Track Stopper, NO.1 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥340
C7251-D1130 note Bracket, Welcab Seat Track Stopper, NO.1 LH
2018-09 → 2022-07 ended
NSP172 ¥340
C7251-D1130 note Bracket, Welcab Seat Track Stopper, NO.1 LH
2018-09 → 2022-07 ended
NSP172 WKX ¥340
C7260 — Handle Assy, Seat Turn Lock
C7260-D1120 note Handle Assy, Seat Turn Lock
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,100
C7260-D1120 note Handle Assy, Seat Turn Lock
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥2,100
C7260-D1120 note Handle Assy, Seat Turn Lock
2015-12 → 2018-09 ended
NSP172 ¥2,100
C7260-D1120 note Handle Assy, Seat Turn Lock
2015-12 → 2018-09 ended
NSP172 X ¥2,100
C7260-D1120 note Handle Assy, Seat Turn Lock
2018-09 → 2022-07 ended
NSP172 WKX ¥2,100
C7260-D1120 note Handle Assy, Seat Turn Lock
2018-09 → 2022-07 ended
NSP172 ¥2,100
C7260-D1120 note Handle Assy, Seat Turn Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,100
C7260-D1120 note Handle Assy, Seat Turn Lock
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥2,100
C8459 — Spring, Limit Switch
C8459-D1170 note Spring, Limit Switch
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥300
C8459-D1170 note Spring, Limit Switch
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥300
C8459-D1170 note Spring, Limit Switch
2015-12 → 2018-09 ended
NSP172 ¥300
C8459-D1170 note Spring, Limit Switch
2015-12 → 2018-09 ended
NSP172 X ¥300
C8459-D1170 note Spring, Limit Switch
2018-09 → 2022-07 ended
NSP172 WKX ¥300
C8459-D1170 note Spring, Limit Switch
2018-09 → 2022-07 ended
NSP172 ¥300
C8459-D1170 note Spring, Limit Switch
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥300
C8459-D1170 note Spring, Limit Switch
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥300
C9654 — Collar, Power Lift Cylinder
C9654-D1170 note Collar, Power Lift Cylinder
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥320
C9654-D1170 note Collar, Power Lift Cylinder
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥320
C9654-D1170 note Collar, Power Lift Cylinder
2015-12 → 2018-09 ended
NSP172 ¥320
C9654-D1170 note Collar, Power Lift Cylinder
2015-12 → 2018-09 ended
NSP172 X ¥320
C9654-D1170 note Collar, Power Lift Cylinder
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥320
C9654-D1170 note Collar, Power Lift Cylinder
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥320
C9654-D1170 note Collar, Power Lift Cylinder
2018-09 → 2022-07 ended
NSP172 ¥320
C9654-D1170 note Collar, Power Lift Cylinder
2018-09 → 2022-07 ended
NSP172 WKX ¥320
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
