Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

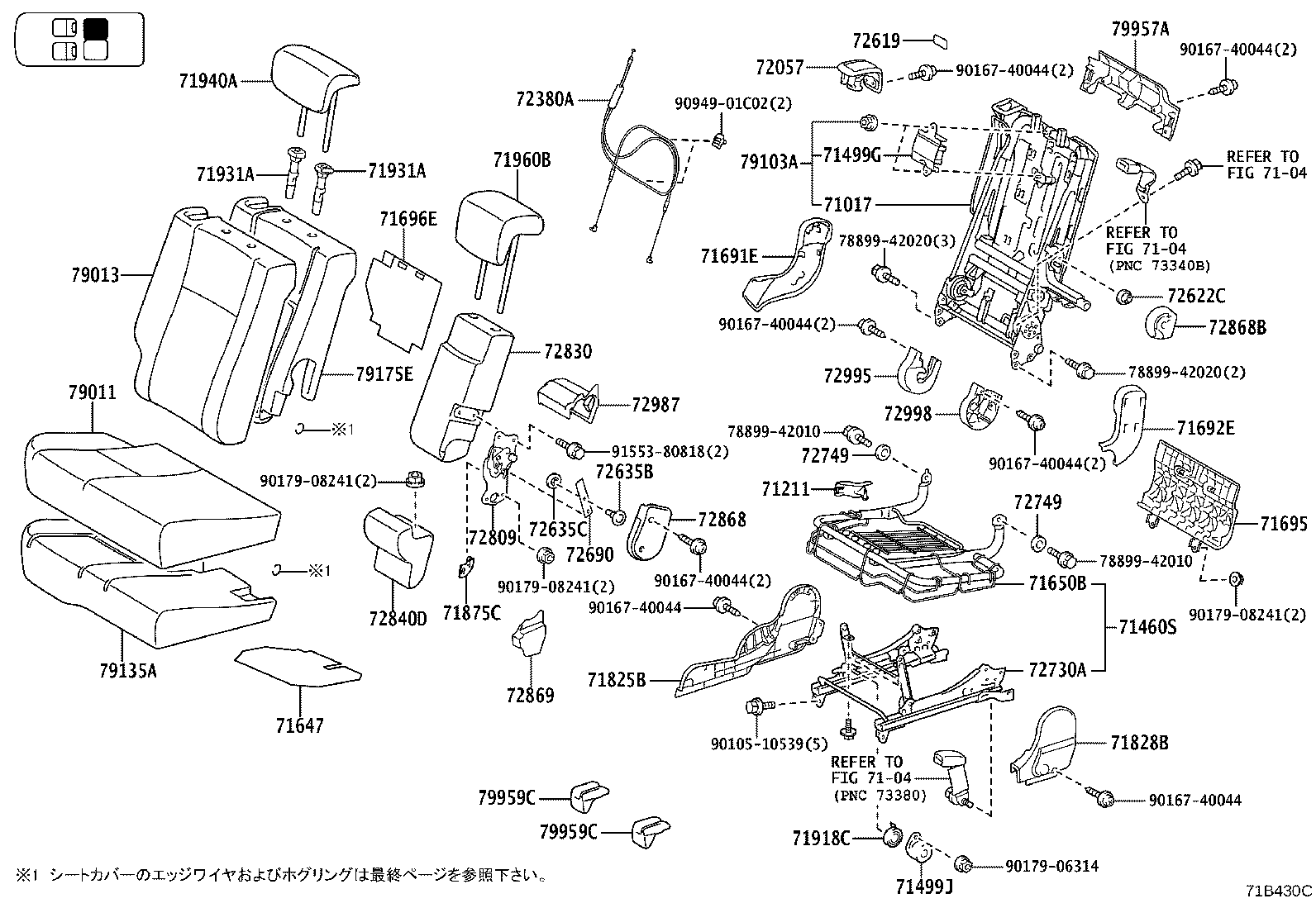

Exploded illustration 71B430C 79135A — PAD, NO.1 SEAT CUSHION, RH (11 parts) 71931A — SUPPORT, REAR SEAT HEADREST (52 parts) 71931A — SUPPORT, REAR SEAT HEADREST (52 parts) 71696E — PROTECTOR, REAR SEAT, NO.2 RH (1 parts) 79013 — COVER SUB-ASSY, NO.1 SEATBACK, RH (48 parts) 79175E — PAD, NO.1 SEATBACK, RH (11 parts) 71940A — HEADREST ASSY, REAR SEAT (42 parts) 79011 — COVER SUB-ASSY, NO.1 SEAT CUSHION, RH (53 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (1 parts) 71460S — CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) (8 parts) 71499G — DAMPER, REAR SEATBACK SPRING, RH (3 parts) 71499J — DAMPER, REAR SEAT CUSHION SPRING, RH (1 parts) 71650B — SPRING ASSY, REAR SEAT CUSHION, RH (1 parts) 71691E — COVER, REAR SEAT CUSHION HINGE, NO.1 (2 parts) 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (2 parts) 71695 — PROTECTOR, REAR SEATBACK (1 parts) 71825B — MOULDING, REAR SEAT CUSHION, RH (2 parts) 71211 — PANEL, REAR SEAT CUSHION, RH (1 parts) 71828B — MOULDING, REAR SEAT CUSHION, REAR RH (2 parts) 71875C — COVER, RECLINING ADJUSTER INSIDE, RH (2 parts) 71918C — SPRING, CENTER SEAT CUSHION CATCH (1 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (33 parts) 72057 — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH (3 parts) 72380A — CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 (1 parts) 72619 — COVER, REAR SEATBACK LOCK STRIKER (3 parts) 72622C — BUSH, REAR SEATBACK PROTECTOR SHAFT (1 parts) 72635B — HOOK, REAR SEATBACK LOCK(MALE) (2 parts) 72635C — HOOK, REAR SEATBACK LOCK(FEMALE) (2 parts) 72690 — LEVER ASSY, SEAT CUSHION LOCK RELEASE (2 parts) 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (1 parts) 72749 — SPACER, REAR SEAT RECLINING (1 parts) 72749 — SPACER, REAR SEAT RECLINING (1 parts) 72809 — LOCK SUB-ASSY, CENTER ARMREST (1 parts) 72830 — ARMREST ASSY, REAR SEAT, CENTER (7 parts) 72840D — ARMREST ASSY, REAR SEAT, LH (14 parts) 71647 — PROTECTOR, REAR SEAT CUSHION EDGE (1 parts) 72868 — COVER, CENTER ARMREST HINGE, RH (2 parts) 72868B — COVER, CENTER ARMREST HINGE (1 parts) 72869 — COVER, CENTER ARMREST HINGE, LH (2 parts) 72987 — COVER, REAR SEAT CENTER ARMREST (2 parts) 72995 — COVER, REAR SEAT CUSHION, RH (2 parts) 72998 — COVER, REAR SEAT CUSHION, LH (2 parts) 79103A — FRAME SUB-ASSY, NO.1 SEATBACK, RH (12 parts) 79957A — COVER, REAR SEAT REAR BRACKET, RH (6 parts) 9017906314 — not listed in this catalogue 7889942020 — not listed in this catalogue 7889942020 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 7889942010 — not listed in this catalogue 7889942010 — not listed in this catalogue 9016740044 — not listed in this catalogue 9010510539 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9017908241 — not listed in this catalogue 9017908241 — not listed in this catalogue 9094901C02 — not listed in this catalogue 9155380818 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9017908241 — not listed in this catalogue 79959C — COVER, REAR SEAT LEG (8 parts) 79959C — COVER, REAR SEAT LEG (8 parts)
71B430C · 46 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
354 parts on this figure
Part number Description Fitment Price
71017 — Frame Sub-assy, Rear Seatback, RH
71017-52770 Frame Sub-assy, Rear Seatback, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥34,100
71211 — Panel, Rear Seat Cushion, RH
71211-42020 Panel, Rear Seat Cushion, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥740
71460S — Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71460-52T50 Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2015-06 → 2018-09 ended
NHP170,NSP170 07S ¥45,000
71460-52T80 Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2015-06 → 2018-09 ended
NSP172 ¥42,600
71460-52U30 Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2015-06 → 2018-09 ended
NHP170,NSP170 06S ¥56,700
71460-52U40 Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2015-06 → 2018-09 ended
NCP175 ¥45,000
71460-52T50 Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2018-09 → 2022-07 ended
NHP170,NSP170 07S ¥45,000
71460-52T80 Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2018-09 → 2022-07 ended
NSP172 ¥42,600
71460-52U40 Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2018-09 → 2022-07 ended
NCP175 ¥45,000
71460-52Z60 Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥32,700
71499G — Damper, Rear Seatback Spring, RH
71499-52060 Damper, Rear Seatback Spring, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥670
71499-52060 Damper, Rear Seatback Spring, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 06S,07S ¥670
71499-72010 Damper, Rear Seatback Spring, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥4,480
71499J — Damper, Rear Seat Cushion Spring, RH
71499-42020 Damper, Rear Seat Cushion Spring, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥3,320
71647 — Protector, Rear Seat Cushion Edge
71647-52050 Protector, Rear Seat Cushion Edge
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥430
71650B — Spring Assy, Rear Seat Cushion, RH
71650-52010 Spring Assy, Rear Seat Cushion, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥13,300
71691E — Cover, Rear Seat Cushion Hinge, NO.1
71691-42010-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥1,220
71691-42010-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,220
71692E — Cover, Rear Seat Cushion Hinge, NO.2
71692-42020-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥870
71692-42020-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥870
71695 — Protector, Rear Seatback
71695-42030 Protector, Rear Seatback
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥740
71696E — Protector, Rear Seat, NO.2 RH
71696-52050 Protector, Rear Seat, NO.2 RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥430
71825B — Moulding, Rear Seat Cushion, RH
71825-42010-C0 note Moulding, Rear Seat Cushion, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,660
71825-42010-C0 note Moulding, Rear Seat Cushion, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,660
71828B — Moulding, Rear Seat Cushion, Rear RH
71828-42020-C0 note Moulding, Rear Seat Cushion, Rear RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,010
71828-42020-C0 note Moulding, Rear Seat Cushion, Rear RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,010
71875C — Cover, Reclining Adjuster Inside, RH
71875-42060-C0 note Cover, Reclining Adjuster Inside, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥310
71875-42060-C0 note Cover, Reclining Adjuster Inside, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥310
71918C — Spring, Center Seat Cushion Catch
71918-42040 Spring, Center Seat Cushion Catch
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥700
71931A — Support, Rear Seat Headrest
71930-44020-21 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NSP172 X ¥780
71930-44020-21 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NSP170 07S;NHP170,NSP172 ¥780
71930-44020-21 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NCP175,NSP170 06S ¥780
71930-44020-21 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NSP172 X ¥780
71930-44020-21 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NSP172 X ¥780
71930-44020-C0 note Support, Rear Seat Headrest
2015-06 → 2017-10 ended
NSP172 X ¥870
71930-44020-C0 note Support, Rear Seat Headrest
2015-06 → 2017-10 ended
NCP175,NSP170 06S ¥870
71930-44020-C0 note Support, Rear Seat Headrest
2015-12 → 2017-08 ended
NSP172 X ¥870
71930-44020-C0 note Support, Rear Seat Headrest
2015-06 → 2017-08 ended
NSP172 X ¥870
71930-44020-C0 note Support, Rear Seat Headrest
2017-08 → 2017-10 ended
NHP170,NSP170 07S G ¥870
71930-44020-C0 note Support, Rear Seat Headrest
2017-08 → 2017-10 ended
NCP175 G ¥870
71930-44020-C0 note Support, Rear Seat Headrest
2017-08 → 2017-10 ended
NSP172 X ¥870
71930-44020-C0 note Support, Rear Seat Headrest
2015-06 → 2017-10 ended
NSP170 07S;NHP170,NSP172 ¥870
71930-44020-C0 note Support, Rear Seat Headrest
2017-08 → 2017-10 ended
NSP172 X ¥870
71931-47010-C0 note Support, Rear Seat Headrest
2017-08 → 2017-10 ended
NSP172 X ¥530
71931-47010-C0 note Support, Rear Seat Headrest
2015-06 → 2017-08 ended
NSP172 X ¥530
71931-47010-C0 note Support, Rear Seat Headrest
2015-06 → 2017-10 ended
NSP172 X ¥530
71931-47010-C0 note Support, Rear Seat Headrest
2015-12 → 2017-08 ended
NSP172 X ¥530
71931-47010-C0 note Support, Rear Seat Headrest
2015-06 → 2017-10 ended
NCP175,NSP170 06S ¥530
71931-47010-C0 note Support, Rear Seat Headrest
2017-08 → 2017-10 ended
NHP170,NSP170 07S G ¥530
71931-47010-C0 note Support, Rear Seat Headrest
2017-08 → 2017-10 ended
NCP175 G ¥530
71931-47010-C0 note Support, Rear Seat Headrest
2017-08 → 2017-10 ended
NSP172 X ¥530
71931-47010-C0 note Support, Rear Seat Headrest
2015-06 → 2017-10 ended
NSP170 07S;NHP170,NSP172 ¥530
71931-47010-C8 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NSP172 X ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NSP172 X ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NSP172 X ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NCP175,NSP170 06S ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2017-10 → 2018-09 ended
NSP170 07S;NHP170,NSP172 ¥480
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥780
71930-44020-21 note Support, Rear Seat Headrest
2019-10 → —
NHP170,NSP170 G ¥780
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NHP170,NSP17# WKG,WKX,X ¥780
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥780
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NHP170,NSP170 G ¥780
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 (05S,06S) (FNBSX,FNGCR,GCERO) ¥780
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NCP175 X ¥780
71930-44020-21 note Support, Rear Seat Headrest
2019-10 → 2021-06 ended
NCP175 G ¥780
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NSP172 WKX ¥780
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NSP172 WKX ¥780
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NSP172 WKX ¥780
71930-44020-21 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NCP175 G ¥780
71931-47010-C8 note Support, Rear Seat Headrest
2019-10 → —
NHP170,NSP170 G ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NHP170,NSP17# WKG,WKX,X ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NHP170,NSP170 G ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 (05S,06S) (FNBSX,FNGCR,GCERO) ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NCP175 G ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NCP175 X ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NSP172 WKX ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NSP172 WKX ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NSP172 WKX ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2019-10 → 2021-06 ended
NCP175 G ¥480
71931-47010-C8 note Support, Rear Seat Headrest
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥480
71940A — Headrest Assy, Rear Seat
71940-52G30-B0 note Headrest Assy, Rear Seat
2015-06 → 2017-08 ended
NSP172 X ¥22,900
71940-52G30-B0 note Headrest Assy, Rear Seat
2015-12 → 2017-08 ended
NSP172 X ¥22,900
71940-52G30-B0 note Headrest Assy, Rear Seat
2015-06 → 2018-09 ended
NSP172 X ¥22,900
71940-52G30-B0 note Headrest Assy, Rear Seat
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥22,900
71940-52G30-B0 note Headrest Assy, Rear Seat
2017-08 → 2018-09 ended
NSP172 X ¥22,900
71940-52G30-B0 note Headrest Assy, Rear Seat
2017-08 → 2018-09 ended
NSP172 X ¥22,900
71940-52G30-E1 note Headrest Assy, Rear Seat
2017-08 → 2018-09 ended
NSP172 X ¥22,900
71940-52G30-E1 note Headrest Assy, Rear Seat
2017-08 → 2018-09 ended
NSP172 X ¥22,900
71940-52G30-E1 note Headrest Assy, Rear Seat
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥22,900
71940-52G30-E1 note Headrest Assy, Rear Seat
2015-06 → 2018-09 ended
NSP172 X ¥22,900
71940-52G30-E1 note Headrest Assy, Rear Seat
2015-12 → 2017-08 ended
NSP172 X ¥22,900
71940-52G30-E1 note Headrest Assy, Rear Seat
2015-06 → 2017-08 ended
NSP172 X ¥22,900
71940-52G40-B2 note Headrest Assy, Rear Seat
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥22,900
71940-52G40-E0 note Headrest Assy, Rear Seat
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥22,900
71940-52G50-C0 note Headrest Assy, Rear Seat
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥22,900
71940-52F00-C0 note Headrest Assy, Rear Seat
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 GCERO ¥22,800
71940-52F00-C1 note Headrest Assy, Rear Seat
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥19,000
71940-52G30-A0 note Headrest Assy, Rear Seat
2018-09 → 2021-06 ended
NCP175 X ¥19,000
71940-52G30-A0 note Headrest Assy, Rear Seat
2018-09 → 2022-07 ended
NHP170,NSP17# WKX,X ¥19,000
71940-52G30-A0 note Headrest Assy, Rear Seat
2018-09 → 2022-07 ended
NSP172 WKX ¥19,000
71940-52G30-A0 note Headrest Assy, Rear Seat
2018-09 → 2022-07 ended
NSP172 WKX ¥19,000
71940-52G30-A0 note Headrest Assy, Rear Seat
2018-09 → 2022-07 ended
NSP172 WKX ¥19,000
71940-52G30-B2 note Headrest Assy, Rear Seat
2018-09 → 2021-02 ended
NSP172 WKX ¥19,000
71940-52G30-B2 note Headrest Assy, Rear Seat
2018-09 → 2021-02 ended
NSP172 WKX ¥19,000
71940-52G30-B2 note Headrest Assy, Rear Seat
2018-09 → 2021-02 ended
NSP172 WKX ¥19,000
71940-52G30-B2 note Headrest Assy, Rear Seat
2018-09 → 2021-02 ended
NCP175,NHP170,NSP17# WKX,X ¥19,000
71940-52G30-C0 note Headrest Assy, Rear Seat
2021-02 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥19,000
71940-52G30-C0 note Headrest Assy, Rear Seat
2021-02 → 2022-07 ended
NSP172 WKX ¥19,000
71940-52G30-C0 note Headrest Assy, Rear Seat
2021-02 → 2022-07 ended
NSP172 WKX ¥19,000
71940-52G30-C0 note Headrest Assy, Rear Seat
2021-02 → 2022-07 ended
NSP172 WKX ¥19,000
71940-52G80-C0 note Headrest Assy, Rear Seat
2018-09 → 2021-02 ended
NCP175,NHP170,NSP17# G,WKG ¥19,000
71940-52G80-C1 note Headrest Assy, Rear Seat
2021-02 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥19,000
71940-52G80-E0 note Headrest Assy, Rear Seat
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥19,000
71940-52G80-E1 note Headrest Assy, Rear Seat
2019-10 → 2021-02 ended
NCP175,NHP170,NSP170 G ¥19,000
71940-52G80-E2 note Headrest Assy, Rear Seat
2021-02 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥19,000
71940-52G90-B0 note Headrest Assy, Rear Seat
2018-09 → 2021-02 ended
NHP170,NSP170 FNBSX ¥19,000
71940-52G90-C0 note Headrest Assy, Rear Seat
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSX ¥19,000
71940-52K30-C0 note Headrest Assy, Rear Seat
2018-09 → 2021-02 ended
NHP170,NSP170 FNBSG ¥19,000
71940-52K30-C1 note Headrest Assy, Rear Seat
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSG ¥19,000
71940-52K30-E0 note Headrest Assy, Rear Seat
2019-10 → 2021-02 ended
NHP170,NSP170 FNBSG ¥19,000
71940-52K30-E1 note Headrest Assy, Rear Seat
2021-02 → 2021-06 ended
NHP170,NSP170 FNBSG ¥19,000
71940-52M10-C1 note Headrest Assy, Rear Seat
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥19,000
71960B — Headrest Assy, Rear Seat, Center
71960-52A20-B0 note Headrest Assy, Rear Seat, Center
2015-06 → 2018-09 ended
NHP170,NSP170 X ¥18,400
71960-52A20-E1 note Headrest Assy, Rear Seat, Center
2015-06 → 2018-09 ended
NHP170,NSP170 X ¥18,400
71960-52A30-B2 note Headrest Assy, Rear Seat, Center
2015-06 → 2018-09 ended
NHP170,NSP170 07S G ¥18,400
71960-52A30-E0 note Headrest Assy, Rear Seat, Center
2015-06 → 2018-09 ended
NHP170,NSP170 07S G ¥18,400
71960-52A40-B0 note Headrest Assy, Rear Seat, Center
2015-06 → 2018-09 ended
NSP172 X ¥18,400
71960-52A40-E1 note Headrest Assy, Rear Seat, Center
2015-06 → 2018-09 ended
NSP172 X ¥18,400
71960-52A50-B2 note Headrest Assy, Rear Seat, Center
2015-06 → 2018-09 ended
NSP172 G ¥18,400
71960-52A50-E0 note Headrest Assy, Rear Seat, Center
2015-06 → 2018-09 ended
NSP172 G ¥18,400
71960-52A60-C0 note Headrest Assy, Rear Seat, Center
2017-08 → 2018-09 ended
NHP170,NSP170 07S G ¥18,400
71960-52A20-A0 note Headrest Assy, Rear Seat, Center
2018-09 → 2022-07 ended
NHP170,NSP170 X ¥15,300
71960-52A20-B2 note Headrest Assy, Rear Seat, Center
2018-09 → 2021-01 ended
NHP170,NSP170 X ¥15,300
71960-52A20-C0 note Headrest Assy, Rear Seat, Center
2021-02 → 2022-07 ended
NHP170,NSP170 X ¥15,300
71960-52A40-A1 note Headrest Assy, Rear Seat, Center
2018-09 → 2022-07 ended
NSP172 WKX ¥15,300
71960-52A40-B2 note Headrest Assy, Rear Seat, Center
2018-09 → 2021-01 ended
NSP172 WKX ¥15,300
71960-52A40-C0 note Headrest Assy, Rear Seat, Center
2021-02 → 2022-07 ended
NSP172 WKX ¥15,300
71960-52A70-C0 note Headrest Assy, Rear Seat, Center
2018-09 → 2021-01 ended
NHP170,NSP170 G ¥15,300
71960-52A70-C1 note Headrest Assy, Rear Seat, Center
2021-02 → 2022-07 ended
NHP170,NSP170 G ¥15,300
71960-52A70-E0 note Headrest Assy, Rear Seat, Center
2018-09 → 2022-07 ended
NHP170,NSP170 G ¥15,300
71960-52A70-E1 note Headrest Assy, Rear Seat, Center
2019-10 → 2021-01 ended
NHP170,NSP170 G ¥15,300
71960-52A70-E2 note Headrest Assy, Rear Seat, Center
2021-02 → 2021-06 ended
NSP170 G ¥15,300
71960-52A70-E2 note Headrest Assy, Rear Seat, Center
2021-02 → 2021-06 ended
NHP170 G ¥15,300
71960-52B10-C0 note Headrest Assy, Rear Seat, Center
2018-09 → 2020-06 ended
NHP170,NSP170 GCERO ¥18,400
71960-52B10-C1 note Headrest Assy, Rear Seat, Center
2020-06 → 2022-07 ended
NHP170,NSP170 GCERO ¥15,300
71960-52C10-C1 note Headrest Assy, Rear Seat, Center
2018-09 → 2021-01 ended
NSP172 WKG ¥15,300
71960-52C10-C2 note Headrest Assy, Rear Seat, Center
2021-02 → 2022-07 ended
NSP172 WKG ¥15,300
71960-52C10-E1 note Headrest Assy, Rear Seat, Center
2018-09 → 2022-07 ended
NSP172 WKG ¥15,300
71960-52C20-B0 note Headrest Assy, Rear Seat, Center
2018-09 → 2021-01 ended
NHP170,NSP170 FNBSX ¥15,300
71960-52C20-C0 note Headrest Assy, Rear Seat, Center
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSX ¥15,300
71960-52C30-C0 note Headrest Assy, Rear Seat, Center
2018-09 → 2021-01 ended
NHP170,NSP170 FNBSG ¥15,300
71960-52C30-C1 note Headrest Assy, Rear Seat, Center
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSG ¥15,300
71960-52C30-E0 note Headrest Assy, Rear Seat, Center
2019-10 → 2021-01 ended
NHP170,NSP170 FNBSG ¥15,300
71960-52C30-E1 note Headrest Assy, Rear Seat, Center
2021-02 → 2021-06 ended
NHP170,NSP170 FNBSG ¥15,300
71960-52D50-C1 note Headrest Assy, Rear Seat, Center
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥19,000
72057 — Lever Sub-assy, Rear Seat Lock Control, RH
72057-52040-C0 note Lever Sub-assy, Rear Seat Lock Control, RH
2018-09 → 2021-10 ended
NHP170,NSP170 FNBSG ¥2,340
72057-52040-C0 note Lever Sub-assy, Rear Seat Lock Control, RH
2018-09 → 2021-10 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,340
72057-52040-C1 note Lever Sub-assy, Rear Seat Lock Control, RH
2021-10 → 2022-07 ended
NHP170,NSP170 05S ¥2,340
72380A — Cable Assy, Seat Adjuster Control, NO.2
72380-52020 Cable Assy, Seat Adjuster Control, NO.2
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥2,010
72619 — Cover, Rear Seatback Lock Striker
72615-52100-C0 note Cover, Rear Seatback Lock Striker
2018-09 → 2021-10 ended
NHP170,NSP170 FNBSG ¥70
72615-52100-C0 note Cover, Rear Seatback Lock Striker
2018-09 → 2021-10 ended
NHP170,NSP170 FNBSX,FNGCR ¥70
72615-52100-C1 note Cover, Rear Seatback Lock Striker
2021-10 → 2022-07 ended
NHP170,NSP170 05S ¥70
72622C — Bush, Rear Seatback Protector Shaft
72622-42010 Bush, Rear Seatback Protector Shaft
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥100
72635B — Hook, Rear Seatback Lock(MALE)
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥90
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥90
72635C — Hook, Rear Seatback Lock(FEMALE)
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥90
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥90
72690 — Lever Assy, Seat Cushion Lock Release
72690-52040-C0 note Lever Assy, Seat Cushion Lock Release
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥220
72690-52040-C0 note Lever Assy, Seat Cushion Lock Release
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥220
72730A — Adjuster Assy, Rear Seat Reclining, RH
72730-52010 Adjuster Assy, Rear Seat Reclining, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥22,400
72749 — Spacer, Rear Seat Reclining
72749-48010 Spacer, Rear Seat Reclining
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥90
72809 — Lock Sub-assy, Center Armrest
72809-42020 Lock Sub-assy, Center Armrest
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥1,890
72830 — Armrest Assy, Rear Seat, Center
72830-52190-C1 note Armrest Assy, Rear Seat, Center
2018-09 → 2021-02 ended
NHP170,NSP170 FNBSX ¥29,200
72830-52190-C2 note Armrest Assy, Rear Seat, Center
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSX ¥29,200
72830-52210-C1 note Armrest Assy, Rear Seat, Center
2018-09 → 2021-02 ended
NHP170,NSP170 FNBSG ¥29,200
72830-52210-C2 note Armrest Assy, Rear Seat, Center
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSG ¥29,200
72830-52210-E0 note Armrest Assy, Rear Seat, Center
2019-10 → 2021-02 ended
NHP170,NSP170 FNBSG ¥29,200
72830-52210-E1 note Armrest Assy, Rear Seat, Center
2021-02 → 2021-06 ended
NHP170,NSP170 FNBSG ¥29,200
72830-52240-C0 note Armrest Assy, Rear Seat, Center
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥41,100
72840D — Armrest Assy, Rear Seat, LH
72880-52120-C0 note Armrest Assy, Rear Seat, LH
2017-08 → 2018-09 ended
NCP175 G ¥11,800
72880-52160-B0 note Armrest Assy, Rear Seat, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S ¥6,500
72880-52160-E0 note Armrest Assy, Rear Seat, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S ¥6,500
72840-52010-C1 note Armrest Assy, Rear Seat, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX ¥12,600
72840-52020-C1 note Armrest Assy, Rear Seat, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥12,600
72840-52020-E0 note Armrest Assy, Rear Seat, LH
2019-10 → 2021-06 ended
NHP170,NSP170 FNBSG ¥12,600
72840-52030-C0 note Armrest Assy, Rear Seat, LH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥17,600
72880-52120-C0 note Armrest Assy, Rear Seat, LH
2018-09 → 2022-07 ended
NCP175 GCERO ¥11,800
72880-52160-B0 note Armrest Assy, Rear Seat, LH
2018-09 → 2021-02 ended
NCP175 G ¥6,500
72880-52160-B0 note Armrest Assy, Rear Seat, LH
2018-09 → 2021-02 ended
NCP175 X ¥6,500
72880-52160-C0 note Armrest Assy, Rear Seat, LH
2021-02 → 2022-07 ended
NCP175 G ¥6,500
72880-52160-C0 note Armrest Assy, Rear Seat, LH
2021-02 → 2022-07 ended
NCP175 X ¥6,500
72880-52160-E0 note Armrest Assy, Rear Seat, LH
2018-09 → 2022-07 ended
NCP175 G ¥6,500
72880-52160-E0 note Armrest Assy, Rear Seat, LH
2018-09 → 2021-06 ended
NCP175 X ¥6,500
72868 — Cover, Center Armrest Hinge, RH
72868-42020-C0 note Cover, Center Armrest Hinge, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,220
72868-42020-C0 note Cover, Center Armrest Hinge, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥1,220
72868B — Cover, Center Armrest Hinge
72868-52070 Cover, Center Armrest Hinge
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥650
72869 — Cover, Center Armrest Hinge, LH
72869-42020-C0 note Cover, Center Armrest Hinge, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥650
72869-42020-C0 note Cover, Center Armrest Hinge, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥650
72987 — Cover, Rear Seat Center Armrest
72987-42020-C0 note Cover, Rear Seat Center Armrest
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,010
72987-42020-C0 note Cover, Rear Seat Center Armrest
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,010
72995 — Cover, Rear Seat Cushion, RH
72995-42090-C0 note Cover, Rear Seat Cushion, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,220
72995-42090-C0 note Cover, Rear Seat Cushion, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥1,220
72998 — Cover, Rear Seat Cushion, LH
72998-42010-C0 note Cover, Rear Seat Cushion, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥1,240
72998-42010-C0 note Cover, Rear Seat Cushion, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,240
79011 — Cover Sub-assy, NO.1 Seat Cushion, RH
79011-52060-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NHP170,NSP170 X ¥16,700
79011-52060-B3 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NHP170,NSP170 X ¥16,700
79011-52070-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NHP170,NSP170 07S G ¥18,800
79011-52070-B3 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NHP170,NSP170 07S G ¥18,800
79011-52080-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NSP172 X ¥13,600
79011-52080-B3 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NSP172 X ¥13,600
79011-52090-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NSP172 G ¥15,400
79011-52090-B3 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NSP172 G ¥15,400
79011-52100-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2017-08 → 2018-09 ended
NHP170,NSP170 07S G ¥20,800
79011-52110-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2017-08 → 2018-09 ended
NCP175 G ¥20,800
79011-52130-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175 X ¥16,700
79011-52130-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175 X ¥16,700
79011-52140-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S G ¥18,800
79011-52140-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S G ¥18,800
79011-52120-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NHP170,NSP170 G ¥15,700
79011-52120-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NHP170,NSP170 G ¥15,700
79011-52120-E1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NHP170,NSP170 G ¥15,700
79011-52120-E2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NHP170,NSP170 G ¥15,700
79011-52150-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NSP172 WKG ¥10,000
79011-52150-B3 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NSP172 WKG ¥10,000
79011-52150-E2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NSP172 WKG ¥10,000
79011-52150-E3 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NSP172 WKG ¥10,000
79011-52160-B1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NCP175 G ¥15,700
79011-52160-B2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NCP175 G ¥15,700
79011-52160-E1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NCP175 G ¥15,700
79011-52160-E2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NCP175 G ¥15,700
79011-52170-C1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2020-06 ended
NCP175 GCERO ¥20,800
79011-52170-C2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2020-06 → 2022-07 ended
NCP175 GCERO ¥17,300
79011-52180-C1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2020-06 ended
NHP170,NSP170 GCERO ¥20,800
79011-52180-C2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2020-06 → 2022-07 ended
NHP170,NSP170 GCERO ¥17,300
79011-52190-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NHP170,NSP170 FNBSX ¥15,200
79011-52190-C0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSX ¥15,200
79011-52200-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NHP170,NSP170 FNBSG ¥18,800
79011-52200-C0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSG ¥18,800
79011-52210-A0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NHP170,NSP170 X ¥13,900
79011-52210-A1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NHP170,NSP170 X ¥13,900
79011-52210-C0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NHP170,NSP170 X ¥13,900
79011-52210-C1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NHP170,NSP170 X ¥13,900
79011-52220-A1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NSP172 WKX ¥8,900
79011-52220-A2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NSP172 WKX ¥8,900
79011-52220-C1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NSP172 WKX ¥8,900
79011-52220-C2 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NSP172 WKX ¥8,900
79011-52230-A0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NCP175 X ¥13,900
79011-52230-A1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2021-06 ended
NCP175 X ¥13,900
79011-52230-C0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2018-09 → 2021-01 ended
NCP175 X ¥13,900
79011-52230-C1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2022-07 ended
NCP175 X ¥13,900
79011-52240-C0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2019-10 → 2021-01 ended
NHP170,NSP170 G ¥15,700
79011-52240-C1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2021-06 ended
NHP170,NSP170 G ¥15,700
79011-52250-C0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2019-10 → 2021-01 ended
NCP175 G ¥12,800
79011-52250-C1 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2021-06 ended
NCP175 G ¥12,800
79011-52260-B0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2019-10 → 2021-01 ended
NHP170,NSP170 FNBSG ¥17,000
79011-52260-C0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2021-02 → 2021-06 ended
NHP170,NSP170 FNBSG ¥17,000
79011-52270-C0 note Cover Sub-assy, NO.1 Seat Cushion, RH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥18,800
79013 — Cover Sub-assy, NO.1 Seatback, RH
79013-52120-A1 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NHP170,NSP170 X ¥19,700
79013-52120-B2 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NHP170,NSP170 X ¥19,700
79013-52130-B2 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NHP170,NSP170 07S G ¥22,100
79013-52130-B3 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NHP170,NSP170 07S G ¥22,100
79013-52140-A1 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NSP172 X ¥16,700
79013-52140-B2 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NSP172 X ¥16,700
79013-52150-B2 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NSP172 G ¥18,800
79013-52150-B3 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NSP172 G ¥18,800
79013-52160-B0 note Cover Sub-assy, NO.1 Seatback, RH
2017-08 → 2018-09 ended
NHP170,NSP170 07S G ¥24,600
79013-52170-B1 note Cover Sub-assy, NO.1 Seatback, RH
2017-08 → 2018-09 ended
NCP175 G ¥24,600
79013-52210-B0 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S G ¥22,100
79013-52210-B1 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S G ¥22,100
79013-52230-A1 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NCP175 X ¥19,700
79013-52230-B0 note Cover Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NCP175 X ¥19,700
79013-52180-B0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2021-01 ended
NHP170,NSP170 G ¥18,400
79013-52180-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2022-07 ended
NHP170,NSP170 G ¥18,400
79013-52180-E0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NHP170,NSP170 G ¥18,400
79013-52240-C3 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2021-01 ended
NSP172 WKG ¥11,400
79013-52240-C4 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2022-07 ended
NSP172 WKG ¥11,400
79013-52240-E3 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NSP172 WKG ¥11,400
79013-52250-B0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2021-01 ended
NCP175 G ¥18,400
79013-52250-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2022-07 ended
NCP175 G ¥18,400
79013-52250-E0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NCP175 G ¥18,400
79013-52260-C1 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2020-06 ended
NHP170,NSP170 GCERO ¥24,600
79013-52260-C2 note Cover Sub-assy, NO.1 Seatback, RH
2020-06 → 2020-10 ended
NHP170,NSP170 GCERO ¥24,600
79013-52260-C3 note Cover Sub-assy, NO.1 Seatback, RH
2020-10 → 2022-07 ended
NHP170,NSP170 GCERO ¥20,500
79013-52270-C0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2020-10 ended
NCP175 GCERO ¥24,600
79013-52270-C1 note Cover Sub-assy, NO.1 Seatback, RH
2020-10 → 2022-07 ended
NCP175 GCERO ¥20,500
79013-52280-C0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2021-01 ended
NHP170,NSP170 FNBSX ¥18,900
79013-52280-C1 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSX ¥18,900
79013-52290-C0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2021-01 ended
NHP170,NSP170 FNBSG ¥21,200
79013-52290-C1 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2022-07 ended
NHP170,NSP170 FNBSG ¥21,200
79013-52300-B0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2021-01 ended
NHP170,NSP170 X ¥16,300
79013-52300-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2022-07 ended
NHP170,NSP170 X ¥16,300
79013-52300-E0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NHP170,NSP170 X ¥16,300
79013-52310-A1 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NSP172 WKX ¥10,200
79013-52310-C1 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2021-01 ended
NSP172 WKX ¥10,200
79013-52310-C2 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2022-07 ended
NSP172 WKX ¥10,200
79013-52320-B0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2021-01 ended
NCP175 X ¥16,300
79013-52320-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2022-07 ended
NCP175 X ¥16,300
79013-52320-E0 note Cover Sub-assy, NO.1 Seatback, RH
2018-09 → 2021-06 ended
NCP175 X ¥16,300
79013-52330-B0 note Cover Sub-assy, NO.1 Seatback, RH
2019-10 → 2021-01 ended
NHP170,NSP170 G ¥18,400
79013-52330-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2021-06 ended
NHP170,NSP170 G ¥18,400
79013-52340-B0 note Cover Sub-assy, NO.1 Seatback, RH
2019-10 → 2021-01 ended
NCP175 G —
79013-52340-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2021-06 ended
NCP175 G —
79013-52350-E0 note Cover Sub-assy, NO.1 Seatback, RH
2019-10 → 2021-01 ended
NHP170,NSP170 FNBSG ¥21,200
79013-52350-E1 note Cover Sub-assy, NO.1 Seatback, RH
2021-02 → 2021-06 ended
NHP170,NSP170 FNBSG ¥21,200
79013-52360-B1 note Cover Sub-assy, NO.1 Seatback, RH
2020-06 → 2022-07 ended
NHP170,NSP170 FNGCR ¥23,600
79103A — Frame Sub-assy, NO.1 Seatback, RH
79103-52040 Frame Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NSP170 07S ¥19,300
79103-52050 Frame Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NSP172 ¥17,100
79103-52060 Frame Sub-assy, NO.1 Seatback, RH
2015-07 → 2018-09 ended
NHP170 07S ¥18,500
79103-52070 Frame Sub-assy, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NCP175,NSP170 06S ¥19,300
79103-52080 Frame Sub-assy, NO.1 Seatback, RH
2015-07 → 2018-09 ended
NHP170 06S ¥23,200
79103-52040 Frame Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NSP170 07S ¥19,300
79103-52050 Frame Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NSP172 ¥17,100
79103-52060 Frame Sub-assy, NO.1 Seatback, RH
2018-09 → 2019-05 ended
NHP170 GCERO ¥18,500
79103-52060 Frame Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NHP170 G,X ¥18,500
79103-52070 Frame Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NCP175 ¥19,300
79103-52090 Frame Sub-assy, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥37,800
79103-52110 Frame Sub-assy, NO.1 Seatback, RH
2019-05 → 2022-07 ended
NHP170 GCERO ¥18,500
79135A — Pad, NO.1 Seat Cushion, RH
79135-52020 Pad, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NHP170,NSP170 07S ¥9,100
79135-52030 Pad, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NSP172 ¥7,400
79135-52040 Pad, NO.1 Seat Cushion, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S ¥8,800
79135-52050 note Pad, NO.1 Seat Cushion, RH
2017-08 → 2018-09 ended
NHP170,NSP170 07S G ¥11,200
79135-52060 note Pad, NO.1 Seat Cushion, RH
2017-08 → 2018-09 ended
NCP175 G ¥11,200
79135-52020 Pad, NO.1 Seat Cushion, RH
2018-09 → 2022-07 ended
NHP170,NSP170 G,X ¥9,100
79135-52030 Pad, NO.1 Seat Cushion, RH
2018-09 → 2022-07 ended
NSP172 ¥7,400
79135-52040 Pad, NO.1 Seat Cushion, RH
2018-09 → 2022-07 ended
NCP175 G,X ¥8,800
79135-52050 Pad, NO.1 Seat Cushion, RH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥11,200
79135-52060 Pad, NO.1 Seat Cushion, RH
2018-09 → 2022-07 ended
NCP175 GCERO ¥11,200
79135-52070 Pad, NO.1 Seat Cushion, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥11,200
79175E — Pad, NO.1 Seatback, RH
79175-52040 Pad, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NHP170,NSP170 07S ¥8,800
79175-52050 Pad, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NSP172 ¥5,900
79175-52060 Pad, NO.1 Seatback, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 06S ¥8,000
79175-52070 note Pad, NO.1 Seatback, RH
2017-08 → 2018-09 ended
NHP170,NSP170 07S G ¥9,100
79175-52080 note Pad, NO.1 Seatback, RH
2017-08 → 2018-09 ended
NCP175 G ¥9,100
79175-52040 Pad, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NHP170,NSP170 G,X ¥8,800
79175-52050 Pad, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NSP172 ¥5,900
79175-52060 Pad, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NCP175 G,X ¥8,000
79175-52070 Pad, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NHP170,NSP170 GCERO ¥9,100
79175-52080 Pad, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NCP175 GCERO ¥9,100
79175-52090 Pad, NO.1 Seatback, RH
2018-09 → 2022-07 ended
NHP170,NSP170 05S ¥9,100
79957A — Cover, Rear Seat Rear Bracket, RH
79951-52070-C0 note Cover, Rear Seat Rear Bracket, RH
2015-06 → 2018-09 ended
NCP175 ¥550
79951-52070-C0 note Cover, Rear Seat Rear Bracket, RH
2018-09 → 2022-07 ended
NCP175 X ¥550
79951-52070-C0 note Cover, Rear Seat Rear Bracket, RH
2018-09 → 2022-07 ended
NCP175 G ¥550
79951-52070-C0 note Cover, Rear Seat Rear Bracket, RH
2018-09 → 2022-07 ended
NCP175 GCERO ¥550
79957-42040-C0 note Cover, Rear Seat Rear Bracket, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,000
79957-42040-C0 note Cover, Rear Seat Rear Bracket, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥2,000
79959C — Cover, Rear Seat Leg
79959-52170-C0 note Cover, Rear Seat Leg
2015-06 → 2018-09 ended
NSP172 ¥2,000
79959-52270-C0 note Cover, Rear Seat Leg
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥2,000
79959-52170-C0 note Cover, Rear Seat Leg
2018-09 → 2022-07 ended
NSP172 ¥2,000
79959-52270-C0 note Cover, Rear Seat Leg
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥2,000
79959-52270-C0 note Cover, Rear Seat Leg
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,000
79959-52270-C0 note Cover, Rear Seat Leg
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 GCERO ¥2,000
79959-52290-C0 note Cover, Rear Seat Leg
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥940
79959-52290-C0 note Cover, Rear Seat Leg
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSX,FNGCR ¥940
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
