Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

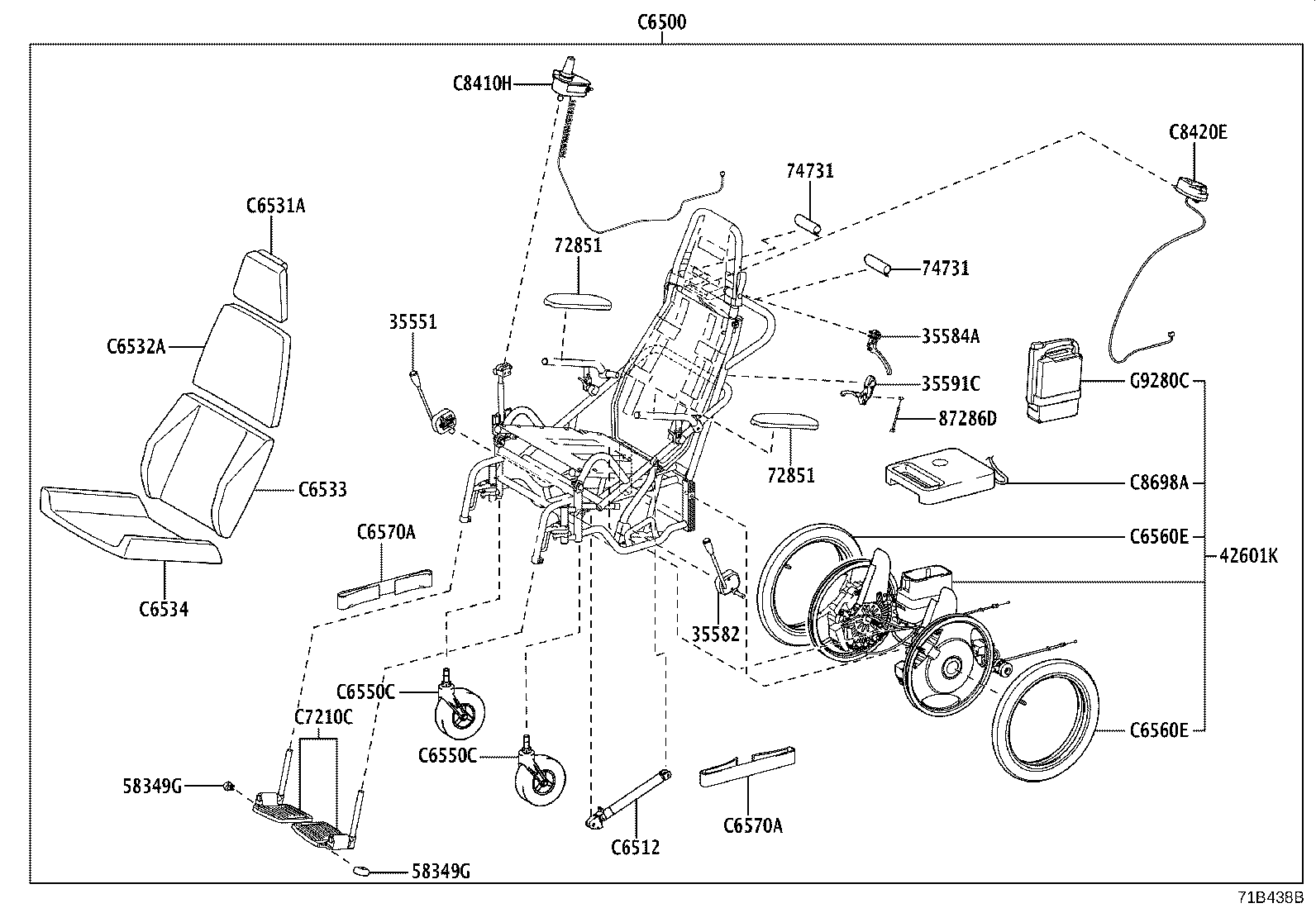

Exploded illustration 71B438 35551 — LEVER, PARKING LOCK, NO.1 (1 parts) 35582 — LEVER, PARKING LOCK, NO.2 (1 parts) 35584A — LEVER, PARKING LOCK, NO.3 (1 parts) 35591C — LEVER, TOGGLE (1 parts) 42601K — WHEEL SUB-ASSY, DISC (1 parts) 58349G — PROTECTOR, FOOTREST (1 parts) 58349G — PROTECTOR, FOOTREST (1 parts) 72851 — PAD, ARM SUPPORT (1 parts) 72851 — PAD, ARM SUPPORT (1 parts) 74731 — PIPE, HAND GRIP, NO.1 (1 parts) 74731 — PIPE, HAND GRIP, NO.1 (1 parts) 87286D — CABLE, CONTROL (1 parts) C6500 — WHEEL CHAIR ASSY (7 parts) C6512 — STAY, WHEEL CHAIR HOLDER,REAR (3 parts) C6531A — CUSHION, HEADREST (1 parts) C6532A — CUSHION, SHOULDER (1 parts) C6533 — CUSHION, LUMBER (1 parts) C6534 — CUSHION, WHEEL CHAIR SEAT (1 parts) C6560E — WHEEL ASSY, WELCAB WHEEL CHAIR, REAR (3 parts) C6560E — WHEEL ASSY, WELCAB WHEEL CHAIR, REAR (3 parts) C6570A — BELT ASSY, WHEEL CHAIR SET, NO.3 (1 parts) C6570A — BELT ASSY, WHEEL CHAIR SET, NO.3 (1 parts) C7210C — FOOTREST ASSY, WELCAB SEAT (1 parts) C8410H — SWITCH ASSY, CONTROL, NO.1 (1 parts) C8420E — SWITCH ASSY, CONTROL, NO.2 (1 parts) G9280C — BATTERY ASSY, WHEEL CHAIR (1 parts) C8698A — CHARGER, BATTERY (1 parts) C6550C — WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT (3 parts) C6550C — WHEEL ASSY, WELCAB WHEEL CHAIR, FRONT (3 parts)
71B438 · 29 callouts Full size ↗
35 parts on this figure
Part number Description Fitment Price
35551 — Lever, Parking Lock, NO.1
35551-28050 note Lever, Parking Lock, NO.1
2018-09 → 2022-07 ended
NSP172 ¥18,900
35582 — Lever, Parking Lock, NO.2
35582-28010 note Lever, Parking Lock, NO.2
2018-09 → 2022-07 ended
NSP172 ¥18,900
35584A — Lever, Parking Lock, NO.3
35584-28010 note Lever, Parking Lock, NO.3
2018-09 → 2022-07 ended
NSP172 ¥9,100
35591C — Lever, Toggle
35591-28010 note Lever, Toggle
2018-09 → 2022-07 ended
NSP172 ¥6,300
42601K — Wheel Sub-assy, Disc
42601-28060 note Wheel Sub-assy, Disc
2018-09 → 2022-07 ended
NSP172 ¥540,000
58349G — Protector, Footrest
58349-28040 note Protector, Footrest
2018-09 → 2022-07 ended
NSP172 ¥3,160
72851 — Pad, Arm Support
72851-28010 note Pad, Arm Support
2018-09 → 2022-07 ended
NSP172 ¥7,800
74731 — Pipe, Hand Grip, NO.1
74731-28030 note Pipe, Hand Grip, NO.1
2018-09 → 2022-07 ended
NSP172 ¥4,780
87286D — Cable, Control
87286-28030 note Cable, Control
2018-09 → —
NSP172 ¥5,200
C6500 — Wheel Chair Assy
C6500-28030 note Wheel Chair Assy
2015-06 → 2018-09 ended
NSP172 ¥198,000
C7950-18010 note Wheel Chair Assy
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥163,000
C7950-18010 note Wheel Chair Assy
2015-06 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥163,000
C6500-28030 note Wheel Chair Assy
2018-09 → 2022-07 ended
NSP172 ¥198,000
C6500-28080 note Wheel Chair Assy
2018-09 → 2022-07 ended
NSP172 ¥775,000
C7950-18010 note Wheel Chair Assy
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥163,000
C7950-18010 note Wheel Chair Assy
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥163,000
C6512 — Stay, Wheel Chair Holder,Rear
C6512-28010 note Stay, Wheel Chair Holder,Rear
2015-06 → 2018-09 ended
NSP172 ¥27,900
C6512-28010 note Stay, Wheel Chair Holder,Rear
2018-09 → 2022-07 ended
NSP172 ¥27,900
C6512-28010 note Stay, Wheel Chair Holder,Rear
2018-09 → 2022-07 ended
NSP172 ¥27,900
C6531A — Cushion, Headrest
C6531-28010 note Cushion, Headrest
2018-09 → 2022-07 ended
NSP172 ¥20,000
C6532A — Cushion, Shoulder
C6532-28010 note Cushion, Shoulder
2018-09 → 2022-07 ended
NSP172 ¥21,400
C6533 — Cushion, Lumber
C6533-28010 note Cushion, Lumber
2018-09 → 2022-07 ended
NSP172 ¥26,700
C6534 — Cushion, Wheel Chair Seat
C6534-28010 note Cushion, Wheel Chair Seat
2018-09 → 2022-07 ended
NSP172 ¥26,700
C6550C — Wheel Assy, Welcab Wheel Chair, Front
C6550-28040 note Wheel Assy, Welcab Wheel Chair, Front
2015-06 → 2018-09 ended
NSP172 ¥14,900
C6550-28040 note Wheel Assy, Welcab Wheel Chair, Front
2018-09 → 2022-07 ended
NSP172 ¥14,900
C6550-28080 note Wheel Assy, Welcab Wheel Chair, Front
2018-09 → 2022-07 ended
NSP172 ¥14,900
C6560E — Wheel Assy, Welcab Wheel Chair, Rear
C6560-28030 note Wheel Assy, Welcab Wheel Chair, Rear
2015-06 → 2018-09 ended
NSP172 ¥15,400
C6560-28030 note Wheel Assy, Welcab Wheel Chair, Rear
2018-09 → 2022-07 ended
NSP172 ¥15,400
C6560-28050 note Wheel Assy, Welcab Wheel Chair, Rear
2018-09 → 2022-07 ended
NSP172 ¥13,300
C6570A — Belt Assy, Wheel Chair Set, NO.3
C6570-28030 note Belt Assy, Wheel Chair Set, NO.3
2018-09 → 2022-07 ended
NSP172 ¥6,500
C7210C — Footrest Assy, Welcab Seat
C7210-28030 note Footrest Assy, Welcab Seat
2018-09 → 2022-07 ended
NSP172 ¥10,600
C8410H — Switch Assy, Control, NO.1
C8410-28020 note Switch Assy, Control, NO.1
2018-09 → 2022-07 ended
NSP172 ¥74,000
C8420E — Switch Assy, Control, NO.2
C8420-28020 note Switch Assy, Control, NO.2
2018-09 → 2022-07 ended
NSP172 ¥107,000
C8698A — Charger, Battery
C8698-28010 note Charger, Battery
2018-09 → 2022-07 ended
NSP172 ¥44,400
G9280C — Battery Assy, Wheel Chair
G9280-28080 note Battery Assy, Wheel Chair
2018-09 → 2022-07 ended
NSP172 ¥96,400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
