Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

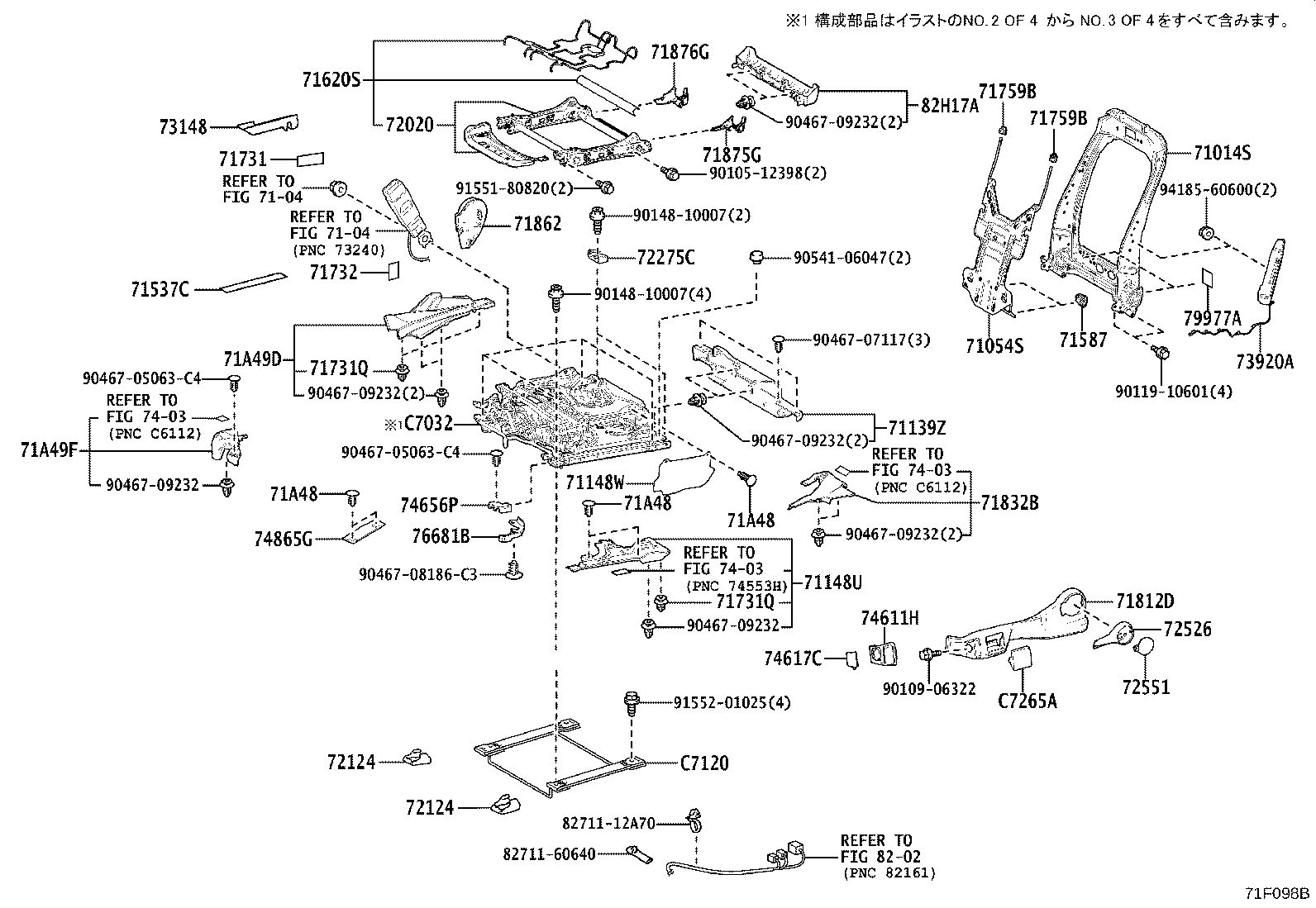

Exploded illustration 71F098B 8202 — not listed in this catalogue 9014810007 — not listed in this catalogue 72275C — STOPPER, FRONT SEAT TRACK SLIDE (2 parts) 9155201025 — not listed in this catalogue 8271160640 — not listed in this catalogue 8271112A70 — not listed in this catalogue 71014S — FRAME SUB-ASSY, FRONT SEATBACK, LH (2 parts) 71054S — SPRING SUB-ASSY, FRONT SEATBACK, LH (2 parts) 71A48 — CLIP, FRONT SEAT LEG COVER, LH (2 parts) 71587 — PROTECTOR, FRONT SEATBACK EDGE (41 parts) 79977A — FELT, SEATBACK (4 parts) 71620S — SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (12 parts) 71759B — HOOK, FRONT SEATBACK (2 parts) 71759B — HOOK, FRONT SEATBACK (2 parts) 71812D — SHIELD, FRONT SEAT CUSHION, LH (37 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (15 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (2 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (2 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (4 parts) 72526 — HANDLE, RECLINING ADJUSTER RELEASE, LH (2 parts) 72551 — COVER, RECLINING HINGE, NO.1 (2 parts) C7032 — SWIVEL SUB-ASSY, FRONT SEAT, LH (2 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (12 parts) 74611H — GRIP, ASSIST (2 parts) 74617C — PLUG, ASSIST GRIP (2 parts) 82H17A — PROTECTOR, WIRING HARNESS, LH (1 parts) C7265A — HANDLE, SEAT TURN LOCK, LH (2 parts) 9010512398 — not listed in this catalogue 9010906322 — not listed in this catalogue 9011910601 — not listed in this catalogue 9046707117 — not listed in this catalogue 9046709232 — not listed in this catalogue 9046709232 — not listed in this catalogue 9155180820 — not listed in this catalogue 9418560600 — not listed in this catalogue 71139Z — COVER, FRONT SEAT LEG, LH (2 parts) 7403 — not listed in this catalogue 71832B — COVER, FRONT SEAT HINGE, LH (2 parts) 9046709232 — not listed in this catalogue 71A48 — CLIP, FRONT SEAT LEG COVER, LH (2 parts) 71148W — COVER, FRONT SEAT LEG, OUTER NO.2(FOR LH SEAT) (2 parts) 71148U — COVER, FRONT SEAT LEG, OUTER NO.1(FOR LH SEAT) (2 parts) 71731Q — FASTENER, SEAT COVER, LH (2 parts) 9046709232 — not listed in this catalogue 7403 — not listed in this catalogue 9046708186C3 — not listed in this catalogue 74656P — COVER, HAND RAIL BAR, LH (2 parts) 76681B — COVER, OUTSIDE MOULDING END, NO.1 LH (2 parts) 9046705063C4 — not listed in this catalogue 74865G — COVER, CENTER PROTECTOR, LH (2 parts) 71A48 — CLIP, FRONT SEAT LEG COVER, LH (2 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (2 parts) C7120 — LEG, WELCAB SEAT, NO.1 (10 parts) 7403 — not listed in this catalogue 71A49F — COVER, FRONT SEAT LEG, INNER NO.2(FOR LH SEAT) (2 parts) 9046709232 — not listed in this catalogue 9046709232 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 9046705063C4 — not listed in this catalogue 71731Q — FASTENER, SEAT COVER, LH (2 parts) 71A49D — COVER, FRONT SEAT LEG, INNER NO.1(FOR LH SEAT) (2 parts) 9014810007 — not listed in this catalogue 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (2 parts) 9054106047 — not listed in this catalogue 71732 — FASTENER, SEAT COVER, B (FOR FRONT SEAT) (2 parts) 71731 — FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) (2 parts) 73148 — COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, LH (2 parts) 71537C — PROTECTOR, FRONT SEAT CUSHION EDGE, RH (2 parts)
71F098B · 42 callouts, 27 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
192 parts on this figure
Part number Description Fitment Price
71014S — Frame Sub-assy, Front Seatback, LH
71014-K0071 note Frame Sub-assy, Front Seatback, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥14,800
71014-K0071 note Frame Sub-assy, Front Seatback, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥14,800
71054S — Spring Sub-assy, Front Seatback, LH
71053-47050 note Spring Sub-assy, Front Seatback, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,200
71053-47050 note Spring Sub-assy, Front Seatback, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥5,200
71139Z — Cover, Front Seat Leg, LH
71139-52050-C0 note Cover, Front Seat Leg, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,860
71139-52050-C0 note Cover, Front Seat Leg, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥1,860
71148U — Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT)
71148-52070-C0 note Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,360
71148-52070-C0 note Cover, Front Seat Leg, Outer NO.1(FOR LH SEAT)
2018-09 → —
NCP175,NHP170,NSP17# ¥2,360
71148W — Cover, Front Seat Leg, Outer NO.2(FOR LH SEAT)
71148-52090 note Cover, Front Seat Leg, Outer NO.2(FOR LH SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥620
71148-52090 note Cover, Front Seat Leg, Outer NO.2(FOR LH SEAT)
2018-09 → —
NCP175,NHP170,NSP17# ¥620
71537C — Protector, Front Seat Cushion Edge, RH
71537-D1060 note Protector, Front Seat Cushion Edge, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
71537-D1060 note Protector, Front Seat Cushion Edge, RH
2018-09 → —
NCP175,NHP170,NSP17# —
71587 — Protector, Front Seatback Edge
71587-47010 note Protector, Front Seatback Edge
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NSP172 ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NSP172 ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NSP172 ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NSP172 X ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥530
71587-52040 Protector, Front Seatback Edge
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥530
71587-52040 note Protector, Front Seatback Edge
2015-06 → 2018-09 ended
NSP172 X ¥530
71587-52040 note Protector, Front Seatback Edge
2015-06 → 2018-09 ended
NSP172 X ¥530
71587-52040 note Protector, Front Seatback Edge
2015-12 → 2018-09 ended
NSP172 ¥530
71587-47010 note Protector, Front Seatback Edge
2018-09 → —
NCP175,NHP170,NSP17# ¥200
71587-52040 note Protector, Front Seatback Edge
2020-06 → 2022-07 ended
NSP172 WKG ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2022-07 ended
NSP172 WKX ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2022-07 ended
NSP172 ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2022-07 ended
NSP172 WKX ¥530
71587-52040 Protector, Front Seatback Edge
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥530
71587-52040 note Protector, Front Seatback Edge
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥530
71587-52040 note Protector, Front Seatback Edge
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥530
71587-52040 note Protector, Front Seatback Edge
2020-06 → 2022-07 ended
NSP172 WKG ¥530
71587-52040 note Protector, Front Seatback Edge
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥530
71587-52040 note Protector, Front Seatback Edge
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2022-07 ended
NSP172 ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2020-06 ended
NSP172 WKX ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2020-06 ended
NSP172 ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2020-06 ended
NSP172 ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2020-06 ended
NSP172 WKX ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G,X ¥530
71587-52040 note Protector, Front Seatback Edge
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥530
71620S — Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71610-52380 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥12,400
71620-52320 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥28,400
71620-D1010 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥13,600
71620-D1010 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥13,600
71620-D1010 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-12 → 2018-09 ended
NSP172 ¥13,600
71620-D1010 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2015-12 → 2018-09 ended
NSP172 X ¥13,600
71610-52380 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → —
NCP175,NHP170,NSP17# ¥12,400
71620-52320 Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥28,400
71620-D1010 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥13,600
71620-D1010 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2022-07 ended
NSP172 ¥13,600
71620-D1010 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2022-07 ended
NSP172 WKX ¥13,600
71620-D1010 note Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥13,600
71731 — Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
71731-D1260 note Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
71731-D1260 note Fastener Sub-assy, Seat Cover, A (FOR FRONT SEAT)
2018-09 → —
NCP175,NHP170,NSP17# —
71731Q — Fastener, Seat Cover, LH
71731-52010 note Fastener, Seat Cover, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
71731-52010 note Fastener, Seat Cover, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥200
71732 — Fastener, Seat Cover, B (FOR FRONT SEAT)
71732-D1010 note Fastener, Seat Cover, B (FOR FRONT SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# —
71732-D1010 note Fastener, Seat Cover, B (FOR FRONT SEAT)
2018-09 → —
NCP175,NHP170,NSP17# —
71759B — Hook, Front Seatback
71759-50040 note Hook, Front Seatback
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥130
71759-50040 note Hook, Front Seatback
2018-09 → —
NCP175,NHP170,NSP17# ¥130
71812D — Shield, Front Seat Cushion, LH
71812-52430-C0 note Shield, Front Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥3,360
71812-52500-C0 note Shield, Front Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,830
71812-D1170-C0 note Shield, Front Seat Cushion, LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,240
71812-D1170-C0 note Shield, Front Seat Cushion, LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,240
71812-D1170-C0 note Shield, Front Seat Cushion, LH
2015-12 → 2018-09 ended
NSP172 ¥3,240
71812-D1170-C0 note Shield, Front Seat Cushion, LH
2015-12 → 2018-09 ended
NSP172 X ¥3,240
71812-52430-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥3,360
71812-52430-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥3,360
71812-52430-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥3,360
71812-52430-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2019-10 → 2020-06 ended
NHP170,NSP170 FNBSG ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2019-10 → 2020-06 ended
NCP175,NHP170,NSP170 G ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2020-06 → 2022-07 ended
NHP170,NSP170 FNBSG ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2020-06 → 2022-07 ended
NSP172 WKG ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2020-06 ended
NHP170,NSP170 FNBSG ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 G ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2019-10 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2019-10 → 2021-06 ended
NHP170,NSP170 FNBSG ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2020-06 → 2021-06 ended
NCP175,NHP170,NSP170 G ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2020-06 → 2021-06 ended
NHP170,NSP170 FNBSG ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSX,GCERO ¥3,360
71812-52440-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥3,360
71812-52500-C0 note Shield, Front Seat Cushion, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥2,830
71812-D1170-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NSP172 WKX ¥3,240
71812-D1170-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,240
71812-D1170-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,240
71812-D1170-C0 note Shield, Front Seat Cushion, LH
2018-09 → 2022-07 ended
NSP172 ¥3,240
71832B — Cover, Front Seat Hinge, LH
71831-52040-C0 note Cover, Front Seat Hinge, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,620
71831-52040-C0 note Cover, Front Seat Hinge, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥1,620
71862 — Shield, Front Seat Cushion, Inner LH
71862-52250-C0 note Shield, Front Seat Cushion, Inner LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,830
71862-52260-C0 note Shield, Front Seat Cushion, Inner LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,540
71862-D1140-C0 note Shield, Front Seat Cushion, Inner LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,630
71862-D1140-C0 note Shield, Front Seat Cushion, Inner LH
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,630
71862-D1140-C0 note Shield, Front Seat Cushion, Inner LH
2015-12 → 2018-09 ended
NSP172 ¥1,630
71862-D1140-C0 note Shield, Front Seat Cushion, Inner LH
2015-12 → 2018-09 ended
NSP172 X ¥1,630
71862-52250-C0 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,830
71862-52250-C0 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥2,830
71862-52250-C0 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,830
71862-52250-C0 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥2,830
71862-52260-C0 note Shield, Front Seat Cushion, Inner LH
2018-09 → —
NCP175,NHP170,NSP17# ¥1,540
71862-D1140-C0 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,630
71862-D1140-C0 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,630
71862-D1140-C0 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2022-07 ended
NSP172 ¥1,630
71862-D1140-C0 note Shield, Front Seat Cushion, Inner LH
2018-09 → 2022-07 ended
NSP172 WKX ¥1,630
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875-52500-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,090
71875-52500-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2018-09 → —
NCP175,NHP170,NSP17# ¥1,090
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-52430-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,090
71876-52430-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2018-09 → —
NCP175,NHP170,NSP17# ¥1,090
71A48 — Clip, Front Seat Leg Cover, LH
90467-05161-C9 note Clip, Front Seat Leg Cover, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥60
90467-05161-C9 note Clip, Front Seat Leg Cover, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥60
71A49D — Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
71149-52060-C0 note Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,240
71149-52060-C0 note Cover, Front Seat Leg, Inner NO.1(FOR LH SEAT)
2018-09 → —
NCP175,NHP170,NSP17# ¥2,240
71A49F — Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
71149-52080-C0 note Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,600
71149-52080-C0 note Cover, Front Seat Leg, Inner NO.2(FOR LH SEAT)
2018-09 → —
NCP175,NHP170,NSP17# ¥1,600
72020 — Adjuster Assy, Front Seat, LH
72010-52C30 note Adjuster Assy, Front Seat, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥10,200
72740-42060 note Adjuster Assy, Front Seat, LH
2015-06 → 2018-09 ended
NSP172 X ¥11,800
72740-42060 note Adjuster Assy, Front Seat, LH
2015-06 → 2018-09 ended
NSP172 X ¥11,800
72010-52C30 note Adjuster Assy, Front Seat, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥10,200
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥370
72123-K0020-C0 note Cover, Seat Track Bracket, Outer Front LH
2018-09 → —
NCP175,NHP170,NSP17# ¥370
72275C — Stopper, Front Seat Track Slide
71302-D1030 note Stopper, Front Seat Track Slide
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,060
71302-D1030 note Stopper, Front Seat Track Slide
2018-09 → —
NCP175,NHP170,NSP17# ¥1,060
72526 — Handle, Reclining Adjuster Release, LH
72526-52090-C0 note Handle, Reclining Adjuster Release, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,300
72526-52090-C0 note Handle, Reclining Adjuster Release, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥1,300
72551 — Cover, Reclining Hinge, NO.1
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥590
72551-47030-C1 note Cover, Reclining Hinge, NO.1
2018-09 → —
NCP175,NHP170,NSP17# ¥590
73148 — Cover, Front Seat Belt Inner Anchor Bracket, LH
73198-D1020 note Cover, Front Seat Belt Inner Anchor Bracket, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥280
73198-D1020 note Cover, Front Seat Belt Inner Anchor Bracket, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥280
73920A — Airbag Assy, Front Seat, LH
73920-52100 note Airbag Assy, Front Seat, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥22,100
73920-52100 note Airbag Assy, Front Seat, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥22,100
73920-52100 note Airbag Assy, Front Seat, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥22,100
73920-52100 note Airbag Assy, Front Seat, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥22,100
73920-52280 note Airbag Assy, Front Seat, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥20,000
73920-52100 note Airbag Assy, Front Seat, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥22,100
73920-52100 note Airbag Assy, Front Seat, LH
2019-10 → 2020-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥22,100
73920-52100 note Airbag Assy, Front Seat, LH
2019-10 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥22,100
73920-52100 note Airbag Assy, Front Seat, LH
2020-06 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥22,100
73920-52100 note Airbag Assy, Front Seat, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥22,100
73920-52100 note Airbag Assy, Front Seat, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNGCR,G,GCERO,WKG ¥22,100
73920-52280 note Airbag Assy, Front Seat, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥20,000
74611H — Grip, Assist
C7145-52010-C0 note Grip, Assist
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥960
C7145-52010-C0 note Grip, Assist
2018-09 → —
NCP175,NHP170,NSP17# ¥960
74617C — Plug, Assist Grip
74617-52020-C0 note Plug, Assist Grip
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
74617-52020-C0 note Plug, Assist Grip
2018-09 → —
NCP175,NHP170,NSP17# ¥200
74656P — Cover, Hand Rail Bar, LH
74656-52020-C0 note Cover, Hand Rail Bar, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥500
74656-52020-C0 note Cover, Hand Rail Bar, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥500
74865G — Cover, Center Protector, LH
74865-52020-C0 note Cover, Center Protector, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥500
74865-52020-C0 note Cover, Center Protector, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥500
76681B — Cover, Outside Moulding End, NO.1 LH
76681-52020 note Cover, Outside Moulding End, NO.1 LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥370
76681-52020 note Cover, Outside Moulding End, NO.1 LH
2018-09 → —
NCP175,NHP170,NSP17# ¥370
79977A — Felt, Seatback
79977-52240 note Felt, Seatback
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
79977-52190 note Felt, Seatback
2018-09 → 2020-06 ended
NSP172 WKX ¥900
79977-52190 note Felt, Seatback
2018-09 → 2022-07 ended
NSP172 WKX ¥900
79977-52240 note Felt, Seatback
2018-09 → —
NCP175,NHP170,NSP17# ¥540
82H17A — Protector, Wiring Harness, LH
82817-52Q00-C0 note Protector, Wiring Harness, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,600
C7032 — Swivel Sub-assy, Front Seat, LH
C7032-52010 note Swivel Sub-assy, Front Seat, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥98,000
C7032-52010 note Swivel Sub-assy, Front Seat, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥98,000
C7120 — Leg, Welcab Seat, NO.1
C7120-D1730 note Leg, Welcab Seat, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥24,200
C7120-D1730 note Leg, Welcab Seat, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥24,200
C7120-D1730 note Leg, Welcab Seat, NO.1
2015-12 → 2018-09 ended
NSP172 ¥24,200
C7120-D1730 note Leg, Welcab Seat, NO.1
2015-12 → 2018-09 ended
NSP172 X ¥24,200
C7120-D1C90 note Leg, Welcab Seat, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥15,500
C7120-D1730 note Leg, Welcab Seat, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥24,200
C7120-D1730 note Leg, Welcab Seat, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥24,200
C7120-D1730 note Leg, Welcab Seat, NO.1
2018-09 → 2022-07 ended
NSP172 ¥24,200
C7120-D1730 note Leg, Welcab Seat, NO.1
2018-09 → 2022-07 ended
NSP172 WKX ¥24,200
C7120-D1C90 note Leg, Welcab Seat, NO.1
2018-09 → —
NCP175,NHP170,NSP17# ¥15,500
C7265A — Handle, Seat Turn Lock, LH
C7265-52010-C0 note Handle, Seat Turn Lock, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥600
C7265-52010-C0 note Handle, Seat Turn Lock, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
