Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

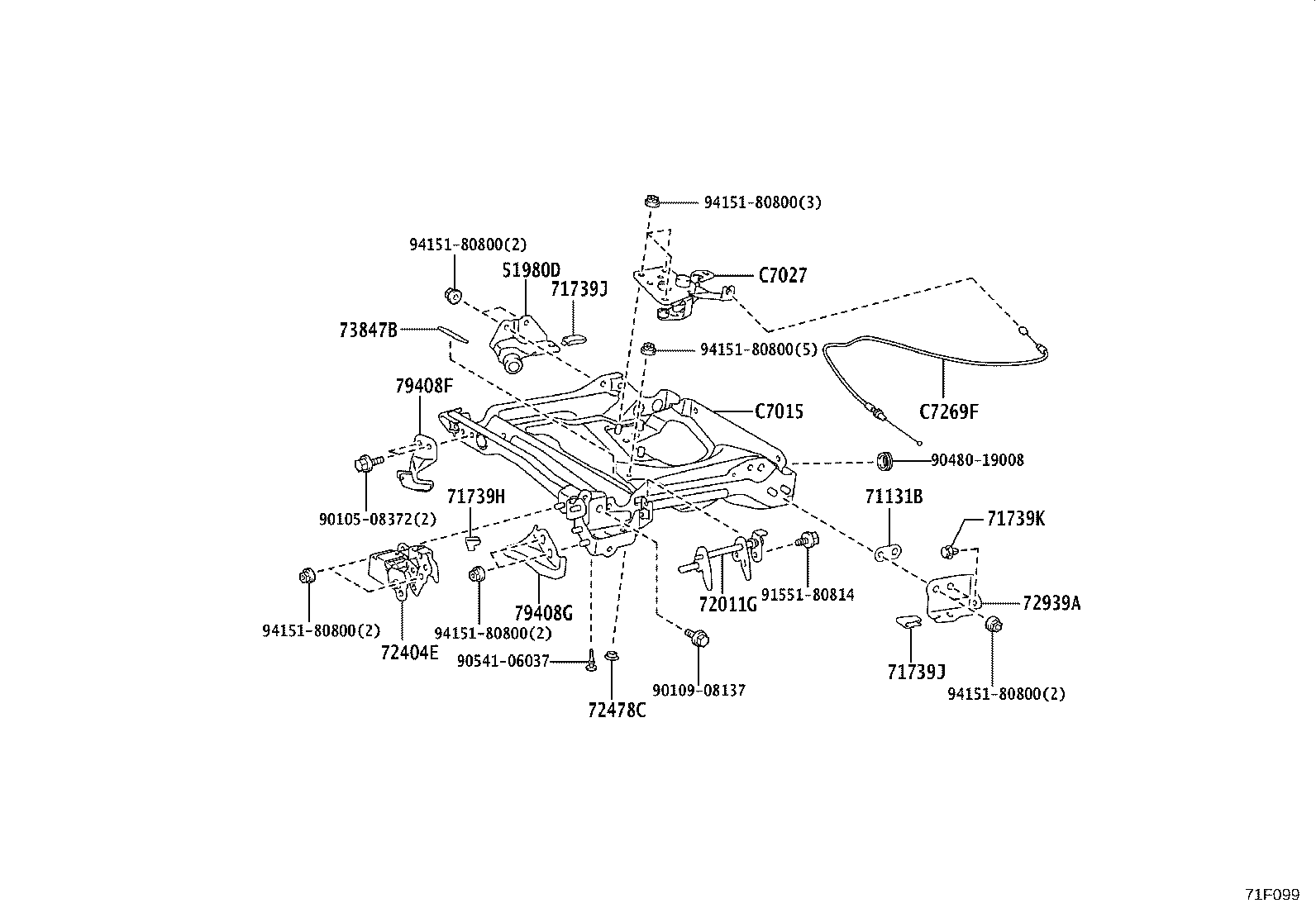

Exploded illustration 71F099 51980D — HOOK ASSY, PINTLE, LH (2 parts) 71739H — CUSHION, SEAT SUPPORT, LH NO.1 (2 parts) 71739J — CUSHION, SEAT SUPPORT, LH NO.2 (2 parts) 71739J — CUSHION, SEAT SUPPORT, LH NO.2 (2 parts) 71739K — CUSHION, SEAT SUPPORT, LH NO.3 (2 parts) 72939A — HOOK, SEAT TURN LOCK, LH (2 parts) 72011G — HINGE SUB-ASSY, FRONT SEAT, LH (2 parts) 72404E — LINK SUB-ASSY, FRONT SEAT ADJUSTER, LH NO.2 (2 parts) 72478C — BUSH, VERTICAL ADJUSTER, LH (2 parts) 73847B — CUSHION, SEAT SUSPENSION STOPPER, LH (2 parts) 79408F — HOOK SUB-ASSY, NO.4 SEAT, INNER LH (2 parts) 79408G — HOOK SUB-ASSY, NO.4 SEAT, OUTER LH (2 parts) C7015 — PANEL SUB-ASSY, TURN TABLE (10 parts) C7027 — LOCK SUB-ASSY, WELCAB SEAT TURN (10 parts) C7269F — CABLE, SEAT TURN LOCK RELEASE, LH NO.1 (2 parts) 9010508372 — not listed in this catalogue 9010908137 — not listed in this catalogue 9048019008 — not listed in this catalogue 9155180814 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9054106037 — not listed in this catalogue 9415180800 — not listed in this catalogue 71131B — PLATE, FRONT SEAT CUSHION, NO.1 (2 parts)
71F099 · 16 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
51980D — Hook Assy, Pintle, LH
51980-D1040 note Hook Assy, Pintle, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥700
51980-D1040 note Hook Assy, Pintle, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥700
71131B — Plate, Front Seat Cushion, NO.1
71131-D1040 note Plate, Front Seat Cushion, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥140
71131-D1040 note Plate, Front Seat Cushion, NO.1
2018-09 → —
NCP175,NHP170,NSP17# ¥140
71739H — Cushion, Seat Support, LH NO.1
71739-D1160 note Cushion, Seat Support, LH NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
71739-D1160 note Cushion, Seat Support, LH NO.1
2018-09 → —
NCP175,NHP170,NSP17# ¥200
71739J — Cushion, Seat Support, LH NO.2
71739-D1120 note Cushion, Seat Support, LH NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥130
71739-D1120 note Cushion, Seat Support, LH NO.2
2018-09 → —
NCP175,NHP170,NSP17# ¥130
71739K — Cushion, Seat Support, LH NO.3
71739-D1210 note Cushion, Seat Support, LH NO.3
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥130
71739-D1210 note Cushion, Seat Support, LH NO.3
2018-09 → —
NCP175,NHP170,NSP17# ¥130
72011G — Hinge Sub-assy, Front Seat, LH
72011-D1030 note Hinge Sub-assy, Front Seat, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥580
72011-D1030 note Hinge Sub-assy, Front Seat, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥580
72404E — Link Sub-assy, Front Seat Adjuster, LH NO.2
72404-D1080 note Link Sub-assy, Front Seat Adjuster, LH NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,080
72404-D1080 note Link Sub-assy, Front Seat Adjuster, LH NO.2
2018-09 → —
NCP175,NHP170,NSP17# ¥3,080
72478C — Bush, Vertical Adjuster, LH
72478-D1020 note Bush, Vertical Adjuster, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥110
72478-D1020 note Bush, Vertical Adjuster, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥110
72939A — Hook, Seat Turn Lock, LH
72939-D1080 note Hook, Seat Turn Lock, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥570
72939-D1080 note Hook, Seat Turn Lock, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥570
73847B — Cushion, Seat Suspension Stopper, LH
73847-D1010 note Cushion, Seat Suspension Stopper, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
73847-D1010 note Cushion, Seat Suspension Stopper, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥100
79408F — Hook Sub-assy, NO.4 Seat, Inner LH
79408-D1020 note Hook Sub-assy, NO.4 Seat, Inner LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥890
79408-D1020 note Hook Sub-assy, NO.4 Seat, Inner LH
2018-09 → —
NCP175,NHP170,NSP17# ¥890
79408G — Hook Sub-assy, NO.4 Seat, Outer LH
79408-D1060 note Hook Sub-assy, NO.4 Seat, Outer LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥890
79408-D1060 note Hook Sub-assy, NO.4 Seat, Outer LH
2018-09 → —
NCP175,NHP170,NSP17# ¥890
C7015 — Panel Sub-assy, Turn Table
C7015-D1360 note Panel Sub-assy, Turn Table
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2015-12 → 2018-09 ended
NSP172 ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2015-12 → 2018-09 ended
NSP172 X ¥69,200
C7015-D1380 note Panel Sub-assy, Turn Table
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥62,800
C7015-D1360 note Panel Sub-assy, Turn Table
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2018-09 → 2022-07 ended
NSP172 ¥69,200
C7015-D1360 note Panel Sub-assy, Turn Table
2018-09 → 2022-07 ended
NSP172 WKX ¥69,200
C7015-D1380 note Panel Sub-assy, Turn Table
2018-09 → —
NCP175,NHP170,NSP17# ¥62,800
C7027 — Lock Sub-assy, Welcab Seat Turn
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2015-12 → 2018-09 ended
NSP172 X ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2015-12 → 2018-09 ended
NSP172 ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥8,700
C7027-D1210 note Lock Sub-assy, Welcab Seat Turn
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥7,800
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2018-09 → 2022-07 ended
NSP172 ¥8,700
C7027-D1140 note Lock Sub-assy, Welcab Seat Turn
2018-09 → 2022-07 ended
NSP172 WKX ¥8,700
C7027-D1210 note Lock Sub-assy, Welcab Seat Turn
2018-09 → —
NCP175,NHP170,NSP17# ¥7,800
C7269F — Cable, Seat Turn Lock Release, LH NO.1
C7269-D1150 note Cable, Seat Turn Lock Release, LH NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,250
C7269-D1150 note Cable, Seat Turn Lock Release, LH NO.1
2018-09 → —
NCP175,NHP170,NSP17# ¥1,250
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
