Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

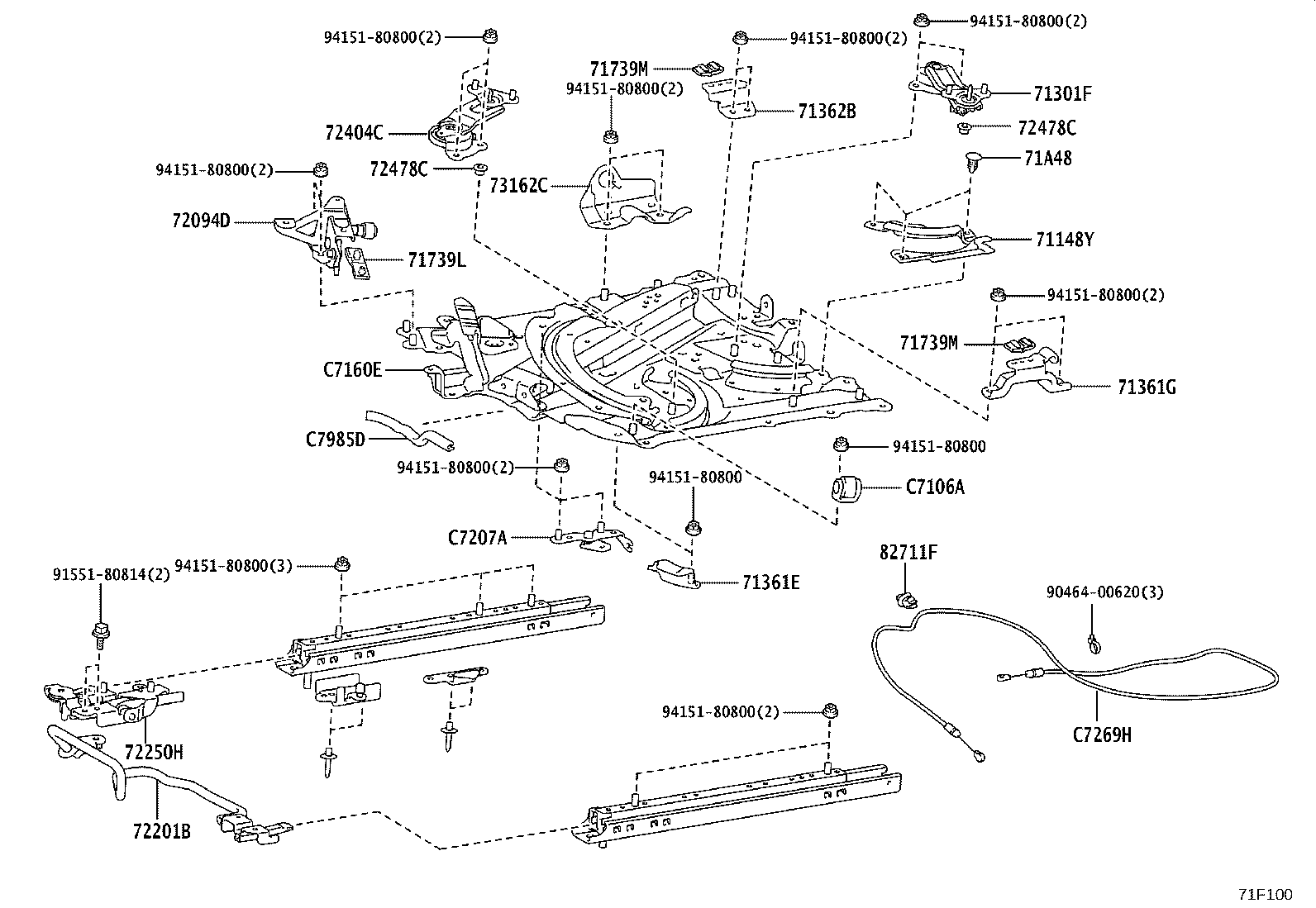

Exploded illustration 71F100 71148Y — COVER, FRONT SEAT LEG, OUTER LH (2 parts) 71A48 — CLIP, FRONT SEAT LEG COVER, LH (2 parts) 71301F — LINK SUB-ASSY, REAR SEAT CUSHION, LH (2 parts) 71361E — BRACKET, FRONT SEAT SET, NO.1 FRONT OUTER(FOR LH SEAT) (2 parts) 71361G — BRACKET, FRONT SEAT SET, NO.1 REAR OUTER(FOR LH SEAT) (2 parts) 71362B — BRACKET, FRONT SEAT SET, NO.2 REAR INNER(FOR LH SEAT) (2 parts) 71739L — CUSHION, SEAT SUPPORT, LH NO.4 (6 parts) 71739M — CUSHION, SEAT SUPPORT, LH NO.5 (2 parts) 71739M — CUSHION, SEAT SUPPORT, LH NO.5 (2 parts) 72094D — LOCK SUB-ASSY, FRONT SEAT TURN, LH (2 parts) 72201B — HANDLE SUB-ASSY, SEAT TRACK LH (6 parts) 72250H — LOCK ASSY, FRONT SEAT, LH (2 parts) 72404C — LINK SUB-ASSY, FRONT SEAT ADJUSTER, LH NO.1 (2 parts) 72478C — BUSH, VERTICAL ADJUSTER, LH (2 parts) 72478C — BUSH, VERTICAL ADJUSTER, LH (2 parts) 73162C — BRACKET, BELT ANCHOR BAR, REAR LH (2 parts) 82711F — CLAMP, WIRING HARNESS (2 parts) C7106A — ROLLER SUB-ASSY, SLIDE TABLE, LH (2 parts) C7207A — BRACKET SUB-ASSY, INTERLOCK, LOWER LH NO.1 (2 parts) C7269H — CABLE, SEAT TURN LOCK RELEASE, LH NO.2 (2 parts) C7985D — GUARD, REAR SEAT TURN, LH (2 parts) C7160E — PANEL ASSY, SLIDE TABLE, LH (2 parts) 9046400620 — not listed in this catalogue 9155180814 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue
71F100 · 22 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
71148Y — Cover, Front Seat Leg, Outer LH
71148-D1190 note Cover, Front Seat Leg, Outer LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥850
71148-D1190 note Cover, Front Seat Leg, Outer LH
2018-09 → —
NCP175,NHP170,NSP17# ¥850
71301F — Link Sub-assy, Rear Seat Cushion, LH
71301-D1020 note Link Sub-assy, Rear Seat Cushion, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,350
71301-D1020 note Link Sub-assy, Rear Seat Cushion, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥2,350
71361E — Bracket, Front Seat Set, NO.1 Front Outer(FOR LH SEAT)
71361-D1070 note Bracket, Front Seat Set, NO.1 Front Outer(FOR LH SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥680
71361-D1070 note Bracket, Front Seat Set, NO.1 Front Outer(FOR LH SEAT)
2018-09 → —
NCP175,NHP170,NSP17# ¥680
71361G — Bracket, Front Seat Set, NO.1 Rear Outer(FOR LH SEAT)
71361-D1060 note Bracket, Front Seat Set, NO.1 Rear Outer(FOR LH SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥760
71361-D1060 note Bracket, Front Seat Set, NO.1 Rear Outer(FOR LH SEAT)
2018-09 → —
NCP175,NHP170,NSP17# ¥760
71362B — Bracket, Front Seat Set, NO.2 Rear Inner(FOR LH SEAT)
71362-D1060 note Bracket, Front Seat Set, NO.2 Rear Inner(FOR LH SEAT)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥460
71362-D1060 note Bracket, Front Seat Set, NO.2 Rear Inner(FOR LH SEAT)
2018-09 → —
NCP175,NHP170,NSP17# ¥460
71739L — Cushion, Seat Support, LH NO.4
71739-D1140 note Cushion, Seat Support, LH NO.4
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥460
71739-D1180 note Cushion, Seat Support, LH NO.4
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥460
71739-D1190 note Cushion, Seat Support, LH NO.4
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥480
71739-D1140 note Cushion, Seat Support, LH NO.4
2018-09 → —
NCP175,NHP170,NSP17# ¥460
71739-D1180 note Cushion, Seat Support, LH NO.4
2018-09 → —
NCP175,NHP170,NSP17# ¥460
71739-D1190 note Cushion, Seat Support, LH NO.4
2018-09 → —
NCP175,NHP170,NSP17# ¥480
71739M — Cushion, Seat Support, LH NO.5
71739-D1200 note Cushion, Seat Support, LH NO.5
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥460
71739-D1200 note Cushion, Seat Support, LH NO.5
2018-09 → —
NCP175,NHP170,NSP17# ¥460
71A48 — Clip, Front Seat Leg Cover, LH
90467-05161-C9 note Clip, Front Seat Leg Cover, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥60
90467-05161-C9 note Clip, Front Seat Leg Cover, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥60
72094D — Lock Sub-assy, Front Seat Turn, LH
72094-D1040 note Lock Sub-assy, Front Seat Turn, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,110
72094-D1040 note Lock Sub-assy, Front Seat Turn, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥2,110
72201B — Handle Sub-assy, Seat Track LH
72201-52060 note Handle Sub-assy, Seat Track LH
2015-06 → 2018-09 ended
NSP172 X ¥1,210
72201-52060 note Handle Sub-assy, Seat Track LH
2015-06 → 2018-09 ended
NSP172 X ¥1,210
72201-D1020 note Handle Sub-assy, Seat Track LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,090
72201-52060 note Handle Sub-assy, Seat Track LH
2018-09 → 2022-07 ended
NSP172 WKX ¥1,210
72201-52060 note Handle Sub-assy, Seat Track LH
2018-09 → 2020-06 ended
NSP172 WKX ¥1,210
72201-D1020 note Handle Sub-assy, Seat Track LH
2018-09 → —
NCP175,NHP170,NSP17# ¥2,090
72250H — Lock Assy, Front Seat, LH
72250-D1030 note Lock Assy, Front Seat, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,130
72250-D1030 note Lock Assy, Front Seat, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥4,130
72404C — Link Sub-assy, Front Seat Adjuster, LH NO.1
72404-D1020 note Link Sub-assy, Front Seat Adjuster, LH NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥5,100
72404-D1020 note Link Sub-assy, Front Seat Adjuster, LH NO.1
2018-09 → —
NCP175,NHP170,NSP17# ¥5,100
72478C — Bush, Vertical Adjuster, LH
72478-D1020 note Bush, Vertical Adjuster, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥110
72478-D1020 note Bush, Vertical Adjuster, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥110
73162C — Bracket, Belt Anchor Bar, Rear LH
73162-D1020 note Bracket, Belt Anchor Bar, Rear LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥890
73162-D1020 note Bracket, Belt Anchor Bar, Rear LH
2018-09 → —
NCP175,NHP170,NSP17# ¥890
82711F — Clamp, Wiring Harness
82711-1E340 note Clamp, Wiring Harness
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥100
82711-1E340 note Clamp, Wiring Harness
2018-09 → —
NCP175,NHP170,NSP17# ¥100
C7106A — Roller Sub-assy, Slide Table, LH
C7106-D1040 note Roller Sub-assy, Slide Table, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,250
C7106-D1040 note Roller Sub-assy, Slide Table, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥3,250
C7160E — Panel Assy, Slide Table, LH
C7160-D1520 note Panel Assy, Slide Table, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥19,900
C7160-D1520 note Panel Assy, Slide Table, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥19,900
C7207A — Bracket Sub-assy, Interlock, Lower LH NO.1
C7207-D1080 note Bracket Sub-assy, Interlock, Lower LH NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥550
C7207-D1080 note Bracket Sub-assy, Interlock, Lower LH NO.1
2018-09 → —
NCP175,NHP170,NSP17# ¥550
C7269H — Cable, Seat Turn Lock Release, LH NO.2
C7269-D1161 note Cable, Seat Turn Lock Release, LH NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,470
C7269-D1161 note Cable, Seat Turn Lock Release, LH NO.2
2018-09 → —
NCP175,NHP170,NSP17# ¥1,470
C7985D — Guard, Rear Seat Turn, LH
C7985-D1060 note Guard, Rear Seat Turn, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥590
C7985-D1060 note Guard, Rear Seat Turn, LH
2018-09 → —
NCP175,NHP170,NSP17# ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
