Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

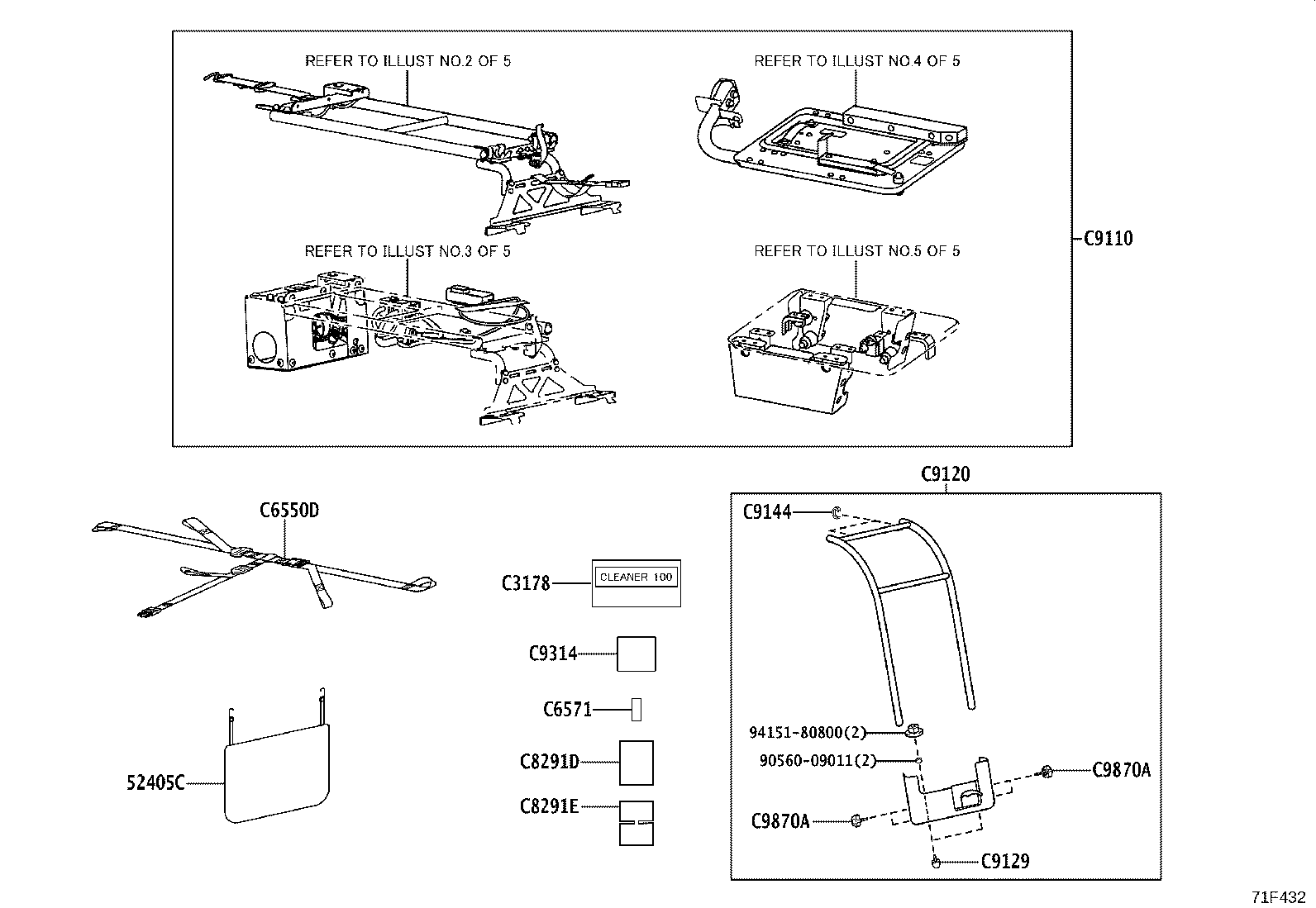

59 parts on this figure

Part number	Description	Fitment	Price
52405C — Guard Sub-assy, Rear Bumper
52405-D1120-B1 note	Guard Sub-assy, Rear Bumper 2015-06 → 2018-09 ended	NHP170,NSP170	¥4,520
52405-D1120-B1 note	Guard Sub-assy, Rear Bumper 2015-06 → 2018-09 ended	NCP175	¥4,520
52405-D1120-B1 note	Guard Sub-assy, Rear Bumper 2018-09 → —	NHP170,NSP170 07S	¥4,520
52405-D1120-B1 note	Guard Sub-assy, Rear Bumper 2018-09 → —	NHP170,NSP170 05S	¥4,520
52405-D1120-B1 note	Guard Sub-assy, Rear Bumper 2018-09 → —	NCP175	¥4,520
C3178 — Sheet, Header Panel
C3178-52040 note	Sheet, Header Panel 2015-06 → 2018-09 ended	NCP175	¥200
C3178-52040 note	Sheet, Header Panel 2015-06 → 2018-09 ended	NHP170,NSP170	¥200
C3178-52040 note	Sheet, Header Panel 2018-09 → —	NCP175	¥200
C3178-52040 note	Sheet, Header Panel 2018-09 → —	NHP170,NSP170 07S	¥200
C3178-52040 note	Sheet, Header Panel 2018-09 → —	NHP170,NSP170 05S	¥200
C6550D — Belt Assy, Wheel Chair Set, NO.1
C6550-52060-C1 note	Belt Assy, Wheel Chair Set, NO.1 2015-06 → 2018-09 ended	NSP172	¥19,300
C6550-66010 note	Belt Assy, Wheel Chair Set, NO.1 2015-06 → 2018-09 ended	NCP175	¥7,300
C6550-66030 note	Belt Assy, Wheel Chair Set, NO.1 2015-06 → 2018-09 ended	NHP170,NSP170	¥7,300
C6550-52060-C1 note	Belt Assy, Wheel Chair Set, NO.1 2018-09 → 2022-07 ended	NSP172	¥19,300
C6550-52120 note	Belt Assy, Wheel Chair Set, NO.1 2018-09 → —	NHP170,NSP170 05S	¥3,250
C6550-66010 note	Belt Assy, Wheel Chair Set, NO.1 2018-09 → —	NCP175	¥7,300
C6550-66030 note	Belt Assy, Wheel Chair Set, NO.1 2018-09 → —	NHP170,NSP170 07S	¥7,300
C6571 — Hook, Wheel Chair Belt
C6571-52050 note	Hook, Wheel Chair Belt 2015-06 → 2018-09 ended	NCP175	¥80
C6571-52050 note	Hook, Wheel Chair Belt 2015-06 → 2018-09 ended	NHP170,NSP170	¥80
C6571-52050 note	Hook, Wheel Chair Belt 2018-09 → —	NCP175	¥80
C6571-52050 note	Hook, Wheel Chair Belt 2018-09 → —	NHP170,NSP170 07S	¥80
C6571-52050 note	Hook, Wheel Chair Belt 2018-09 → —	NHP170,NSP170 05S	¥80
C8291D — Protector, Tecs Wiring Harness, NO.1
C8291-52010 note	Protector, Tecs Wiring Harness, NO.1 2015-06 → 2018-09 ended	NHP170,NSP170	¥160
C8291-52010 note	Protector, Tecs Wiring Harness, NO.1 2015-06 → 2018-09 ended	NCP175	¥160
C8291-52010 note	Protector, Tecs Wiring Harness, NO.1 2018-09 → —	NHP170,NSP170 07S	¥160
C8291-52010 note	Protector, Tecs Wiring Harness, NO.1 2018-09 → —	NCP175	¥160
C8291-52010 note	Protector, Tecs Wiring Harness, NO.1 2018-09 → —	NHP170,NSP170 05S	¥160
C8291E — Protector, Tecs Wiring Harness, NO.2
C8292-52010 note	Protector, Tecs Wiring Harness, NO.2 2015-06 → 2018-09 ended	NHP170,NSP170	¥200
C8292-52010 note	Protector, Tecs Wiring Harness, NO.2 2018-09 → —	NHP170,NSP170 07S	¥200
C9110 — Rail Assy, Power Lift Arm Guide, RH
C9110-66020 note	Rail Assy, Power Lift Arm Guide, RH 2015-06 → 2018-09 ended	NCP175	¥129,000
C9110-66020 note	Rail Assy, Power Lift Arm Guide, RH 2015-06 → 2018-09 ended	NHP170,NSP170	¥129,000
C9110-66010 note	Rail Assy, Power Lift Arm Guide, RH 2018-09 → —	NHP170,NSP170 05S	¥129,000
C9110-66020 note	Rail Assy, Power Lift Arm Guide, RH 2018-09 → —	NCP175	¥129,000
C9110-66020 note	Rail Assy, Power Lift Arm Guide, RH 2018-09 → —	NHP170,NSP170 07S	¥129,000
C9120 — Rail Assy, Power Lift Arm Guide, LH
C9120-52020 note	Rail Assy, Power Lift Arm Guide, LH 2015-06 → 2018-09 ended	NCP175	¥46,500
C9120-52020 note	Rail Assy, Power Lift Arm Guide, LH 2015-06 → 2018-09 ended	NHP170,NSP170	¥46,500
C9120-52011 note	Rail Assy, Power Lift Arm Guide, LH 2018-09 → —	NHP170,NSP170 05S	¥46,500
C9120-52020 note	Rail Assy, Power Lift Arm Guide, LH 2018-09 → —	NCP175	¥46,500
C9120-52020 note	Rail Assy, Power Lift Arm Guide, LH 2018-09 → —	NHP170,NSP170 07S	¥46,500
C9129 — Stopper, Power Lift Arm Guide
C9129-52010 note	Stopper, Power Lift Arm Guide 2015-06 → 2018-09 ended	NCP175	¥490
C9129-52010 note	Stopper, Power Lift Arm Guide 2015-06 → 2018-09 ended	NHP170,NSP170	¥490
C9129-52010 note	Stopper, Power Lift Arm Guide 2018-09 → —	NCP175	¥490
C9129-52010 note	Stopper, Power Lift Arm Guide 2018-09 → —	NHP170,NSP170 07S	¥490
C9129-52010 note	Stopper, Power Lift Arm Guide 2018-09 → —	NHP170,NSP170 05S	¥490
C9144 — Reinforce, Power Lift Beam
C9144-52060 note	Reinforce, Power Lift Beam 2015-06 → 2018-09 ended	NCP175	¥130
C9144-52060 note	Reinforce, Power Lift Beam 2015-06 → 2018-09 ended	NHP170,NSP170	¥130
C9144-52060 note	Reinforce, Power Lift Beam 2018-09 → —	NCP175	¥130
C9144-52060 note	Reinforce, Power Lift Beam 2018-09 → —	NHP170,NSP170 07S	¥130
C9144-52060 note	Reinforce, Power Lift Beam 2018-09 → —	NHP170,NSP170 05S	¥130
C9314 — Holder, Power Lift Platform, LH
C9314-52011 note	Holder, Power Lift Platform, LH 2015-06 → 2018-09 ended	NCP175	¥370
C9314-52011 note	Holder, Power Lift Platform, LH 2015-06 → 2018-09 ended	NHP170,NSP170	¥370
C9314-52011 note	Holder, Power Lift Platform, LH 2018-09 → —	NCP175	¥370
C9314-52011 note	Holder, Power Lift Platform, LH 2018-09 → —	NHP170,NSP170 07S	¥370
C9314-52011 note	Holder, Power Lift Platform, LH 2018-09 → —	NHP170,NSP170 05S	¥370
C9870A — Handle Assy, Crane, NO.2
C9870-52020 note	Handle Assy, Crane, NO.2 2015-06 → 2018-09 ended	NCP175	¥530
C9870-52020 note	Handle Assy, Crane, NO.2 2015-06 → 2018-09 ended	NHP170,NSP170	¥530
C9870-52020 note	Handle Assy, Crane, NO.2 2018-09 → —	NCP175	¥530
C9870-52020 note	Handle Assy, Crane, NO.2 2018-09 → —	NHP170,NSP170 07S	¥530
C9870-52020 note	Handle Assy, Crane, NO.2 2018-09 → —	NHP170,NSP170 05S	¥530

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
