Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

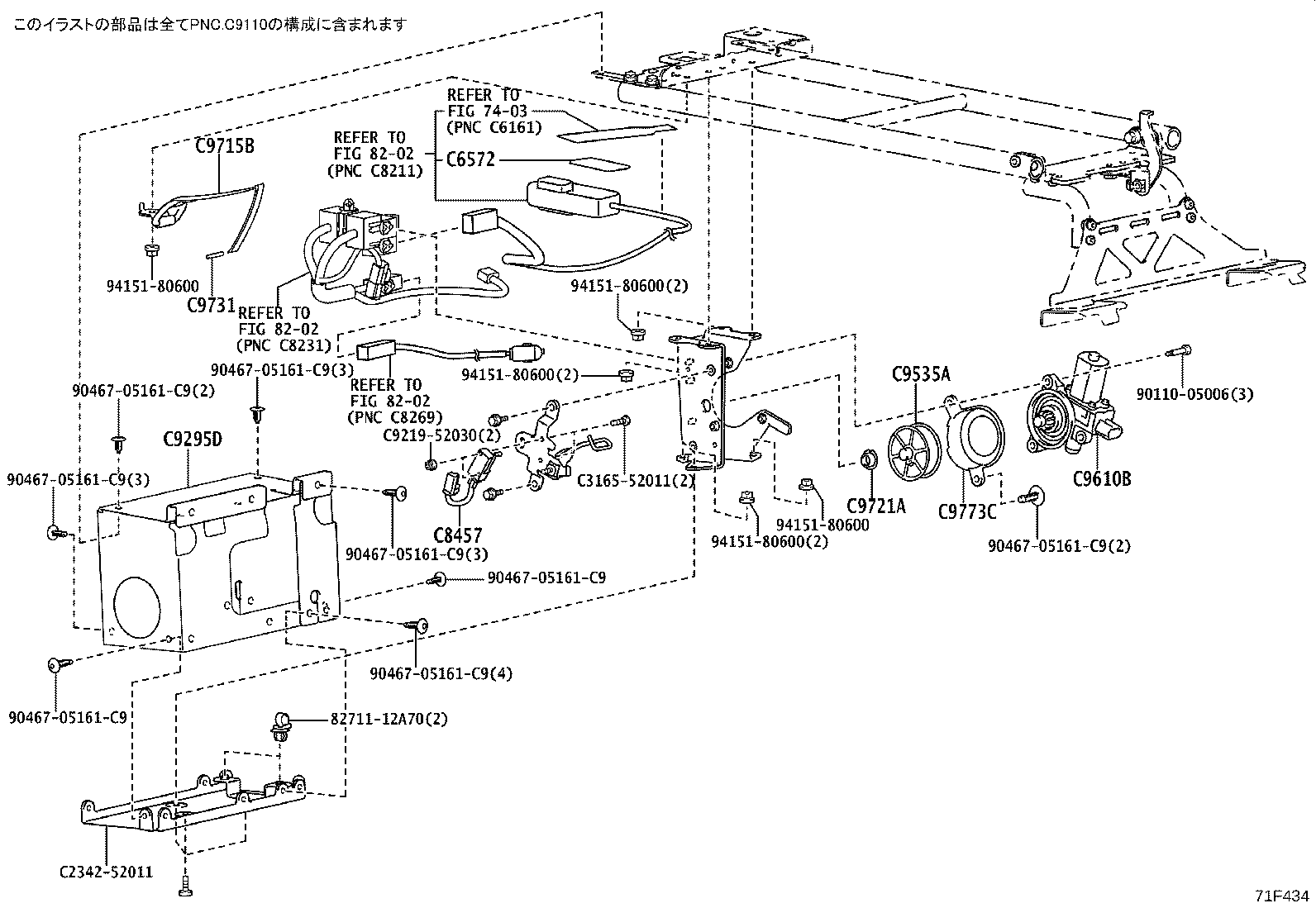

Exploded illustration 71F434 8202 — not listed in this catalogue 8202 — not listed in this catalogue 7403 — not listed in this catalogue 8202 — not listed in this catalogue C8457 — SWITCH, LIMIT, NO.2 (5 parts) C9295D — COVER, POWER LIFT WIRE, NO.1 (5 parts) C9731 — PIN, WINCH ROLLER, NO.1 (7 parts) C6572 — HOOK, WHEEL CHAIR BELT, NO.2 (5 parts) C9715B — BELT, WINCH (5 parts) C9535A — PULLEY, POWER LIFT (7 parts) C9721A — BEARING, NO.2 WINCH, NO.1 (7 parts) C9610B — MOTOR ASSY, POWER LIFT (7 parts) C9773C — COVER, WINCH BELT (5 parts) 9011005006 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue C316552011 — not listed in this catalogue 9415180600 — not listed in this catalogue 9415180600 — not listed in this catalogue C921952030 — not listed in this catalogue 9415180600 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 9046705161C9 — not listed in this catalogue 8271112A70 — not listed in this catalogue C234252011 — not listed in this catalogue
71F434 · 9 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
53 parts on this figure
Part number Description Fitment Price
C6572 — Hook, Wheel Chair Belt, NO.2
C6572-52030 note Hook, Wheel Chair Belt, NO.2
2015-06 → 2018-09 ended
NHP170,NSP170 ¥80
C6572-52030 note Hook, Wheel Chair Belt, NO.2
2015-06 → 2018-09 ended
NCP175 ¥80
C6572-52030 note Hook, Wheel Chair Belt, NO.2
2018-09 → —
NCP175 ¥80
C6572-52030 note Hook, Wheel Chair Belt, NO.2
2018-09 → —
NHP170,NSP170 07S ¥80
C6572-52030 note Hook, Wheel Chair Belt, NO.2
2018-09 → —
NHP170,NSP170 05S ¥80
C8457 — Switch, Limit, NO.2
C8457-52011 note Switch, Limit, NO.2
2015-06 → 2018-09 ended
NCP175 ¥6,800
C8457-52011 note Switch, Limit, NO.2
2015-06 → 2018-09 ended
NHP170,NSP170 ¥6,800
C8457-52011 note Switch, Limit, NO.2
2018-09 → —
NCP175 ¥6,800
C8457-52011 note Switch, Limit, NO.2
2018-09 → —
NHP170,NSP170 07S ¥6,800
C8457-52011 note Switch, Limit, NO.2
2018-09 → —
NHP170,NSP170 05S ¥6,800
C9295D — Cover, Power Lift Wire, NO.1
C9295-52021 note Cover, Power Lift Wire, NO.1
2015-06 → 2018-09 ended
NCP175 ¥1,170
C9295-52021 note Cover, Power Lift Wire, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥1,170
C9295-52021 note Cover, Power Lift Wire, NO.1
2018-09 → —
NHP170,NSP170 05S ¥1,170
C9295-52021 note Cover, Power Lift Wire, NO.1
2018-09 → —
NHP170,NSP170 07S ¥1,170
C9295-52021 note Cover, Power Lift Wire, NO.1
2018-09 → —
NCP175 ¥1,170
C9535A — Pulley, Power Lift
C9535-52030 note Pulley, Power Lift
2015-06 → 2018-09 ended
NCP175 ¥7,800
C9535-52030 note Pulley, Power Lift
2015-06 → 2018-09 ended
NHP170,NSP170 ¥7,800
C9535-D1060 note Pulley, Power Lift
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥8,700
C9535-52030 note Pulley, Power Lift
2018-09 → —
NCP175 ¥7,800
C9535-52030 note Pulley, Power Lift
2018-09 → —
NHP170,NSP170 07S ¥7,800
C9535-52030 note Pulley, Power Lift
2018-09 → —
NHP170,NSP170 05S ¥7,800
C9535-D1060 note Pulley, Power Lift
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥8,700
C9610B — Motor Assy, Power Lift
C9610-18030 note Motor Assy, Power Lift
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥7,400
C9610-52010 note Motor Assy, Power Lift
2015-06 → 2018-09 ended
NCP175 ¥11,600
C9610-52010 note Motor Assy, Power Lift
2015-06 → 2018-09 ended
NHP170,NSP170 ¥11,600
C9610-18030 note Motor Assy, Power Lift
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥7,400
C9610-52010 note Motor Assy, Power Lift
2018-09 → —
NCP175 ¥11,600
C9610-52010 note Motor Assy, Power Lift
2018-09 → —
NHP170,NSP170 05S ¥11,600
C9610-52010 note Motor Assy, Power Lift
2018-09 → —
NHP170,NSP170 07S ¥11,600
C9715B — Belt, Winch
C9715-52050 note Belt, Winch
2015-06 → 2018-09 ended
NCP175 ¥6,300
C9715-52050 note Belt, Winch
2015-06 → 2018-09 ended
NHP170,NSP170 ¥6,300
C9715-52041 note Belt, Winch
2018-09 → —
NHP170,NSP170 05S ¥7,300
C9715-52050 note Belt, Winch
2018-09 → —
NCP175 ¥6,300
C9715-52050 note Belt, Winch
2018-09 → —
NHP170,NSP170 07S ¥6,300
C9721A — Bearing, NO.2 Winch, NO.1
C9721-52020 note Bearing, NO.2 Winch, NO.1
2015-06 → 2018-09 ended
NCP175 ¥670
C9721-52020 note Bearing, NO.2 Winch, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥670
C9721-D1010 note Bearing, NO.2 Winch, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥3,350
C9721-52020 note Bearing, NO.2 Winch, NO.1
2018-09 → —
NHP170,NSP170 05S ¥670
C9721-52020 note Bearing, NO.2 Winch, NO.1
2018-09 → —
NHP170,NSP170 07S ¥670
C9721-52020 note Bearing, NO.2 Winch, NO.1
2018-09 → —
NCP175 ¥670
C9721-D1010 note Bearing, NO.2 Winch, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥3,350
C9731 — Pin, Winch Roller, NO.1
C9731-52040 note Pin, Winch Roller, NO.1
2015-06 → 2018-09 ended
NCP175 ¥70
C9731-52040 note Pin, Winch Roller, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥70
C9731-D1050 note Pin, Winch Roller, NO.1
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥90
C9731-52040 note Pin, Winch Roller, NO.1
2018-09 → —
NCP175 ¥70
C9731-52040 note Pin, Winch Roller, NO.1
2018-09 → —
NHP170,NSP170 07S ¥70
C9731-52040 note Pin, Winch Roller, NO.1
2018-09 → —
NHP170,NSP170 05S ¥70
C9731-D1050 note Pin, Winch Roller, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥90
C9773C — Cover, Winch Belt
C9773-52030 note Cover, Winch Belt
2015-06 → 2018-09 ended
NCP175 ¥300
C9773-52030 note Cover, Winch Belt
2015-06 → 2018-09 ended
NHP170,NSP170 ¥300
C9773-52030 note Cover, Winch Belt
2018-09 → —
NCP175 ¥300
C9773-52030 note Cover, Winch Belt
2018-09 → —
NHP170,NSP170 07S ¥300
C9773-52030 note Cover, Winch Belt
2018-09 → —
NHP170,NSP170 05S ¥300
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
