Exploded illustration 71F435 7403 — not listed in this catalogue C2747 — PROTECTOR, GUARD FRAME, LWR RH (5 parts) C9247 — PROTECTOR, POWER LIFT LINK, NO.1 (5 parts) C9221H — HOOK, POWER LIFT GUIDE (5 parts) C9564 — PROTECTOR, POWER LIFT CYLINDER COVER (7 parts) C9581B — HANDLE, POWER LIFT (5 parts) C9159 — SPACER, LIFT ARM GUIDE STOPPER (5 parts) C6571 — HOOK, WHEEL CHAIR BELT (5 parts) C9938B — COLLAR (7 parts) C6517 — BELT, PACKAGE HOLDER, NO.1 (5 parts) C9565A — COVER, POWER LIFT CYLINDER, NO.1 (5 parts) 9017906208 — not listed in this catalogue 9415180800 — not listed in this catalogue 9020108267 — not listed in this catalogue 9454201400 — not listed in this catalogue 9454201400 — not listed in this catalogue 9155180820 — not listed in this catalogue 9046705162C1 — not listed in this catalogue 9046705162C1 — not listed in this catalogue 9046705162C1 — not listed in this catalogue 9020213066 — not listed in this catalogue 9017906208 — not listed in this catalogue 9017906208 — not listed in this catalogue 9415180600 — not listed in this catalogue 9017906208 — not listed in this catalogue C947652020 — not listed in this catalogue C316652010 — not listed in this catalogue C316652010 — not listed in this catalogue 9020106008 — not listed in this catalogue 9020106008 — not listed in this catalogue 9020106008 — not listed in this catalogue 9038708120 — not listed in this catalogue 9155180816 — not listed in this catalogue 9020106008 — not listed in this catalogue

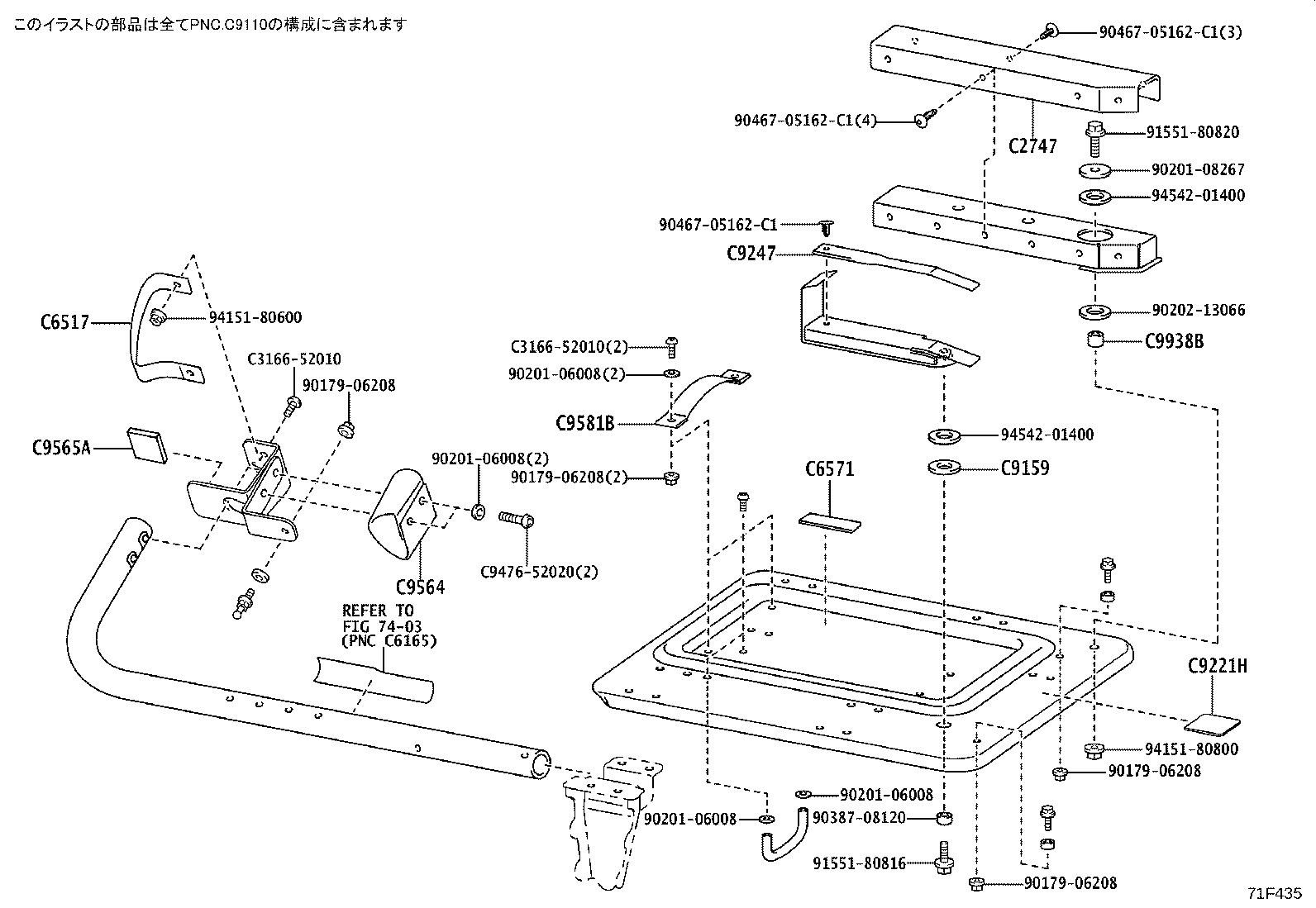

71F435 · 10 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
C2747 — Protector, Guard Frame, Lwr RH
C2747-52011 note Protector, Guard Frame, Lwr RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥530
C2747-52011 note Protector, Guard Frame, Lwr RH
2015-06 → 2018-09 ended
NCP175 ¥530
C2747-52011 note Protector, Guard Frame, Lwr RH
2018-09 → —
NCP175 ¥530
C2747-52011 note Protector, Guard Frame, Lwr RH
2018-09 → —
NHP170,NSP170 07S ¥530
C2747-52011 note Protector, Guard Frame, Lwr RH
2018-09 → —
NHP170,NSP170 05S ¥530
C6517 — Belt, Package Holder, NO.1
C6517-52011 note Belt, Package Holder, NO.1
2015-06 → 2018-09 ended
NCP175 ¥540
C6517-52011 note Belt, Package Holder, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥540
C6517-52011 note Belt, Package Holder, NO.1
2018-09 → —
NCP175 ¥540
C6517-52011 note Belt, Package Holder, NO.1
2018-09 → —
NHP170,NSP170 07S ¥540
C6517-52011 note Belt, Package Holder, NO.1
2018-09 → —
NHP170,NSP170 05S ¥540
C6571 — Hook, Wheel Chair Belt
C6571-52050 note Hook, Wheel Chair Belt
2015-06 → 2018-09 ended
NCP175 ¥80
C6571-52050 note Hook, Wheel Chair Belt
2015-06 → 2018-09 ended
NHP170,NSP170 ¥80
C6571-52050 note Hook, Wheel Chair Belt
2018-09 → —
NHP170,NSP170 05S ¥80
C6571-52050 note Hook, Wheel Chair Belt
2018-09 → —
NHP170,NSP170 07S ¥80
C6571-52050 note Hook, Wheel Chair Belt
2018-09 → —
NCP175 ¥80
C9159 — Spacer, Lift Arm Guide Stopper
C9159-52080 note Spacer, Lift Arm Guide Stopper
2015-06 → 2018-09 ended
NCP175 ¥70
C9159-52080 note Spacer, Lift Arm Guide Stopper
2015-06 → 2018-09 ended
NHP170,NSP170 ¥70
C9159-52080 note Spacer, Lift Arm Guide Stopper
2018-09 → —
NCP175 ¥70
C9159-52080 note Spacer, Lift Arm Guide Stopper
2018-09 → —
NHP170,NSP170 07S ¥70
C9159-52080 note Spacer, Lift Arm Guide Stopper
2018-09 → —
NHP170,NSP170 05S ¥70
C9221H — Hook, Power Lift Guide
C9221-52080 note Hook, Power Lift Guide
2015-06 → 2018-09 ended
NCP175 ¥100
C9221-52080 note Hook, Power Lift Guide
2015-06 → 2018-09 ended
NHP170,NSP170 ¥100
C9221-52080 note Hook, Power Lift Guide
2018-09 → —
NCP175 ¥100
C9221-52080 note Hook, Power Lift Guide
2018-09 → —
NHP170,NSP170 07S ¥100
C9221-52080 note Hook, Power Lift Guide
2018-09 → —
NHP170,NSP170 05S ¥100
C9247 — Protector, Power Lift Link, NO.1
C9247-52030 note Protector, Power Lift Link, NO.1
2015-06 → 2018-09 ended
NCP175 ¥200
C9247-52030 note Protector, Power Lift Link, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥200
C9247-52030 note Protector, Power Lift Link, NO.1
2018-09 → —
NCP175 ¥200
C9247-52030 note Protector, Power Lift Link, NO.1
2018-09 → —
NHP170,NSP170 05S ¥200
C9247-52030 note Protector, Power Lift Link, NO.1
2018-09 → —
NHP170,NSP170 07S ¥200
C9564 — Protector, Power Lift Cylinder Cover
C9564-18010 note Protector, Power Lift Cylinder Cover
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,040
C9564-52020 note Protector, Power Lift Cylinder Cover
2015-06 → 2018-09 ended
NCP175 ¥440
C9564-52020 note Protector, Power Lift Cylinder Cover
2015-06 → 2018-09 ended
NHP170,NSP170 ¥440
C9564-18010 note Protector, Power Lift Cylinder Cover
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥1,040
C9564-52020 note Protector, Power Lift Cylinder Cover
2018-09 → —
NCP175 ¥440
C9564-52020 note Protector, Power Lift Cylinder Cover
2018-09 → —
NHP170,NSP170 07S ¥440
C9564-52020 note Protector, Power Lift Cylinder Cover
2018-09 → —
NHP170,NSP170 05S ¥440
C9565A — Cover, Power Lift Cylinder, NO.1
C9565-52021 note Cover, Power Lift Cylinder, NO.1
2015-06 → 2018-09 ended
NCP175 ¥210
C9565-52021 note Cover, Power Lift Cylinder, NO.1
2015-06 → 2018-09 ended
NHP170,NSP170 ¥210
C9565-52021 note Cover, Power Lift Cylinder, NO.1
2018-09 → —
NHP170,NSP170 05S ¥210
C9565-52021 note Cover, Power Lift Cylinder, NO.1
2018-09 → —
NHP170,NSP170 07S ¥210
C9565-52021 note Cover, Power Lift Cylinder, NO.1
2018-09 → —
NCP175 ¥210
C9581B — Handle, Power Lift
C9581-52120 note Handle, Power Lift
2015-06 → 2018-09 ended
NCP175 ¥220
C9581-52120 note Handle, Power Lift
2015-06 → 2018-09 ended
NHP170,NSP170 ¥220
C9581-52120 note Handle, Power Lift
2018-09 → —
NCP175 ¥220
C9581-52120 note Handle, Power Lift
2018-09 → —
NHP170,NSP170 07S ¥220
C9581-52120 note Handle, Power Lift
2018-09 → —
NHP170,NSP170 05S ¥220
C9938B — Collar
C9226-52020 note Collar
2015-06 → 2018-09 ended
NCP175 ¥100
C9226-52020 note Collar
2015-06 → 2018-09 ended
NHP170,NSP170 ¥100
C9938-18020 note Collar
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥200
C9226-52020 note Collar
2018-09 → —
NCP175 ¥100
C9226-52020 note Collar
2018-09 → —
NHP170,NSP170 07S ¥100
C9226-52020 note Collar
2018-09 → —
NHP170,NSP170 05S ¥100
C9938-18020 note Collar
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G,X ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
