Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

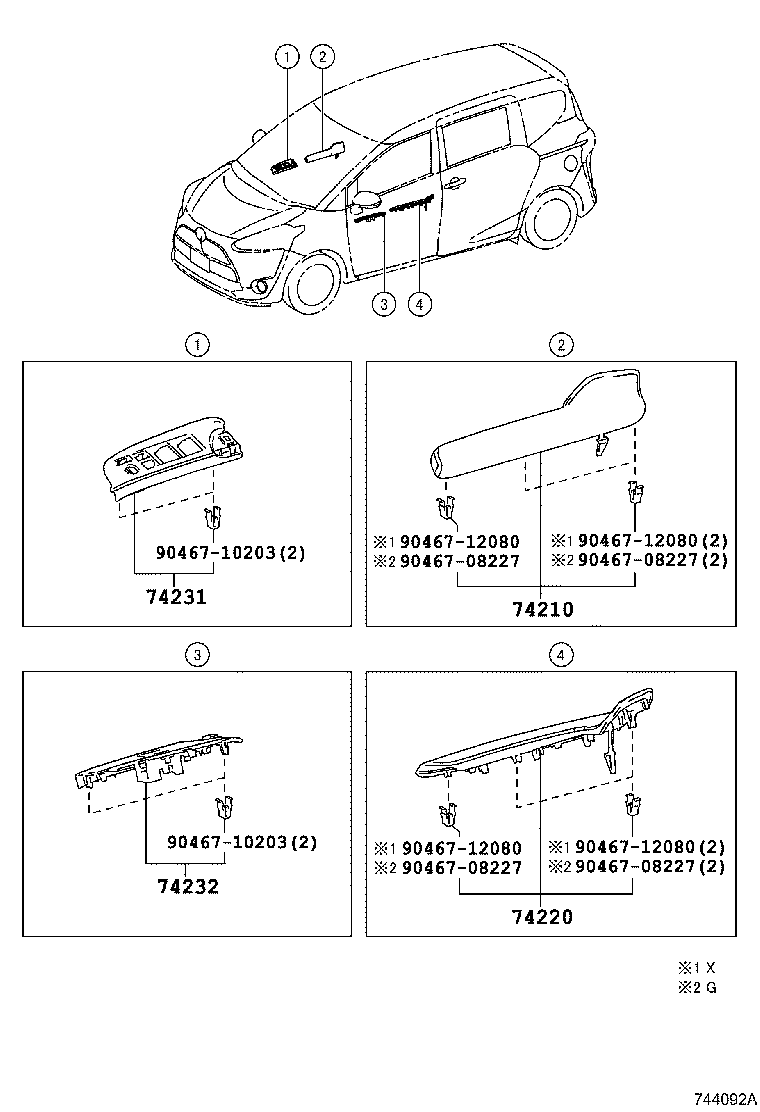

Exploded illustration 744092A 9046710203 — not listed in this catalogue 74231 — PANEL, FRONT ARMREST BASE, UPPER RH (6 parts) 9046710203 — not listed in this catalogue 9046708227 — not listed in this catalogue 9046708227 — not listed in this catalogue 9046712080 — not listed in this catalogue 9046712080 — not listed in this catalogue 74232 — PANEL, FRONT ARMREST BASE, UPPER LH (5 parts) 74220 — ARMREST ASSY, FRONT, LH (13 parts) 9046708227 — not listed in this catalogue 9046712080 — not listed in this catalogue 9046708227 — not listed in this catalogue 9046712080 — not listed in this catalogue 74210 — ARMREST ASSY, FRONT, RH (13 parts)
744092A · 4 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
74210 — Armrest Assy, Front, RH
74210-52030-B0 note Armrest Assy, Front, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥2,620
74210-52030-C1 note Armrest Assy, Front, RH
2015-06 → 2018-09 ended
NHP170,NSP17# (05S,06S) G ¥3,150
74210-52030-C1 note Armrest Assy, Front, RH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥3,150
74210-52030-C1 note Armrest Assy, Front, RH
2015-06 → 2017-08 ended
NCP175 G;NHP170,NSP170 07S G ¥3,150
74210-52030-E0 note Armrest Assy, Front, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥2,620
74210-52040-A1 note Armrest Assy, Front, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,190
74210-52040-C1 note Armrest Assy, Front, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,190
74210-52030-B0 note Armrest Assy, Front, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥2,620
74210-52030-E0 note Armrest Assy, Front, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥2,620
74210-52040-A1 note Armrest Assy, Front, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥2,190
74210-52040-C1 note Armrest Assy, Front, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,190
74210-52050-C1 note Armrest Assy, Front, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥2,620
74210-52060-C0 note Armrest Assy, Front, RH
2019-10 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,620
74220 — Armrest Assy, Front, LH
74220-52020-B0 note Armrest Assy, Front, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥2,620
74220-52020-C1 note Armrest Assy, Front, LH
2015-06 → 2017-08 ended
NCP175 G;NHP170,NSP170 07S G ¥3,150
74220-52020-C1 note Armrest Assy, Front, LH
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥3,150
74220-52020-C1 note Armrest Assy, Front, LH
2015-06 → 2018-09 ended
NHP170,NSP17# (05S,06S) G ¥3,150
74220-52020-E0 note Armrest Assy, Front, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# G ¥2,620
74220-52030-A1 note Armrest Assy, Front, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,190
74220-52030-C1 note Armrest Assy, Front, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# X ¥2,190
74220-52020-B0 note Armrest Assy, Front, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥2,620
74220-52020-E0 note Armrest Assy, Front, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG ¥2,620
74220-52030-A1 note Armrest Assy, Front, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKX,X ¥2,190
74220-52030-C1 note Armrest Assy, Front, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,190
74220-52050-C1 note Armrest Assy, Front, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥2,620
74220-52060-C0 note Armrest Assy, Front, LH
2019-10 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥2,620
74231 — Panel, Front Armrest Base, Upper RH
74231-52A80-A0 note Panel, Front Armrest Base, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,650
74231-52A80-C0 note Panel, Front Armrest Base, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,650
74231-52B10-C0 note Panel, Front Armrest Base, Upper RH
2015-06 → 2018-09 ended
NCP175,NSP17# X ¥1,940
74231-52A80-A0 note Panel, Front Armrest Base, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥1,650
74231-52A80-C0 note Panel, Front Armrest Base, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥1,650
74231-52A80-C0 note Panel, Front Armrest Base, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥1,650
74232 — Panel, Front Armrest Base, Upper LH
74232-52660-A0 note Panel, Front Armrest Base, Upper LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,860
74232-52660-C0 note Panel, Front Armrest Base, Upper LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,860
74232-52660-A0 note Panel, Front Armrest Base, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# G,WKG,WKX,X ¥1,860
74232-52660-C0 note Panel, Front Armrest Base, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥1,860
74232-52660-C0 note Panel, Front Armrest Base, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,FNGCR,GCERO,WKG,WKX,X ¥1,860
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
