Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

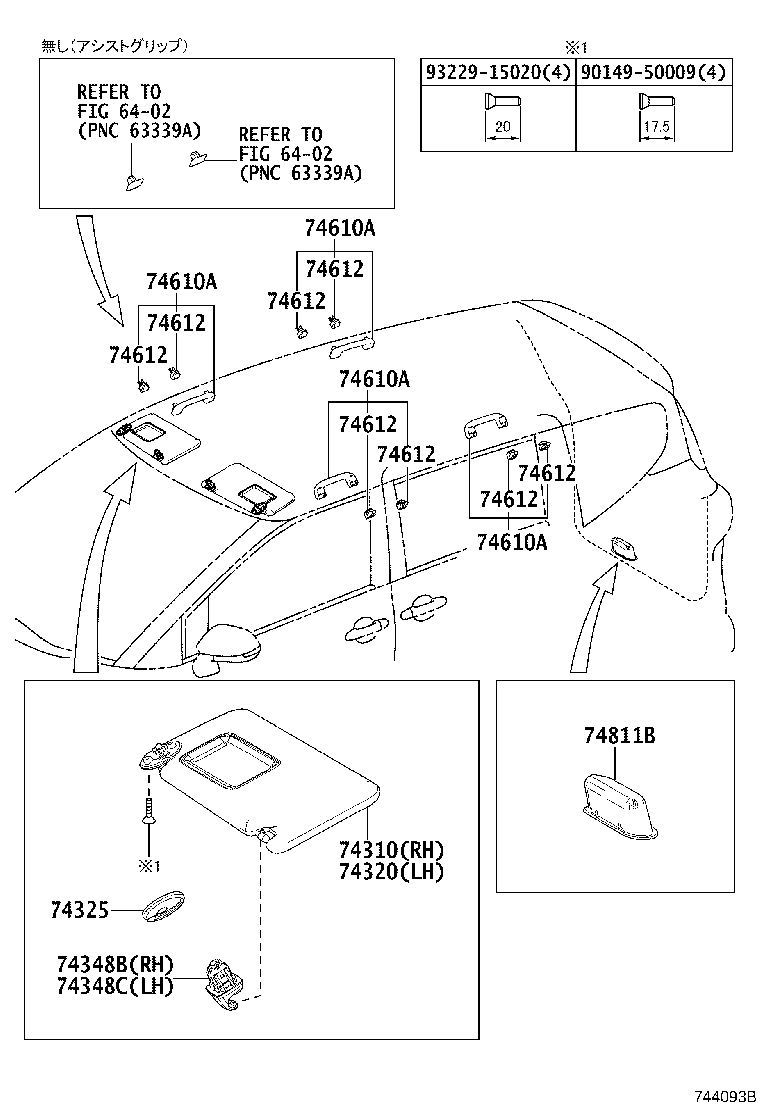

Exploded illustration 744093B 6402 — not listed in this catalogue 6402 — not listed in this catalogue 74310 — VISOR ASSY, RH (6 parts) 74320 — VISOR ASSY, LH (5 parts) 74348B — HOLDER, VISOR, RH (5 parts) 74348C — HOLDER, VISOR, LH (5 parts) 74325 — COVER, VISOR BRACKET (5 parts) 74610A — GRIP SUB-ASSY, ASSIST (18 parts) 74612 — COVER, ASSIST GRIP (18 parts) 74612 — COVER, ASSIST GRIP (18 parts) 74610A — GRIP SUB-ASSY, ASSIST (18 parts) 74612 — COVER, ASSIST GRIP (18 parts) 74612 — COVER, ASSIST GRIP (18 parts) 74612 — COVER, ASSIST GRIP (18 parts) 74612 — COVER, ASSIST GRIP (18 parts) 74610A — GRIP SUB-ASSY, ASSIST (18 parts) 74612 — COVER, ASSIST GRIP (18 parts) 74612 — COVER, ASSIST GRIP (18 parts) 74610A — GRIP SUB-ASSY, ASSIST (18 parts) 74811B — HANDLE, DOOR PULL (6 parts) 9014950009 — not listed in this catalogue 9322915020 — not listed in this catalogue
744093B · 18 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-52F00-B0 note Visor Assy, RH
2017-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,860
74310-52F20-B0 note Visor Assy, RH
2015-06 → 2017-10 ended
NCP175,NHP170,NSP17# ¥3,620
74310-52F00-B0 note Visor Assy, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,860
74310-52F00-B0 note Visor Assy, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,860
74310-52F00-B0 note Visor Assy, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥2,860
74310-52F00-B0 note Visor Assy, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥2,860
74320 — Visor Assy, LH
74320-52F00-B0 note Visor Assy, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,860
74320-52F00-B0 note Visor Assy, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥2,860
74320-52F00-B0 note Visor Assy, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥2,860
74320-52F00-B0 note Visor Assy, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥2,860
74320-52F00-B0 note Visor Assy, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥2,860
74325 — Cover, Visor Bracket
74317-60020-B1 note Cover, Visor Bracket
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
74317-60020-B1 note Cover, Visor Bracket
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥220
74317-60020-B1 note Cover, Visor Bracket
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥220
74317-60020-B1 note Cover, Visor Bracket
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥220
74317-60020-B1 note Cover, Visor Bracket
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥220
74348B — Holder, Visor, RH
74348-33040-B1 note Holder, Visor, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥470
74348-33040-B1 note Holder, Visor, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥470
74348-33040-B1 note Holder, Visor, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥470
74348-33040-B1 note Holder, Visor, RH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥470
74348-33040-B1 note Holder, Visor, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥470
74348C — Holder, Visor, LH
74348-33040-B1 note Holder, Visor, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥470
74348-33040-B1 note Holder, Visor, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥470
74348-33040-B1 note Holder, Visor, LH
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥470
74348-33040-B1 note Holder, Visor, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥470
74348-33040-B1 note Holder, Visor, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥470
74610A — Grip Sub-assy, Assist
74610-47040-B1 note Grip Sub-assy, Assist
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2015-12 → 2018-09 ended
NSP172 ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NSP172 ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥1,570
74610-47040-B1 note Grip Sub-assy, Assist
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥1,570
74612 — Cover, Assist Grip
74612-47070-B1 note Cover, Assist Grip
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥160
74612-47070-B1 note Cover, Assist Grip
2015-12 → 2018-09 ended
NSP172 ¥160
74612-47070-B1 note Cover, Assist Grip
2015-12 → 2018-09 ended
NCP175;NHP170,NSP170 07S ¥160
74612-47070-B1 note Cover, Assist Grip
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥160
74612-47070-B1 note Cover, Assist Grip
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NSP172 ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 X ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥160
74612-47070-B1 note Cover, Assist Grip
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥160
74811B — Handle, Door Pull
74811-13010-C0 note Handle, Door Pull
2015-06 → 2017-10 ended
NCP175,NHP170,NSP17# ¥780
74811-13010-C2 note Handle, Door Pull
2017-10 → 2018-09 ended
NCP175,NHP170,NSP17# ¥590
74811-13010-C2 note Handle, Door Pull
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 G ¥590
74811-13010-C2 note Handle, Door Pull
2018-09 → 2022-07 ended
NHP170,NSP170 FNBSG ¥590
74811-13010-C2 note Handle, Door Pull
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# WKG,WKX,X ¥590
74811-13010-C2 note Handle, Door Pull
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO ¥590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
