Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

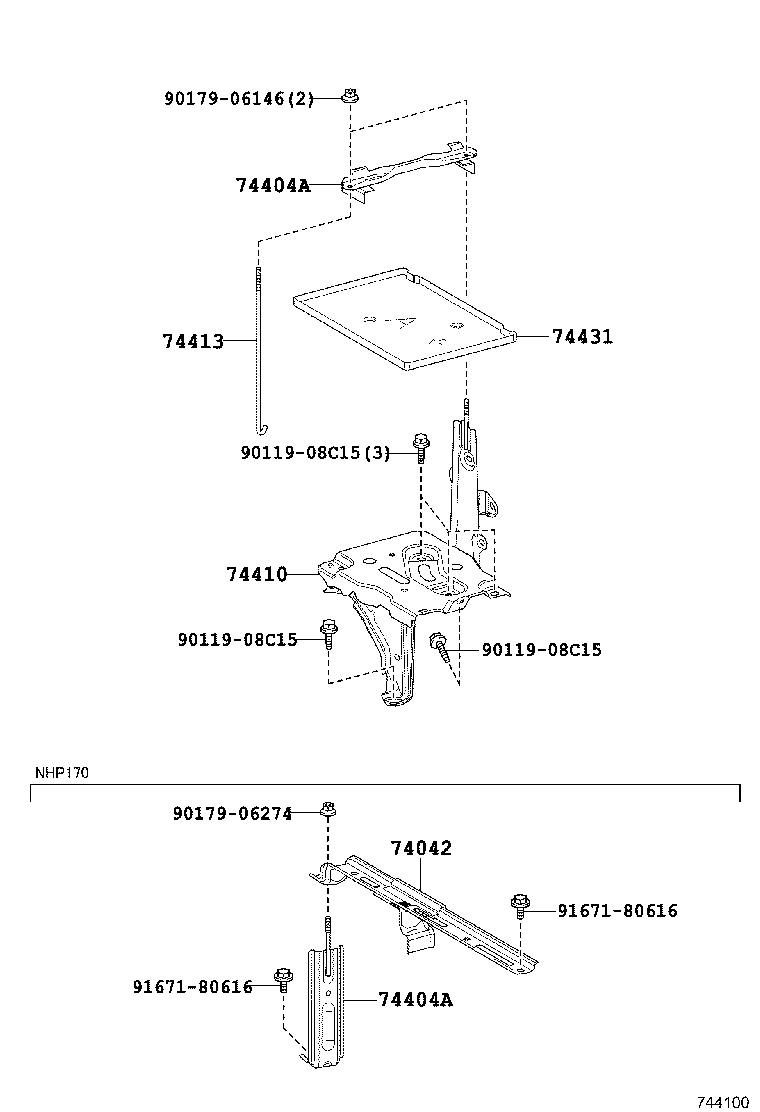

Exploded illustration 744100 74042 — BRACKET SUB-ASSY, BATTERY (2 parts) 74404A — CLAMP SUB-ASSY, BATTERY (8 parts) 74404A — CLAMP SUB-ASSY, BATTERY (8 parts) 74410 — CARRIER ASSY, BATTERY (2 parts) 74413 — BOLT, BATTERY CLAMP (2 parts) 74431 — TRAY, BATTERY (6 parts) 9011908C15 — not listed in this catalogue 9011908C15 — not listed in this catalogue 9011908C15 — not listed in this catalogue 9017906146 — not listed in this catalogue 9017906274 — not listed in this catalogue 9167180616 — not listed in this catalogue 9167180616 — not listed in this catalogue
744100 · 6 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
20 parts on this figure
Part number Description Fitment Price
74042 — Bracket Sub-assy, Battery
74401-52050 Bracket Sub-assy, Battery
2015-07 → 2018-09 ended
NHP170 ¥1,600
74401-52050 Bracket Sub-assy, Battery
2018-09 → 2022-07 ended
NHP170 ¥1,600
74404A — Clamp Sub-assy, Battery
74404-52110 Clamp Sub-assy, Battery
2015-06 → 2018-09 ended
NCP175 ¥1,350
74404-52130 Clamp Sub-assy, Battery
2015-06 → 2018-09 ended
NSP17# ¥1,350
74404-52130 note Clamp Sub-assy, Battery
2015-06 → 2018-09 ended
NCP175 ¥1,350
74404-52140 Clamp Sub-assy, Battery
2015-07 → 2018-09 ended
NHP170 ¥1,490
74404-52110 Clamp Sub-assy, Battery
2018-09 → 2022-07 ended
NCP175 ¥1,350
74404-52130 Clamp Sub-assy, Battery
2018-09 → 2022-07 ended
NSP17# ¥1,350
74404-52130 note Clamp Sub-assy, Battery
2018-09 → 2022-07 ended
NCP175 ¥1,350
74404-52140 Clamp Sub-assy, Battery
2018-09 → 2022-07 ended
NHP170 ¥1,490
74410 — Carrier Assy, Battery
74410-52051 Carrier Assy, Battery
2015-06 → 2018-09 ended
NCP175,NSP17# ¥11,500
74410-52051 Carrier Assy, Battery
2018-09 → 2022-07 ended
NCP175,NSP17# ¥11,500
74413 — Bolt, Battery Clamp
74451-52071 Bolt, Battery Clamp
2015-06 → 2018-09 ended
NCP175,NSP17# ¥160
74451-52071 Bolt, Battery Clamp
2018-09 → 2022-07 ended
NCP175,NSP17# ¥160
74431 — Tray, Battery
74431-52101 Tray, Battery
2015-06 → 2018-09 ended
NCP175 ¥1,140
74431-52111 note Tray, Battery
2015-06 → 2018-09 ended
NCP175 ¥1,380
74431-52121 Tray, Battery
2015-06 → 2018-09 ended
NSP17# ¥1,380
74431-52101 Tray, Battery
2018-09 → 2022-07 ended
NCP175 ¥1,140
74431-52111 note Tray, Battery
2018-09 → 2022-07 ended
NCP175 ¥1,380
74431-52121 Tray, Battery
2018-09 → 2022-07 ended
NSP17# ¥1,380
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
