Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

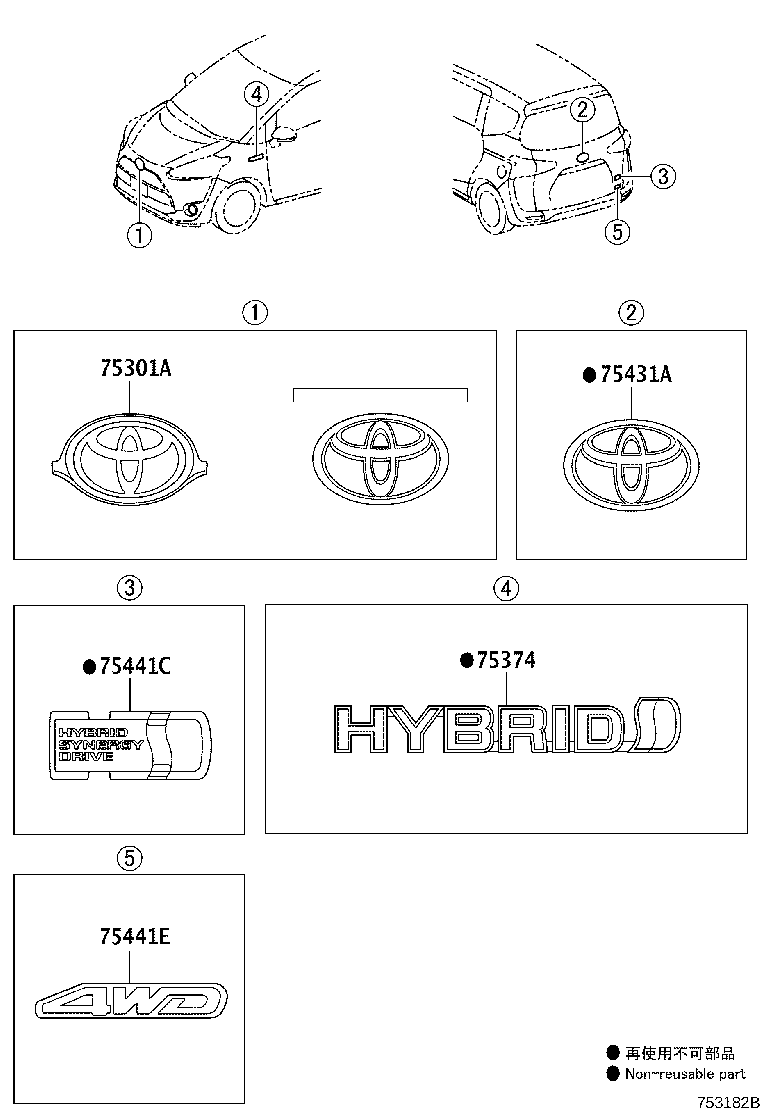

Exploded illustration 753182B 75301A — EMBLEM SUB-ASSY, FRONT BUMPER (16 parts) 75374 — EMBLEM, SIDE PANEL (4 parts) 75441C — PLATE, BACK DOOR NAME (2 parts) 75441E — PLATE, BACK DOOR NAME, NO.1 (2 parts) 75431A — EMBLEM, BACK DOOR, NO.1 (4 parts)
753182B · 5 callouts Full size ↗
28 parts on this figure
Part number Description Fitment Price
75301A — Emblem Sub-assy, Front Bumper
75301-52120 Emblem Sub-assy, Front Bumper
2015-06 → 2018-09 ended
NCP175,NSP17# ¥2,580
75301-52130-E0 note Emblem Sub-assy, Front Bumper
2015-06 → 2018-09 ended
NCP175,NSP170 ¥3,080
75301-52130-E0 note Emblem Sub-assy, Front Bumper
2015-06 → 2018-09 ended
NCP175,NSP170 ¥3,080
75301-52130-E0 note Emblem Sub-assy, Front Bumper
2015-06 → 2018-09 ended
NCP175,NSP170 ¥3,080
75301-52130-J1 note Emblem Sub-assy, Front Bumper
2015-06 → 2018-09 ended
NCP175,NSP170 ¥3,080
75301-52130-J1 note Emblem Sub-assy, Front Bumper
2015-06 → 2018-09 ended
NCP175,NSP170 ¥3,080
75301-52130-J1 note Emblem Sub-assy, Front Bumper
2015-06 → 2018-09 ended
NCP175,NSP170 ¥3,080
75301-52140 Emblem Sub-assy, Front Bumper
2015-07 → 2018-09 ended
NHP170 ¥3,280
75301-52150-E0 note Emblem Sub-assy, Front Bumper
2015-07 → 2018-09 ended
NHP170 ¥3,930
75301-52150-E0 note Emblem Sub-assy, Front Bumper
2015-07 → 2018-09 ended
NHP170 ¥3,930
75301-52150-E0 note Emblem Sub-assy, Front Bumper
2015-07 → 2018-09 ended
NHP170 ¥3,930
75301-52150-J1 note Emblem Sub-assy, Front Bumper
2015-07 → 2018-09 ended
NHP170 ¥3,930
75301-52150-J1 note Emblem Sub-assy, Front Bumper
2015-07 → 2018-09 ended
NHP170 ¥3,930
75301-52150-J1 note Emblem Sub-assy, Front Bumper
2015-07 → 2018-09 ended
NHP170 ¥3,930
75301-52170 Emblem Sub-assy, Front Bumper
2018-09 → 2022-07 ended
NCP175,NSP17# ¥2,150
75301-52180 Emblem Sub-assy, Front Bumper
2018-09 → 2022-07 ended
NHP170 ¥2,730
75374 — Emblem, Side Panel
75374-52090 note Emblem, Side Panel
2015-07 → 2018-09 ended
NHP170 ¥1,840
75374-52100 note Emblem, Side Panel
2015-07 → 2018-09 ended
NHP170 ¥1,840
75374-52090 note Emblem, Side Panel
2018-09 → 2020-06 ended
NHP170 ¥1,840
75374-52100 note Emblem, Side Panel
2018-09 → 2020-06 ended
NHP170 ¥1,840
75431A — Emblem, Back Door, NO.1
75403-52010 Emblem, Back Door, NO.1
2015-07 → 2018-09 ended
NHP170 ¥2,470
90975-02086 Emblem, Back Door, NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,940
75403-52010 Emblem, Back Door, NO.1
2018-09 → 2022-07 ended
NHP170 ¥2,470
90975-02086 Emblem, Back Door, NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,940
75441C — Plate, Back Door Name
75441-52170 Plate, Back Door Name
2015-07 → 2018-09 ended
NHP170 ¥2,080
75441-52170 Plate, Back Door Name
2018-09 → 2022-07 ended
NHP170 ¥2,080
75441E — Plate, Back Door Name, NO.1
75441-46020 note Plate, Back Door Name, NO.1
2015-06 → 2018-09 ended
NCP175 ¥600
75441-46020 note Plate, Back Door Name, NO.1
2018-09 → 2022-07 ended
NCP175 ¥600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
