Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

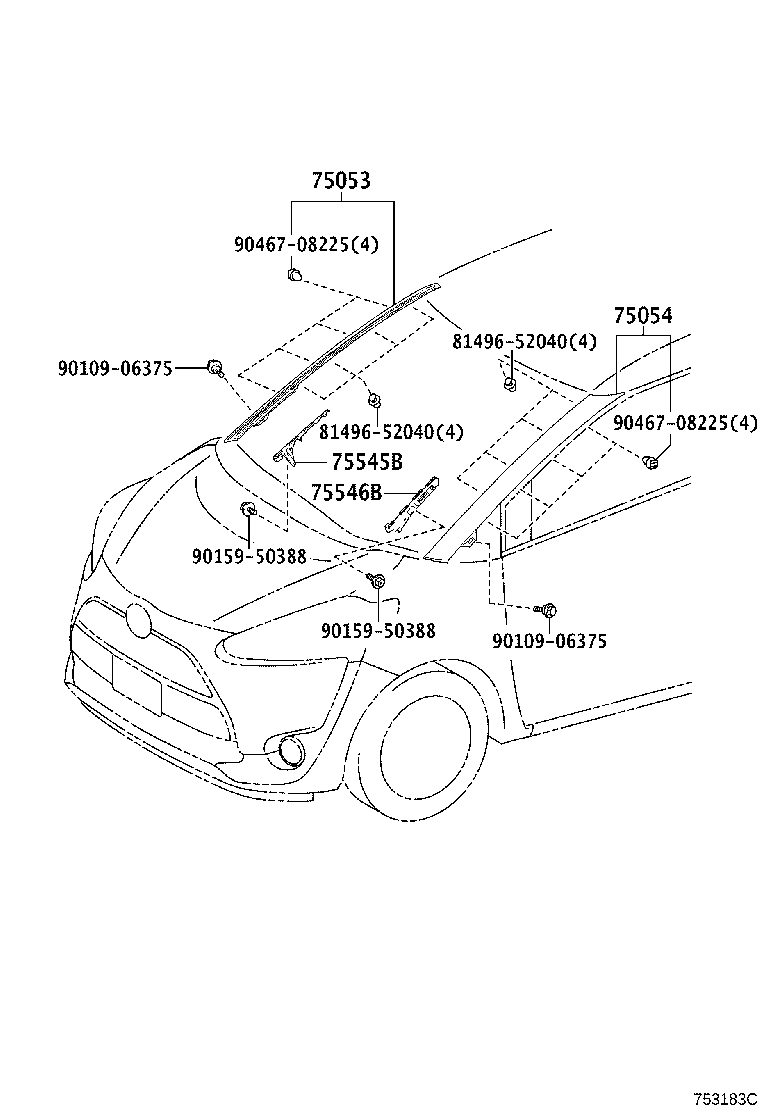

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 75053 — Garnish Sub-assy, Front Pillar, Outer RH | ||||
| 76003-52010 |
Garnish Sub-assy, Front Pillar, Outer RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥7,800 | |
| 76003-52010 |
Garnish Sub-assy, Front Pillar, Outer RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥7,800 | |
| 75054 — Garnish Sub-assy, Front Pillar, Outer LH | ||||
| 76004-52010 |
Garnish Sub-assy, Front Pillar, Outer LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥7,600 | |
| 76004-52010 |
Garnish Sub-assy, Front Pillar, Outer LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥7,600 | |
| 75545B — Clip, Windshield Outside Moulding, NO.1 | ||||
| 75545-52010 |
Clip, Windshield Outside Moulding, NO.1
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,570 | |
| 75545-52010 |
Clip, Windshield Outside Moulding, NO.1
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,570 | |
| 75546B — Clip, Windshield Outside Moulding, NO.2 | ||||
| 75546-52010 |
Clip, Windshield Outside Moulding, NO.2
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,570 | |
| 75546-52010 |
Clip, Windshield Outside Moulding, NO.2
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,570 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
