Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

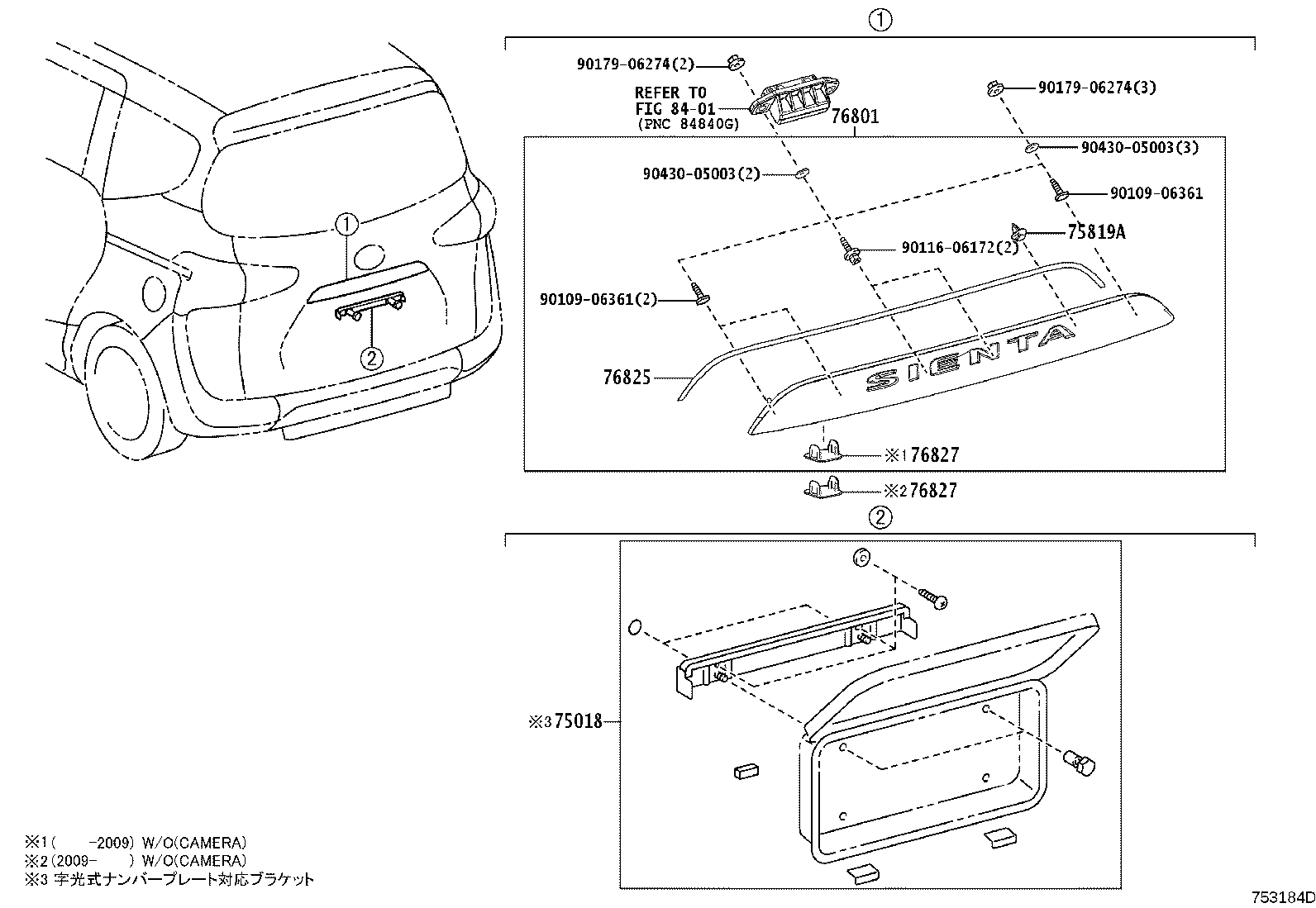

Exploded illustration 753184D 8401 — not listed in this catalogue 75018 — FRAME SUB-ASSY, REAR LICENSE PLATE (2 parts) 75819A — CLIP, BACK DOOR MOULDING (2 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (2 parts) 76827 — RETAINER, BACK DOOR GARNISH, NO.2 (2 parts) 76827 — RETAINER, BACK DOOR GARNISH, NO.2 (2 parts) 9011606172 — not listed in this catalogue 9010906361 — not listed in this catalogue 9017906274 — not listed in this catalogue 9017906274 — not listed in this catalogue 9043005003 — not listed in this catalogue 9010906361 — not listed in this catalogue 9043005003 — not listed in this catalogue 76801 — GARNISH SUB-ASSY, BACK DOOR, OUTSIDE (40 parts)
753184D · 6 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
75018 — Frame Sub-assy, Rear License Plate
75010-48020 note Frame Sub-assy, Rear License Plate
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,500
75010-48020 note Frame Sub-assy, Rear License Plate
2018-09 → 2021-06 ended
NCP175,NHP170,NSP17# ¥3,500
75819A — Clip, Back Door Moulding
75819-33010 Clip, Back Door Moulding
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥130
75819-33010 Clip, Back Door Moulding
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥130
76801 — Garnish Sub-assy, Back Door, Outside
76801-52410-A0 note Garnish Sub-assy, Back Door, Outside
2015-06 → 2018-09 ended
NSP172 ¥8,700
76801-52410-A1 note Garnish Sub-assy, Back Door, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-B0 note Garnish Sub-assy, Back Door, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-C1 note Garnish Sub-assy, Back Door, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-D1 note Garnish Sub-assy, Back Door, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥8,700
76801-52410-D2 note Garnish Sub-assy, Back Door, Outside
2017-08 → 2018-09 ended
NCP175 G;NHP170,NSP170 07S G ¥8,700
76801-52410-E1 note Garnish Sub-assy, Back Door, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-F1 note Garnish Sub-assy, Back Door, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥8,700
76801-52410-G1 note Garnish Sub-assy, Back Door, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥8,700
76801-52410-J0 note Garnish Sub-assy, Back Door, Outside
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-A0 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-09 ended
NSP172 ¥8,700
76801-52410-A1 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-B0 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-C1 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-D3 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-E1 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-09 ended
NCP175,NHP170,NSP170 FNBSG,FNBSX,G,GCERO,X ¥8,700
76801-52410-E1 note Garnish Sub-assy, Back Door, Outside
2020-06 → 2020-09 ended
NHP170,NSP170 FNGCR ¥8,700
76801-52410-E2 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-09 ended
NCP175,NHP170,NSP170 ¥8,700
76801-52410-E3 note Garnish Sub-assy, Back Door, Outside
2020-06 → 2020-09 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-F1 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-09 ended
NCP175,NHP170,NSP170 ¥8,700
76801-52410-G2 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-09 ended
NCP175,NHP170,NSP170 ¥8,700
76801-52410-J0 note Garnish Sub-assy, Back Door, Outside
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# ¥8,700
76801-52410-J1 note Garnish Sub-assy, Back Door, Outside
2019-10 → 2020-09 ended
NCP175,NHP170,NSP170 FNBSG,G ¥8,700
76801-52410-J2 note Garnish Sub-assy, Back Door, Outside
2020-06 → 2020-09 ended
NCP175,NHP170,NSP170 ¥8,700
76801-52410-J2 note Garnish Sub-assy, Back Door, Outside
2020-06 → 2020-09 ended
NSP172 ¥8,700
76801-52411-A0 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NSP172 ¥7,200
76801-52411-A1 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,200
76801-52411-B0 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,200
76801-52411-C1 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,200
76801-52411-D3 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,200
76801-52411-E1 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥7,200
76801-52411-E2 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥7,200
76801-52411-E3 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥7,200
76801-52411-F1 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥7,200
76801-52411-G2 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2021-06 ended
NCP175,NHP170,NSP170 ¥7,200
76801-52411-J1 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2021-06 ended
NCP175,NHP170,NSP170 FNBSG,G ¥7,200
76801-52411-J1 note Garnish Sub-assy, Back Door, Outside
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥7,200
76801-52411-J1 note Garnish Sub-assy, Back Door, Outside
2021-06 → 2022-07 ended
NCP175,NHP170,NSP170 FNBSG,G ¥7,200
76801-52411-J2 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NSP172 ¥7,200
76801-52411-J2 note Garnish Sub-assy, Back Door, Outside
2020-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥7,200
76825 — Protector, Back Door Outside Garnish
76825-52070 Protector, Back Door Outside Garnish
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥600
76825-52070 Protector, Back Door Outside Garnish
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥600
76827 — Retainer, Back Door Garnish, NO.2
76827-52030 Retainer, Back Door Garnish, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥470
76827-52030 Retainer, Back Door Garnish, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥470
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
