Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

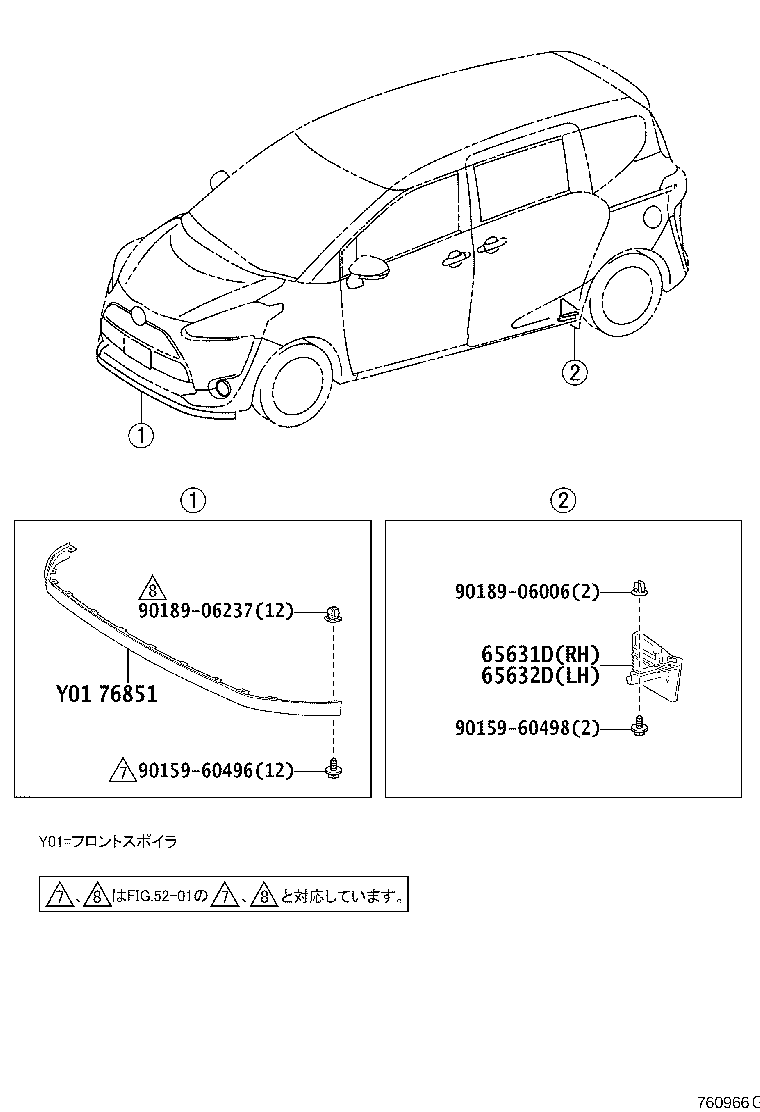

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 65631D — Plate, Rear Wheel House, Front RH | ||||
| 65631-52140 |
Plate, Rear Wheel House, Front RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,270 | |
| 65631-52140 |
Plate, Rear Wheel House, Front RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,270 | |
| 65632D — Plate, Rear Wheel House, Front LH | ||||
| 65632-52140 |
Plate, Rear Wheel House, Front LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,270 | |
| 65632-52140 |
Plate, Rear Wheel House, Front LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,270 | |
| 76851 — Cover, Front Spoiler | ||||
| 76851-52170 |
Cover, Front Spoiler
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥3,080 | |
| 76851-52170 |
Cover, Front Spoiler
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥3,080 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
