Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

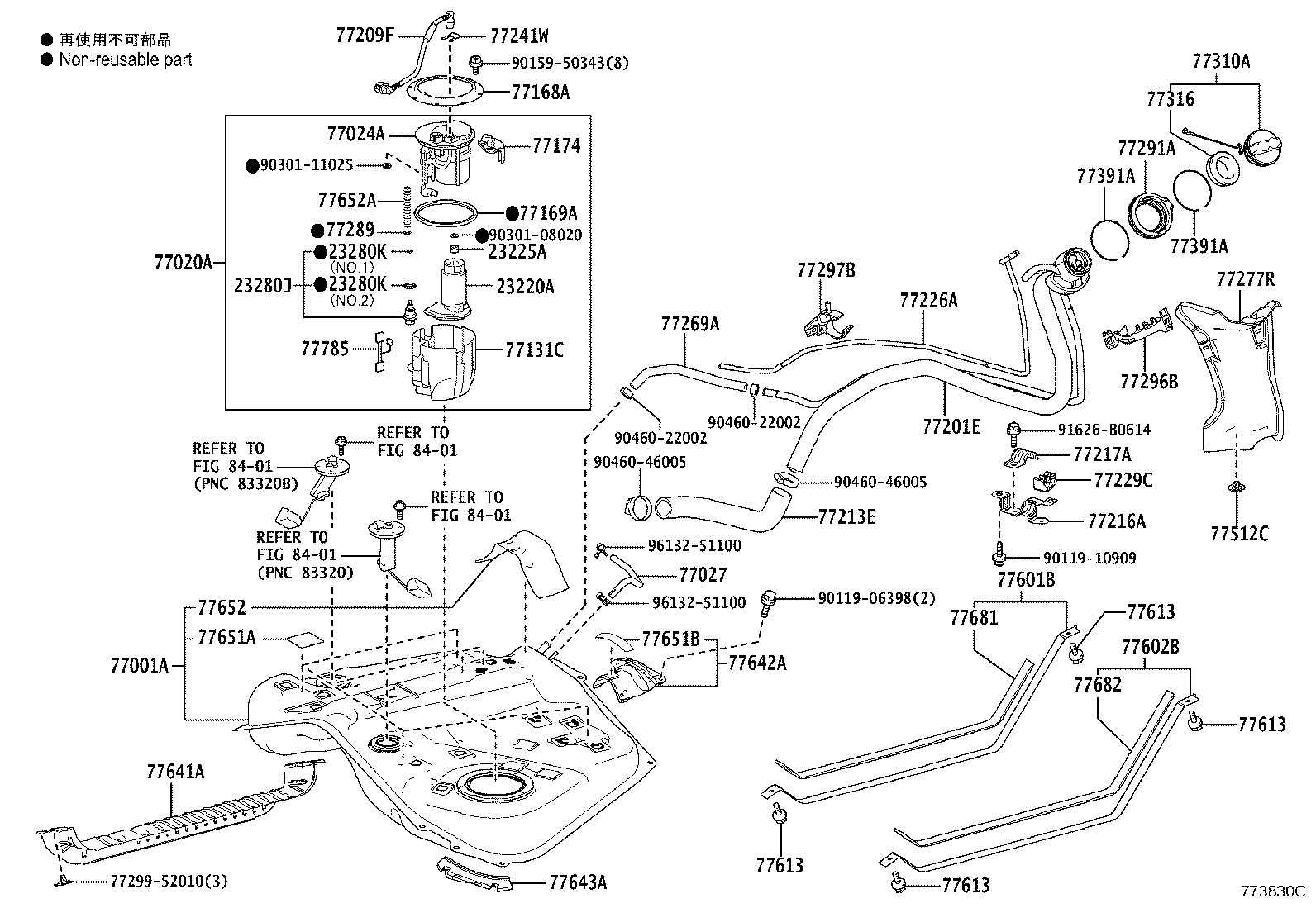

Exploded illustration 773830C 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 23220A — PUMP ASSY, FUEL W/FILTER (4 parts) 23225A — SPACER, FUEL PUMP (2 parts) 23280J — REGULATOR ASSY, FUEL PRESSURE (2 parts) 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (4 parts) 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (4 parts) 77001A — TANK SUB-ASSY, FUEL (6 parts) 77020A — TUBE ASSY, FUEL SUCTION W/PUMP & GAGE (4 parts) 77024A — PLATE SUB-ASSY, FUEL SUCTION (4 parts) 77027 — TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 (4 parts) 77131C — SUB-TANK, FUEL, NO.1 (4 parts) 77168A — PLATE, FUEL TANK VENT TUBE SET (2 parts) 77169A — GASKET, FUEL SUCTION TUBE SET (2 parts) 77174 — SUPPORT, FUEL SUCTION, NO.1 (2 parts) 77201E — PIPE SUB-ASSY, FUEL TANK FILLER (6 parts) 77209F — TUBE SUB-ASSY, FUEL TANK MAIN (4 parts) 77213E — HOSE, FUEL TANK TO FILLER PIPE (6 parts) 77216A — SUPPORT, FUEL TANK FILLER PIPE, NO.1 (4 parts) 77217A — SUPPORT, FUEL TANK FILLER PIPE, NO.2 (4 parts) 77226A — TUBE, FUEL TANK BREATHER, NO.6 (4 parts) 77229C — CLAMP, BREATHER TUBE (2 parts) 77241W — CLIP, TUBE JOINT (2 parts) 77269A — HOSE, FUEL TANK BREATHER (4 parts) 77277R — PROTECTOR, FUEL TANK FILLER PIPE (2 parts) 77289 — HOLDER, FUEL TANK PIPE SETTING (3 parts) 77291A — SHIELD, FUEL TANK FILLER PIPE (2 parts) 77296B — SUPPORT, FUEL TUBE PROTECTOR, NO.1 (4 parts) 77297B — SUPPORT, FUEL TUBE PROTECTOR, NO.2 (2 parts) 77310A — CAP ASSY, FUEL TANK (2 parts) 77316 — GASKET, FUEL TANK CAP (2 parts) 77391A — RING, FUEL INLET BOX (2 parts) 77391A — RING, FUEL INLET BOX (2 parts) 77601B — BAND SUB-ASSY, FUEL TANK, NO.1 RH (6 parts) 77602B — BAND SUB-ASSY, FUEL TANK, NO.1 LH (6 parts) 77613 — BOLT, FUEL TANK BAND SET (2 parts) 77613 — BOLT, FUEL TANK BAND SET (2 parts) 77643A — PROTECTOR, FUEL TANK, NO.3 (2 parts) 77641A — PROTECTOR, FUEL TANK, NO.1 (4 parts) 77642A — PROTECTOR, FUEL TANK, NO.2 (2 parts) 77651A — CUSHION, FUEL TANK, NO.1 (4 parts) 77651B — CUSHION, FUEL TANK (2 parts) 77652A — CUSHION, FUEL TANK, NO.2 (4 parts) 77681 — SEAT, FUEL TANK BAND, RH (6 parts) 77682 — SEAT, FUEL TANK BAND, LH (4 parts) 77785 — HARNESS, FUEL PUMP (2 parts) 7729952010 — not listed in this catalogue 9011906398 — not listed in this catalogue 9011910909 — not listed in this catalogue 9015950343 — not listed in this catalogue 9030108020 — not listed in this catalogue 9030111025 — not listed in this catalogue 9046022002 — not listed in this catalogue 9046022002 — not listed in this catalogue 9046046005 — not listed in this catalogue 9046046005 — not listed in this catalogue 91626B0614 — not listed in this catalogue 9613251100 — not listed in this catalogue 9613251100 — not listed in this catalogue 77652 — CUSHION, FUEL TANK, NO.1 (2 parts) 77613 — BOLT, FUEL TANK BAND SET (2 parts) 77613 — BOLT, FUEL TANK BAND SET (2 parts) 77512C — BRACKET, FUEL TANK (2 parts)
773830C · 48 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
143 parts on this figure
Part number Description Fitment Price
23220A — Pump Assy, Fuel W/Filter
23220-21320 Pump Assy, Fuel W/Filter
2015-06 → 2018-09 ended
1NZFE NCP175 ¥26,400
23220-28440 Pump Assy, Fuel W/Filter
2015-06 → 2018-09 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥26,400
23220-21320 Pump Assy, Fuel W/Filter
2018-09 → 2022-07 ended
1NZFE NCP175 ¥26,400
23220-28440 Pump Assy, Fuel W/Filter
2018-09 → 2022-07 ended
1NZFXE,2NRFKE NHP170,NSP17# ¥26,400
23225A — Spacer, Fuel Pump
23225-21020 Spacer, Fuel Pump
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥120
23225-21020 Spacer, Fuel Pump
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥120
23280J — Regulator Assy, Fuel Pressure
23280-21010 Regulator Assy, Fuel Pressure
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥6,000
23280-21010 Regulator Assy, Fuel Pressure
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥6,000
23280K — Ring, O(FOR FUEL PRESSURE REGULATOR)
90301-04013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥140
90301-15024 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2015-06 → 2018-09 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥140
90301-04013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥140
90301-15024 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2018-09 → 2022-07 ended
1NZ#,2NRFKE NCP175,NHP170,NSP17# ¥140
77001A — Tank Sub-assy, Fuel
77001-52530 Tank Sub-assy, Fuel
2015-06 → 2018-09 ended
NHP170,NSP170 ¥27,300
77001-52540 Tank Sub-assy, Fuel
2015-06 → 2018-09 ended
NSP172 ¥26,100
77001-52550 Tank Sub-assy, Fuel
2015-06 → 2018-09 ended
NCP175 ¥28,900
77001-52530 Tank Sub-assy, Fuel
2018-09 → 2022-07 ended
NHP170,NSP170 ¥27,300
77001-52540 Tank Sub-assy, Fuel
2018-09 → 2022-07 ended
NSP172 ¥26,100
77001-52550 Tank Sub-assy, Fuel
2018-09 → 2022-07 ended
NCP175 ¥28,900
77020A — Tube Assy, Fuel Suction W/Pump & Gage
77020-52500 Tube Assy, Fuel Suction W/Pump & Gage
2015-06 → 2018-09 ended
NHP170,NSP17# ¥46,700
77020-52510 Tube Assy, Fuel Suction W/Pump & Gage
2015-06 → 2018-09 ended
NCP175 ¥42,400
77020-52500 Tube Assy, Fuel Suction W/Pump & Gage
2018-09 → 2022-07 ended
NHP170,NSP17# ¥46,700
77020-52510 Tube Assy, Fuel Suction W/Pump & Gage
2018-09 → 2022-07 ended
NCP175 ¥42,400
77024A — Plate Sub-assy, Fuel Suction
77024-52280 Plate Sub-assy, Fuel Suction
2015-06 → 2018-09 ended
NHP170,NSP17# ¥7,000
77024-52290 Plate Sub-assy, Fuel Suction
2015-06 → 2018-09 ended
NCP175 ¥7,000
77024-52280 Plate Sub-assy, Fuel Suction
2018-09 → 2022-07 ended
NHP170,NSP17# ¥7,000
77024-52290 Plate Sub-assy, Fuel Suction
2018-09 → 2022-07 ended
NCP175 ¥7,000
77027 — Tube Sub-assy, Fuel Evaporation, NO.2
77027-52170 Tube Sub-assy, Fuel Evaporation, NO.2
2015-06 → 2018-09 ended
NHP170,NSP17# ¥1,810
77027-52190 Tube Sub-assy, Fuel Evaporation, NO.2
2015-06 → 2018-09 ended
NCP175 ¥520
77027-52170 Tube Sub-assy, Fuel Evaporation, NO.2
2018-09 → 2022-07 ended
NHP170,NSP17# ¥1,810
77027-52190 Tube Sub-assy, Fuel Evaporation, NO.2
2018-09 → 2022-07 ended
NCP175 ¥520
77131C — Sub-tank, Fuel, NO.1
77131-52120 Sub-tank, Fuel, NO.1
2015-06 → 2018-09 ended
NHP170,NSP17# ¥1,490
77131-52130 Sub-tank, Fuel, NO.1
2015-06 → 2018-09 ended
NCP175 ¥1,490
77131-52120 Sub-tank, Fuel, NO.1
2018-09 → 2022-07 ended
NHP170,NSP17# ¥1,490
77131-52130 Sub-tank, Fuel, NO.1
2018-09 → 2022-07 ended
NCP175 ¥1,490
77168A — Plate, Fuel Tank Vent Tube Set
77168-52020 Plate, Fuel Tank Vent Tube Set
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,170
77168-52020 Plate, Fuel Tank Vent Tube Set
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,170
77169A — Gasket, Fuel Suction Tube Set
77169-52010 Gasket, Fuel Suction Tube Set
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥280
77169-52010 Gasket, Fuel Suction Tube Set
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥280
77174 — Support, Fuel Suction, NO.1
77174-28020 Support, Fuel Suction, NO.1
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥450
77174-28020 Support, Fuel Suction, NO.1
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥450
77201E — Pipe Sub-assy, Fuel Tank Filler
77201-52480 Pipe Sub-assy, Fuel Tank Filler
2015-06 → 2018-09 ended
NHP170,NSP170 ¥8,100
77201-52490 Pipe Sub-assy, Fuel Tank Filler
2015-06 → 2018-09 ended
NSP172 ¥7,800
77201-52500 Pipe Sub-assy, Fuel Tank Filler
2015-06 → 2018-09 ended
NCP175 ¥9,500
77201-52480 Pipe Sub-assy, Fuel Tank Filler
2018-09 → 2022-07 ended
NHP170,NSP170 ¥8,100
77201-52490 Pipe Sub-assy, Fuel Tank Filler
2018-09 → 2022-07 ended
NSP172 ¥7,800
77201-52500 Pipe Sub-assy, Fuel Tank Filler
2018-09 → 2022-07 ended
NCP175 ¥9,500
77209F — Tube Sub-assy, Fuel Tank Main
77209-52160 Tube Sub-assy, Fuel Tank Main
2015-06 → 2018-09 ended
NHP170,NSP17# ¥1,660
77209-52230 Tube Sub-assy, Fuel Tank Main
2015-06 → 2018-09 ended
NCP175 ¥980
77209-52160 Tube Sub-assy, Fuel Tank Main
2018-09 → 2022-07 ended
NHP170,NSP17# ¥1,660
77209-52230 Tube Sub-assy, Fuel Tank Main
2018-09 → 2022-07 ended
NCP175 ¥980
77213E — Hose, Fuel Tank TO Filler Pipe
77213-52230 Hose, Fuel Tank TO Filler Pipe
2015-06 → 2018-09 ended
NHP170,NSP170 ¥1,530
77213-52240 Hose, Fuel Tank TO Filler Pipe
2015-06 → 2018-09 ended
NCP175 ¥2,490
77213-52250 Hose, Fuel Tank TO Filler Pipe
2015-06 → 2018-09 ended
NSP172 ¥1,990
77213-52230 Hose, Fuel Tank TO Filler Pipe
2018-09 → 2022-07 ended
NHP170,NSP170 ¥1,530
77213-52240 Hose, Fuel Tank TO Filler Pipe
2018-09 → 2022-07 ended
NCP175 ¥2,490
77213-52250 Hose, Fuel Tank TO Filler Pipe
2018-09 → 2022-07 ended
NSP172 ¥1,990
77216A — Support, Fuel Tank Filler Pipe, NO.1
77216-52220 Support, Fuel Tank Filler Pipe, NO.1
2015-06 → 2018-09 ended
NHP170,NSP17# ¥800
77216-52240 Support, Fuel Tank Filler Pipe, NO.1
2015-06 → 2018-09 ended
NCP175 ¥640
77216-52220 Support, Fuel Tank Filler Pipe, NO.1
2018-09 → 2022-07 ended
NHP170,NSP17# ¥800
77216-52240 Support, Fuel Tank Filler Pipe, NO.1
2018-09 → 2022-07 ended
NCP175 ¥640
77217A — Support, Fuel Tank Filler Pipe, NO.2
77217-52120 Support, Fuel Tank Filler Pipe, NO.2
2015-06 → 2018-09 ended
NHP170,NSP17# ¥460
77217-52140 Support, Fuel Tank Filler Pipe, NO.2
2015-06 → 2018-09 ended
NCP175 ¥390
77217-52120 Support, Fuel Tank Filler Pipe, NO.2
2018-09 → 2022-07 ended
NHP170,NSP17# ¥460
77217-52140 Support, Fuel Tank Filler Pipe, NO.2
2018-09 → 2022-07 ended
NCP175 ¥390
77226A — Tube, Fuel Tank Breather, NO.6
77226-52220 Tube, Fuel Tank Breather, NO.6
2015-06 → 2018-09 ended
NHP170,NSP17# ¥820
77226-52230 Tube, Fuel Tank Breather, NO.6
2015-06 → 2018-09 ended
NCP175 ¥1,270
77226-52220 Tube, Fuel Tank Breather, NO.6
2018-09 → 2022-07 ended
NHP170,NSP17# ¥820
77226-52230 Tube, Fuel Tank Breather, NO.6
2018-09 → 2022-07 ended
NCP175 ¥1,270
77229C — Clamp, Breather Tube
77229-50050 Clamp, Breather Tube
2015-06 → 2018-09 ended
NCP175 ¥390
77229-50050 Clamp, Breather Tube
2018-09 → 2022-07 ended
NCP175 ¥390
77241W — Clip, Tube Joint
77241-33011 Clip, Tube Joint
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥80
77241-33011 Clip, Tube Joint
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥80
77269A — Hose, Fuel Tank Breather
77269-52120 Hose, Fuel Tank Breather
2015-06 → 2018-09 ended
NSP172 ¥1,700
77269-52130 Hose, Fuel Tank Breather
2015-06 → 2018-09 ended
NCP175 ¥1,410
77269-52120 Hose, Fuel Tank Breather
2018-09 → 2022-07 ended
NSP172 ¥1,700
77269-52130 Hose, Fuel Tank Breather
2018-09 → 2022-07 ended
NCP175 ¥1,410
77277R — Protector, Fuel Tank Filler Pipe
77277-52160 Protector, Fuel Tank Filler Pipe
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,250
77277-52160 Protector, Fuel Tank Filler Pipe
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,250
77289 — Holder, Fuel Tank Pipe Setting
77289-52090 Holder, Fuel Tank Pipe Setting
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥470
77289-52090 Holder, Fuel Tank Pipe Setting
2018-09 → 2022-07 ended
NHP170,NSP17# ¥470
77289-52090 Holder, Fuel Tank Pipe Setting
2018-09 → 2022-07 ended
NCP175 ¥470
77291A — Shield, Fuel Tank Filler Pipe
77291-52100 Shield, Fuel Tank Filler Pipe
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,020
77291-52100 Shield, Fuel Tank Filler Pipe
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,020
77296B — Support, Fuel Tube Protector, NO.1
77296-47060 Support, Fuel Tube Protector, NO.1
2015-06 → 2018-09 ended
NCP175 ¥880
77296-52090 Support, Fuel Tube Protector, NO.1
2015-06 → 2018-09 ended
NHP170,NSP17# ¥800
77296-47060 Support, Fuel Tube Protector, NO.1
2018-09 → 2022-07 ended
NCP175 ¥880
77296-52090 Support, Fuel Tube Protector, NO.1
2018-09 → 2022-07 ended
NHP170,NSP17# ¥800
77297B — Support, Fuel Tube Protector, NO.2
77296-52080 Support, Fuel Tube Protector, NO.2
2015-06 → 2018-09 ended
NCP175 ¥800
77296-52080 Support, Fuel Tube Protector, NO.2
2018-09 → 2022-07 ended
NCP175 ¥800
77310A — Cap Assy, Fuel Tank
77300-12020 Cap Assy, Fuel Tank
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,660
77300-12020 Cap Assy, Fuel Tank
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥1,660
77316 — Gasket, Fuel Tank Cap
77316-52040 Gasket, Fuel Tank Cap
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥230
77316-52040 Gasket, Fuel Tank Cap
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥230
77391A — Ring, Fuel Inlet Box
77391-12020 Ring, Fuel Inlet Box
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥180
77391-12020 Ring, Fuel Inlet Box
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥180
77512C — Bracket, Fuel Tank
77512-35140 Bracket, Fuel Tank
2015-06 → 2018-08 ended
NCP175,NHP170,NSP17# ¥230
77512-35140 Bracket, Fuel Tank
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥230
77601B — Band Sub-assy, Fuel Tank, NO.1 RH
77601-52040 Band Sub-assy, Fuel Tank, NO.1 RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥1,090
77601-52050 Band Sub-assy, Fuel Tank, NO.1 RH
2015-06 → 2018-09 ended
NSP172 ¥1,090
77601-52060 Band Sub-assy, Fuel Tank, NO.1 RH
2015-06 → 2018-09 ended
NCP175 ¥1,700
77601-52040 Band Sub-assy, Fuel Tank, NO.1 RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥1,090
77601-52050 Band Sub-assy, Fuel Tank, NO.1 RH
2018-09 → 2022-07 ended
NSP172 ¥1,090
77601-52060 Band Sub-assy, Fuel Tank, NO.1 RH
2018-09 → 2022-07 ended
NCP175 ¥1,700
77602B — Band Sub-assy, Fuel Tank, NO.1 LH
77602-52030 Band Sub-assy, Fuel Tank, NO.1 LH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥1,700
77602-52040 Band Sub-assy, Fuel Tank, NO.1 LH
2015-06 → 2018-09 ended
NSP172 ¥1,400
77602-52050 Band Sub-assy, Fuel Tank, NO.1 LH
2015-06 → 2018-09 ended
NCP175 ¥1,700
77602-52030 Band Sub-assy, Fuel Tank, NO.1 LH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥1,700
77602-52040 Band Sub-assy, Fuel Tank, NO.1 LH
2018-09 → 2022-07 ended
NSP172 ¥1,400
77602-52050 Band Sub-assy, Fuel Tank, NO.1 LH
2018-09 → 2022-07 ended
NCP175 ¥1,700
77613 — Bolt, Fuel Tank Band Set
90119-10971 Bolt, Fuel Tank Band Set
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥120
90119-10971 Bolt, Fuel Tank Band Set
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥120
77641A — Protector, Fuel Tank, NO.1
77641-52040 Protector, Fuel Tank, NO.1
2015-06 → 2018-09 ended
NHP170,NSP17# ¥1,940
77641-52050 Protector, Fuel Tank, NO.1
2015-06 → 2018-09 ended
NCP175 ¥2,100
77641-52040 Protector, Fuel Tank, NO.1
2018-09 → 2022-07 ended
NHP170,NSP17# ¥1,940
77641-52050 Protector, Fuel Tank, NO.1
2018-09 → 2022-07 ended
NCP175 ¥2,100
77642A — Protector, Fuel Tank, NO.2
77642-52040 Protector, Fuel Tank, NO.2
2015-06 → 2018-09 ended
NCP175 ¥930
77642-52040 Protector, Fuel Tank, NO.2
2018-09 → 2022-07 ended
NCP175 ¥930
77643A — Protector, Fuel Tank, NO.3
77642-52020 Protector, Fuel Tank, NO.3
2015-06 → 2018-09 ended
NCP175 ¥480
77642-52020 Protector, Fuel Tank, NO.3
2018-09 → 2022-07 ended
NCP175 ¥480
77651A — Cushion, Fuel Tank, NO.1
77651-20090 Cushion, Fuel Tank, NO.1
2015-06 → 2018-09 ended
NHP170,NSP17# ¥250
77651-20090 Cushion, Fuel Tank, NO.1
2015-06 → 2018-09 ended
NCP175 ¥250
77651-20090 Cushion, Fuel Tank, NO.1
2018-09 → 2022-07 ended
NHP170,NSP17# ¥250
77651-20090 Cushion, Fuel Tank, NO.1
2018-09 → 2022-07 ended
NCP175 ¥250
77651B — Cushion, Fuel Tank
77651-60100 Cushion, Fuel Tank
2015-06 → 2018-09 ended
NCP175 ¥90
77651-60100 Cushion, Fuel Tank
2018-09 → 2022-07 ended
NCP175 ¥90
77652 — Cushion, Fuel Tank, NO.1
77651-26070 Cushion, Fuel Tank, NO.1
2015-06 → 2018-09 ended
NCP175 ¥990
77651-26070 Cushion, Fuel Tank, NO.1
2018-09 → 2022-07 ended
NCP175 ¥990
77652A — Cushion, Fuel Tank, NO.2
77652-12100 Cushion, Fuel Tank, NO.2
2015-06 → 2018-09 ended
NHP170,NSP17# ¥590
77652-52030 Cushion, Fuel Tank, NO.2
2015-06 → 2018-09 ended
NCP175 ¥400
77652-12100 Cushion, Fuel Tank, NO.2
2018-09 → 2022-07 ended
NHP170,NSP17# ¥590
77652-52030 Cushion, Fuel Tank, NO.2
2018-09 → 2022-07 ended
NCP175 ¥400
77681 — Seat, Fuel Tank Band, RH
77681-12040 Seat, Fuel Tank Band, RH
2015-06 → 2018-09 ended
NSP172 ¥680
77681-52020 Seat, Fuel Tank Band, RH
2015-06 → 2018-09 ended
NCP175 ¥810
77681-52030 Seat, Fuel Tank Band, RH
2015-06 → 2018-09 ended
NHP170,NSP170 ¥480
77681-12040 Seat, Fuel Tank Band, RH
2018-09 → 2022-07 ended
NSP172 ¥680
77681-52020 Seat, Fuel Tank Band, RH
2018-09 → 2022-07 ended
NCP175 ¥810
77681-52030 Seat, Fuel Tank Band, RH
2018-09 → 2022-07 ended
NHP170,NSP170 ¥480
77682 — Seat, Fuel Tank Band, LH
77681-52020 Seat, Fuel Tank Band, LH
2015-06 → 2018-09 ended
NSP172 ¥810
77681-52040 Seat, Fuel Tank Band, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP170 ¥700
77681-52020 Seat, Fuel Tank Band, LH
2018-09 → 2022-07 ended
NSP172 ¥810
77681-52040 Seat, Fuel Tank Band, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 ¥700
77785 — Harness, Fuel Pump
77785-48040 Harness, Fuel Pump
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥950
77785-48040 Harness, Fuel Pump
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥950
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
