Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

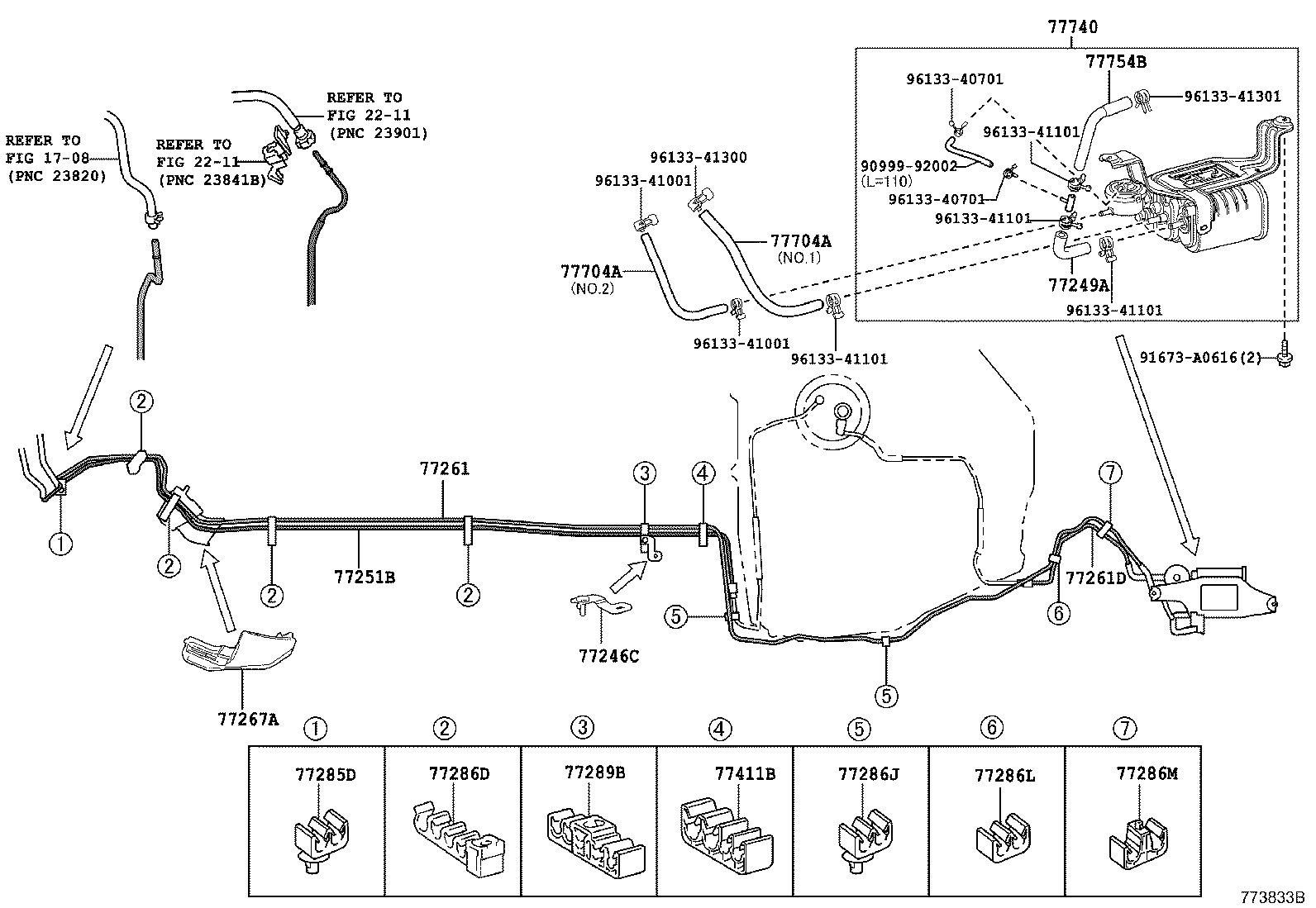

Exploded illustration 773833B 2211 — not listed in this catalogue 2211 — not listed in this catalogue 1708 — not listed in this catalogue 77251B — TUBE, FUEL MAIN (6 parts) 77261 — TUBE SUB-ASSY, FUEL EMISSION (8 parts) 77261D — TUBE, FUEL TANK TO CANISTER (6 parts) 77267A — PROTECTOR, FUEL TUBE, NO.2 (4 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (4 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (4 parts) 77286J — CLAMP, FUEL TUBE, NO.4 (4 parts) 77286M — CLAMP, FUEL TUBE, NO.6 (6 parts) 77286L — CLAMP, FUEL TUBE, NO.5 (6 parts) 77289B — CLAMP, FUEL TUBE, NO.3 (4 parts) 77411B — SUPPORT, FUEL TUBE GROMMET, NO.1 (2 parts) 77246C — SUPPORT, FUEL MAIN TUBE (2 parts) 77249A — HOSE, FUEL EMISSION (4 parts) 77704A — HOSE, FUEL(FOR CHARCOAL CANISTER) (8 parts) 77704A — HOSE, FUEL(FOR CHARCOAL CANISTER) (8 parts) 77740 — CANISTER ASSY, CHARCOAL (4 parts) 77754B — HOSE, CHARCOAL CANISTER OUTLET (4 parts) 9099992002 — not listed in this catalogue 91673A0616 — not listed in this catalogue 9613340701 — not listed in this catalogue 9613340701 — not listed in this catalogue 9613341101 — not listed in this catalogue 9613341101 — not listed in this catalogue 9613341101 — not listed in this catalogue 9613341301 — not listed in this catalogue 9613341300 — not listed in this catalogue 9613341001 — not listed in this catalogue 9613341001 — not listed in this catalogue 9613341101 — not listed in this catalogue
773833B · 17 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
77246C — Support, Fuel Main Tube
77246-52030 Support, Fuel Main Tube
2015-07 → 2018-09 ended
NHP170 ¥200
77246-52030 Support, Fuel Main Tube
2018-09 → 2022-07 ended
NHP170 ¥200
77249A — Hose, Fuel Emission
77249-52120 Hose, Fuel Emission
2015-06 → 2018-09 ended
NHP170,NSP17# ¥150
77249-52130 Hose, Fuel Emission
2015-06 → 2018-09 ended
NCP175 ¥100
77249-52120 Hose, Fuel Emission
2018-09 → 2022-07 ended
NHP170,NSP17# ¥150
77249-52130 Hose, Fuel Emission
2018-09 → 2022-07 ended
NCP175 ¥100
77251B — Tube, Fuel Main
77251-52440 Tube, Fuel Main
2015-06 → 2018-09 ended
NSP17# ¥3,400
77251-52490 Tube, Fuel Main
2015-06 → 2018-09 ended
NCP175 ¥3,320
77251-52500 Tube, Fuel Main
2015-07 → 2018-09 ended
NHP170 ¥3,080
77251-52440 Tube, Fuel Main
2018-09 → 2022-07 ended
NSP17# ¥3,400
77251-52490 Tube, Fuel Main
2018-09 → 2022-07 ended
NCP175 ¥3,320
77251-52500 Tube, Fuel Main
2018-09 → 2022-07 ended
NHP170 ¥3,080
77261 — Tube Sub-assy, Fuel Emission
77261-52410 Tube Sub-assy, Fuel Emission
2015-06 → 2018-09 ended
NSP170 ¥3,950
77261-52490 Tube Sub-assy, Fuel Emission
2015-06 → 2018-09 ended
NSP172 ¥3,780
77261-52500 Tube Sub-assy, Fuel Emission
2015-07 → 2018-09 ended
NHP170 ¥4,870
77261-52510 Tube Sub-assy, Fuel Emission
2015-06 → 2018-09 ended
NCP175 ¥3,920
77261-52410 Tube Sub-assy, Fuel Emission
2018-09 → 2022-07 ended
NSP170 ¥3,950
77261-52490 Tube Sub-assy, Fuel Emission
2018-09 → 2022-07 ended
NSP172 ¥3,780
77261-52500 Tube Sub-assy, Fuel Emission
2018-09 → 2022-07 ended
NHP170 ¥4,870
77261-52510 Tube Sub-assy, Fuel Emission
2018-09 → 2022-07 ended
NCP175 ¥3,920
77261D — Tube, Fuel Tank TO Canister
77262-52090 Tube, Fuel Tank TO Canister
2015-06 → 2018-09 ended
NHP170,NSP170 ¥860
77262-52100 Tube, Fuel Tank TO Canister
2015-06 → 2018-09 ended
NSP172 ¥780
77263-52010 Tube, Fuel Tank TO Canister
2015-06 → 2018-09 ended
NCP175 ¥1,480
77262-52090 Tube, Fuel Tank TO Canister
2018-09 → 2022-07 ended
NHP170,NSP170 ¥860
77262-52100 Tube, Fuel Tank TO Canister
2018-09 → 2022-07 ended
NSP172 ¥780
77263-52010 Tube, Fuel Tank TO Canister
2018-09 → 2022-07 ended
NCP175 ¥1,480
77267A — Protector, Fuel Tube, NO.2
77267-52050 Protector, Fuel Tube, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# ¥1,140
77267-52061 Protector, Fuel Tube, NO.2
2015-07 → 2018-09 ended
NHP170 ¥1,140
77267-52050 Protector, Fuel Tube, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# ¥1,140
77267-52061 Protector, Fuel Tube, NO.2
2018-09 → 2022-07 ended
NHP170 ¥1,140
77285D — Clamp, Fuel Tube, NO.1
77285-52140 Clamp, Fuel Tube, NO.1
2015-06 → 2018-09 ended
NCP175,NSP17# ¥330
77286-20190 Clamp, Fuel Tube, NO.1
2015-07 → 2018-09 ended
NHP170 ¥240
77285-52140 Clamp, Fuel Tube, NO.1
2018-09 → 2022-07 ended
NCP175,NSP17# ¥330
77286-20190 Clamp, Fuel Tube, NO.1
2018-09 → 2022-07 ended
NHP170 ¥240
77286D — Clamp, Fuel Tube, NO.2
77285-42110 Clamp, Fuel Tube, NO.2
2015-06 → 2018-09 ended
NCP175,NSP17# ¥250
77299-52050 Clamp, Fuel Tube, NO.2
2015-07 → 2018-09 ended
NHP170 ¥380
77285-42110 Clamp, Fuel Tube, NO.2
2018-09 → 2022-07 ended
NCP175,NSP17# ¥250
77299-52050 Clamp, Fuel Tube, NO.2
2018-09 → 2022-07 ended
NHP170 ¥380
77286J — Clamp, Fuel Tube, NO.4
77285-52110 Clamp, Fuel Tube, NO.4
2015-06 → 2018-09 ended
NHP170,NSP17# ¥240
77285-52110 Clamp, Fuel Tube, NO.4
2015-06 → 2018-09 ended
NCP175 ¥240
77285-52110 Clamp, Fuel Tube, NO.4
2018-09 → 2022-07 ended
NHP170,NSP17# ¥240
77285-52110 Clamp, Fuel Tube, NO.4
2018-09 → 2022-07 ended
NCP175 ¥240
77286L — Clamp, Fuel Tube, NO.5
77285-28110 Clamp, Fuel Tube, NO.5
2015-06 → 2018-09 ended
NSP172 ¥220
77285-52150 Clamp, Fuel Tube, NO.5
2015-07 → 2018-09 ended
NHP170 ¥220
77286-52200 Clamp, Fuel Tube, NO.5
2015-06 → 2018-09 ended
NCP175 ¥410
77285-28110 Clamp, Fuel Tube, NO.5
2018-09 → 2022-07 ended
NSP172 ¥220
77285-52150 Clamp, Fuel Tube, NO.5
2018-09 → 2022-07 ended
NHP170 ¥220
77286-52200 Clamp, Fuel Tube, NO.5
2018-09 → 2022-07 ended
NCP175 ¥410
77286M — Clamp, Fuel Tube, NO.6
77285-28110 Clamp, Fuel Tube, NO.6
2015-06 → 2018-09 ended
NSP170 ¥220
77286-52190 Clamp, Fuel Tube, NO.6
2015-06 → 2018-09 ended
NSP172 ¥280
77286-52220 Clamp, Fuel Tube, NO.6
2015-07 → 2018-09 ended
NHP170 ¥310
77285-28110 Clamp, Fuel Tube, NO.6
2018-09 → 2022-07 ended
NSP170 ¥220
77286-52190 Clamp, Fuel Tube, NO.6
2018-09 → 2022-07 ended
NSP172 ¥280
77286-52220 Clamp, Fuel Tube, NO.6
2018-09 → 2022-07 ended
NHP170 ¥310
77289B — Clamp, Fuel Tube, NO.3
77298-52070 Clamp, Fuel Tube, NO.3
2015-06 → 2018-09 ended
NCP175,NSP17# ¥470
77298-52070 Clamp, Fuel Tube, NO.3
2015-07 → 2018-09 ended
NHP170 ¥470
77298-52070 Clamp, Fuel Tube, NO.3
2018-09 → 2022-07 ended
NCP175,NSP17# ¥470
77298-52070 Clamp, Fuel Tube, NO.3
2018-09 → 2022-07 ended
NHP170 ¥470
77411B — Support, Fuel Tube Grommet, NO.1
77411-48030 Support, Fuel Tube Grommet, NO.1
2015-06 → 2018-09 ended
NHP170,NSP17# ¥370
77411-48030 Support, Fuel Tube Grommet, NO.1
2018-09 → 2022-07 ended
NHP170,NSP17# ¥370
77704A — Hose, Fuel(FOR CHARCOAL CANISTER)
77279-52090 note Hose, Fuel(FOR CHARCOAL CANISTER)
2015-06 → 2018-09 ended
NSP17# ¥410
77754-33030 note Hose, Fuel(FOR CHARCOAL CANISTER)
2015-07 → 2018-09 ended
NHP170 ¥620
95325-09015 note Hose, Fuel(FOR CHARCOAL CANISTER)
2015-06 → 2018-09 ended
NCP175 ¥220
95326-06018 note Hose, Fuel(FOR CHARCOAL CANISTER)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
77279-52090 note Hose, Fuel(FOR CHARCOAL CANISTER)
2018-09 → 2022-07 ended
NSP17# ¥410
77754-33030 note Hose, Fuel(FOR CHARCOAL CANISTER)
2018-09 → 2022-07 ended
NHP170 ¥620
95325-09015 note Hose, Fuel(FOR CHARCOAL CANISTER)
2018-09 → 2022-07 ended
NCP175 ¥220
95326-06018 note Hose, Fuel(FOR CHARCOAL CANISTER)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥220
77740 — Canister Assy, Charcoal
77740-52140 Canister Assy, Charcoal
2015-06 → 2018-09 ended
NHP170,NSP17# ¥9,300
77740-52150 Canister Assy, Charcoal
2015-06 → 2018-09 ended
NCP175 ¥9,200
77740-52140 Canister Assy, Charcoal
2018-09 → 2022-07 ended
NHP170,NSP17# ¥9,300
77740-52150 Canister Assy, Charcoal
2018-09 → 2022-07 ended
NCP175 ¥9,200
77754B — Hose, Charcoal Canister Outlet
77754-52080 Hose, Charcoal Canister Outlet
2015-06 → 2018-09 ended
NCP175 ¥640
77754-52090 Hose, Charcoal Canister Outlet
2015-06 → 2018-09 ended
NHP170,NSP17# ¥400
77754-52080 Hose, Charcoal Canister Outlet
2018-09 → 2022-07 ended
NCP175 ¥640
77754-52090 Hose, Charcoal Canister Outlet
2018-09 → 2022-07 ended
NHP170,NSP17# ¥400
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
