Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration 817429H 6101 — not listed in this catalogue 6101 — not listed in this catalogue 9018906242 — not listed in this catalogue 9017905102 — not listed in this catalogue 9017605023 — not listed in this catalogue 9015960621 — not listed in this catalogue 9007502064 — not listed in this catalogue 81551D — LENS & BODY, REAR COMBINATION LAMP, RH (7 parts) 81550L — BULB, REAR TURN SIGNAL LAMP (2 parts) 81552C — GASKET, REAR COMBINATION LAMP (1 parts) 81536A — LED, REAR COMBINATION LAMP (2 parts) 81496 — GUIDE, REAR COMBINATION LAMP (2 parts) 81496C — GUIDE, REAR COMBINATION LAMP, NO.2 (2 parts) 81550N — BULB, BACK UP LAMP (2 parts) 81584D — GASKET, REAR LAMP (2 parts) 81561D — LENS & BODY, REAR COMBINATION LAMP, LH (7 parts) 81497 — COVER, REAR COMBINATION LAMP, RH (2 parts) 81498 — COVER, REAR COMBINATION LAMP, LH (2 parts) 81555 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH (7 parts) 81565 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH (7 parts) 81584A — GASKET, REAR LAMP RH (5 parts) 81594A — GASKET, REAR LAMP LH (5 parts) 81581C — LENS AND BODY, REAR LAMP, RH (7 parts) 81591B — LENS AND BODY, REAR LAMP, LH (7 parts)

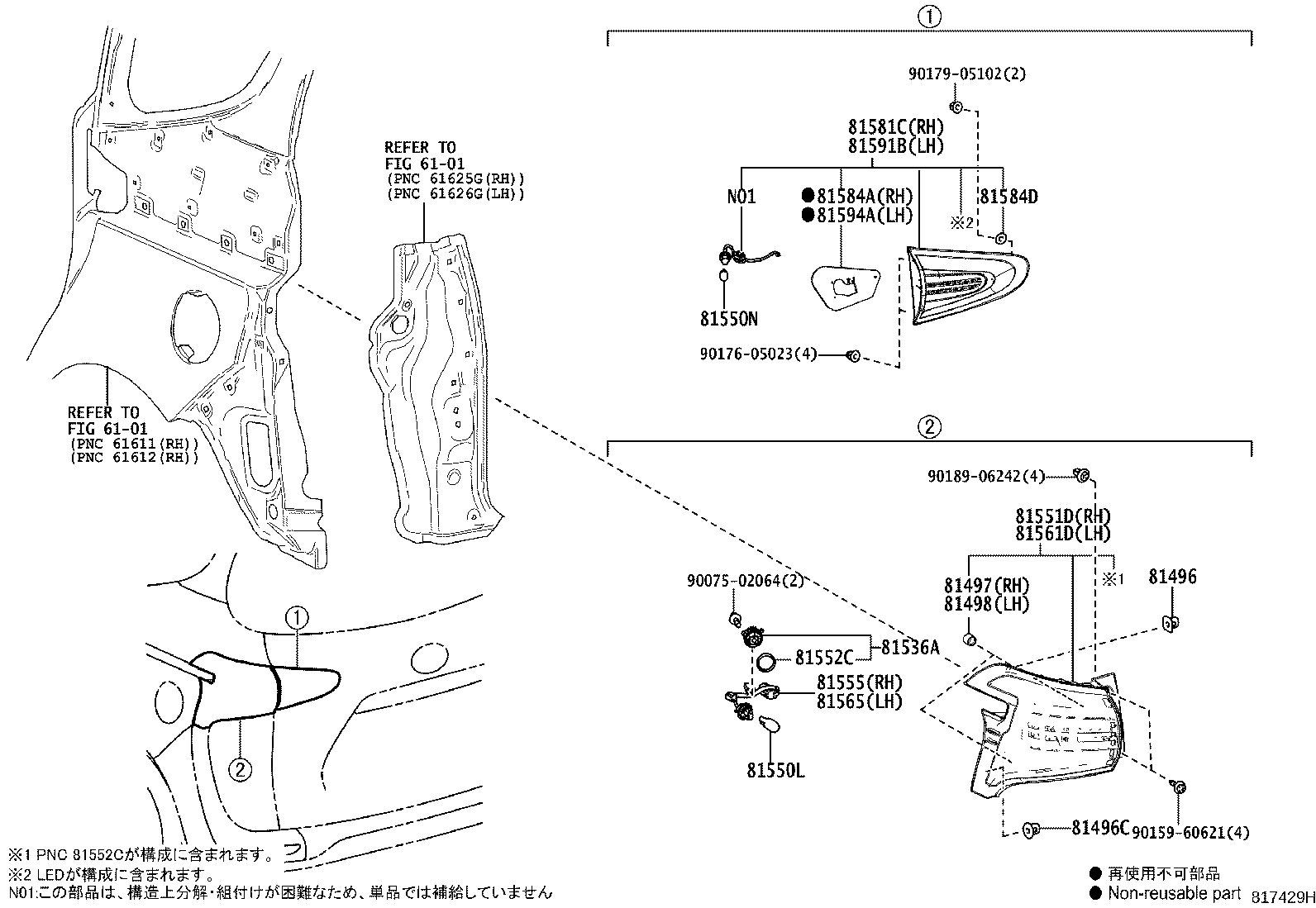

817429H · 17 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
81496 — Guide, Rear Combination Lamp
76817-26040 Guide, Rear Combination Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥110
76817-26040 Guide, Rear Combination Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥110
81496C — Guide, Rear Combination Lamp, NO.2
81496-52020 Guide, Rear Combination Lamp, NO.2
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥70
81496-52020 Guide, Rear Combination Lamp, NO.2
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥70
81497 — Cover, Rear Combination Lamp, RH
90075-15512 Cover, Rear Combination Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥610
90075-15512 Cover, Rear Combination Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥610
81498 — Cover, Rear Combination Lamp, LH
90075-15512 Cover, Rear Combination Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥610
90075-15512 Cover, Rear Combination Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥610
81536A — Led, Rear Combination Lamp
81536-52C80 Led, Rear Combination Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,590
81536-15120 Led, Rear Combination Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥2,850
81550L — Bulb, Rear Turn Signal Lamp
90981-15021 note Bulb, Rear Turn Signal Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥300
90981-15021 note Bulb, Rear Turn Signal Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥300
81550N — Bulb, Back UP Lamp
90981-11059 note Bulb, Back UP Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥200
90981-11059 note Bulb, Back UP Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥200
81551D — Lens & Body, Rear Combination Lamp, RH
81551-52C80 Lens & Body, Rear Combination Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,300
81551-52C90 note Lens & Body, Rear Combination Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,900
81551-52C90 note Lens & Body, Rear Combination Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,900
81551-52E30 Lens & Body, Rear Combination Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥15,000
81551-52E40 Lens & Body, Rear Combination Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥19,800
81551-52E40 note Lens & Body, Rear Combination Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥19,800
81551-52E40 note Lens & Body, Rear Combination Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥19,800
81552C — Gasket, Rear Combination Lamp
90075-68010 Gasket, Rear Combination Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥610
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-52C80 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,680
81555-52C90 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,700
81555-52C90 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,700
81555-52E30 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥1,670
81555-52E40 Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥1,750
81555-52E40 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,750
81555-52E40 note Socket & Wire Sub-assy, Rear Combination Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥1,750
81561D — Lens & Body, Rear Combination Lamp, LH
81561-52C80 Lens & Body, Rear Combination Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,300
81561-52C90 note Lens & Body, Rear Combination Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,900
81561-52C90 note Lens & Body, Rear Combination Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥16,900
81561-52E30 Lens & Body, Rear Combination Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥15,000
81561-52E40 note Lens & Body, Rear Combination Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥19,800
81561-52E40 note Lens & Body, Rear Combination Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥19,800
81561-52E40 Lens & Body, Rear Combination Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥19,800
81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81555-52C80 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,680
81555-52C90 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,700
81555-52C90 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,700
81555-52E30 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥1,670
81555-52E40 Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥1,750
81555-52E40 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,750
81555-52E40 note Socket & Wire Sub-assy, Rear Combination Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥1,750
81581C — Lens And Body, Rear Lamp, RH
81581-52320 Lens And Body, Rear Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,100
81581-52330 note Lens And Body, Rear Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥14,700
81581-52330 note Lens And Body, Rear Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥14,700
81581-52380 Lens And Body, Rear Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥8,100
81581-52390 Lens And Body, Rear Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥15,200
81581-52390 note Lens And Body, Rear Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥15,200
81581-52390 note Lens And Body, Rear Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥15,200
81584A — Gasket, Rear Lamp RH
81584-52320 Gasket, Rear Lamp RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥750
81584-52380 Gasket, Rear Lamp RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥750
81584-52390 Gasket, Rear Lamp RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥740
81584-52390 note Gasket, Rear Lamp RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥740
81584-52390 note Gasket, Rear Lamp RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥740
81584D — Gasket, Rear Lamp
81554-12A00 Gasket, Rear Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥380
81554-12A00 Gasket, Rear Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# ¥380
81591B — Lens And Body, Rear Lamp, LH
81591-52320 Lens And Body, Rear Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,100
81591-52330 note Lens And Body, Rear Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥14,700
81591-52330 note Lens And Body, Rear Lamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥14,700
81591-52380 Lens And Body, Rear Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥8,100
81591-52390 Lens And Body, Rear Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥15,200
81591-52390 note Lens And Body, Rear Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥15,200
81591-52390 note Lens And Body, Rear Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥15,200
81594A — Gasket, Rear Lamp LH
81594-52320 Gasket, Rear Lamp LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥750
81594-52380 Gasket, Rear Lamp LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥750
81594-52390 Gasket, Rear Lamp LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥740
81594-52390 note Gasket, Rear Lamp LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥740
81594-52390 note Gasket, Rear Lamp LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥740
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
