Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

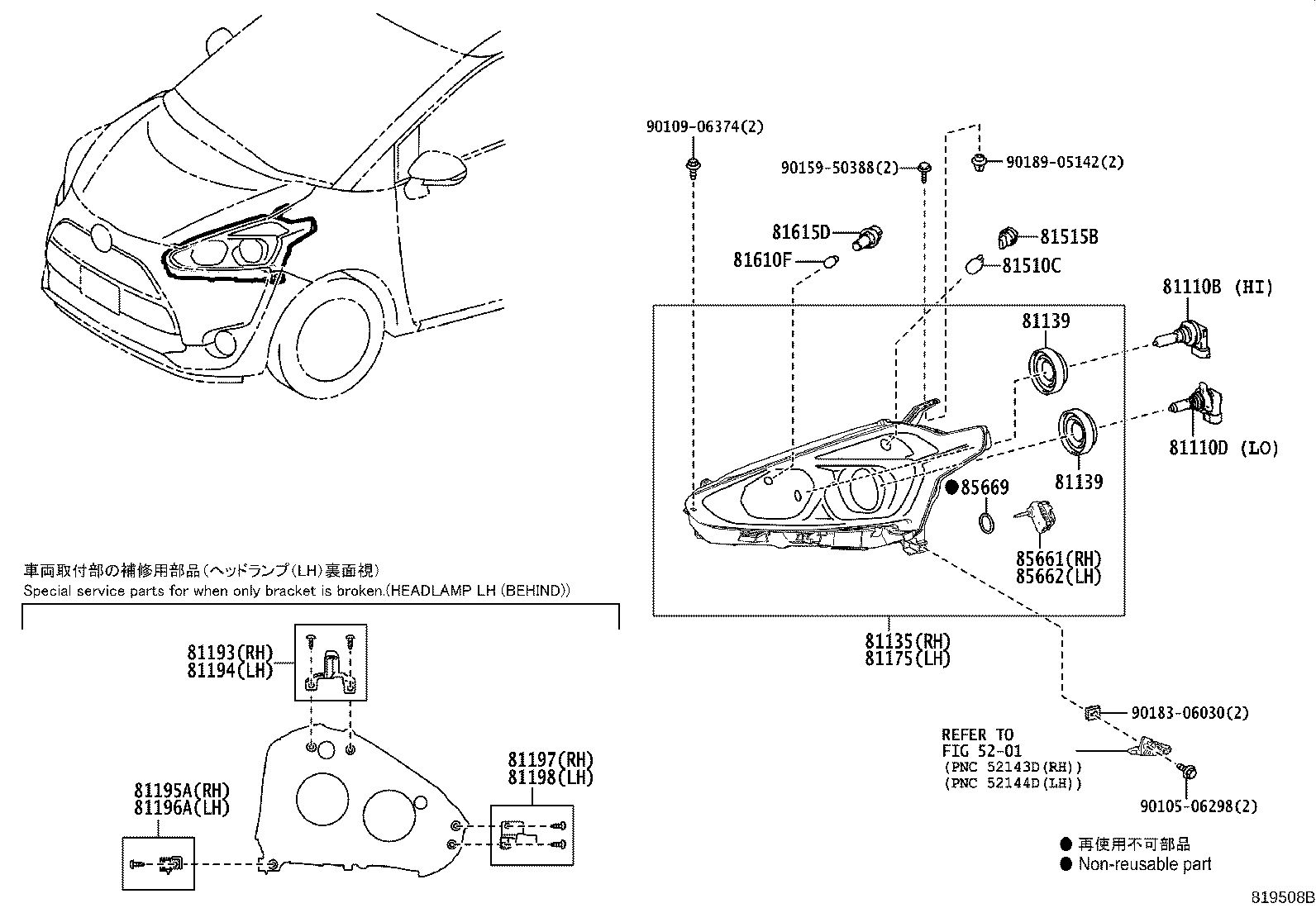

Exploded illustration 819508B 85661 — MOTOR, HEADLAMP LEVELING, RH (4 parts) 85669 — PACKING, HEADLAMP LEVELING MOTOR BASE (2 parts) 81139 — COVER, HEADLAMP SOCKET (3 parts) 81139 — COVER, HEADLAMP SOCKET (3 parts) 85662 — MOTOR, HEADLAMP LEVELING, LH (4 parts) 81110D — BULB(FOR HEADLAMP, NO.2) (3 parts) 81110B — BULB(FOR HEADLAMP, NO.1) (3 parts) 9018306030 — not listed in this catalogue 9010506298 — not listed in this catalogue 81193 — RETAINER, HEADLAMP PROTECTOR, UPPER RH (7 parts) 81194 — RETAINER, HEADLAMP PROTECTOR, UPPER LH (7 parts) 81195A — RETAINER, HEADLAMP PROTECTOR, LOWER RH (7 parts) 81196A — RETAINER, HEADLAMP PROTECTOR, LOWER LH (7 parts) 81197 — BRACKET, HEADLAMP, LOWER RH (7 parts) 81198 — BRACKET, HEADLAMP, LWR LH (7 parts) 81615D — SOCKET, CLEARANCE LAMP (2 parts) 81515B — SOCKET, FRONT TURN SIGNAL LAMP (7 parts) 81510C — BULB (FOR FRONT TURN SIGNAL LAMP) (7 parts) 81610F — BULB(FOR CLEARANCE LAMP) (2 parts) 9015950388 — not listed in this catalogue 9010906374 — not listed in this catalogue 9018905142 — not listed in this catalogue 5201 — not listed in this catalogue 81135 — UNIT ASSY, HEADLAMP, RH (10 parts) 81175 — UNIT ASSY, HEADLAMP, LH (11 parts)
819508B · 19 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
100 parts on this figure
Part number Description Fitment Price
81110B — Bulb(FOR HEADLAMP, NO.1)
90981-13046 note Bulb(FOR HEADLAMP, NO.1)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥2,000
90981-13046 note Bulb(FOR HEADLAMP, NO.1)
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥2,000
90981-13046 note Bulb(FOR HEADLAMP, NO.1)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥2,000
81110D — Bulb(FOR HEADLAMP, NO.2)
90981-13075 note Bulb(FOR HEADLAMP, NO.2)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,800
90981-13075 note Bulb(FOR HEADLAMP, NO.2)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,800
90981-13075 note Bulb(FOR HEADLAMP, NO.2)
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥1,800
81135 — Unit Assy, Headlamp, RH
81130-52K20 Unit Assy, Headlamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥37,800
81130-52K30 note Unit Assy, Headlamp, RH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥149,000
81130-52K30 note Unit Assy, Headlamp, RH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥149,000
81130-52K31 note Unit Assy, Headlamp, RH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥103,000
81130-52K31 note Unit Assy, Headlamp, RH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥103,000
81130-52M90 Unit Assy, Headlamp, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥31,400
81130-52M90 Unit Assy, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥31,400
81130-52N00 note Unit Assy, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥101,000
81130-52N00 note Unit Assy, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥101,000
81130-52N00 Unit Assy, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥101,000
81139 — Cover, Headlamp Socket
90075-65006 Cover, Headlamp Socket
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥460
90075-65006 Cover, Headlamp Socket
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥460
90075-65006 Cover, Headlamp Socket
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥460
81175 — Unit Assy, Headlamp, LH
81170-52K20 Unit Assy, Headlamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥37,800
81170-52K30 note Unit Assy, Headlamp, LH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥149,000
81170-52K30 note Unit Assy, Headlamp, LH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥149,000
81170-52K31 note Unit Assy, Headlamp, LH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥103,000
81170-52K31 note Unit Assy, Headlamp, LH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥103,000
81070-52N90 Unit Assy, Headlamp, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥80,700
81170-52M90 Unit Assy, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥31,400
81170-52M90 Unit Assy, Headlamp, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥31,400
81170-52N00 note Unit Assy, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥101,000
81170-52N00 note Unit Assy, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥101,000
81170-52N00 Unit Assy, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥101,000
81193 — Retainer, Headlamp Protector, Upper RH
81193-52270 Retainer, Headlamp Protector, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81193-52280 note Retainer, Headlamp Protector, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81193-52280 note Retainer, Headlamp Protector, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81193-52270 Retainer, Headlamp Protector, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥770
81193-52280 Retainer, Headlamp Protector, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥770
81193-52280 note Retainer, Headlamp Protector, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥770
81193-52280 note Retainer, Headlamp Protector, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥770
81194 — Retainer, Headlamp Protector, Upper LH
81194-52260 Retainer, Headlamp Protector, Upper LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81194-52270 note Retainer, Headlamp Protector, Upper LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81194-52270 note Retainer, Headlamp Protector, Upper LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81194-52260 Retainer, Headlamp Protector, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥770
81194-52270 Retainer, Headlamp Protector, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥770
81194-52270 note Retainer, Headlamp Protector, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥770
81194-52270 note Retainer, Headlamp Protector, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥770
81195A — Retainer, Headlamp Protector, Lower RH
81195-52200 Retainer, Headlamp Protector, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥480
81195-52210 note Retainer, Headlamp Protector, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥640
81195-52210 note Retainer, Headlamp Protector, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥640
81195-52200 Retainer, Headlamp Protector, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥480
81195-52210 note Retainer, Headlamp Protector, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥640
81195-52210 Retainer, Headlamp Protector, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥640
81195-52210 note Retainer, Headlamp Protector, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥640
81196A — Retainer, Headlamp Protector, Lower LH
81196-52180 Retainer, Headlamp Protector, Lower LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥480
81196-52190 note Retainer, Headlamp Protector, Lower LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥640
81196-52190 note Retainer, Headlamp Protector, Lower LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥640
81196-52180 Retainer, Headlamp Protector, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥480
81196-52190 Retainer, Headlamp Protector, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥640
81196-52190 note Retainer, Headlamp Protector, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥640
81196-52190 note Retainer, Headlamp Protector, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥640
81197 — Bracket, Headlamp, Lower RH
81197-52080 Bracket, Headlamp, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥480
81197-52090 note Bracket, Headlamp, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
81197-52090 note Bracket, Headlamp, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
81197-52080 Bracket, Headlamp, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥480
81197-52090 note Bracket, Headlamp, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥540
81197-52090 note Bracket, Headlamp, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥540
81197-52090 Bracket, Headlamp, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥540
81198 — Bracket, Headlamp, Lwr LH
81198-52080 Bracket, Headlamp, Lwr LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥480
81198-52090 note Bracket, Headlamp, Lwr LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
81198-52090 note Bracket, Headlamp, Lwr LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
81198-52080 Bracket, Headlamp, Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥480
81198-52090 Bracket, Headlamp, Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥540
81198-52090 note Bracket, Headlamp, Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥540
81198-52090 note Bracket, Headlamp, Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥540
81510C — Bulb (FOR FRONT TURN SIGNAL LAMP)
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥300
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥300
90981-15021 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥300
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥300
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥300
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥300
90981-15021 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥300
81515B — Socket, Front Turn Signal Lamp
81515-42050 note Socket, Front Turn Signal Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥660
81515-42050 note Socket, Front Turn Signal Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥660
90075-60028 Socket, Front Turn Signal Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥610
81515-42050 Socket, Front Turn Signal Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥660
81515-42050 note Socket, Front Turn Signal Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥660
81515-42050 note Socket, Front Turn Signal Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥660
90075-60028 Socket, Front Turn Signal Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥610
81610F — Bulb(FOR CLEARANCE LAMP)
99132-12050 note Bulb(FOR CLEARANCE LAMP)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥110
99132-12050 note Bulb(FOR CLEARANCE LAMP)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥110
81615D — Socket, Clearance Lamp
90075-60089 Socket, Clearance Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥610
90075-60089 Socket, Clearance Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥610
85661 — Motor, Headlamp Leveling, RH
85661-12010 Motor, Headlamp Leveling, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-68011 note Motor, Headlamp Leveling, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-68011 note Motor, Headlamp Leveling, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-12010 Motor, Headlamp Leveling, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥3,710
85662 — Motor, Headlamp Leveling, LH
85661-12010 Motor, Headlamp Leveling, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-68011 note Motor, Headlamp Leveling, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-68011 note Motor, Headlamp Leveling, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-12010 Motor, Headlamp Leveling, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥3,710
85669 — Packing, Headlamp Leveling Motor Base
90075-99120 Packing, Headlamp Leveling Motor Base
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥220
90075-99120 Packing, Headlamp Leveling Motor Base
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥220
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
