Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

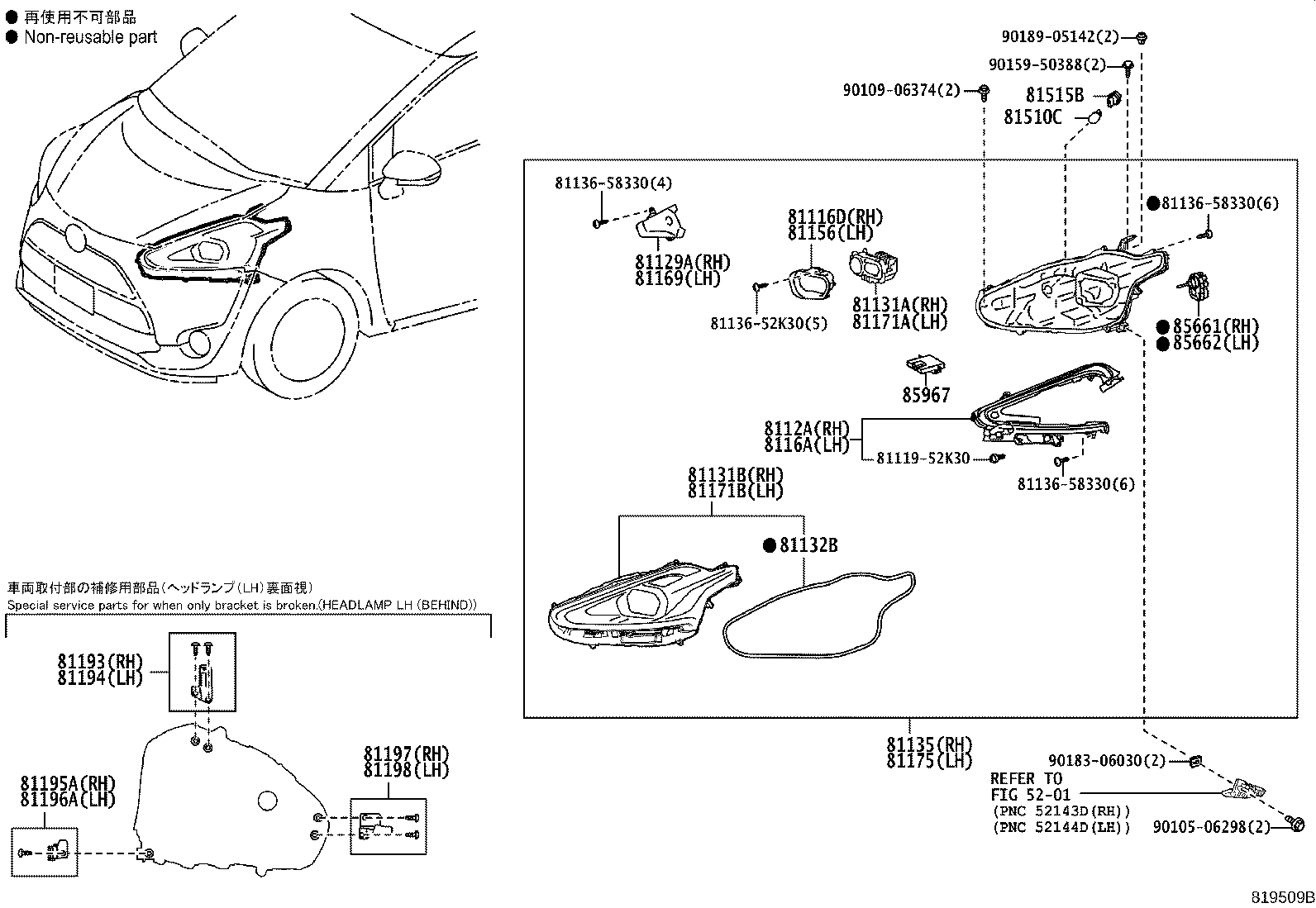

Exploded illustration 819509B 81193 — RETAINER, HEADLAMP PROTECTOR, UPPER RH (7 parts) 81194 — RETAINER, HEADLAMP PROTECTOR, UPPER LH (7 parts) 81195A — RETAINER, HEADLAMP PROTECTOR, LOWER RH (7 parts) 81196A — RETAINER, HEADLAMP PROTECTOR, LOWER LH (7 parts) 81197 — BRACKET, HEADLAMP, LOWER RH (7 parts) 81198 — BRACKET, HEADLAMP, LWR LH (7 parts) 8112A — UNIT, HEADLAMP CLEARANCE LED, NO.1 RH (5 parts) 8116A — UNIT, HEADLAMP CLEARANCE LED, NO.1 LH (5 parts) 81116D — RIM, HEAD LAMP, RH (5 parts) 81156 — RIM, HEADLAMP, LH (5 parts) 81129A — REFLECTOR, HEADLAMP, RH (5 parts) 81169 — REFLECTOR, HEADLAMP, LH (5 parts) 85661 — MOTOR, HEADLAMP LEVELING, RH (4 parts) 85662 — MOTOR, HEADLAMP LEVELING, LH (4 parts) 85967 — COMPUTER, LIGHT CONTROL (5 parts) 81131A — UNIT, HEADLAMP, RH (6 parts) 81171A — UNIT, HEADLAMP, LH (5 parts) 81131B — HEAD LAMP LENS, RH (5 parts) 81132B — GASKET, HEADLAMP LENS (5 parts) 81171B — HEAD LAMP LENS, LH (5 parts) 9018306030 — not listed in this catalogue 81515B — SOCKET, FRONT TURN SIGNAL LAMP (7 parts) 81510C — BULB (FOR FRONT TURN SIGNAL LAMP) (7 parts) 9015950388 — not listed in this catalogue 8113652K30 — not listed in this catalogue 8113658330 — not listed in this catalogue 8111952K30 — not listed in this catalogue 8113658330 — not listed in this catalogue 8113658330 — not listed in this catalogue 9018905142 — not listed in this catalogue 9010906374 — not listed in this catalogue 9010506298 — not listed in this catalogue 81135 — UNIT ASSY, HEADLAMP, RH (10 parts) 81175 — UNIT ASSY, HEADLAMP, LH (11 parts) 5201 — not listed in this catalogue
819509B · 24 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
146 parts on this figure
Part number Description Fitment Price
81116D — Rim, Head Lamp, RH
81116-52K30 note Rim, Head Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥380
81116-52K30 note Rim, Head Lamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥380
81116-52N00 note Rim, Head Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,180
81116-52N00 note Rim, Head Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥1,180
81116-52N00 Rim, Head Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥1,180
81129A — Reflector, Headlamp, RH
81129-52K30 note Reflector, Headlamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,010
81129-52K30 note Reflector, Headlamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,010
81129-52N00 Reflector, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥1,100
81129-52N00 note Reflector, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,100
81129-52N00 note Reflector, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥1,100
8112A — Unit, Headlamp Clearance Led, NO.1 RH
8112A-52K30 note Unit, Headlamp Clearance Led, NO.1 RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥18,400
8112A-52K30 note Unit, Headlamp Clearance Led, NO.1 RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥18,400
8112A-52N00 Unit, Headlamp Clearance Led, NO.1 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥18,400
8112A-52N00 note Unit, Headlamp Clearance Led, NO.1 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥18,400
8112A-52N00 note Unit, Headlamp Clearance Led, NO.1 RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥18,400
81131A — Unit, Headlamp, RH
81140-52K30 note Unit, Headlamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥40,700
81140-52K30 note Unit, Headlamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥40,700
81140-52N00 note Unit, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥33,200
81140-52N00 Unit, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥33,200
81140-52N00 note Unit, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥33,200
81140-52N90 Unit, Headlamp, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥80,700
81131B — Head Lamp Lens, RH
81131-52K30 note Head Lamp Lens, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥27,100
81131-52K30 note Head Lamp Lens, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥27,100
81131-52N00 Head Lamp Lens, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥33,500
81131-52N00 note Head Lamp Lens, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥33,500
81131-52N00 note Head Lamp Lens, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥33,500
81132B — Gasket, Headlamp Lens
81132-58330 note Gasket, Headlamp Lens
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,750
81132-58330 note Gasket, Headlamp Lens
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥4,750
81132-58330 Gasket, Headlamp Lens
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥4,750
81132-58330 note Gasket, Headlamp Lens
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥4,750
81132-58330 note Gasket, Headlamp Lens
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥4,750
81135 — Unit Assy, Headlamp, RH
81130-52K20 Unit Assy, Headlamp, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥37,800
81130-52K30 note Unit Assy, Headlamp, RH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥149,000
81130-52K30 note Unit Assy, Headlamp, RH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥149,000
81130-52K31 note Unit Assy, Headlamp, RH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥103,000
81130-52K31 note Unit Assy, Headlamp, RH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥103,000
81130-52M90 Unit Assy, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥31,400
81130-52M90 Unit Assy, Headlamp, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥31,400
81130-52N00 Unit Assy, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥101,000
81130-52N00 note Unit Assy, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥101,000
81130-52N00 note Unit Assy, Headlamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥101,000
81156 — Rim, Headlamp, LH
81156-52K30 note Rim, Headlamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥380
81156-52K30 note Rim, Headlamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥380
81156-52N00 Rim, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥1,180
81156-52N00 note Rim, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,180
81156-52N00 note Rim, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥1,180
81169 — Reflector, Headlamp, LH
81169-52K30 note Reflector, Headlamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,010
81169-52K30 note Reflector, Headlamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥1,010
81169-52N00 Reflector, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥1,100
81169-52N00 note Reflector, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥1,100
81169-52N00 note Reflector, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥1,100
8116A — Unit, Headlamp Clearance Led, NO.1 LH
8116A-52K30 note Unit, Headlamp Clearance Led, NO.1 LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥18,400
8116A-52K30 note Unit, Headlamp Clearance Led, NO.1 LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥18,400
8116A-52N00 Unit, Headlamp Clearance Led, NO.1 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥18,400
8116A-52N00 note Unit, Headlamp Clearance Led, NO.1 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥18,400
8116A-52N00 note Unit, Headlamp Clearance Led, NO.1 LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥18,400
81171A — Unit, Headlamp, LH
81160-52K30 note Unit, Headlamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥40,700
81160-52K30 note Unit, Headlamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥40,700
81160-52N00 Unit, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥33,200
81160-52N00 note Unit, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥33,200
81160-52N00 note Unit, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥33,200
81171B — Head Lamp Lens, LH
81171-52K30 note Head Lamp Lens, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥27,100
81171-52K30 note Head Lamp Lens, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥27,100
81171-52N00 Head Lamp Lens, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥33,500
81171-52N00 note Head Lamp Lens, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥33,500
81171-52N00 note Head Lamp Lens, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥33,500
81175 — Unit Assy, Headlamp, LH
81170-52K20 Unit Assy, Headlamp, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥37,800
81170-52K30 note Unit Assy, Headlamp, LH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥149,000
81170-52K30 note Unit Assy, Headlamp, LH
2015-06 → 2017-01 ended
NCP175,NHP170,NSP17# ¥149,000
81170-52K31 note Unit Assy, Headlamp, LH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥103,000
81170-52K31 note Unit Assy, Headlamp, LH
2017-01 → 2018-09 ended
NCP175,NHP170,NSP17# ¥103,000
81070-52N90 Unit Assy, Headlamp, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥80,700
81170-52M90 Unit Assy, Headlamp, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥31,400
81170-52M90 Unit Assy, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥31,400
81170-52N00 Unit Assy, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥101,000
81170-52N00 note Unit Assy, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥101,000
81170-52N00 note Unit Assy, Headlamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥101,000
81193 — Retainer, Headlamp Protector, Upper RH
81193-52270 Retainer, Headlamp Protector, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81193-52280 note Retainer, Headlamp Protector, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81193-52280 note Retainer, Headlamp Protector, Upper RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81193-52270 Retainer, Headlamp Protector, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥770
81193-52280 Retainer, Headlamp Protector, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥770
81193-52280 note Retainer, Headlamp Protector, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥770
81193-52280 note Retainer, Headlamp Protector, Upper RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥770
81194 — Retainer, Headlamp Protector, Upper LH
81194-52260 Retainer, Headlamp Protector, Upper LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81194-52270 note Retainer, Headlamp Protector, Upper LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81194-52270 note Retainer, Headlamp Protector, Upper LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥770
81194-52260 Retainer, Headlamp Protector, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥770
81194-52270 Retainer, Headlamp Protector, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥770
81194-52270 note Retainer, Headlamp Protector, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥770
81194-52270 note Retainer, Headlamp Protector, Upper LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥770
81195A — Retainer, Headlamp Protector, Lower RH
81195-52200 Retainer, Headlamp Protector, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥480
81195-52210 note Retainer, Headlamp Protector, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥640
81195-52210 note Retainer, Headlamp Protector, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥640
81195-52200 Retainer, Headlamp Protector, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥480
81195-52210 Retainer, Headlamp Protector, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥640
81195-52210 note Retainer, Headlamp Protector, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥640
81195-52210 note Retainer, Headlamp Protector, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥640
81196A — Retainer, Headlamp Protector, Lower LH
81196-52180 Retainer, Headlamp Protector, Lower LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥480
81196-52190 note Retainer, Headlamp Protector, Lower LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥640
81196-52190 note Retainer, Headlamp Protector, Lower LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥640
81196-52180 Retainer, Headlamp Protector, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥480
81196-52190 Retainer, Headlamp Protector, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥640
81196-52190 note Retainer, Headlamp Protector, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥640
81196-52190 note Retainer, Headlamp Protector, Lower LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥640
81197 — Bracket, Headlamp, Lower RH
81197-52080 Bracket, Headlamp, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥480
81197-52090 note Bracket, Headlamp, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
81197-52090 note Bracket, Headlamp, Lower RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
81197-52080 Bracket, Headlamp, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥480
81197-52090 note Bracket, Headlamp, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥540
81197-52090 note Bracket, Headlamp, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥540
81197-52090 Bracket, Headlamp, Lower RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥540
81198 — Bracket, Headlamp, Lwr LH
81198-52080 Bracket, Headlamp, Lwr LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥480
81198-52090 note Bracket, Headlamp, Lwr LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
81198-52090 note Bracket, Headlamp, Lwr LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥540
81198-52080 Bracket, Headlamp, Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥480
81198-52090 Bracket, Headlamp, Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥540
81198-52090 note Bracket, Headlamp, Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥540
81198-52090 note Bracket, Headlamp, Lwr LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥540
81510C — Bulb (FOR FRONT TURN SIGNAL LAMP)
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥300
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥300
90981-15021 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥300
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥300
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥300
90981-15011 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥300
90981-15021 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥300
81515B — Socket, Front Turn Signal Lamp
81515-42050 note Socket, Front Turn Signal Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥660
81515-42050 note Socket, Front Turn Signal Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥660
90075-60028 Socket, Front Turn Signal Lamp
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥610
81515-42050 note Socket, Front Turn Signal Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥660
81515-42050 note Socket, Front Turn Signal Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥660
81515-42050 Socket, Front Turn Signal Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥660
90075-60028 Socket, Front Turn Signal Lamp
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥610
85661 — Motor, Headlamp Leveling, RH
85661-12010 Motor, Headlamp Leveling, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-68011 note Motor, Headlamp Leveling, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-68011 note Motor, Headlamp Leveling, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-12010 Motor, Headlamp Leveling, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥3,710
85662 — Motor, Headlamp Leveling, LH
85661-12010 Motor, Headlamp Leveling, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-68011 note Motor, Headlamp Leveling, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-68011 note Motor, Headlamp Leveling, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥3,710
85661-12010 Motor, Headlamp Leveling, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥3,710
85967 — Computer, Light Control
85967-52070 note Computer, Light Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥11,900
85967-52070 note Computer, Light Control
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥11,900
85967-33050 Computer, Light Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥10,800
85967-33050 note Computer, Light Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥10,800
85967-33050 note Computer, Light Control
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥10,800
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
