Toyota Sienta

2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan

Supported model Data version 2023-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

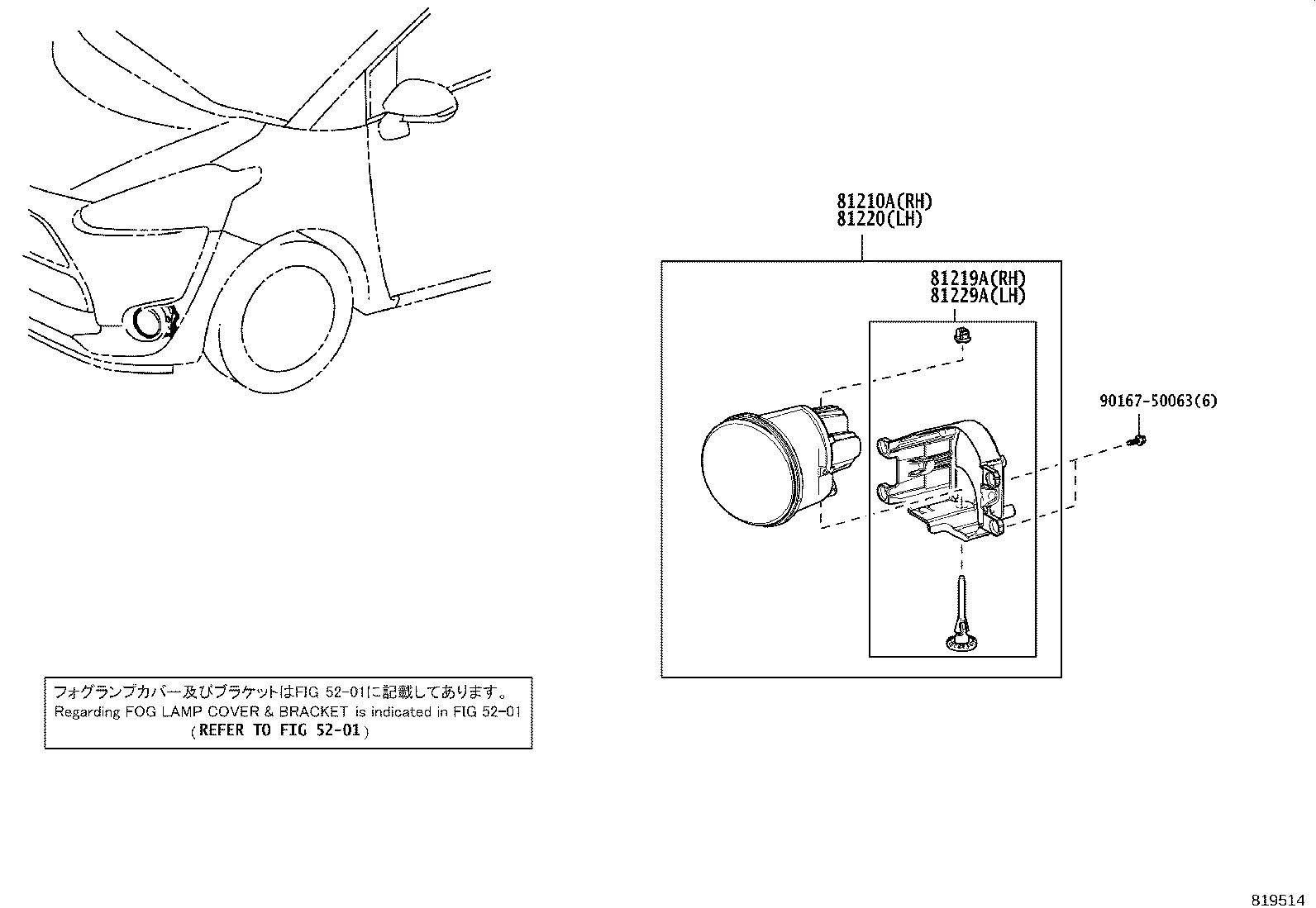

Exploded illustration 819514 81210A — LAMP ASSY, FOG, RH (9 parts) 81220 — LAMP ASSY, FOG, LH (9 parts) 81229A — BRACKET, FOG LAMP, LH (6 parts) 81219A — BRACKET, FOG LAMP, RH (6 parts) 9016750063 — not listed in this catalogue 5201 — not listed in this catalogue
819514 · 4 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
81210A — Lamp Assy, Fog, RH
81210-47010 note Lamp Assy, Fog, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,900
81210-47010 note Lamp Assy, Fog, RH
2016-07 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,900
81210-47010 note Lamp Assy, Fog, RH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,900
81210-48051 note Lamp Assy, Fog, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥15,400
81210-48051 note Lamp Assy, Fog, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥15,400
81210-48051 note Lamp Assy, Fog, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥15,400
81210-48051 note Lamp Assy, Fog, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥15,400
81210-48051 Lamp Assy, Fog, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥15,400
81210-48051 note Lamp Assy, Fog, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥15,400
81219A — Bracket, Fog Lamp, RH
81219-48051 note Bracket, Fog Lamp, RH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥970
81219-48051 Bracket, Fog Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥970
81219-48051 note Bracket, Fog Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥970
81219-48051 note Bracket, Fog Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥970
81219-48051 note Bracket, Fog Lamp, RH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥970
81219-48051 note Bracket, Fog Lamp, RH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥970
81220 — Lamp Assy, Fog, LH
81220-47010 note Lamp Assy, Fog, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,900
81220-47010 note Lamp Assy, Fog, LH
2016-07 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,900
81220-47010 note Lamp Assy, Fog, LH
2015-06 → 2018-09 ended
NCP175,NHP170,NSP17# ¥8,900
81220-48051 note Lamp Assy, Fog, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥15,400
81220-48051 Lamp Assy, Fog, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥15,400
81220-48051 note Lamp Assy, Fog, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥15,400
81220-48051 note Lamp Assy, Fog, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥15,400
81220-48051 note Lamp Assy, Fog, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥15,400
81220-48051 note Lamp Assy, Fog, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥15,400
81229A — Bracket, Fog Lamp, LH
81229-48051 note Bracket, Fog Lamp, LH
2018-09 → 2020-06 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥970
81229-48051 Bracket, Fog Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP170 FNGCR,GCERO ¥970
81229-48051 note Bracket, Fog Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥970
81229-48051 note Bracket, Fog Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,FNBSX,G,WKG,WKX,X ¥970
81229-48051 note Bracket, Fog Lamp, LH
2018-09 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSG,G,WKG ¥970
81229-48051 note Bracket, Fog Lamp, LH
2020-06 → 2022-07 ended
NCP175,NHP170,NSP17# FNBSX,WKX,X ¥970
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
