Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

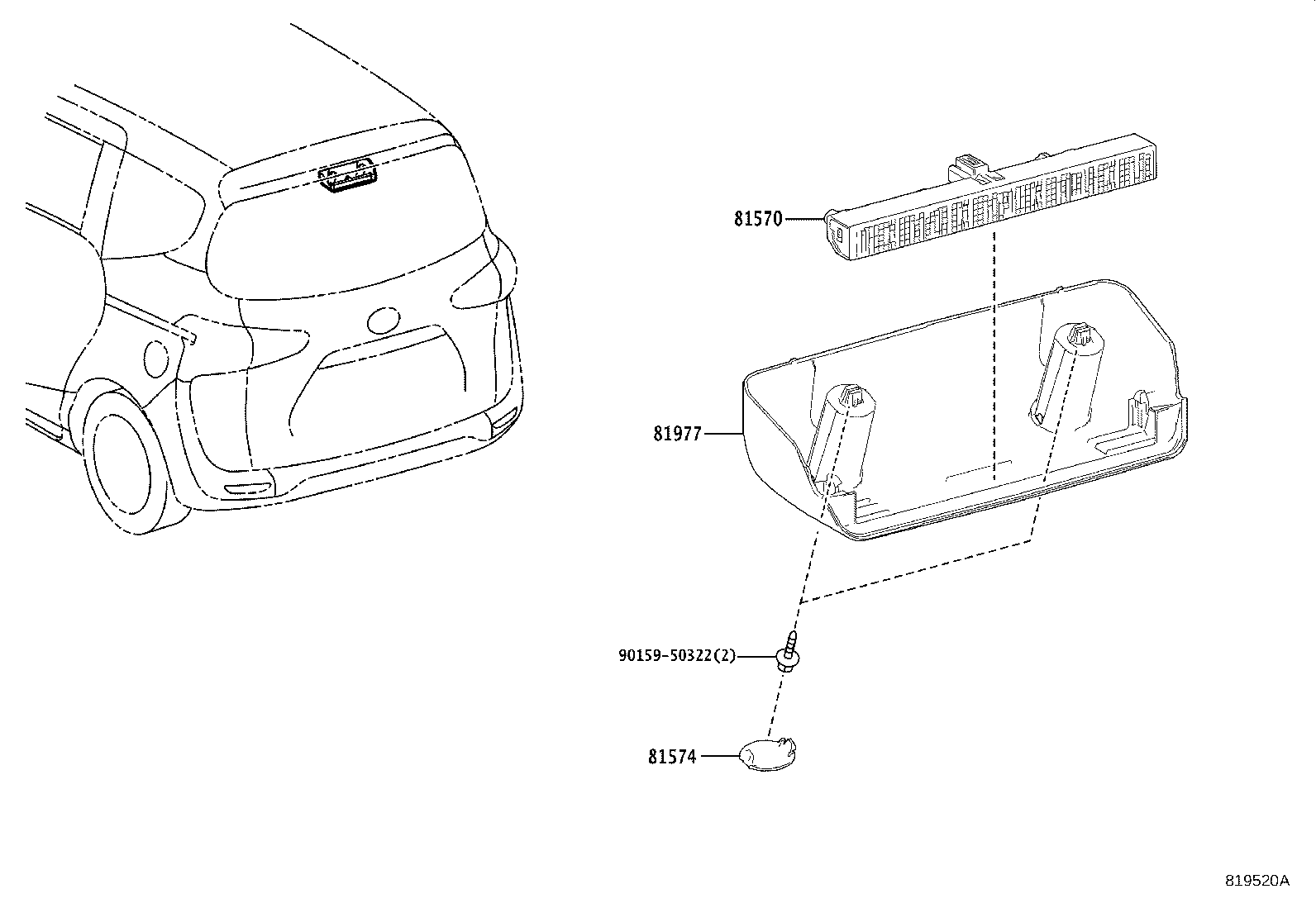

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81570 — Lamp Assy, Center Stop | ||||
| 81570-12430 note |
Lamp Assy, Center Stop
2015-06 → 2018-09
ended
|
NCP175,NSP170 X | ¥5,800 | |
| 81570-12440 |
Lamp Assy, Center Stop
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥7,400 | |
| 81570-12440 |
Lamp Assy, Center Stop
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥7,400 | |
| 81574 — Cover, Center Stop Lamp | ||||
| 81952-52050-C0 note |
Cover, Center Stop Lamp
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥410 | |
| 81952-52050-C0 note |
Cover, Center Stop Lamp
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 G | ¥410 | |
| 81952-52050-C0 note |
Cover, Center Stop Lamp
2018-09 → 2022-07
ended
|
NHP170,NSP170 FNBSG | ¥410 | |
| 81952-52050-C0 note |
Cover, Center Stop Lamp
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# WKG,WKX,X | ¥410 | |
| 81952-52050-C0 note |
Cover, Center Stop Lamp
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO | ¥410 | |
| 81977 — Cover, Center Stop Lamp | ||||
| 81977-52160-C0 note |
Cover, Center Stop Lamp
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥2,210 | |
| 81977-52160-C0 note |
Cover, Center Stop Lamp
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 G | ¥2,210 | |
| 81977-52160-C0 note |
Cover, Center Stop Lamp
2018-09 → 2022-07
ended
|
NHP170,NSP170 FNBSG | ¥2,210 | |
| 81977-52160-C0 note |
Cover, Center Stop Lamp
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# WKG,WKX,X | ¥2,210 | |
| 81977-52160-C0 note |
Cover, Center Stop Lamp
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP170 FNBSX,FNGCR,GCERO | ¥2,210 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
