Toyota Sienta
2015-06 → 2022-07 · chassis NCP175,NHP170,NSP17# · catalogue 119130 · Japan
Supported model
Data version 2023-09

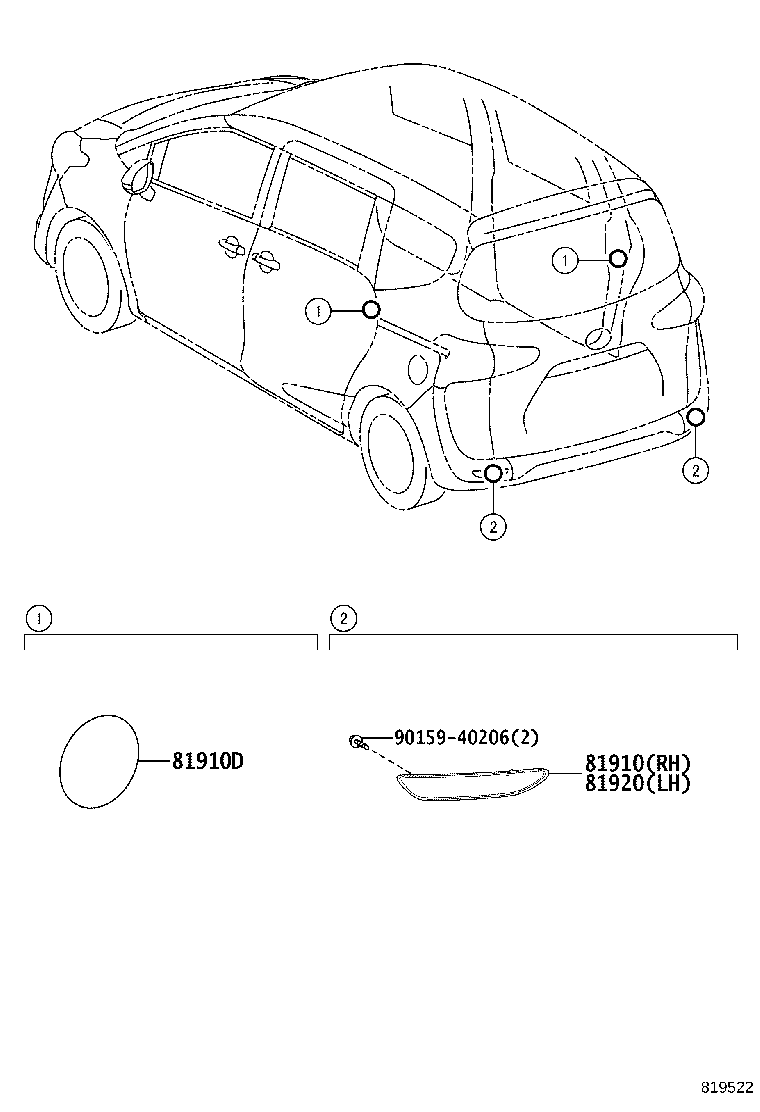

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81910 — Reflector Assy, Reflex, RH | ||||
| 81910-52030 |
Reflector Assy, Reflex, RH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,420 | |
| 81910-52030 |
Reflector Assy, Reflex, RH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,420 | |
| 81910D — Reflector Assy, Reflex, Rear | ||||
| 81910-21030 |
Reflector Assy, Reflex, Rear
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥840 | |
| 81910-21030 |
Reflector Assy, Reflex, Rear
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥840 | |
| 81920 — Reflector Assy, Reflex, LH | ||||
| 81920-52030 |
Reflector Assy, Reflex, LH
2015-06 → 2018-09
ended
|
NCP175,NHP170,NSP17# | ¥1,420 | |
| 81920-52030 |
Reflector Assy, Reflex, LH
2018-09 → 2022-07
ended
|
NCP175,NHP170,NSP17# | ¥1,420 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
